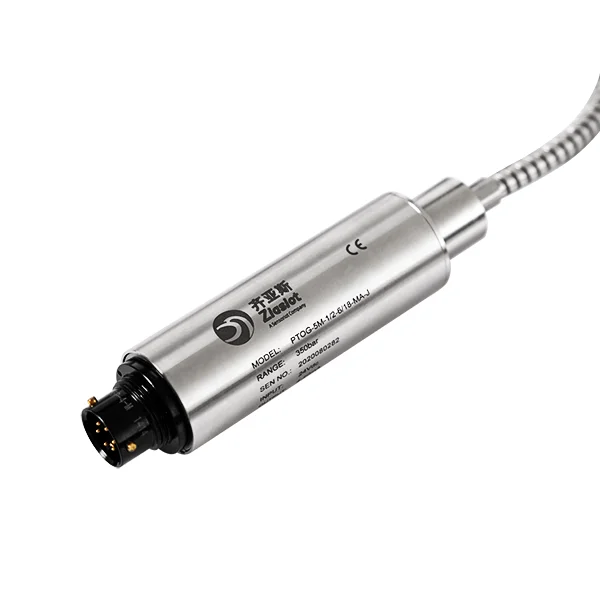

PTOG melt pressure transducer chemical fiber rubber plastic extrusion Melt Pressure Sensor
- Category: >>>
- Supplier: Shanghai Sensoriot Technology Co. Ltd.
Share on (1600250632174):
Product Overview
Description
Products Show
Features:
Accuracy is higher than ±0.5%;

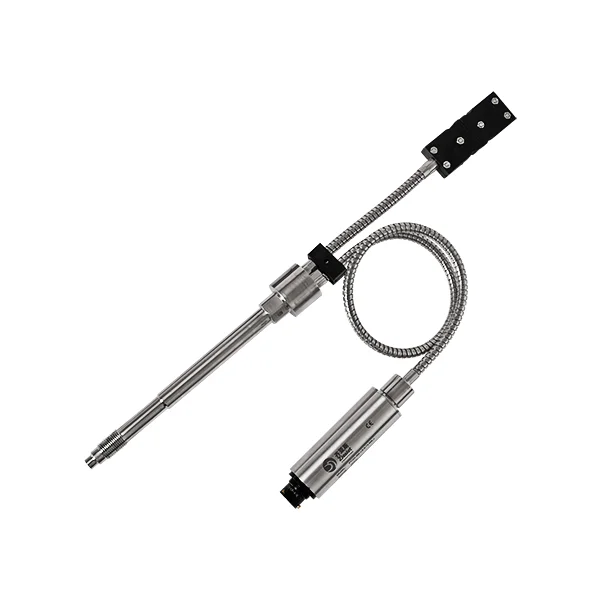

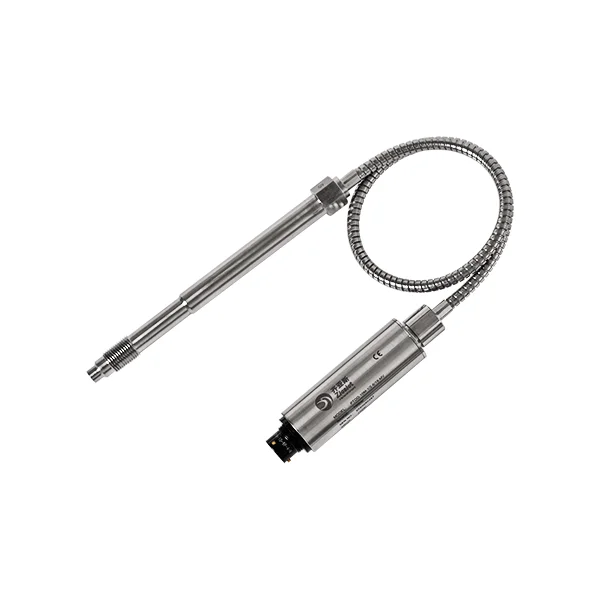

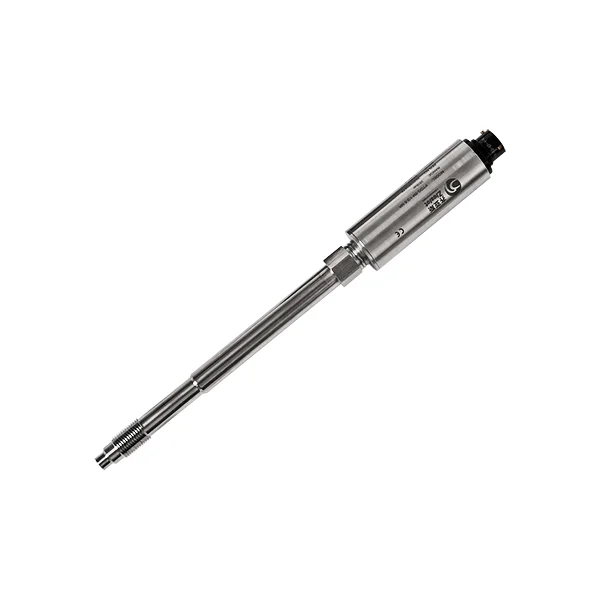

Rigid/Flexible stem optional structure,can measure the pressure and temperature in one point,flexible conduit and special
diaphragm isolation;
It can be utilized together with the PY Series Intelligent Digital Pressure Instrument.
Zero&full scale adjustment;
80% Internal calibration;
Amplify signal output can be connected with PLC
Stainless steel welding,easy to install and use;
Protection grade IP65;
Alloy filled or Mercury filled is optional;
Good stability and anti-jamming capability
The standard diaphragm is 17-4PH, and a variety of material diaphragms can be selected;
Good stability and repeatability.
Accuracy is higher than ±0.5%;
Rigid/Flexible stem optional structure,can measure the pressure and temperature in one point,flexible conduit and special
diaphragm isolation;
It can be utilized together with the PY Series Intelligent Digital Pressure Instrument.
Zero&full scale adjustment;
80% Internal calibration;
Amplify signal output can be connected with PLC
Stainless steel welding,easy to install and use;
Protection grade IP65;
Alloy filled or Mercury filled is optional;
Good stability and anti-jamming capability
The standard diaphragm is 17-4PH, and a variety of material diaphragms can be selected;
Good stability and repeatability.
Discription:
This series of high-temperature melt pressure sensor and pressure transmitter adopts Wheatstone bridge principle, can output a
variety of signals, is simple to install, has good product performance, and is widely used in chemical fiber industry, rubber
industry and plastic extrusion industry.
variety of signals, is simple to install, has good product performance, and is widely used in chemical fiber industry, rubber
industry and plastic extrusion industry.
Application:
for extruders, for injection molding machines, for the plastics industry, for extrusion lines, melt, for melt
for extruders, for injection molding machines, for the plastics industry, for extrusion lines, melt, for melt
Product Paramenters
Output signal | 2.5mV/V、3.33mV/V | 4～20mA | 0～10V、0～5V、0.1 ～ 5.1V、0.1～10.1V | 4～20mA+Relay | |||
Signal category | Four-wire | Two-wire | Three-wire | Three-wire | |||
Pressure range | 0～10MPa-0～200MPa | 0～3.5MPa-0～200MPa | |||||
Standard accuracy | ±0.5%FSO | ||||||
Overload pressure | 1.5 times rated pressure | ||||||
Voltage | 6～12Vdc(Standard10Vdc) | 12～30Vdc | 15～30Vdc | 15～30Vdc | |||
Insulation resistance | ＞1000MΩ（50Vdc） | ||||||
Calibration signal | 80%FSO | ||||||
Diaphragm material | 17-4PH(Standard) | ||||||
Diaphragm temp | 400℃ | ||||||
Shell temperature range | -25～85℃ | ||||||
E-connection | 6PIN（Standard） | ||||||
Protection level | IP65 | ||||||
Process connection | 1/2-20UNF(Standard) | ||||||
Thermocouple | J Type | ||||||
Installation torque | ＜40Nm | ||||||
