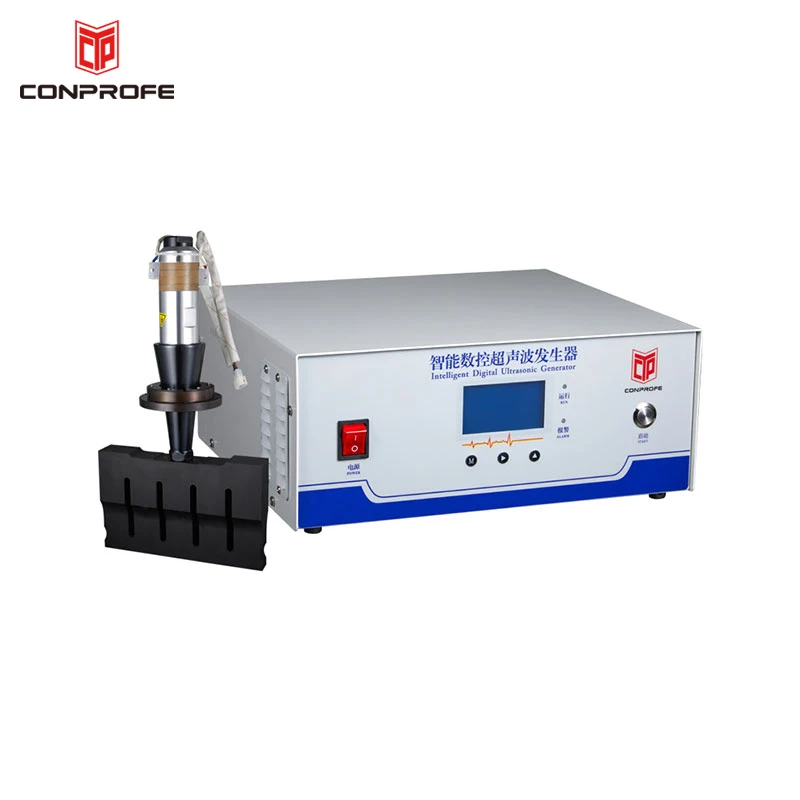

Ultrasonic Horn Transducer Plastic Welding Ultrasonic Mask Spot Welding Machine
- Category: Plastic Welders >>>
- Supplier: Conprofe Technology Group Co. Ltd.
Share on (1600250633869):
Product Overview
Description
Ultrasonic Horn Transducer Plastic Welding Ultrasonic Mask Spot Welding Machine
Product Description

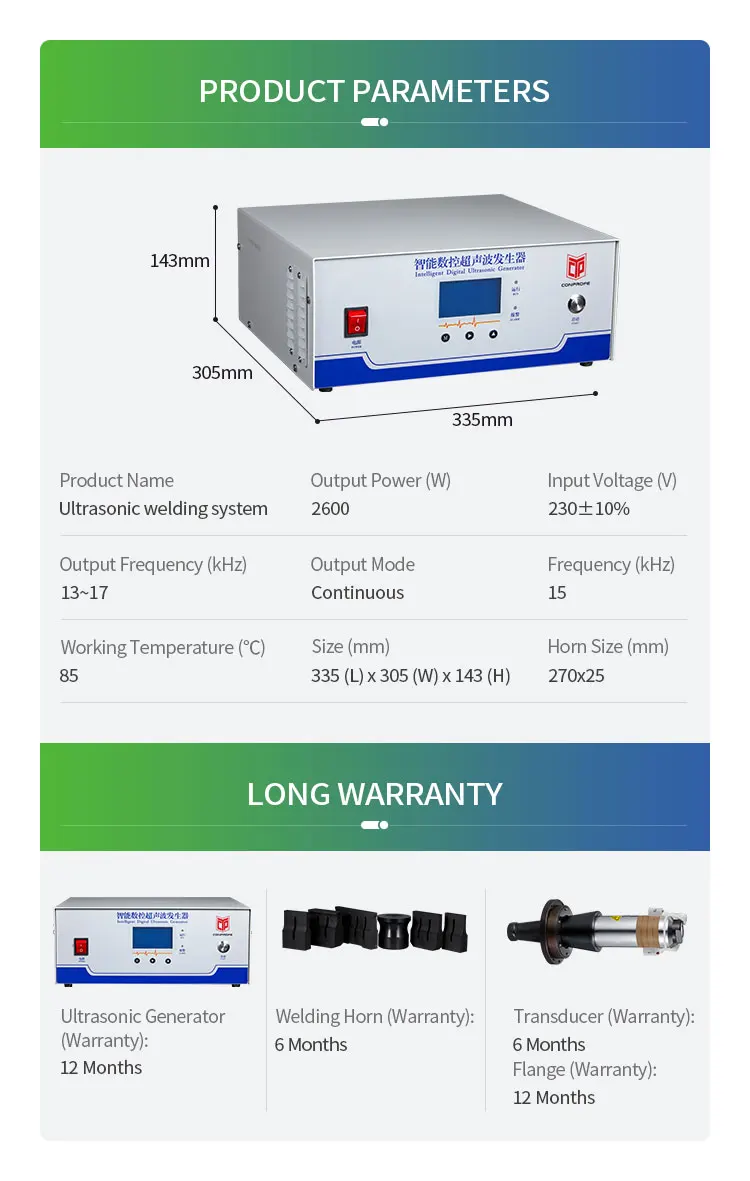

| Product Name | Ultrasonic welding system for fish-shaped M A S K |
| Item No. | UW15-1B-CFN-UWBT15-270x25L |
| Output power (W) | 2600 |
| Frequency (kHz) | 15 |
| Input Voltage (V) | 230±10% |
| Output frequency (kHz) | 13~17 |
| Max. Working Temperature (℃) | 85 |

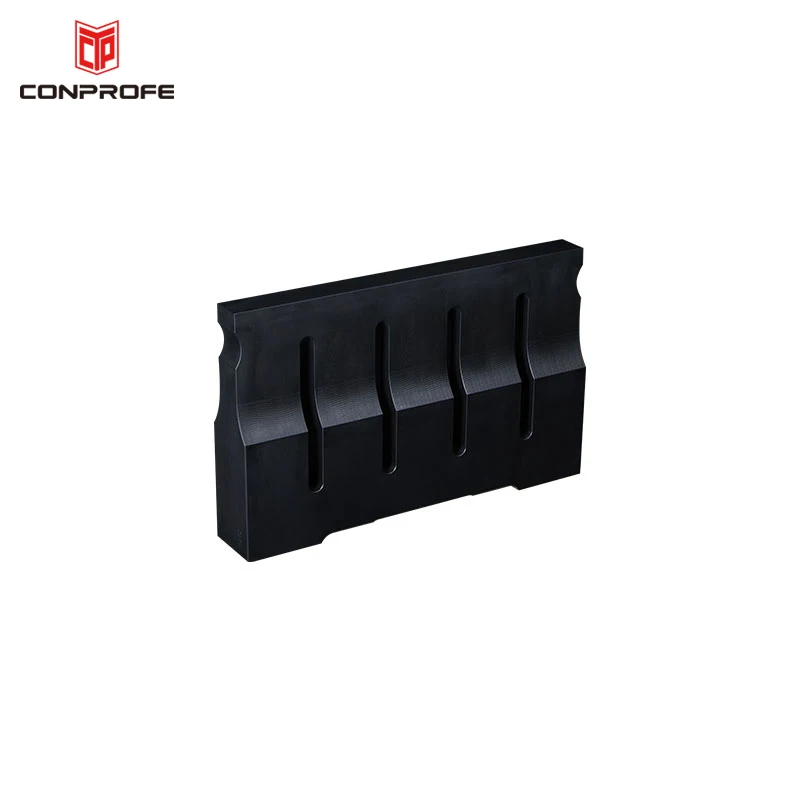

| Horn size (mm) | 270 x 25 |
| Ouput Mode | Continuous |
| Machining Type | Ultrasonic Welding |
| Application | Non-woven Fabric Welding |
| Warranty (Ultrasonic Generator) | 12 Months |
| Warranty (Transducer) | 6 Months |
| Warranty (Flange) | 12 Months |
| Warranty (Horn) | 6 Months |
| Net Weight (kg) | 20.8 |

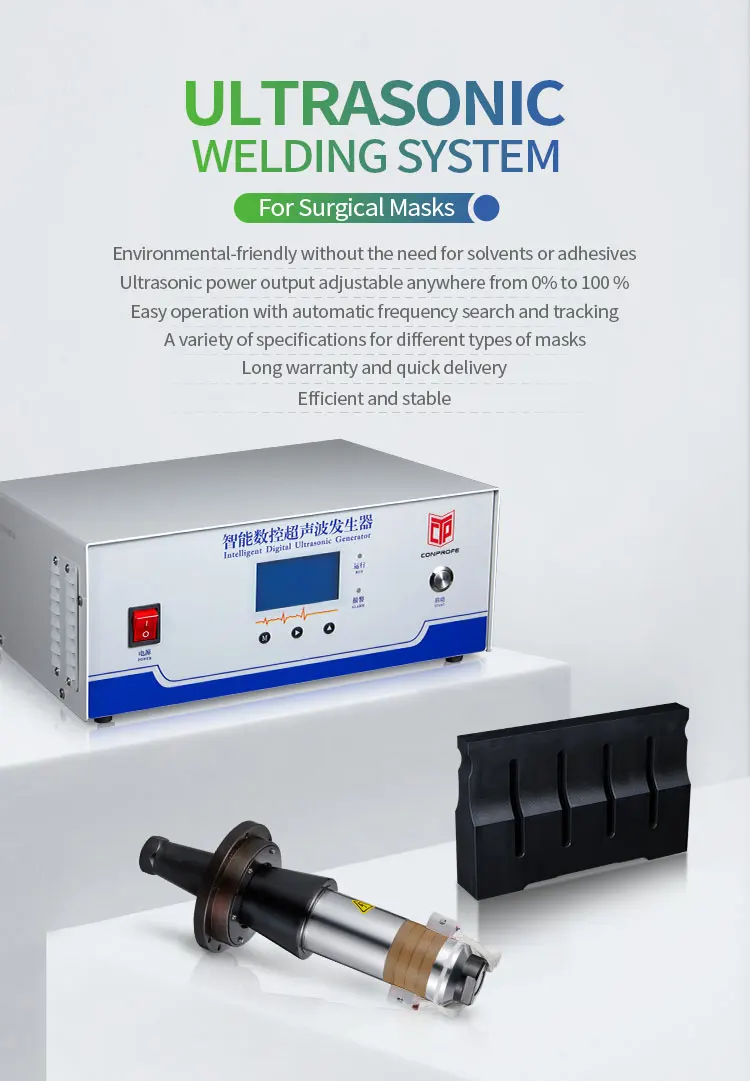

Our advantage:

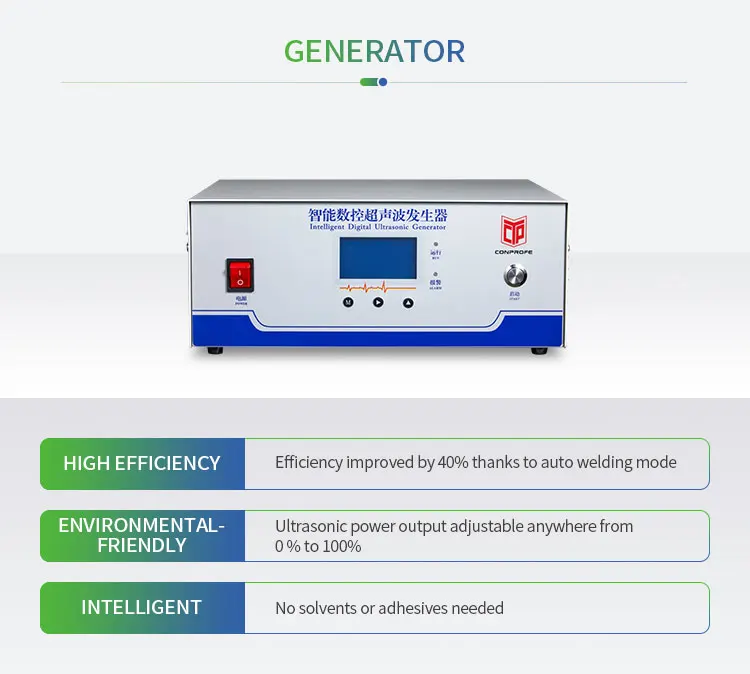

1.Automatic frequency search and frequency tracking provided by the intelligent digital system
2.Reliable welding performance and longer service life ensured by anti-rust heat treatment
3.Stepless adjustment of amplitude from 0% to 100% to match different product types

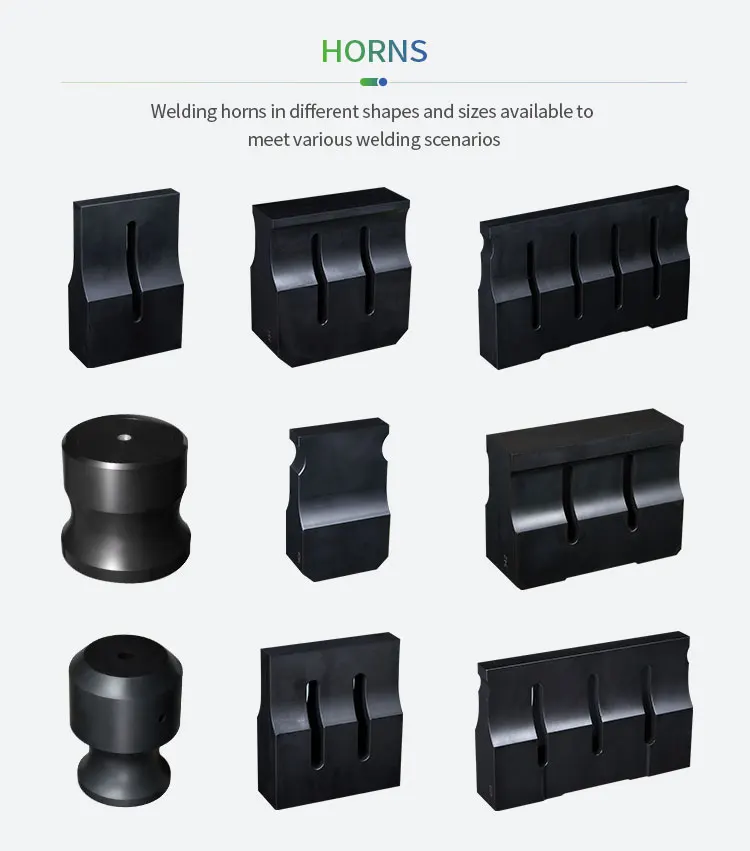

4.Welding horns in different shapes and sizes avaliable to meet various welding demands
5.Eco-friendly solution as no use of solvents or adhesive
6.More than 280,000 sets sold in the 1st half of 2020
7.Endorsed by 1,800+ customers from more than 40 countries and regions
2.Reliable welding performance and longer service life ensured by anti-rust heat treatment
3.Stepless adjustment of amplitude from 0% to 100% to match different product types
4.Welding horns in different shapes and sizes avaliable to meet various welding demands
5.Eco-friendly solution as no use of solvents or adhesive
6.More than 280,000 sets sold in the 1st half of 2020
7.Endorsed by 1,800+ customers from more than 40 countries and regions
Detailed Images
