Product Overview

Description

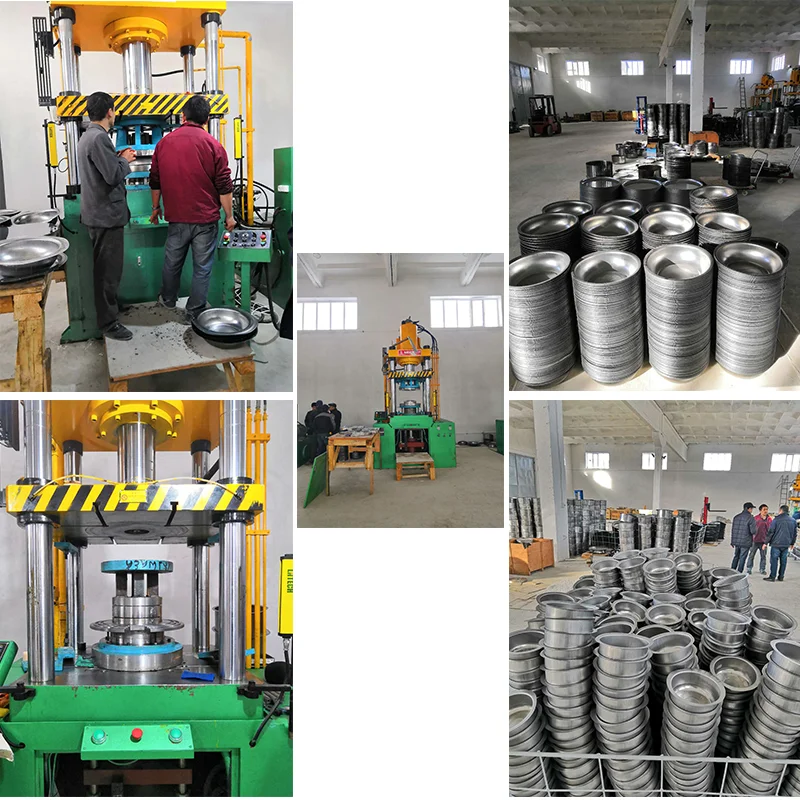

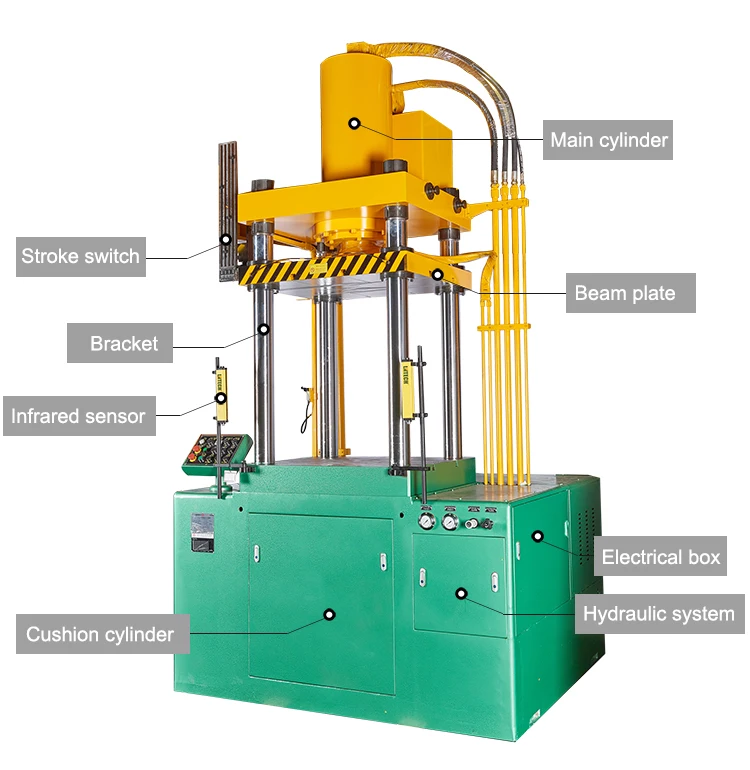

200T 4 column deep drawing hydraulic press machine for stainless steel milk pot

Advantages:



     1. Efficiency
         8-12s/pcs(Dia. x H: 200mm x 100mm),about 2500pcs/8hours

     2. Productions succeed 99%
         Save cost in as less damage as possible

     3. Feedback by clients that machine life over 10 years

     4. Easy maintenance
         Semi-auto lubricate system

     5. Easy operation
         Unskilled ladies or freshman can operate the machine

     6. Three safe-protection systems
         A. Double start button
         B. Infrared sensor protect the workers safe
         C. Max stroke limited sensor protects the main cylinder and workers

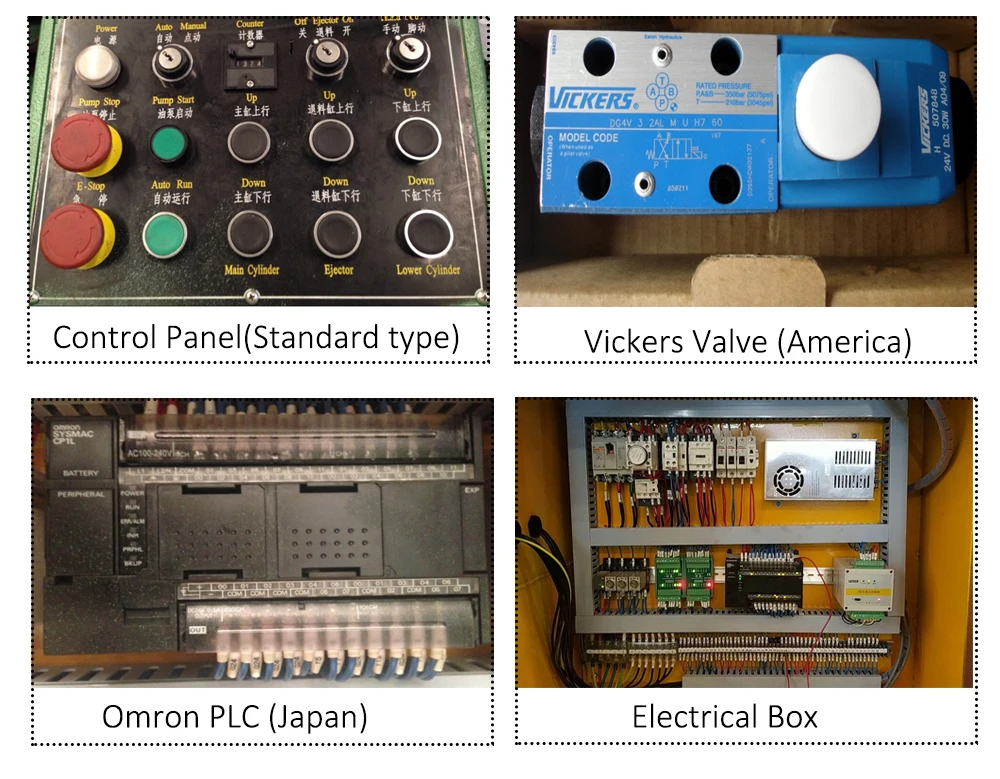

     7. Most of components are international brands: Omron,
         Schneider, Mitsubishi or Idec



Item		Unit	YZ28G-200	YZ28G-250	YZ28G-300	YZ28G-350
Main cylinder force		KN	1500	1500	2000	2500
Rating working pressure of hydraulic system		MPA	21	21	25	21
Return force		KN	140/110	140/110	180-125	180
Cushion force		KN	500	1000	1000	1000
Max. working pressure of cushion cylinder		MPA	20	26	26	26
Ejector force		KN	30	30	30	30
Max. stroke of cushion cylinder		MM	300	300	300	300
Max. stroke of ejector		MM	200	200	200	200
Max. stroke of slider table		MM	550	550	550	600
Open height	Max.	MM	950	950	1000	1110
	Min	MM	400	400	450	510
Slide speed	Down	MM/S	250	250	330	245
	Pressure	MM/S	25	25	20~29	(13)19/33
	Up	MM/S	255	255	290	250
Cushion speed	Up	MM/S	115	85	95	100
	Down	MM/S	down with slide table	down with slide table	down with slide table	down with slide table
Power of motor		KW	30	30	37	37
Dimension of working table(LR*FB)		MM2	700*880	700*880	750*900	800*990
Dimention of machine(LR*FR*H)		MM2	1950*2100*3700	1950*2100*3700	2250*2350*4100	2100*2400*4200
