MZ73033 high quality woodworking vertical cabinet hinge hole drilling machine with three head

Product Overview

Description

Introduction of MZ73033 high quality woodworking vertical cabinet hinge hole drilling machine with three head

hinge drills are mainly used for hinge drilling of furniture door panels, such as wardrobe door panels, cabinet doors, office furniture door panels, etc.

Parameter of MZ73033 high quality woodworking vertical cabinet hinge hole drilling machine with three head

Product name	three head hinge drilling
Model	MZ73033
Max Drilling Diameter	35mm
Max. Drilling depth	50~60mm
Spindle Speed	2840rmp
Voltage	380V
Compressed air pressure	0.6~0.8Mpa
Motor power	1.5*3kw
Min. Processing Pitch	120*32mm
Installation Pitch of Drilling Head	10mm
Dimension	2680*980*1680mm
Weight	360kg
We also have single head,double head and four head hinged drill, your demand can be customized.

Feature of MZ73033 high quality woodworking vertical cabinet hinge hole drilling machine with three head

1. The hinged drill bag is specially designed for low noise and durability.

2. With a precision scale, adjust the t-bar according to the needs of the work.

3. Pure copper motor, sliding with precision guide rails,

4. Foot switch control, safe and labor-saving

5. The machine can process three holes in the vertical position at one time, one of which is a hinged hole and two of which are screw holes. 1 position can be drilled with 1 door hinge hole,The hinge eye and the fixing screws on both sides can be drilled at one time, which can greatly improve the production efficiency of the furniture.

6. Precise positioning of the buckle and pneumatic pressing device enhances the precision of the product and achieves the perfect standard for the hinged eye.

7. Safe and effortless with foot switch control,Convenient and flexible operation, stable and reliable operation

8. The machine does not have a calibration device to ensure the drilling depth

9. Beautiful appearance, novel design, high production precision

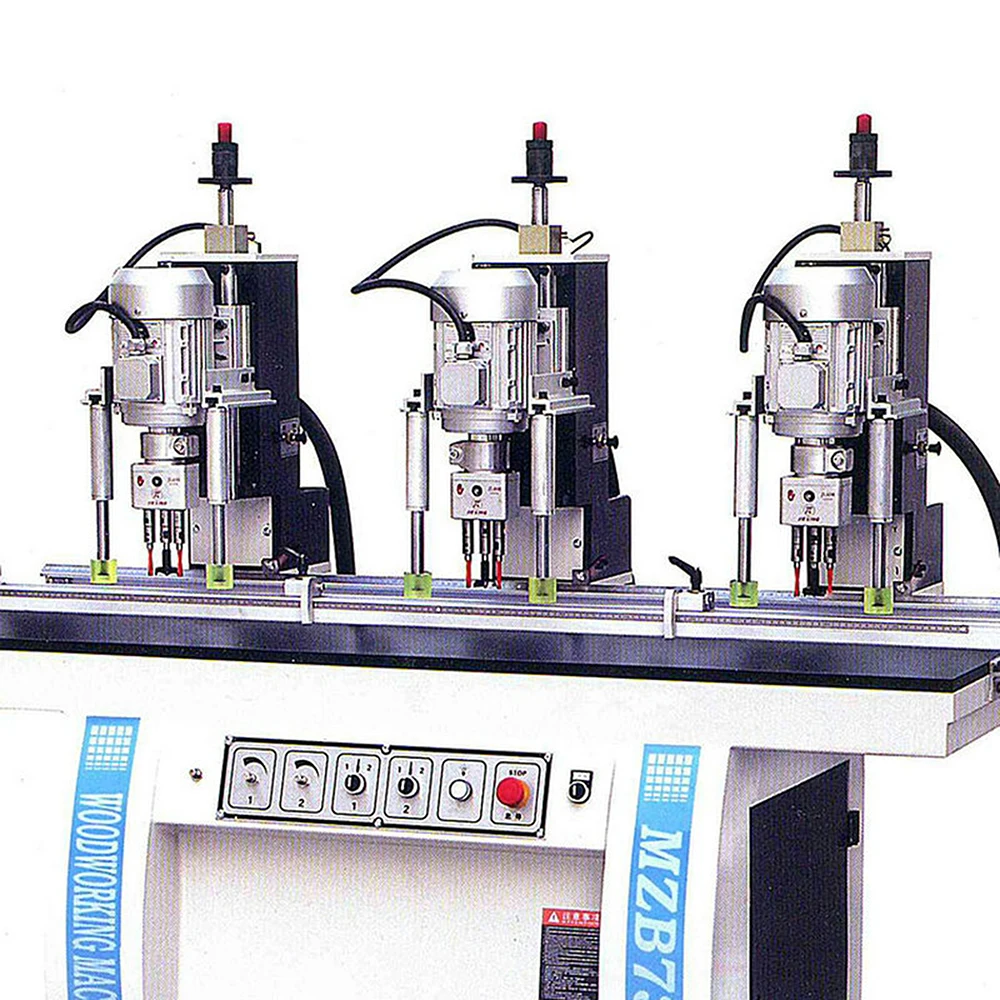

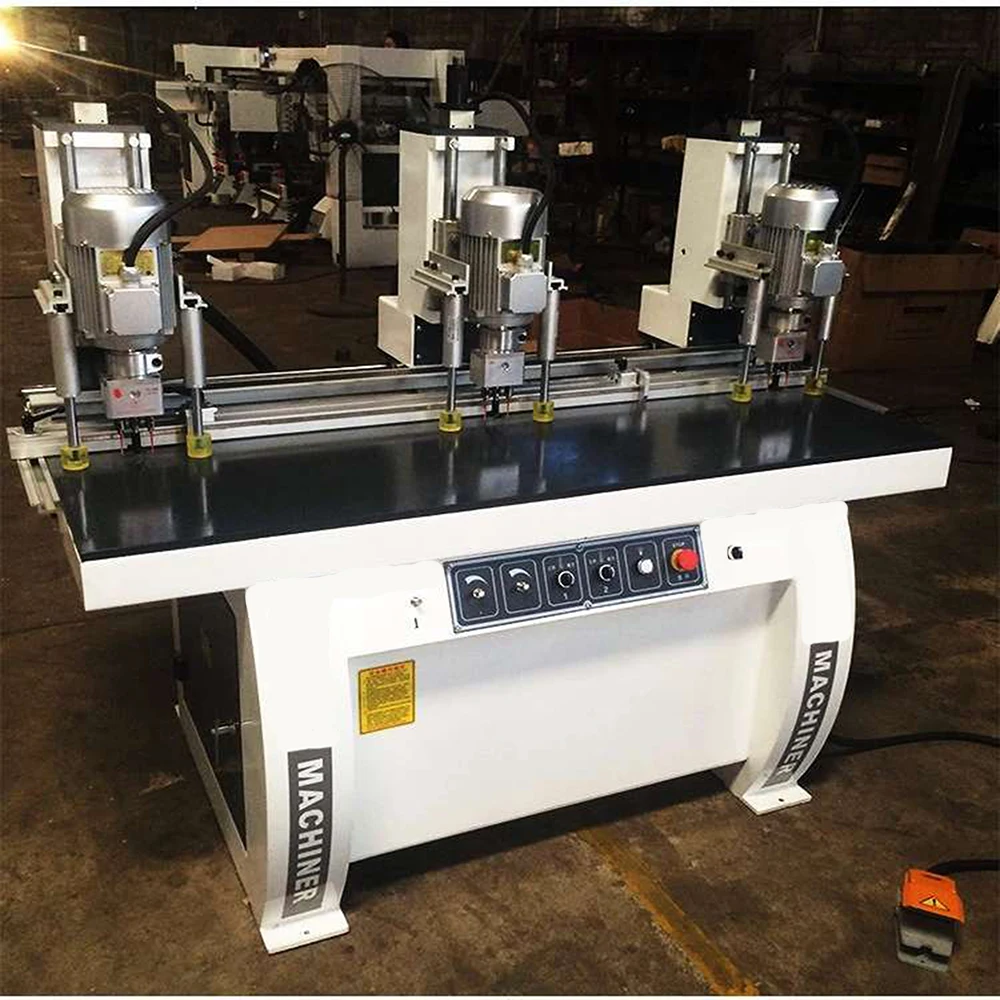

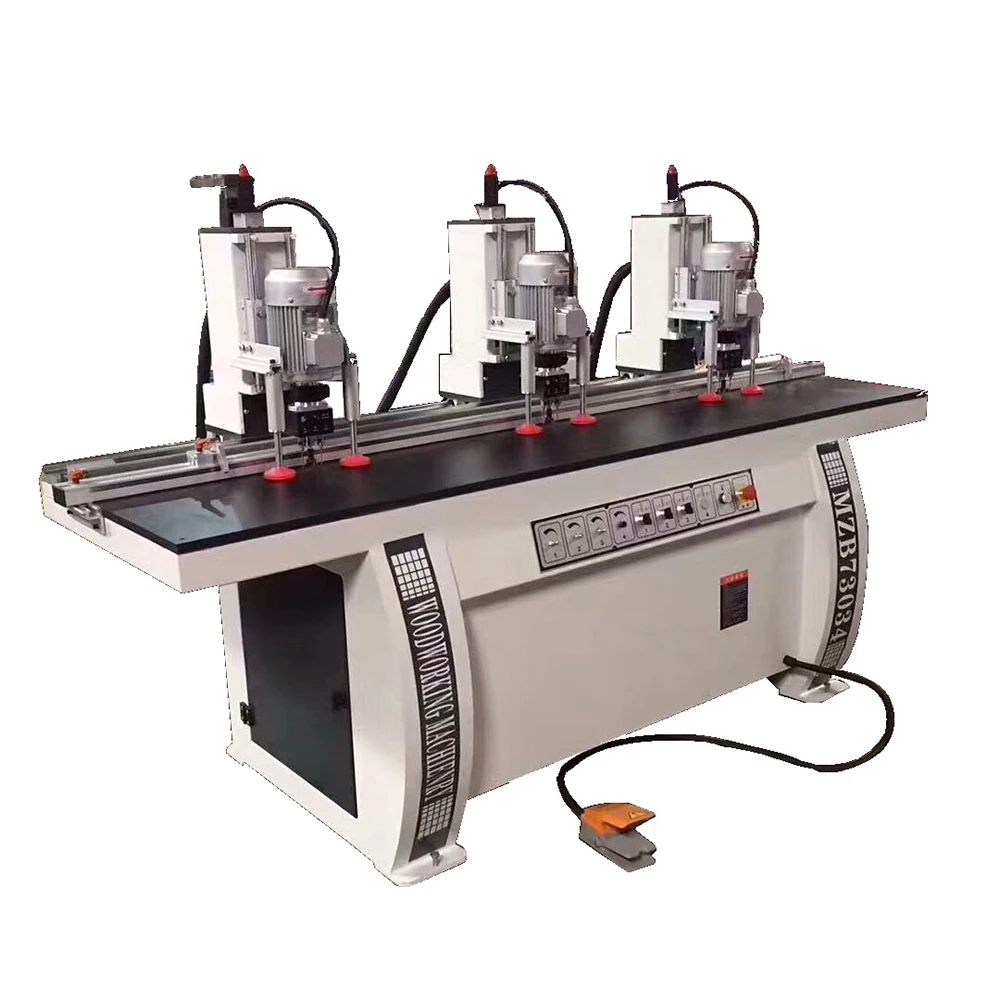

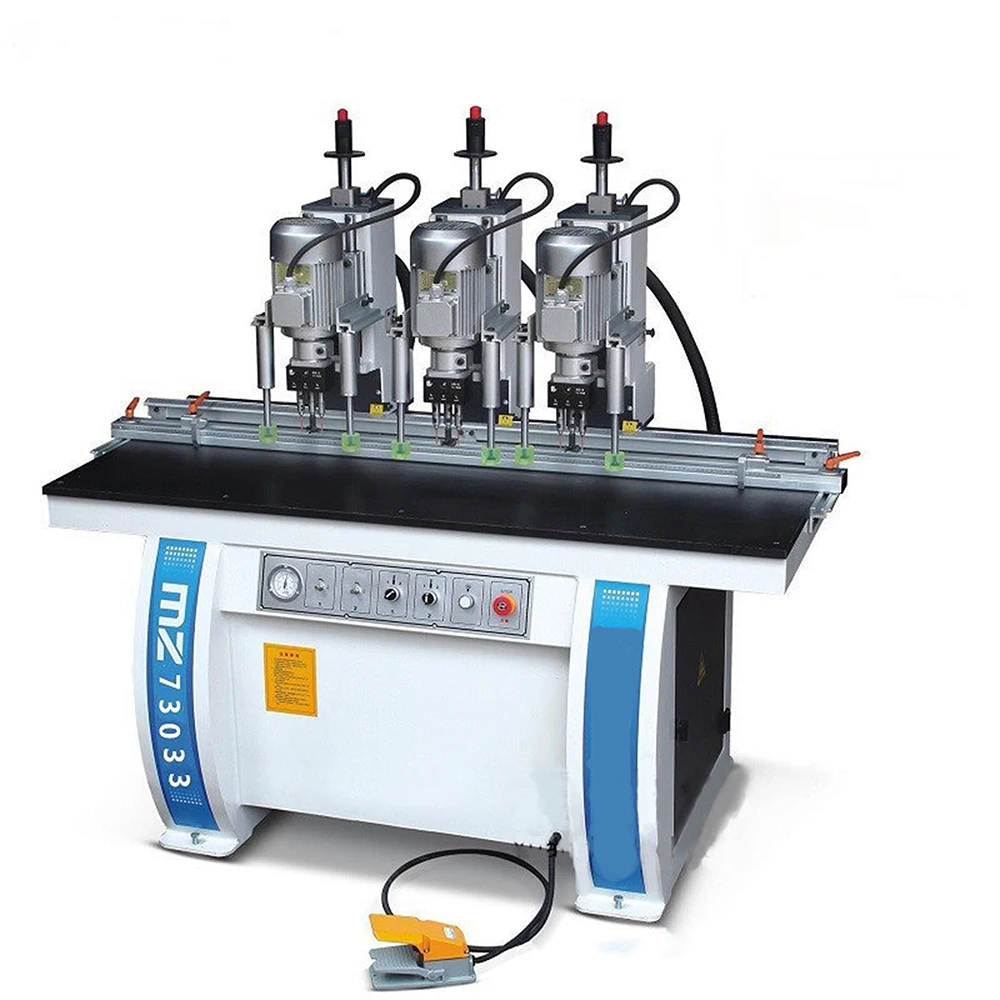

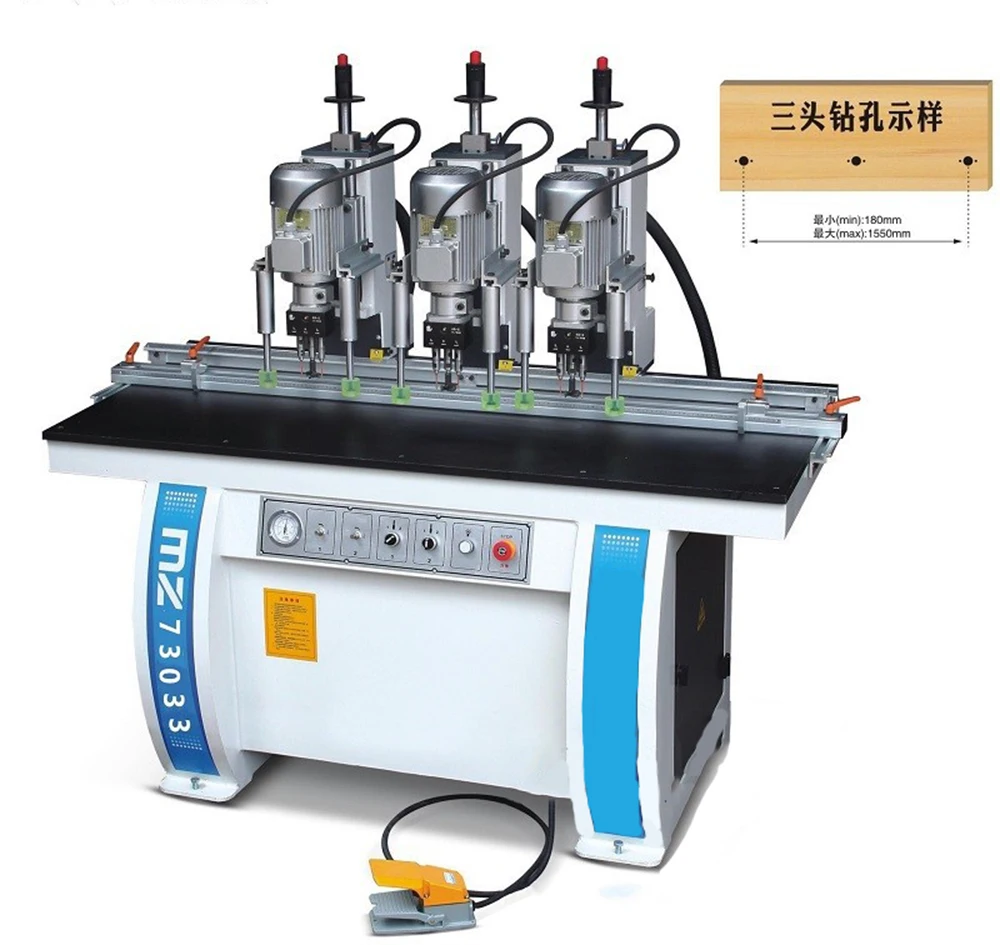

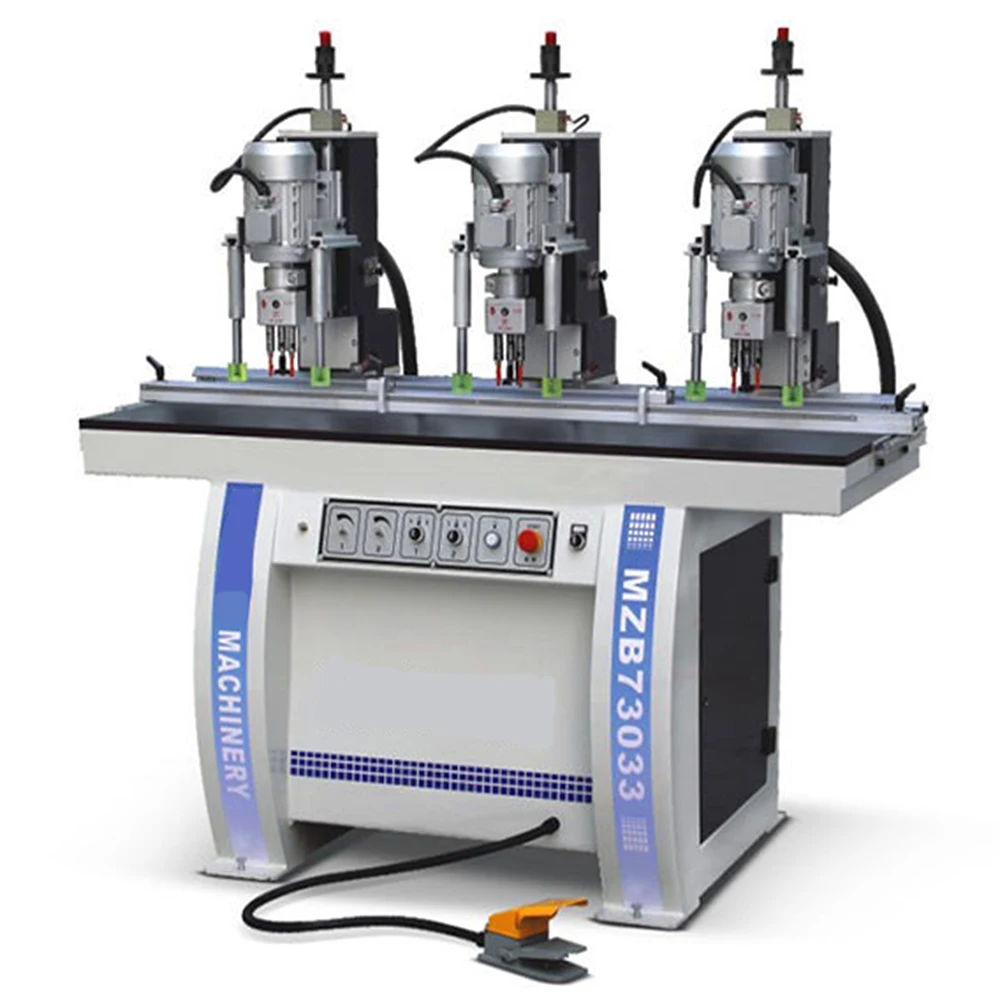

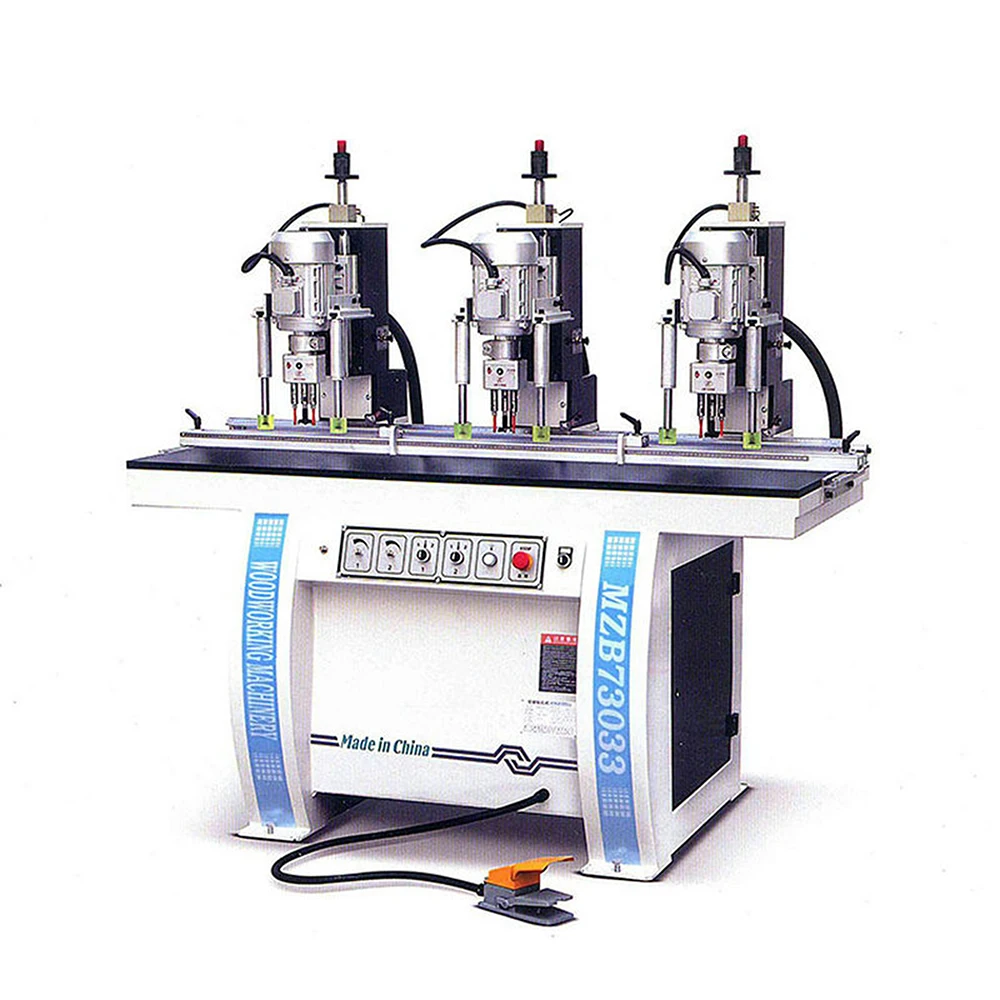

Photo of MZ73033 high quality woodworking vertical cabinet hinge hole drilling machine with three head

three head Hinge Boring drillingMachine
