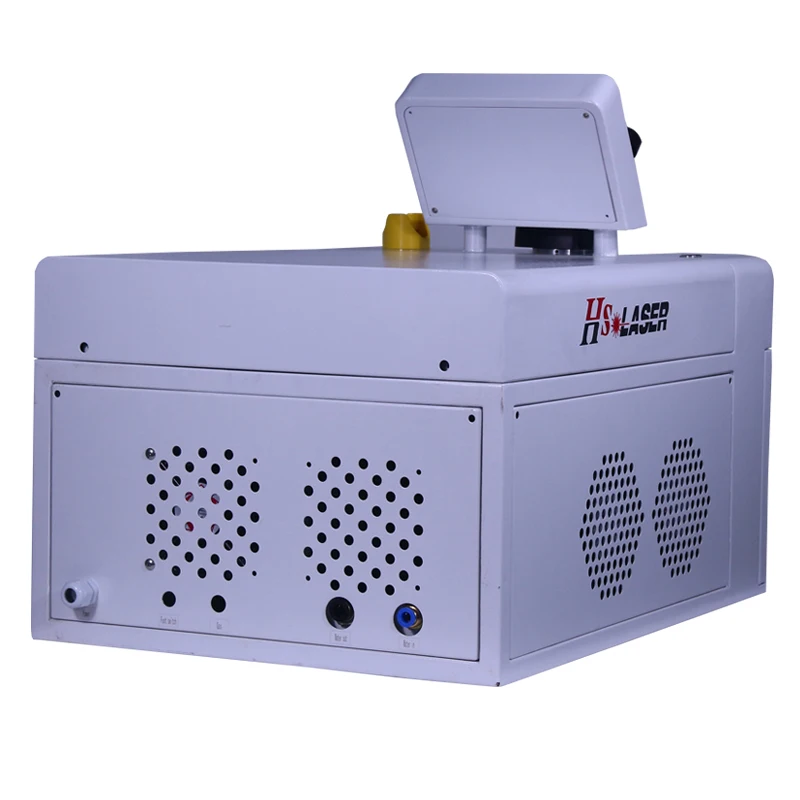

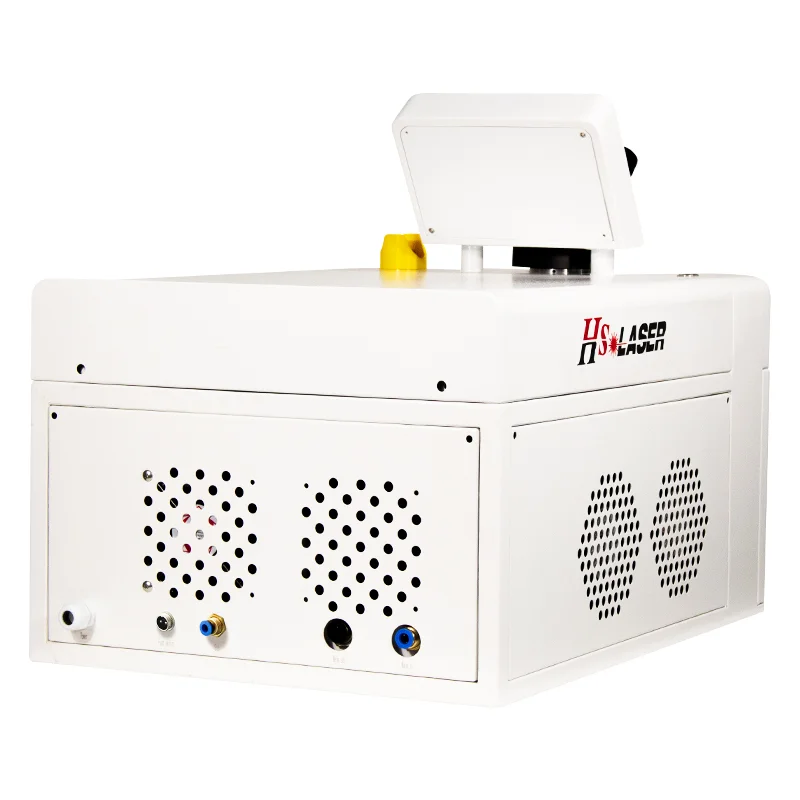

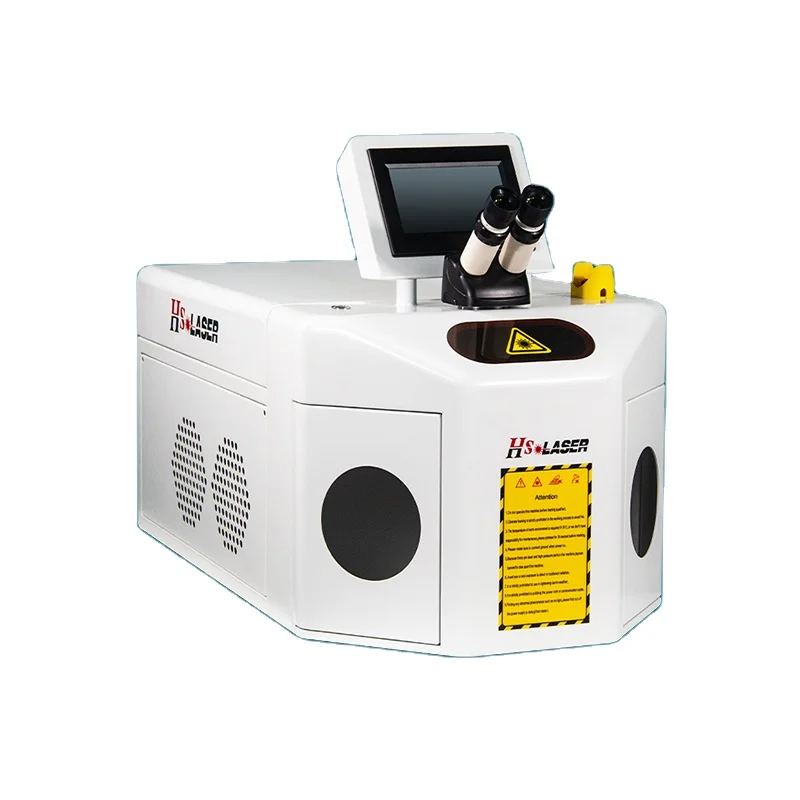

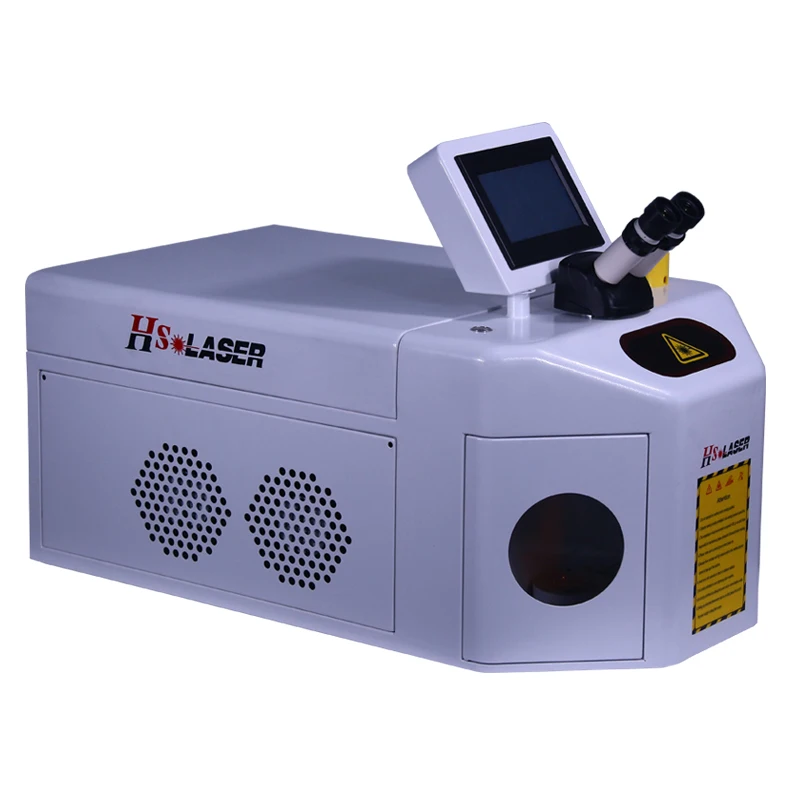

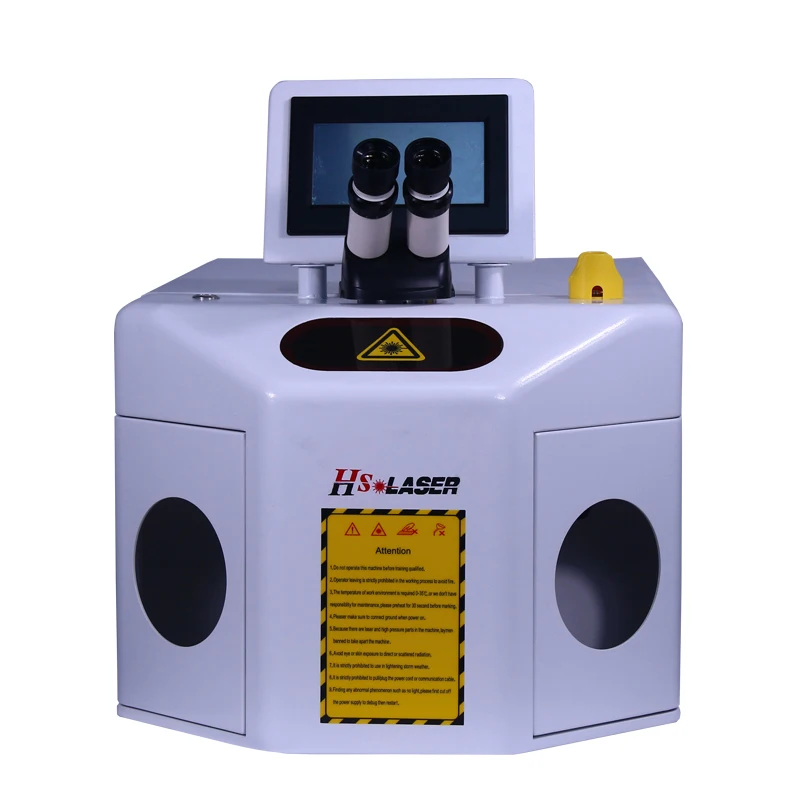

Hot sales 200w jewelry laser welding machine for gold brass and stainless steel metal
- Category: Industry Laser Equipment >>>
- Supplier: Shenzhen HS Laser Technology Co. Ltd.
Share on (1600250662471):
Product Overview
Description
Products Description
Hot sales 200w jewelry laser welding machine for gold brass and stainless steel metal
Machine model | HS-DJW200 |
Max laser power | 200W |
Laser cavity configuration | Ceramic cavity |
Pump Lamp Single | Xenon Lamp |
Laser medium | Nd3+：YAG |
Laser wavelength | 1064nm |
Max power of single impulse | 100J |
Pulse width | 0.1-15ms |
Laser welding frequency | 0-20Hz |
Instability of energy | ＜2% |
Beam Divergence | ≤8mrad |
minimal beam diameter | 0.3mm |
Adjustable scope of laser spot | 0.4-3.0mm |
Welding depth | 0.1~3mm |
Continue working time | 16hours |
Noise | ≤60db |
Power Consumption | ≤3KW |
Cooling system dimensions | 0.6P Water cooling |
Power required | 220V±10%/50Hz |
Consumable | Xenon lamp、Filter element、Protective lens、Argon |
Working temperature | 55°F(13°C)-82°F(28°C) |
Working Humidity | 5%-75% |
Oil mist | ≤15mg/m³ |
Volume Weight | 90KG/ 920mm*550*mm*600mm |
