Hot Selling 5KW 6KVA Portable Gasoline Dual fuel LPG LNG Gas Generator
- Category: >>>
- Supplier: Guangdong Binshi Power Technology Co. Ltd.
Share on (1600250681337):
Product Overview
Description

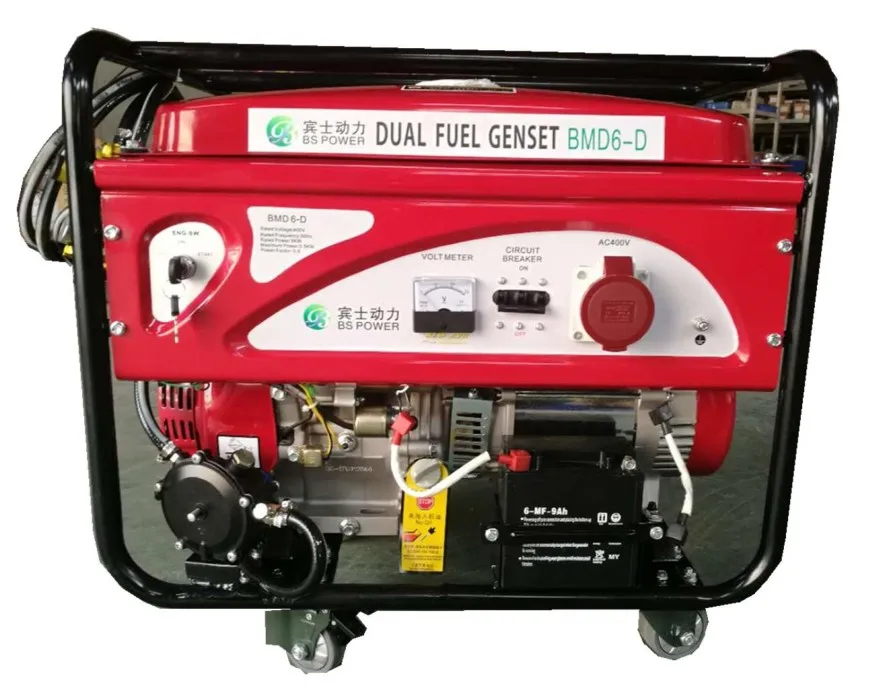

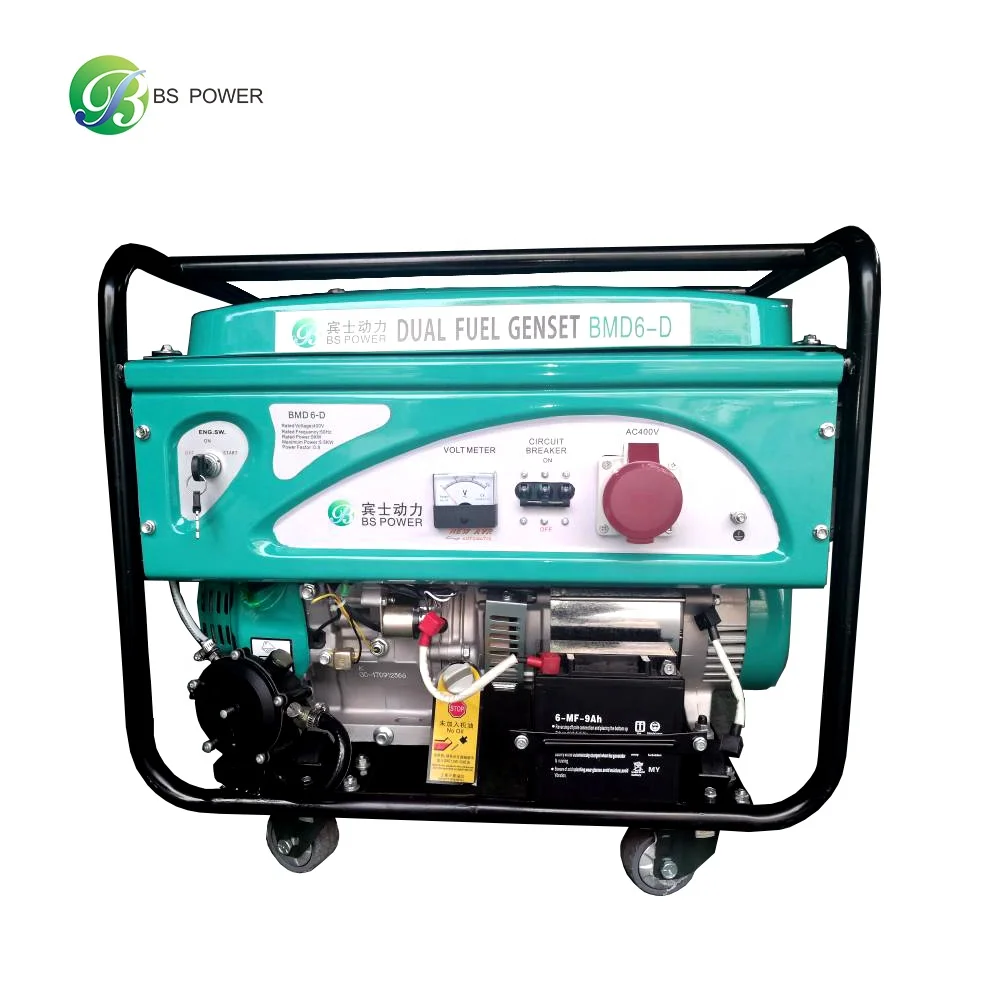

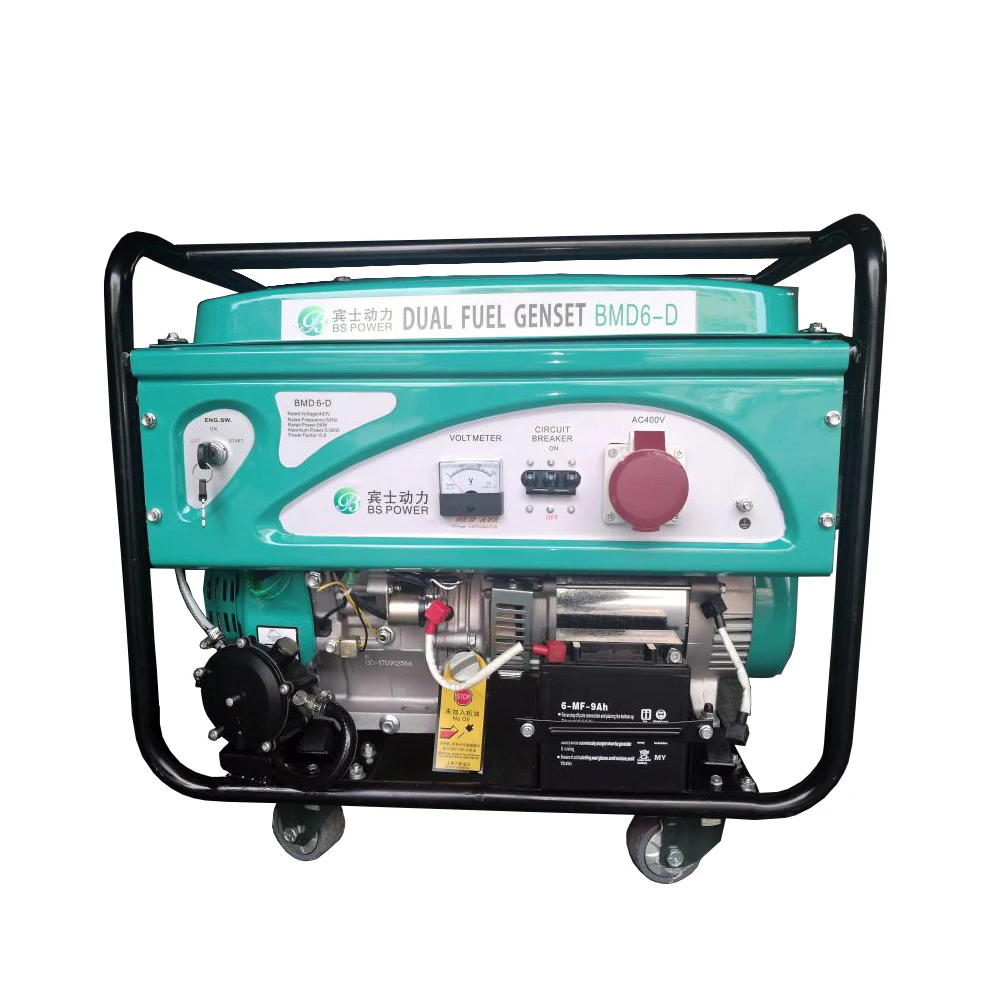

Hot Selling 5KW 6KVA Portable Gasoline Dual-fuel LPG LNG Gas Generator
■ Competition price and good quality, global warranty.
■ Neat and economical for classical design.
■ Advanced AVR offers over-voltage, overheated and overload protection for the generator.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■ HONDA 4-stroke, OHV (overhead valve), single cylinder, air-cooled engine. Cast iron cylinder lining
■ Hydraulic-Magnetic circuit breaker.
■ Bigger fuel tank enables 13-hour running.
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved
■ Neat and economical for classical design.
■ Advanced AVR offers over-voltage, overheated and overload protection for the generator.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■ HONDA 4-stroke, OHV (overhead valve), single cylinder, air-cooled engine. Cast iron cylinder lining
■ Hydraulic-Magnetic circuit breaker.
■ Bigger fuel tank enables 13-hour running.
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved
Product Specification
1. Diesel Generator Set
Main Technical Parameters | ||
Rated power | 5 KW/ 6 KVA | |
Rated voltage | 400V | |
Rated frequency | 50Hz/60Hz | |
Power factor | 0.8(lagging) | |
Fuel | 92#/high level clear gasoline,LNG,LPG,Sulfur-free biogas | |
Model of Connection: | Single phase or 3 phases | |
Starting method | Electric starting | |
Noise level(LP7M) | 75 | |
Size & Weight | ||
Dimension L× W × H | 680x540x550 (mm) | |
Net weight | 86 kgs | |
Characters
Dual fuel generator set is a generator set for one or more fuels. Binshi dual-fuel BMD series generator sets are equipped with brushless alternator, can provides three-phase or single-phase power supply. And this generator could meet the high requirements in the aspects of voltage regulation accuracy, frequency accuracy, continuous operation time, low noise, load capacity, etc.2. Engine
Main Technical Parameters——KOHLER | ||
Cylinders no. & Type | Single cylinder, 4 cycles | |
Bore × Stroke | 88x64 mm | |
Displacement | 389 mL | |
Intake system | OHV | |
Fuel gas consumption (m3/kw.h) | ＜0.33/＜0.58 | |
Engine oil consumption (g/kw.h) | ＜6.8 | |
Ignition method | Transistor magnet ignition (non-contact) | |
Cooling method | Air cooling | |
Compression ratio | 8.0 :1 | |
Advantages
Excellent intake and combustion efficiency because of top-loaded intake and exhaust structure, easy to start mechanical automatic pressure relief device, governor with good response, a stable and reliable transistor magneto ignition system, bearing with excellent performance, aluminum connecting rod with low vibration.3. Alternator
Main Technical Parameters | ||
Insulation class | F | |
Voltage regulation without loadin | ≥±5% | |
Steady state voltage deviation | ≤±2% | |
Rotor | Single bearing, flexible disc | |
Stator | 2/3 pitch | |
AC Waveform Total Harmonic Distortion | No load <1.5%. Non distorting balanced linear load <5% | |
Advantages
The alternator is brushless, and add a permanent magnet block, can increase the remanence, bring low waveform distortion rate; the alternator rotor adopts a non-uniform air gap of the entire circular convex plate, and has a damping structure design; high voltage regulation accuracy, reliable AVR automatically adjusts the voltage and has good operability. These advantages are particularly important to the devices which are sensitive to voltage fluctuations.4. Oil Alarm
When the lubricating oil is lower than a certain degree, the generator will automatically stop running.
5. Silencer
A large silencer which is produced with patented technology could minimize the exhaust noise.
FAQ
1. What's the environment your product could be used?
4. Does your generator have global warranty?
--- Temperature -20℃~40℃, Relative humidity ≤95%, Altitude ≤1000m.
2. Does the engine set could meet environment standard?
--- Yes, our low-emission diesel generator set has tailor-made exhaust silencer systems, which conform to Euro III / IV emission standards.
3. What is your warranty period?
--- 12 months after delivery date or 1000 operating hours (whichever occurs first).
2. Does the engine set could meet environment standard?
--- Yes, our low-emission diesel generator set has tailor-made exhaust silencer systems, which conform to Euro III / IV emission standards.
3. What is your warranty period?
--- 12 months after delivery date or 1000 operating hours (whichever occurs first).
4. Does your generator have global warranty?
--- Yes. Our generators are powered by Cummins, Perkins, MTU, Mitsubishi, Doosan, Volvo which have the global warranty service. And the alternators brands Stamford, Leroy-somer, Marathon also have the global warranty service.
5. What is your payment term?
5. What is your payment term?
--- 100%T/T: 30% inadvance,70% balance be paid before shipment. Or 100% Irrevocable L/C at sight.
6. What is your delivery time?
6. What is your delivery time?
--- Our standard delivery time is 30 to 45 days. If you have urgent demand, the deliverytime will be shorter depending on the requirements. If you have special requirements, the delivery time will be longer.
7. Can the generators be customized?
7. Can the generators be customized?
--- Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply are suitable for indoor and outdoor use, low and high temperature environment.
8. Can you use our logo?
--- Yes. For mass orders we can add customer's logo for free if the order amount reaches USD100, 000or order quantity is more than 5 sets.
9. What brands of engine you could supply?
--- For diesel engine: Cummins, Perkins, MTU, Mitsubishi, Lovol, Googol, Volvo, Doosan, Shangchai, Yuchai, Weichai, Jichai, etc. For gas engine: Cummins, Perkins, MTU, Man, Googol, Yuchai, LIEBHERR, etc.
8. Can you use our logo?
--- Yes. For mass orders we can add customer's logo for free if the order amount reaches USD100, 000or order quantity is more than 5 sets.
9. What brands of engine you could supply?
--- For diesel engine: Cummins, Perkins, MTU, Mitsubishi, Lovol, Googol, Volvo, Doosan, Shangchai, Yuchai, Weichai, Jichai, etc. For gas engine: Cummins, Perkins, MTU, Man, Googol, Yuchai, LIEBHERR, etc.
10. What brands of alternator you could supply?
--- Marathon, Stamford, Leroy-somer, Engga, Faraday, etc.
--- Marathon, Stamford, Leroy-somer, Engga, Faraday, etc.
