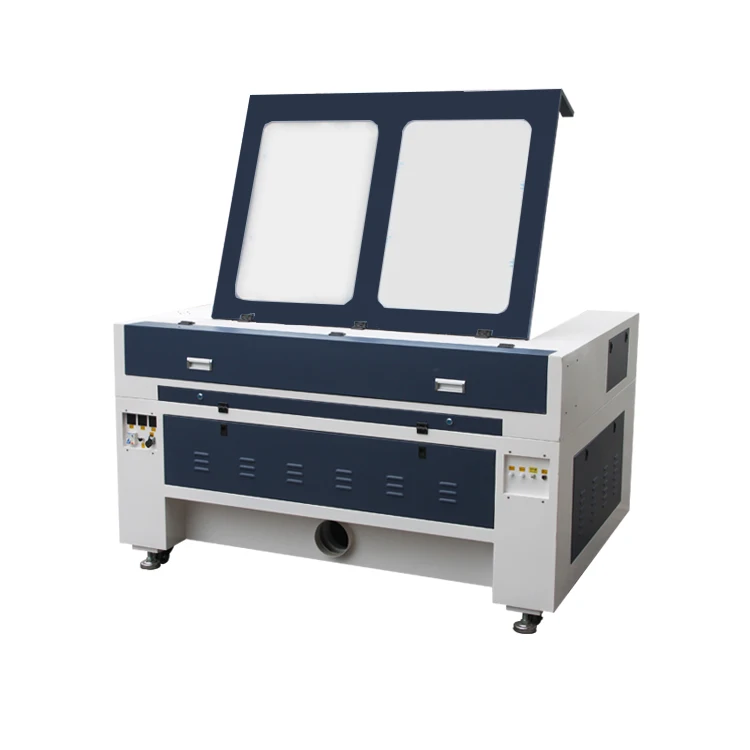

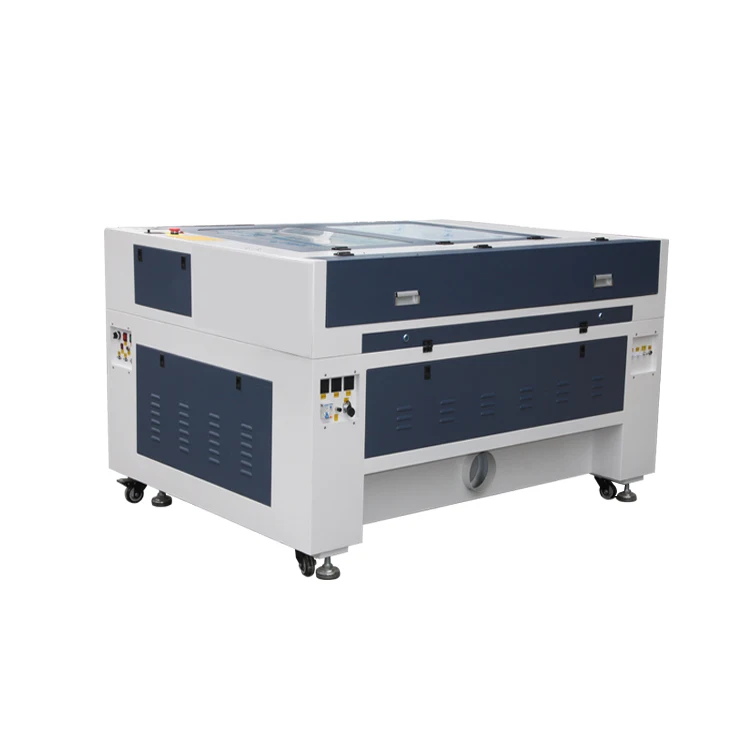

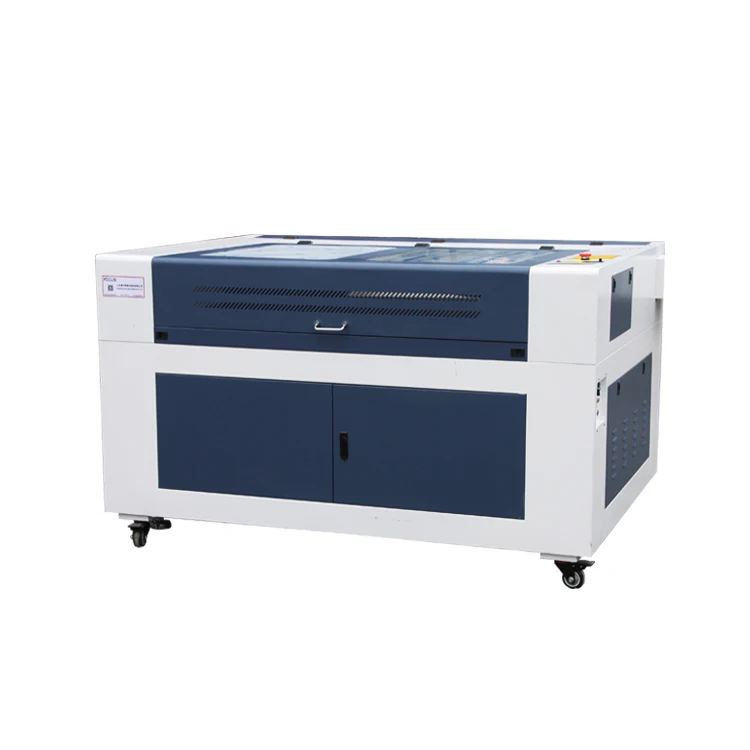

CO2 Laser Engraving Machine FS 1390 Laser Cutting Machine For Non Metal Material

Share on (1600250700864):


Price:$1,800.00 - $2,100.00

Quantity:


Product Overview

Description

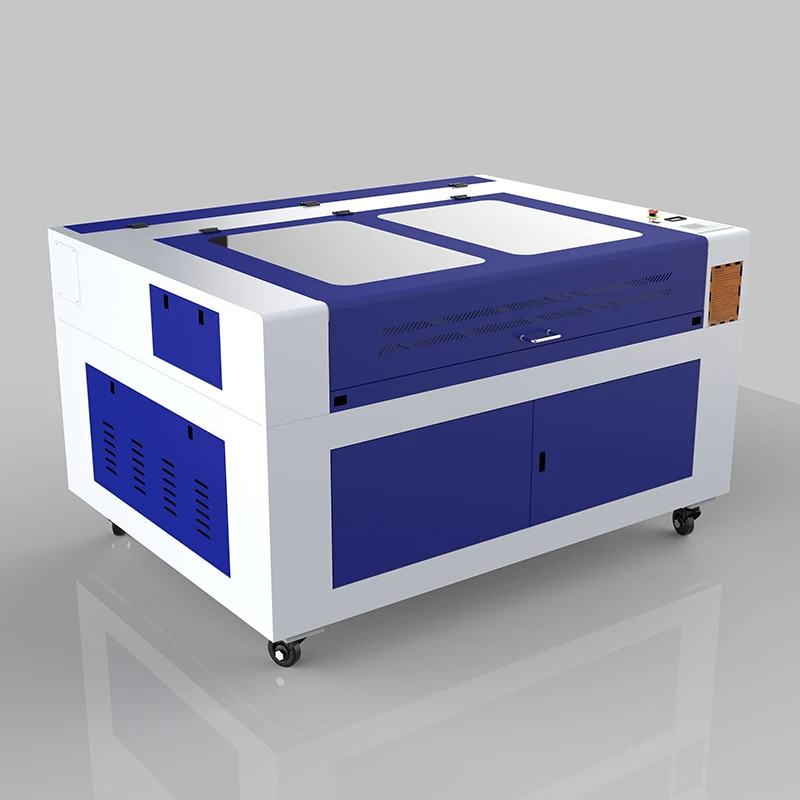

1390 Laser Cutting Machine




hobby laser cutting machine










Product Description

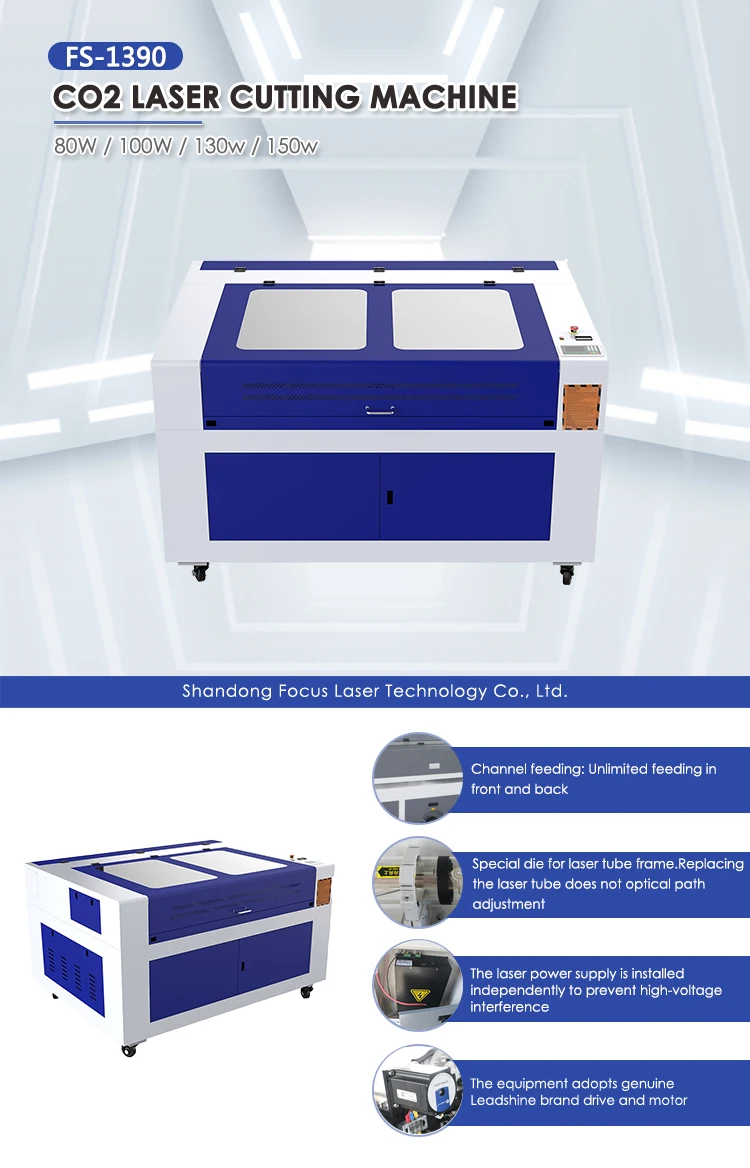

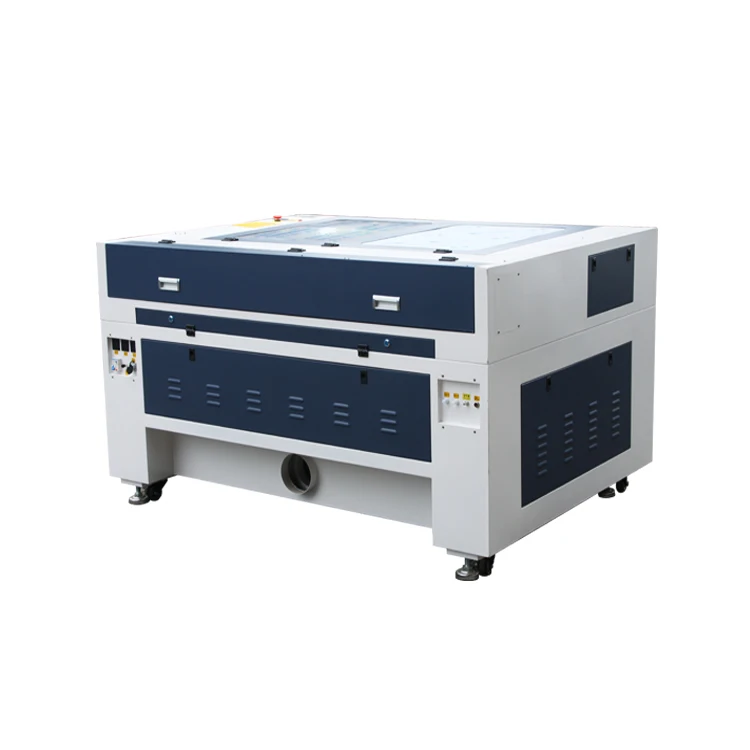

FS-1390 Laser Engraving And Cutting Machine




Based on years of experience in production and use, Shandong Focus Laser Technology Co., Ltd. adopts the latest design concept, equipped with advanced laser components at home and abroad

Product details
































































































ModelFS-1390
working area130cm*90cm / 51in*35in (L*W)
controllerRUIDA control system
Laser typeCO2 sealed laser tube
Cooling typewater cooling
Laser power80w/100W/120W/150W
Engraving speed25-60000mm/min
Cutting speed20-10000mm/min
Power supply220V±10% /50HZ , 110V±10%//60HZ
Min. shaping a characterLetter 1.0 x 1.0mm
Graphics format supportedBMP, PLT, DST, DXF, AI, CDR
Software supportedCorelDraw, PhotoShop, AutoCAD
Laser Output Control1-100% software setting
Highest Scanning Precision2500DPI
Location precision0.1mm
Working temperature5 to 45 degrees
Operating humidity5%-95%(without condensed water)
Equipment Dimension1900mm*1455mm*1040mm(L*W*H)
Net Weight450KG
Optional partsRotary device, CW3000 or CW5000 Water cooling system
Warranty3 years
Total power<500w

This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer.

Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.








hobby laser cutting machine

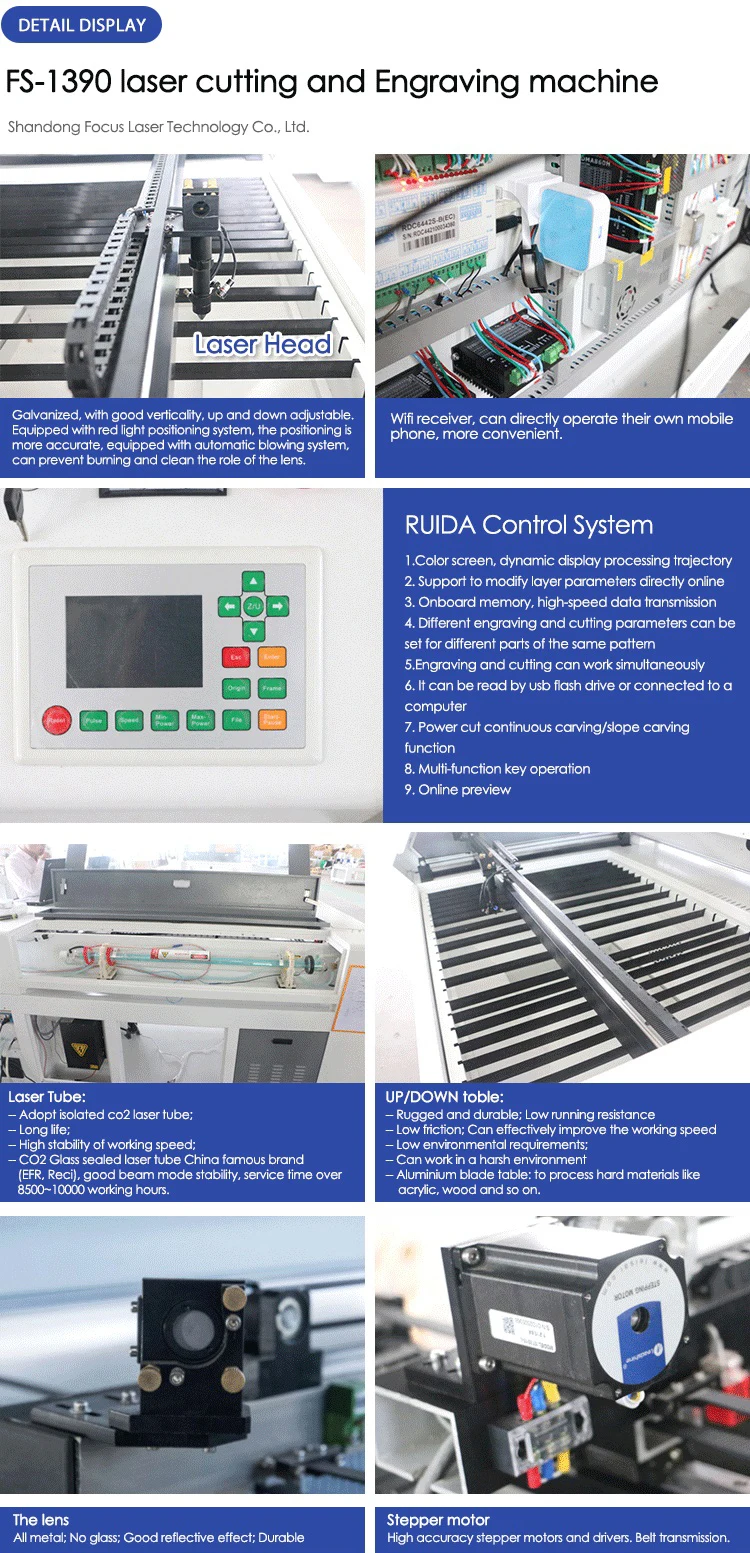

Detail Display



hobby laser cutting machine

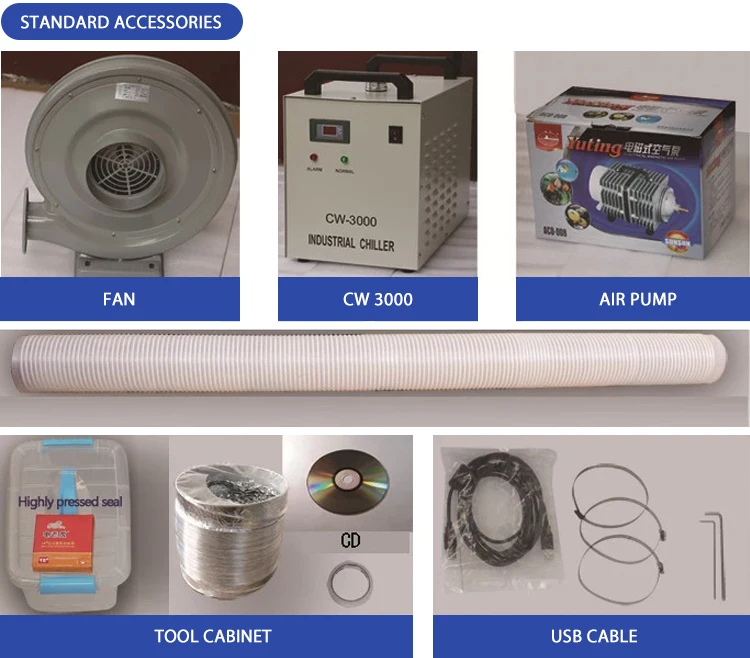

Standard Accessories



hobby laser cutting machine






Optional Parts



hobby laser cutting machine






Application



Laser engraving cutting machine application industry: wood plate cutting, advertising text, large surface cutting, garment proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model industry, craft gift industry.


Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bambooand wood products, thin film, etc








































































MaterialsCuttingEngraving
Wood/Cork/Bamboo/Veneer/MDF
Acrylic/Rubber/Plexiglass/Pmma
Glass/Fiberglass
Mylar/Delrin/Matte Board
Fabric/Cloth/Textile/Garment
Leather/Pig leather/Cow leather/Sheep leather
Ceramic/Marble/Tile
Plastic
Melamine
Paper/Cardboard/Pressboard
Organic board / Double color plate
Corian

hobby laser cutting machine

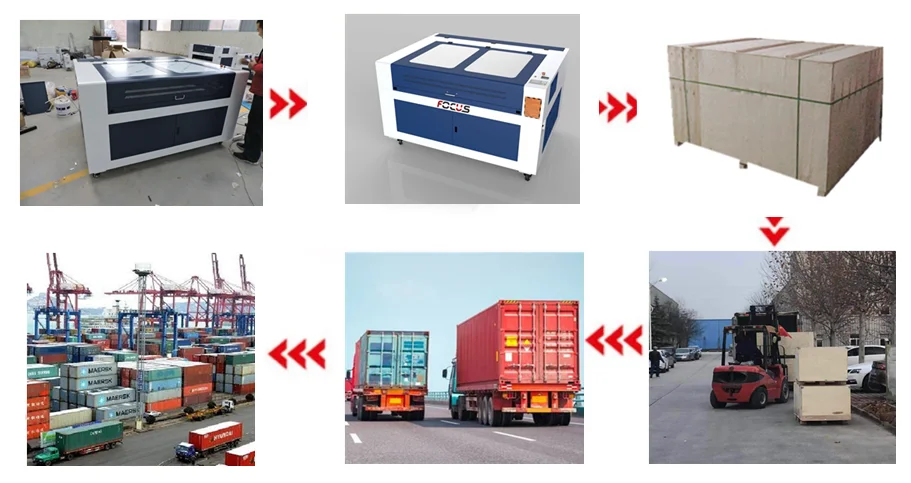

Packing and shipping



12121_4_






hobby laser cutting machine


FOCUS SERVICE for FS-1390 Laser Engraving And Cutting Machine
1. The Whole FS-1390 Laser Engraving And Cutting Machine :Five years



2. Laser tube:

* 60W for 6 months.

* EFR / RECI 80W,100W,130W,150W for 10 months (this is what laser tube supplier offer to us).


3. Laser lens and mirrors of FS-1390 Laser Engraving And Cutting Machine: for one month.


If it is damaged during the warranty period, we will replace a new one for you free of charge. You only need to pay the transportation cost of the accessories

4.24 hours online technical support, such as WhatsApp, Wechat, you can calling us if urgent.


The accessories of the machine include the installation program of the operating software of the machine and the teaching video.
The operation and learning of the machine are very simple. If there are problems that cannot be solved or cannot be solved, we can teach online by video.
We have a professional after-sales service team, when necessary, our after-sales staff can also go abroad to serve customers, but the round-trip tickets, accommodation needs to be responsible for the buyer.
International Shipping Around the World

All laser machines can be transported to all parts of the world by sea, air or by DHL, fedex, UPS and other international express logistics.You are welcome to get a free quote by filling out the form with your name, email, detailed address, product and request, and we will contact you shortly, including the most appropriate delivery method (fast, safe, discreet) and shipping charges.

After-sales service is an effective measure to maintain customer satisfaction and loyalty.To provide consumers with economical,practical, safe and reliable quality products is the prerequisite for the survival and development of FOCUS laser technology co.,LTD. After-sales service is the best way out of the price war.As a part of sales, after-sales service has become an important territory for many manufacturers and businesses to compete for consumers. Excellent after-sales service is the best choice before the next promotion.Excellent after-sales service and good reputation, will bring more consumers, so good after-sales service to stabilize the market, only to replace sales with high quality service, is the primary factor to maintain the performance of Shandong FOCUS laser technology co., ltd. year after year. Thank you for taking the time to review our products. Are there any in particular that you are interested in? Any feedback you can give would be greatly appreciated. Let me know if you
require samples.





FAQ:


1.Are You A Factory Or Trading Company?


We are a manufacturer with export license.


2.Do You Arrange Shipment For The Machines?


Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.


3.How To Choose The Right Laser Machine?


(1)Are the materials you process metallic or nonmetallic?


metallic: Fiber laser machine


nonmetallic: CO2 laser machine


(2)According to the size of your material area choose the appropriate machine model, different models of the machine, the maximum working area is not the same.


(3)If it is cutting, choose the appropriate power according to the thickness of the cutting material.


(4)Contact our company in time, our sales staff will give professional advice and solve your difficulties.


4.I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?


(1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.


(2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.


5.How Long Will It Take To Learn To Operate A Laser Machine?


If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.


6.How Is The Shipping Method?


As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
