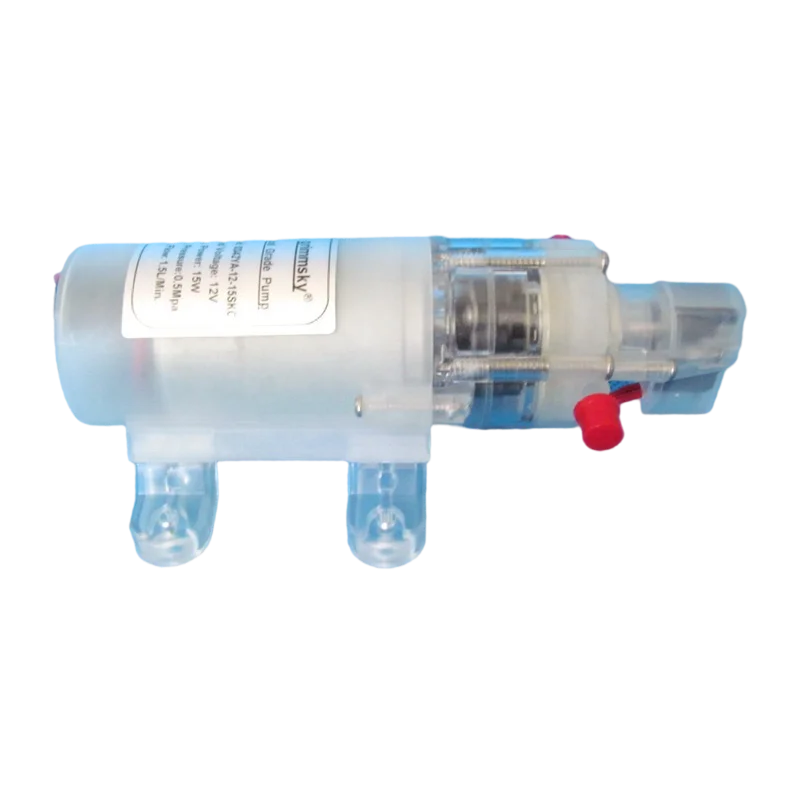

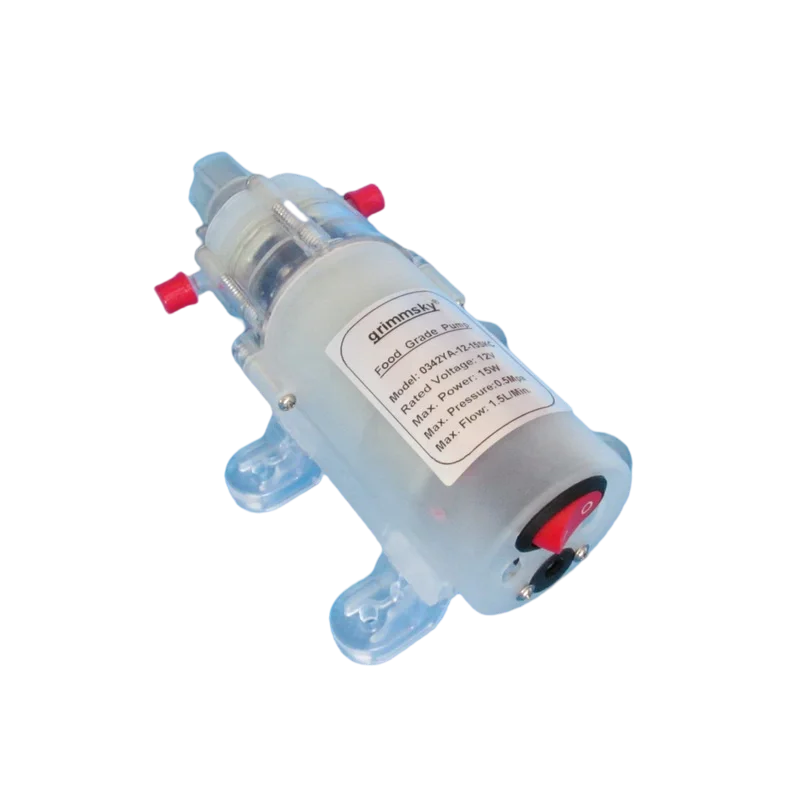

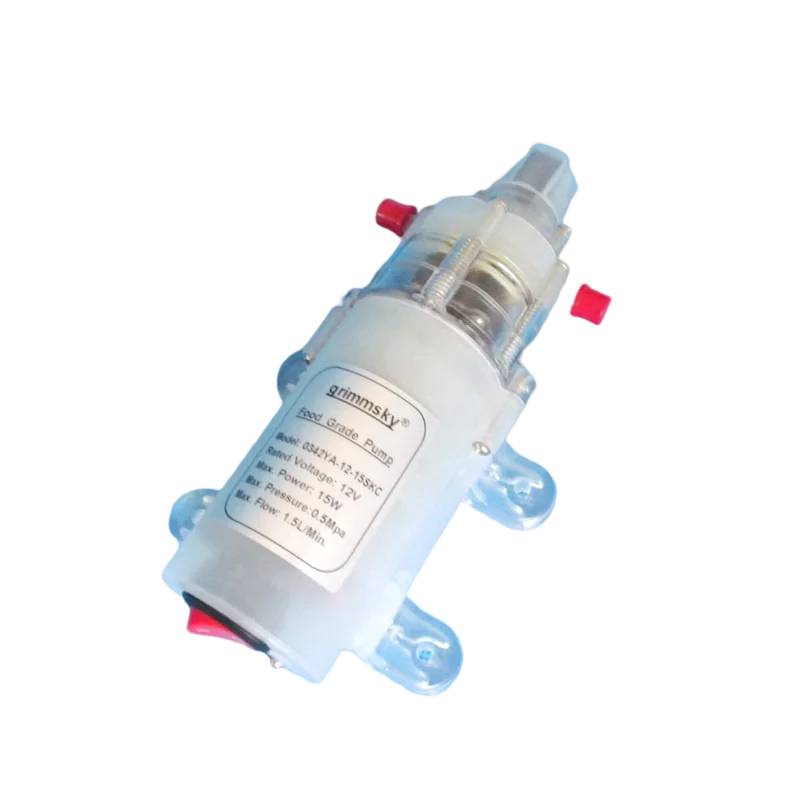

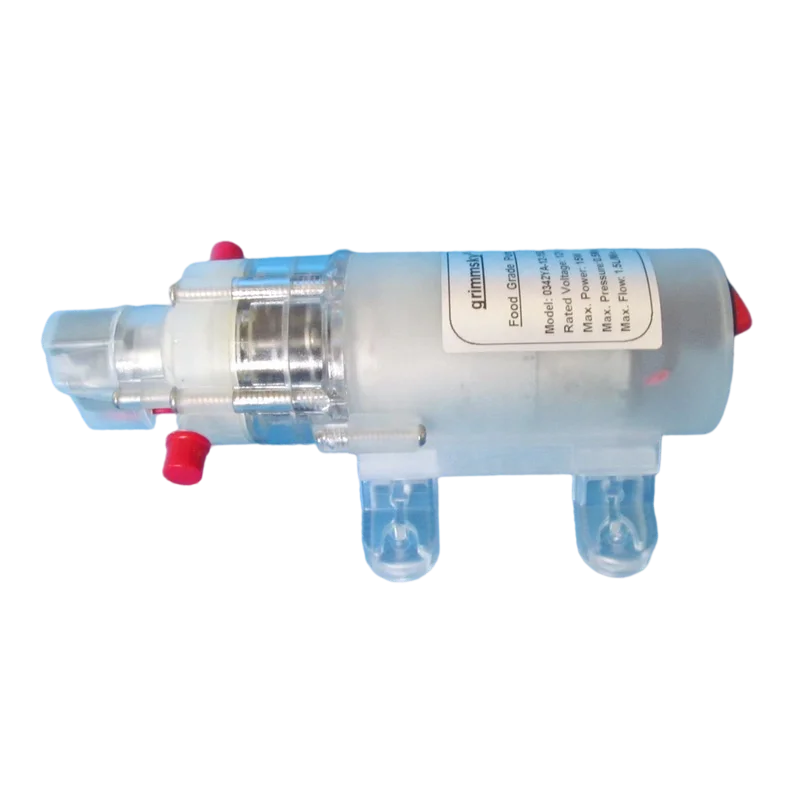

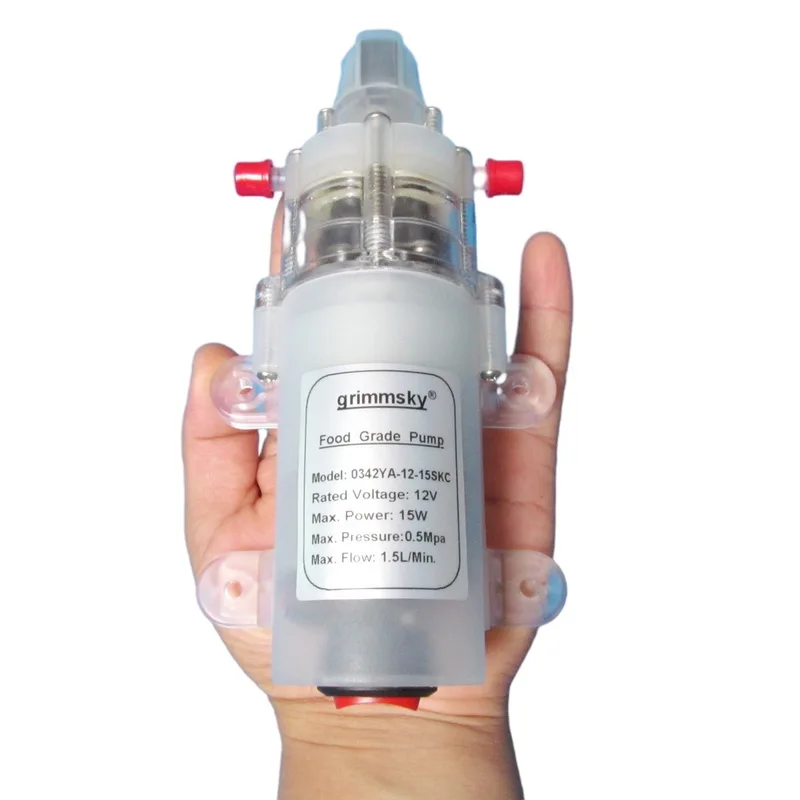

Grimmsky Very Quiet Non toxic Tasteless Odorless 1.5L/Min 12V DC 15W Food Grade Liquid Transfer Pump
- Category: >>>
- Supplier: Henan Grimmsky Machinery And Electric Equipment Co. Ltd.
Share on (1600250716925):
Product Overview
Description
DC12V 15W Very Quiet Food Grade Pump

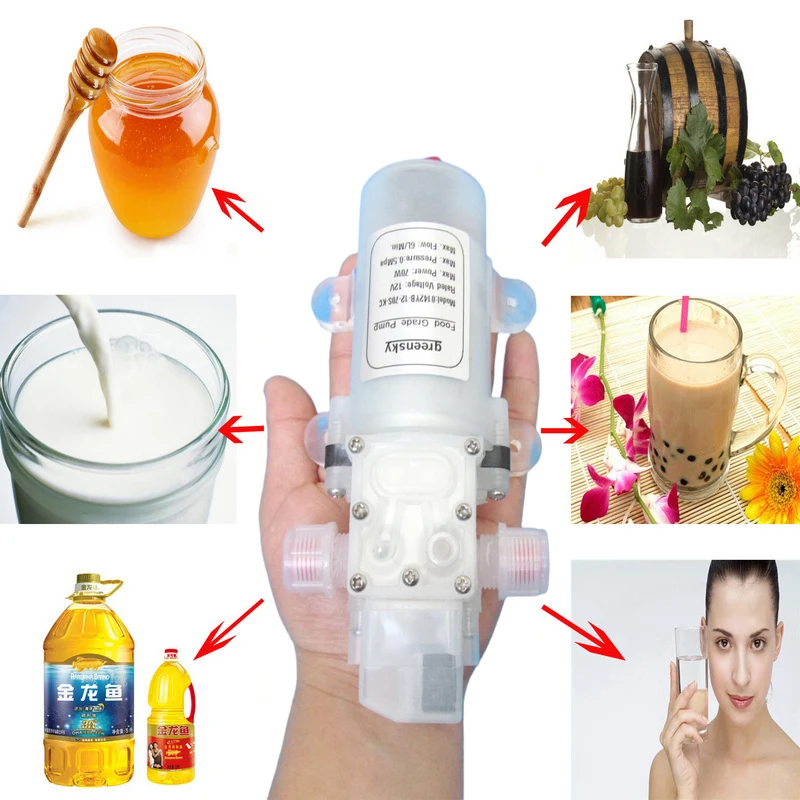

Non-toxic, tasteless, odorless. It can used for transfer honey, red wine, beverage, milk, soy milk, drinking water, tea, edible oil and other food liquids.
Product Description
Model | 3865YB-12/24-30S | 4451YB-12/24-60S | 0142YB-12/24-70SKC | 0342YA-12-15SKC |
Voltage | 12/24V | 12/24V | 12/24V | 12V |
Power | 30W | 60W | 70W | 15W |
Current | 2.5/1.25A | 5/2.5A | 5.83/2.92A | 1.25A |
Match Power Adapter Reference | Output12V,3A/24V,2A adapter | Output12V,5A/24V,3A adapter | Output12V,6A/24V,3A adapter | Output12V,2A adapter |
Working Pressure | 0.25Mpa=2.5BAR=36.26PSI | 0.3Mpa=3BAR=43.51PSI | 0.3Mpa=3BAR=43.51PSI | 0.3Mpa=3Bar=43.5PSI |
Max. Pressure | 0.4Mpa=4BAR=58PSI | 0.5Mpa=5BAR=72.52PSI | 0.5Mpa=5BAR=72.52PSI | 0.5Mpa=5Bar=72.5PSI |
Max. Flow | 3L/Min. | 5L/Min. | 6L/Min. | 1.5L/Min. |
Pump Inlet/Outer Diameter | 10mm; Thread size: M18=18mm | 10mm; Thread size: M18=18mm | 10mm; Thread size: M18=18mm | 7.5mm=0.3'' |
Gift For Free | 2pcs=1pair M18 caps | 2pcs=1pair M18 caps | 2pcs=1pair M18 caps | -- |
Fitting Inlet and Outlet Connect Tube Size | 8mm=0.315'' Inner Diameter Silicone Hose | 8mm=0.315'' Inner Diameter Silicone Hose | 8mm=0.315'' Inner Diameter Silicone Hose | 6mm=0.24'' Inner Diameter Silicone Hose |
Max. Suction Head | 1.5m | 1.5m | 1.5m | 2m |
Lift Head | 25m | 30m | 30m | 30m |
Noise Level | 35-40dB | 55-60dB | 55-60dB | 30-35dB(very quiet) |
Maximum Operating Temperature | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius |
Motor Lifespan | 3-5years | 3-5years | 3-5years | 3-5years |
Net Weight | 0.7Kg | 0.7Kg | 0.7Kg | 0.7Kg |
Size | 160 x 97 x 60mm | 160 x 97 x 60mm | 165 x 97 x 62mm | 174 x 77 x 61mm |
Test Showing
Details Images
Registered Trademark “GRIMMSKY”
Main Application
Factory Workshop Showing
Packing Showing
Product Transport
