Product Overview
Description
Product Description
MyPower S4230 is a high-performance stackable 10G L3 aggregation routing switch developed by Maipu. It is applied in enterprise campus network and easy to deploy Layer3 switching solution that offers enhanced security and 10GbE uplinks, RIP/OSPF/BGP, L2&L3 Multicast, VST stacking enabled and flexible management.
The S4230 series switches can be used as core devices on enterprise branch networks and small&medium-sized campus networks. They are also used as aggregation devices on large-sized campus networks. The switches help build highly reliable enterprise campus networks that are easy to expand and manage.

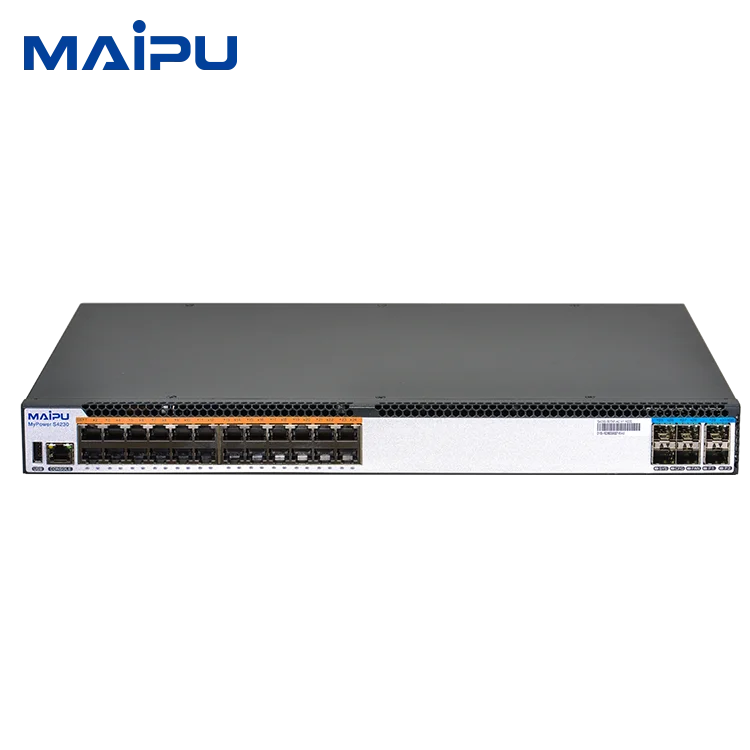

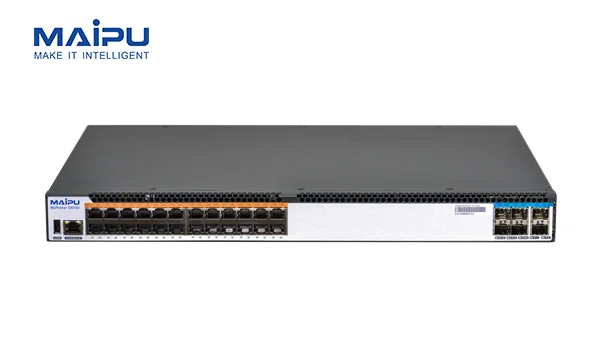

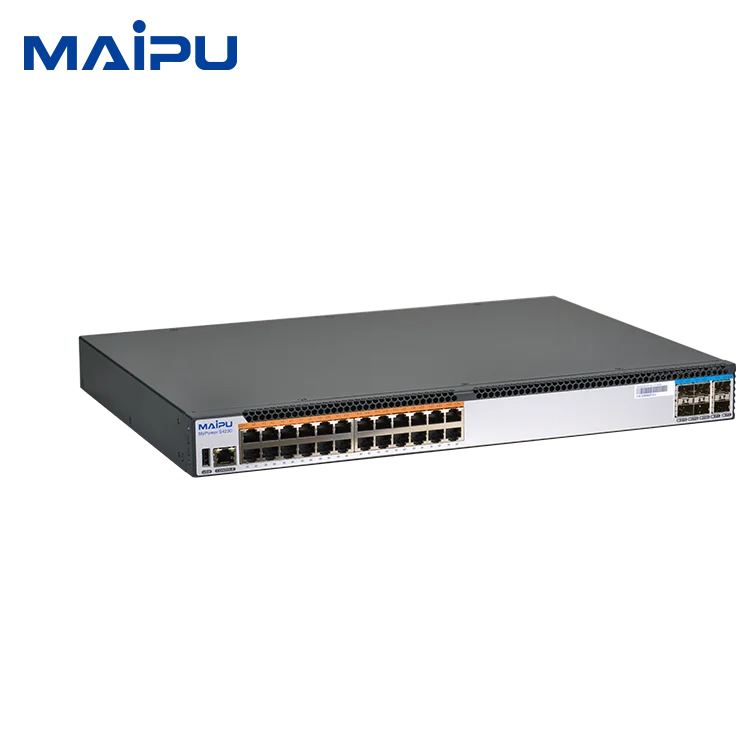

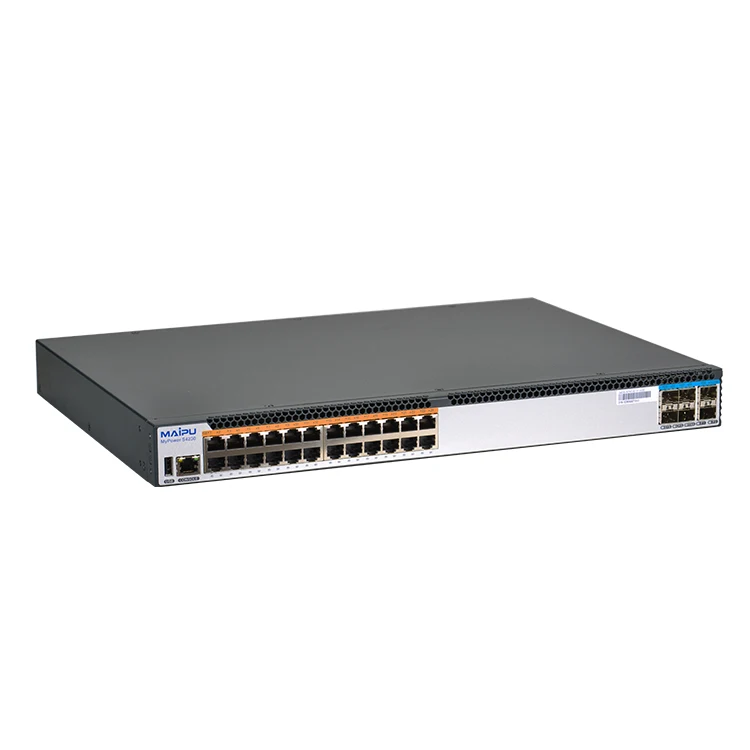

S4230-30TXF-AC Provides 24*10/100/1000M electric interfaces, 6*10G SFP+interfaces, Dual AC Power Supply.
Product Model | MyPower S4230 Series | |
Frame Model | S4230-30TXF-AC | |
Product Configurations | ||
Device Structure | Desktop | |
Physical Port | 24*10/100/1000M electric interfaces, 6*10G SFP+ interfaces, Dual AC Power Supply. | |
RJ45 Console Port | 1 | |
USB Port | 1 | |
Power Supply | Dual Fixed AC | |
Intelligent Fans | Yes | |
Performance Parameters | ||
Switching Capability | 168Gbps | |
Throughput | 125Mpps | |
Jumbo | 12K | |
VLAN Entry | 4K | |
MAC Entry | 32K | |
Routing Entry | 12K | |
Multicast Entry | 4K | |
ACL Entry | 4K | |
Packet Buffer | 16Mbit | |
Anti-static | Yes | |
Anti-lightning | Yes | |
MTBF | >100000 hours | |
Physical Index | ||
Dimension (W×D×H) | 442*420*44.2(mm) | |
Power Supply | ||
Power Input | AC 100-240V, 50-60Hz | |
Power Consumption | ≤75W | |
Environment | ||
Working Temperature | 0℃~50℃ | |
Humidity | 10~90%, non-condensing | |
Software Features | ||
Standard L2 Protocol | LAN | Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface |
MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug | ||
VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug | ||
STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard | ||
G.8032(ERPSv1&v2) | ||
Static Multicast, IGMP Snooping, IGMP Snooping Proxy | ||
LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug | ||
Error-disable based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback-detect|Port Security|Storm Control|Transceiver Power, Error-disable recovery | ||
ULFD, Track, Loopback Detection, Loopback Debug | ||
Standard L3 Protocol | Routing Protocol | Static route, RIP v1/v2, RIPng, OSPFv2, OSPFv3, BGP, BGPv6, ISIS, VRRP, Policy Route, IP-VRF |
BFD | BFD with Static|RIP|OSPF|BGP|ISIS | |
L3 Multicast | IGMP, PIM-SM | |
DHCP | DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82, DHCPv6 | |
Stacking | VST | VST Member, VST Domain, VST Member Priority, VSL Channel |
MAD | MAD LACP, MAD Fast-hello | |
Network Security | Port Security | Port Security On aging|deny|permit|violation|ACL |
Network Security | IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection | |
Access Control List | Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL | |
Anti-attack | Anti-attack detect|drop|flood|log | |
AAA | Authentication, Authorization, Accounting, Radius, TACACS, 802.1x | |
QoS | Flow Classification | 802.1P priority, DSCP priority |
Traffic Speed Control | Rate Limit, Traffic Shaping | |
Congestion Management | SP, RR, WDRR, SP+WRR | |
Congestion Avoidance | Tail-drop, RED, WRED | |
Management | Network Management | SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug |
Network Monitoring | SPAN, sFlow, LLDP, IP-SLA Based On ICMP-echo|ICMP-path-echo|ICMP-path-jitter|VoIP jitter|UDP echo | |
IEEE Standard | IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-T) IEEE 802.3z (1000BASE-X) IEEE 802.3ab (1000BASE-T) IEEE 802.3ae (10G BASE-X) IEEE 802.1x (port authentication) IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control) IEEE802.3az (Energy Efficient Ethernet) IEEE 802.1d (STP) IEEE 802.1Q (Virtual LAN) IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) IEEE 802.1p (Cos priority) | |
