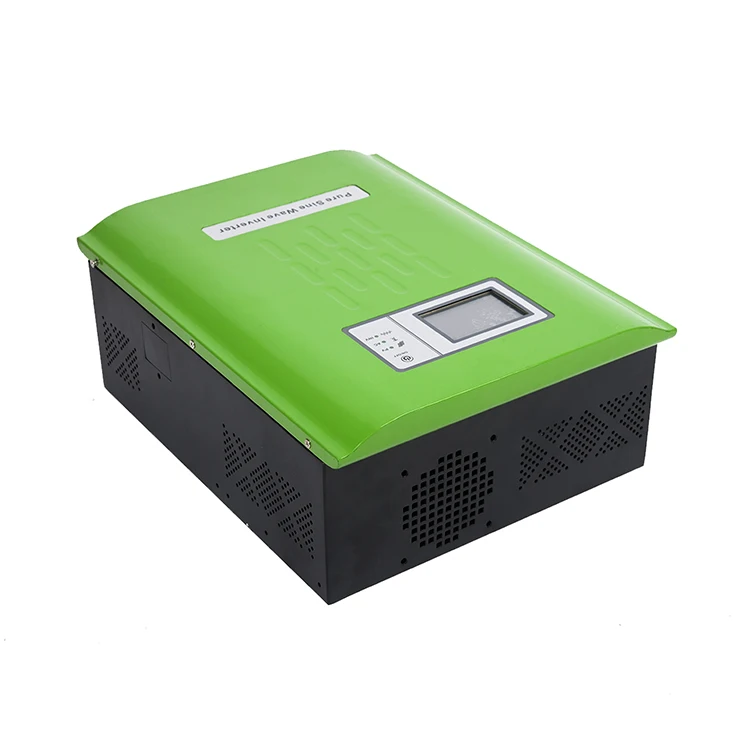

Cheap price Integrated high-intelligence off grid transformer hybrid solar inverter 20kw for solar panels and controller
| Item | Power frequency pure sine wave inverter/solar inverter built in controller | |||||
| Model Number | AWIM150 | AWIM200 | AWIM300 | AWIM400 | AWIM500 | AWIM600 |
| Rated power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Battery voltage | 24V/48V | 24V/48V | 24V/48V | 48V | 48V | 48V |
| Charging current | 30A (mains mode) low/medium/high selectable | |||||
| Charging voltage | single battery (default)13.8V,Maximum adjustable 14.5V | |||||

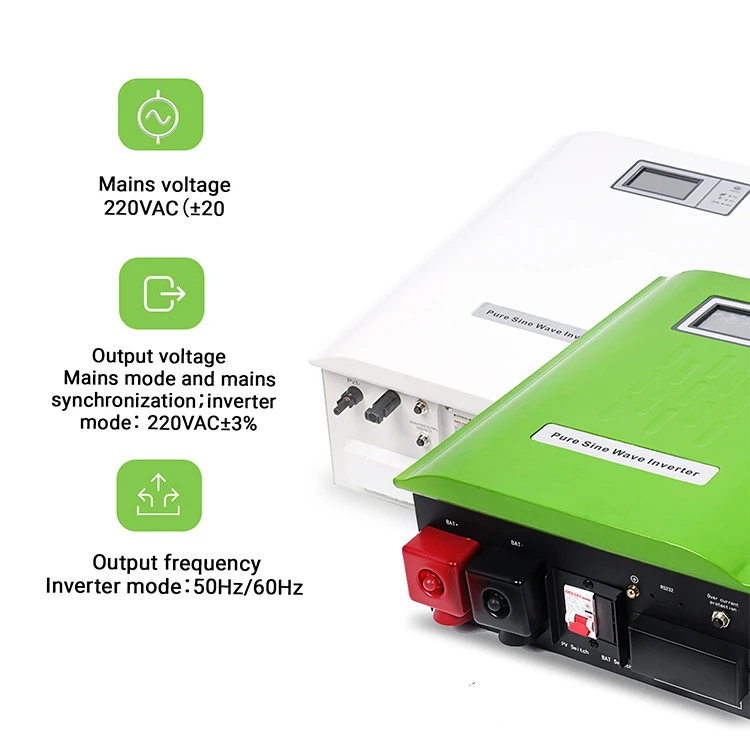

| Mains voltage | 220VAC(±20%) | |||||
| Mains frequency | 50Hz/60Hz auto recognition | |||||
| Output voltage | Mains mode and mains synchronization;inverter mode: 220VAC±3% | |||||
| Output frequency | Inverter mode:50Hz/60Hz | |||||
| Output waveform | Pure sine wave | |||||
| Inverter efficiency | >85% | |||||
| Conversion time | ≤5ms | |||||
| Battery protection | 1-When the voltage of a single battery is lower than 10V, the machine shuts down; 2-When the voltage of a single battery is lower than 10.8V, the machine will switch to mains mode; 3-When the single battery voltage is higher than 13.3V, the machine switches back to inverter mode. | |||||
| Overload power | Full load alarm,Overload 110%-120%/30 seconds automatic shutdown, >150%, 3 seconds automatic shutdown | |||||
| Protective function | Overcharge/overdischarge protection, overload protection, short circuit protection, over temperature protection | |||||

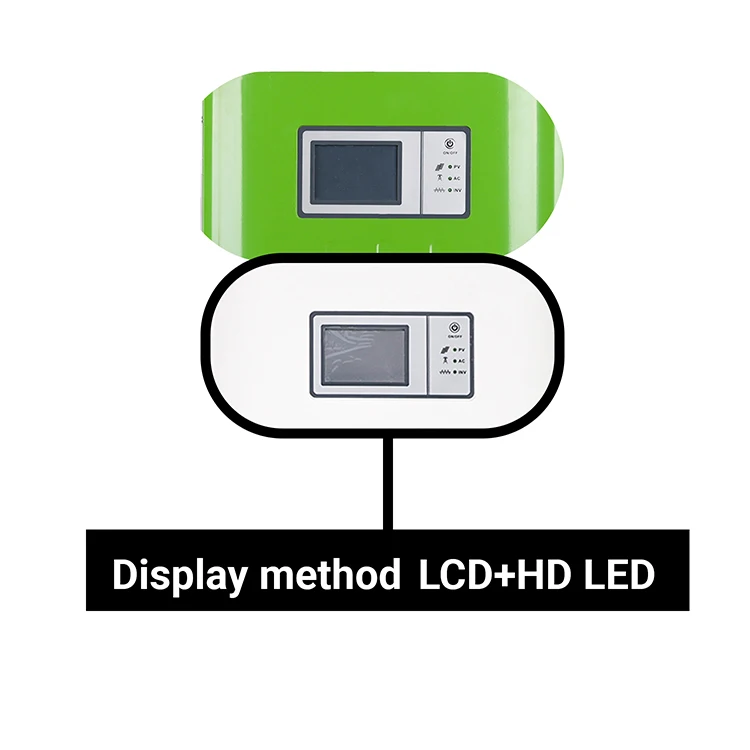

| Display method | LCD+HD LED | |||||
| Working environment | Temperature 0℃~40℃ | |||||
| Cooling method | Smart air cooling | |||||

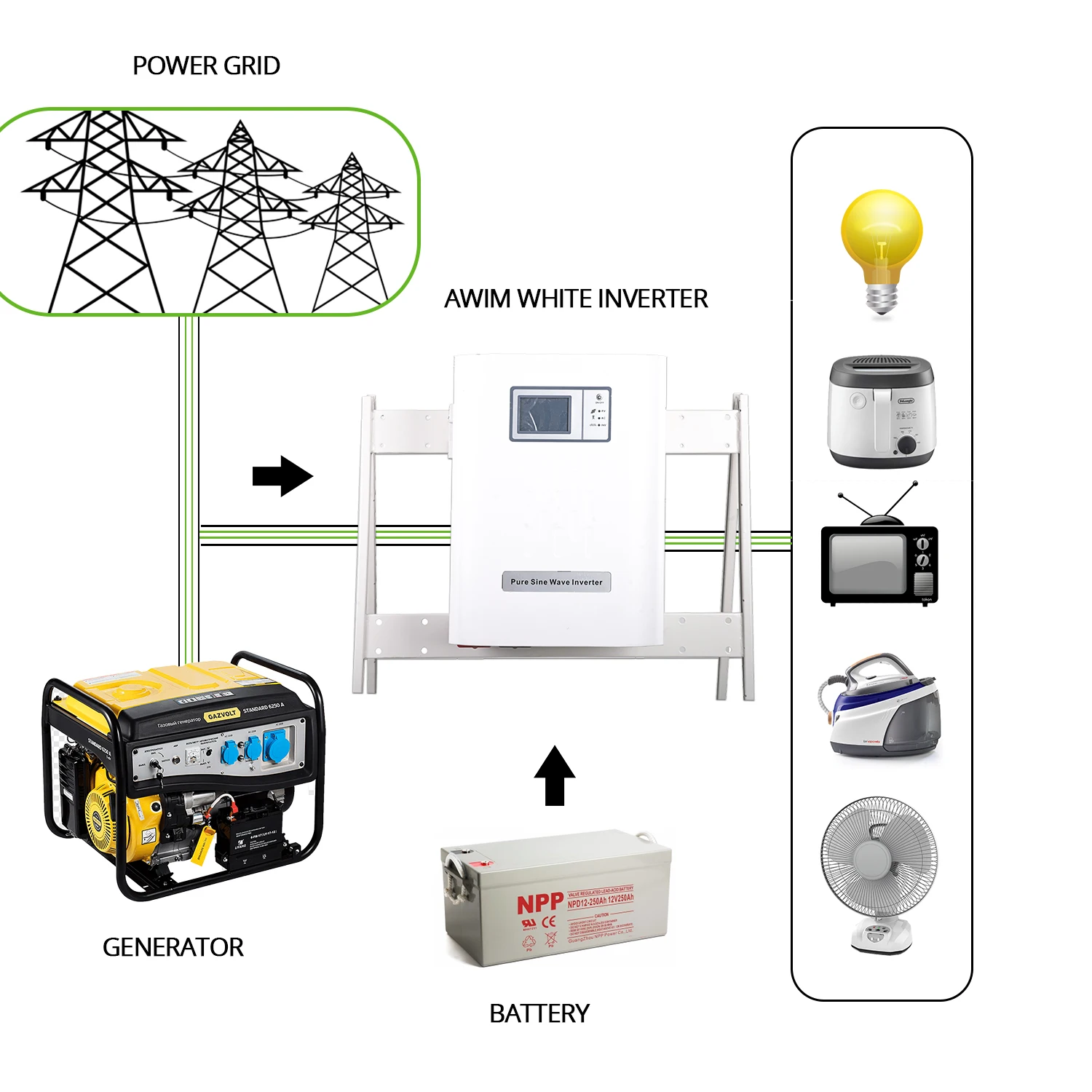

| Operating mode | Mains priority mode / battery priority mode / energy saving mode / unattended function | |||||
| Battery Type | Free maintenance lead-acid battery/gel/lithium iron phosphate/ternary lithium/customize | |||||
| Inverter dimension | 470*350*180mm | 550*400*180mm | ||||
| Package size | 546*386*241mm | 647*457-252mm | ||||
| Net weight(kg) | 16 | 21 | 23 | 28 | 30 | 32 |
| Gross weight(kg) | 18.5 | 23.5 | 26 | 31 | 33 | 35 |
| Packing | Honeycomb cardboard carton with shockproof foam | |||||
| Buit in MPPT solar controller | ||||||
| Rated current | 30A | 50 | 30A | 50A | 60A | 120A |
| DC voltage | 24V | 24A | 48V | 48V | 48V | 48V |
| Access to photovoltaic power range | 750W | 1200W | 1440W | 2400W | 2800W | 5700W |
| Input photovoltaic voltage range | 35V-150V | 65V-150V | ||||
| Remarks: If the above specifications can not meet your needs, please click here to contact us for customization. | ||||||
