BBT30 ER 16 060 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)

Product Overview

Description

[Primary Applications]

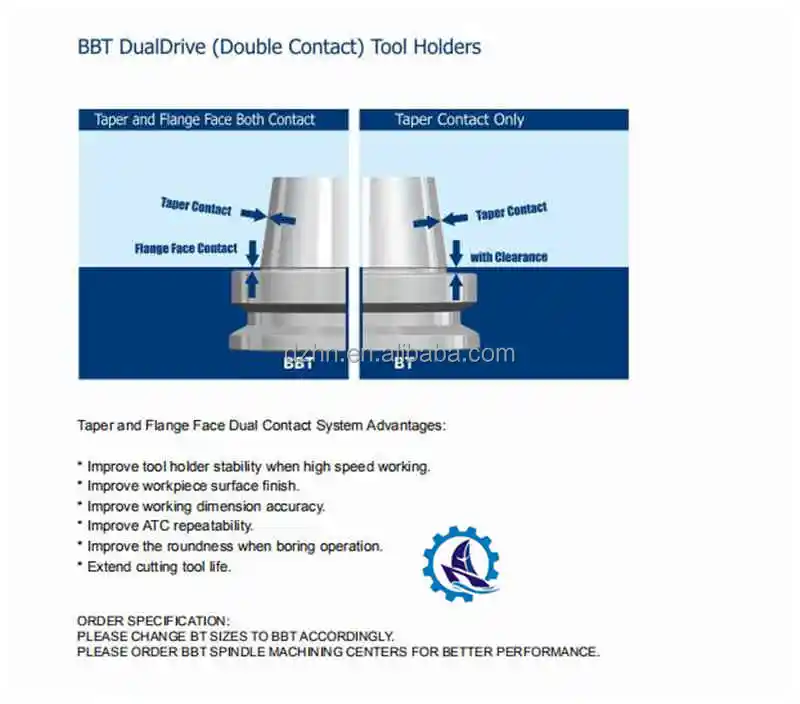

Face-contact tapers provide additional radial load capabilities due to the large spindle contact surface compared with standard ANSI B5.50 or MAS BT 403 tapers.

Excellent for long-reach axial cutting tools where cutting tip TIR is critical for part dimension achievement and machined surface location/

With the wide face-contact longer axial cutting tools with high radial loads will have less "bending" or improved dynamic stiffness and rigidity.The vibration dampening of these holders reduces spindle wear and extends cutting tool life.

Designed for use in CNC Machining centers With Face Contact spindles and automatic tool changers.

BBT Tool Holders are only recommended to use in Calibrated BBT Spindle Machines

[Primary Applications]

Face-contact tapers provide additional radial load capabilities due to the large spindle contact surface compared with standard ANSI B5.50 or MAS BT 403 tapers.

Excellent for long-reach axial cutting tools where cutting tip TIR is critical for part dimension achievement and machined surface location/

With the wide face-contact longer axial cutting tools with high radial loads will have less "bending" or improved dynamic stiffness and rigidity.The vibration dampening of these holders reduces spindle wear and extends cutting tool life.

Designed for use in CNC Machining centers With Face Contact spindles and automatic tool changers.





Item Name	ISO	Suitable Collet	Collet Capacity	D1	G	L	Nut	Spanner
BBT30 ER 16 060 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER16	0.5 - 10	32	M10X1	60	UM/ER16	E16
BBT30 ER 16 100 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER16	0.5 - 10	32	M10X1	100	UM/ER16	E16
BBT30 ER 20 060 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER20	1.0 - 13	35	M10X1	60	UM/ER20	E20
BBT30 ER 20 100 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER20	1.0 - 13	35	M10X1	60	UM/ER20	E20
BBT30 ER 25 060 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER25	1.0 - 16	42	M18X1	60	UM/ER25	E25
BBT30 ER 25 100 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER25	1.0 - 16	42	M18X1	100	UM/ER25	E25
BBT30 ER 32 050 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER32	2.0 - 20	50	M22X1.5	50	UM/ER32	E32
BBT30 ER 32 060 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER32	2.0 - 20	50	M22X1.5	60	UM/ER32	E32
BBT30 ER 32 100 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER32	2.0 - 20	50	M22X1.5	100	UM/ER32	E32
BBT30 ER 40 80 ER Collet Chuck (Balanced to G2.5 25000 rpm) (BT MAS 403) (DIN 6499)	30	ER40	3.0 - 26	63	M30X1.5	80	UM/ER40	E40
