Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china
Shenzhen grid tie solar inverter with lithium battery manufacturers in china

Shenzhen grid tie solar inverter with lithium battery manufacturers in china

Share on (1600250775633):


Price:$198.00 - $221.00

Quantity:


Product Overview

Description



Product Description

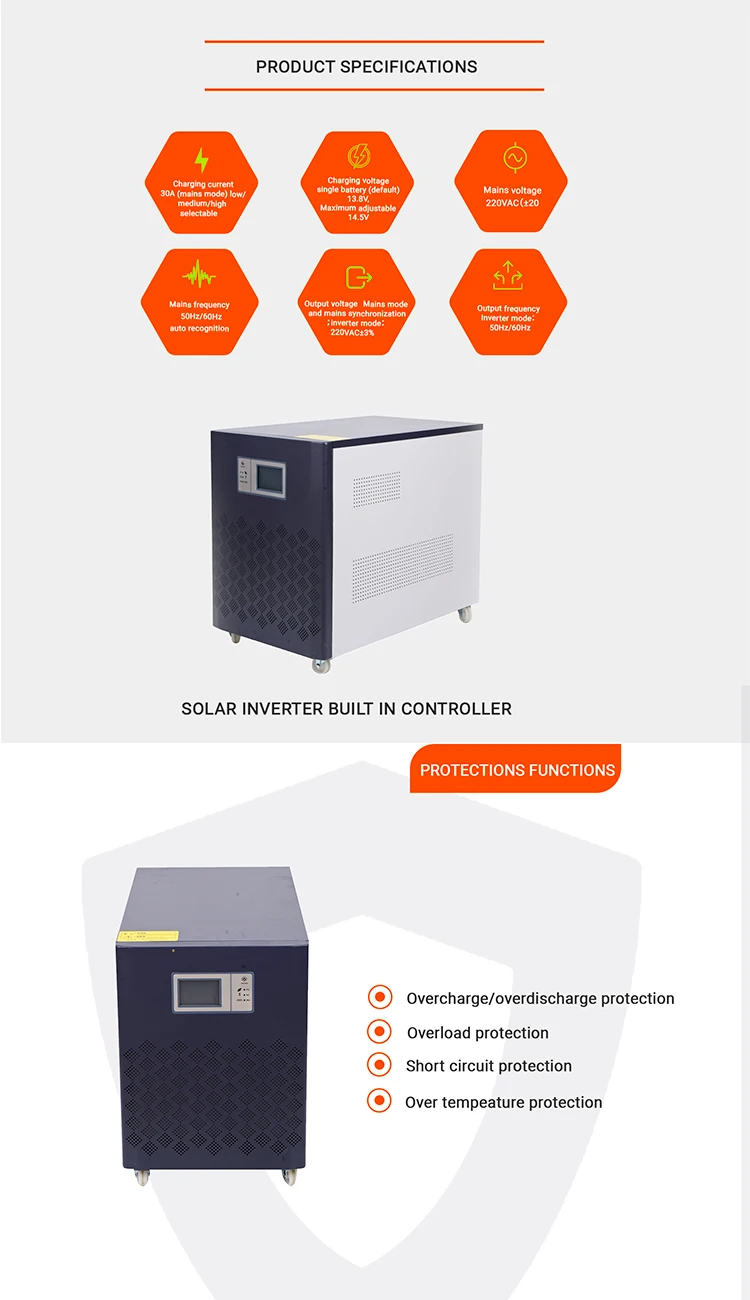

Shenzhen grid tie solar inverter with lithium battery manufacturers in china

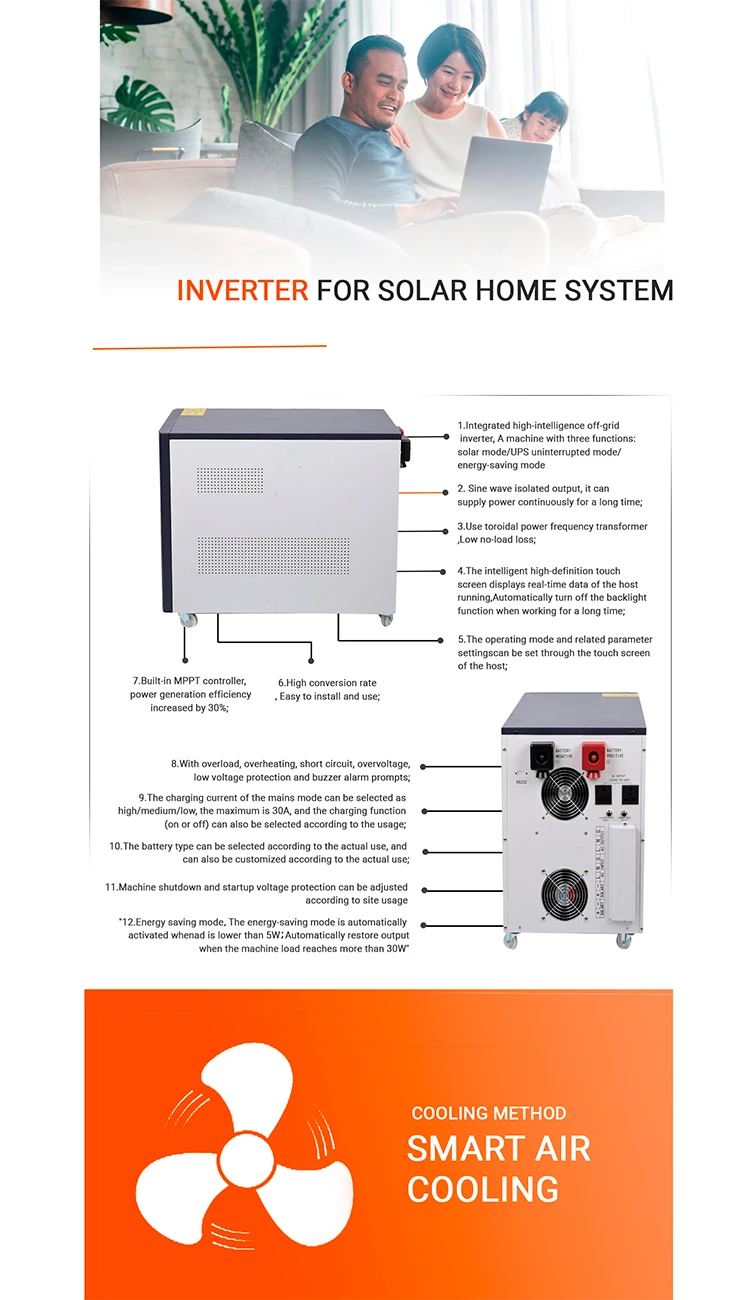

ItemPower frequency pure sine wave inverter/solar inverter built in controller
Model NumberASI150ASI200ASI300ASI350ASI400ASI500ASI600ASI800
Rated power1500W2000W3000W3500W4000W5000W6000W8000W
Battery voltage48V24V/48V/96V48V/96V48V

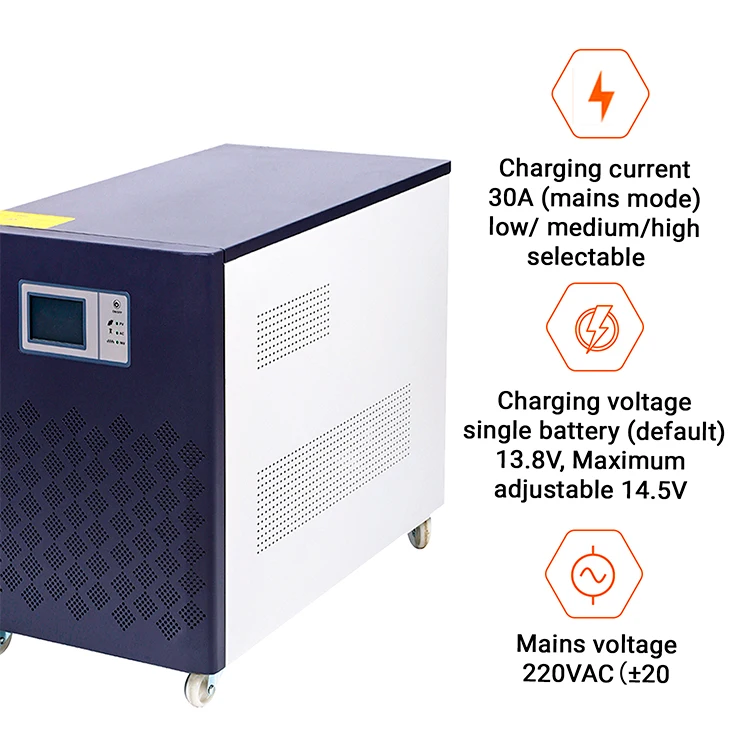

Charging current30A (mains mode) low/medium/high selectable
Charging voltagesingle battery (default)13.8V,Maximum adjustable 14.5V
Mains voltage220VAC(±20%)
Mains frequency50Hz/60Hz  auto recognition
Output voltageMains mode and mains synchronization;inverter mode: 220VAC±3%
Output frequencyInverter mode:50Hz/60Hz
Output waveformPure sine wave
Inverter efficiency>85%
Conversion time≤5ms
Battery protection

1-When the voltage of a single battery is lower than 10V, the machine shuts down;


2-When the voltage of a single battery is lower than 10.8V, the machine will switch to mains mode;


3-When the single battery voltage is higher than 13.3V, the machine switches back to inverter mode.


Overload powerFull load alarm,Overload 110%-120%/30 seconds automatic shutdown, >150%, 3 seconds automatic shutdown
Protective functionOvercharge/overdischarge protection, overload protection, short circuit protection, over temperature protection

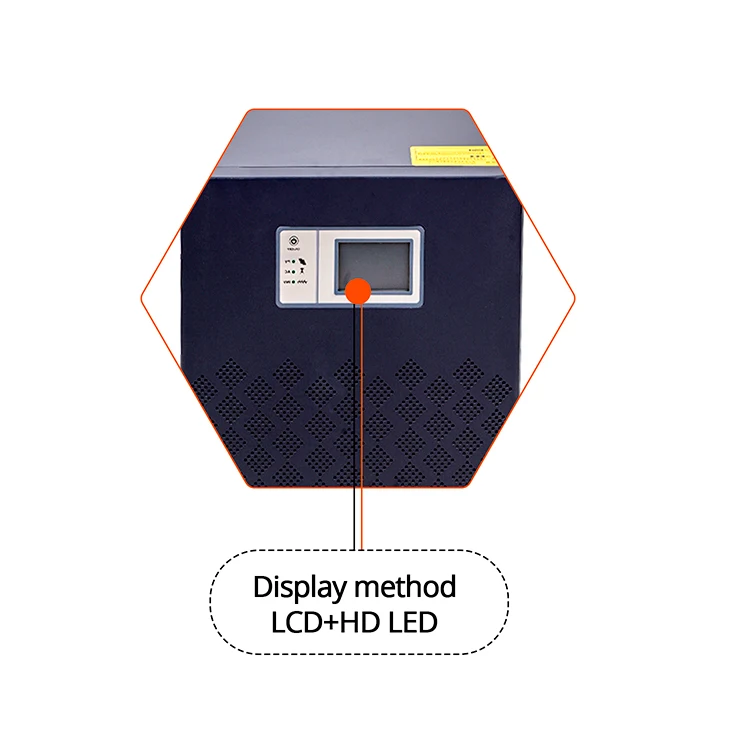

Display methodLCD+HD LED
Working environmentTemperature 0℃~40℃
Cooling methodSmart air cooling
Operating modeMains priority mode / battery priority mode / energy saving mode / unattended function
Battery TypeMaintenance-free lead-acid battery/gel/lithium iron phosphate/ternary lithium/customize
Inverter dimession520*220*360mm520*250*400mm575*350*500mm
Packing size560*265*400mm580*310*450mm670*410*550mm
Net weight(kg)1520222527293156
Gross weight(kg)1723252830.532.53459
PackingHoneycomb cardboard carton with shockproof foam
Buit in MPPT solar controller
Rated current30A5030A50A60A120A
DC voltage24V24A48V48V48V48V
Access to photovoltaic power range750W1200W1440W2400W2800W5700W
Input photovoltaic voltage range24V:35V-150V;48V:65V-150V;96V:145V-200V

 Note:


 1)All specifications are subject to change without prior notice


 2)please contact us if you have any question or need to customize.
