KAPACK 90l big hopper horizontal thick paste fill high viscosity hot dip pot chili sauce filling machine with mixer
- Category: >>>
- Supplier: Ka Packing Tech Co. Ltd.
Share on (1600250779087):
Product Overview
Description
Product Description

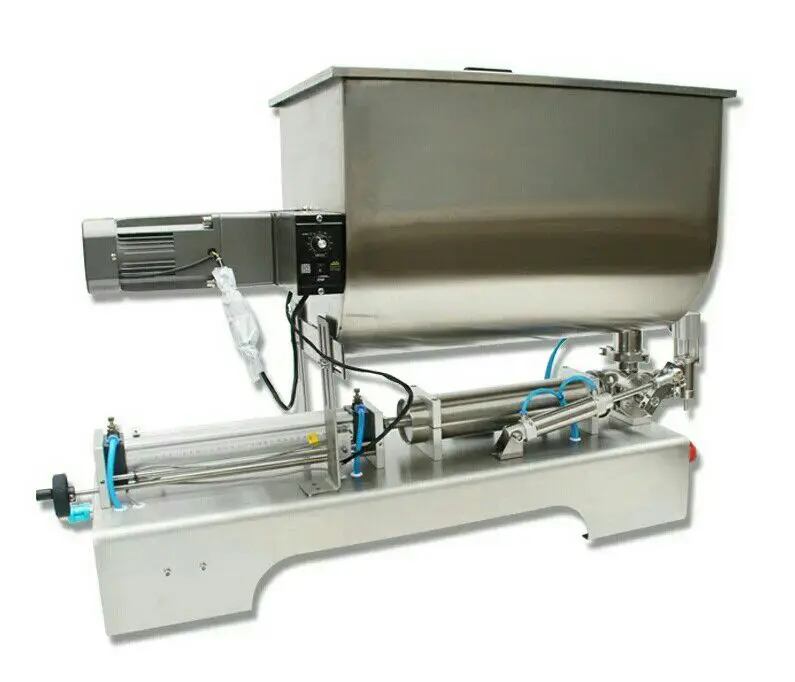

U type Sauce Mixing and Filling Machine
This series filling machine is a highly versatile, dependable and accurate filling machine capable of handling water thin liquid to highly viscous paste without or with chunks and particles but best for viscous liquid. This pneumatic volumetic filler machine measures and delivers the product to the container by the action of a single piston for each filler head. The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then flips ninety degree between the cylinder and discharge tube on the dispense stroke so that the product is then pushed out of the nozzle instead of back into the hopper.
The volume of the filling chamber in which the piston is operating determines the volume of product delivered into the container. The larger the product cylinder, the more available volume for filling. Adjusting the length of the piston's stroke can change this volume. As the stroke is lengthened, the volume of the chamber is increased, and as the stroke is shortened, the volume of the chamber is decreased.
Accuracy is dependent on what percentage of the overall volume of the product cylinder is used. The greater the volume, the more accurate. This series filling machines are accurate to +/- 1% when used in the recommended fill volume ranges for each specific size cylinder. Tabletop type of one nozzle and dual nozzles, floor type of one nozzle and dual nozzles are available for option.
The volume of the filling chamber in which the piston is operating determines the volume of product delivered into the container. The larger the product cylinder, the more available volume for filling. Adjusting the length of the piston's stroke can change this volume. As the stroke is lengthened, the volume of the chamber is increased, and as the stroke is shortened, the volume of the chamber is decreased.
Accuracy is dependent on what percentage of the overall volume of the product cylinder is used. The greater the volume, the more accurate. This series filling machines are accurate to +/- 1% when used in the recommended fill volume ranges for each specific size cylinder. Tabletop type of one nozzle and dual nozzles, floor type of one nozzle and dual nozzles are available for option.
Advantage
1.Sanitary stainless steel construction
2.Airtec or Festo piston
3.Tool free strip down for easy cleaning 4.Quick release nozzle and feed pipe without need of tools
5.Cone shape hopper(Jacketed for option) 6.Manul/Auto operation
7.Footswitch operated frees operator's hands for other operations
8.Pneumatic operation suitable for hazardous areas or wash down facilities
9.Product suction and dispensing speed adjustment 10.Interchangeable nozzles
11.Easily assembled and disassembled 12.Easily portable
Application
They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic,drinks, chemical, medical, food, etc.
Specification
Model | KA-YG 100 U | KA-YG 200 U | KA-YG 500 U | KA-YG 1000 U | KA-YG 2500 U | KA-YG 5000 U | |||||
Filling volume | 5-100ml | 10-200ml | 50-500ml | 100-1000ml | 500-2500ml | 1000-5000ml | |||||
Filling speed | 50-60 bottles/min | 40-50 bottles/min | 35-45 bottles/min | 30-40 bottles/min | 25-35 bottles/min | 15-25 bottles/min | |||||
Voltage | 220/110V 50/60Hz | ||||||||||
Filling accuracy | ≤1% | ||||||||||
Package size | 1100*400*550 | 1200*500*600 | 1250*600*650 | 1250*700*650 | 1300*700*650 | 1400*600*650 | |||||
Weight | 45kg | 50kg | 55kg | 60kg | 65kg | 70kg | |||||
Details Images

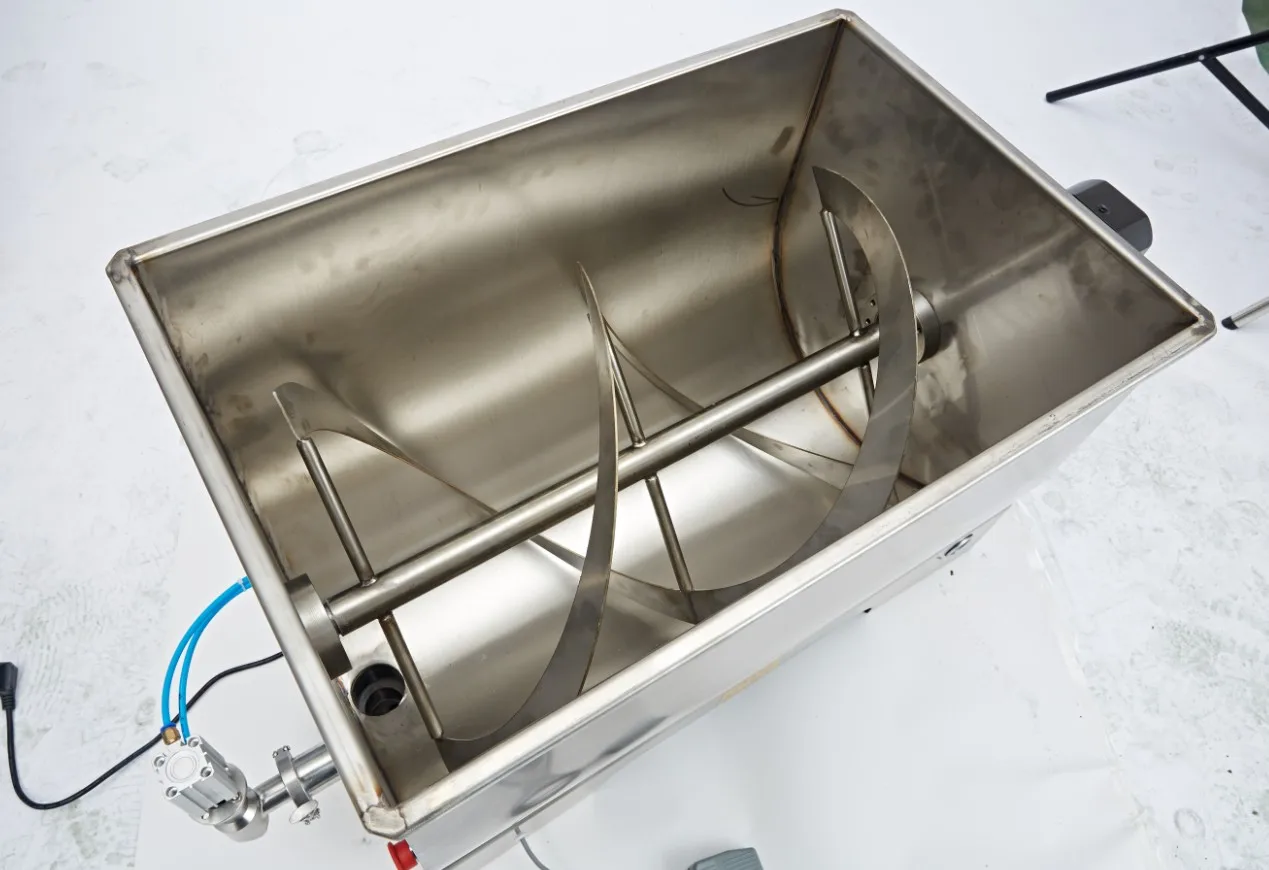

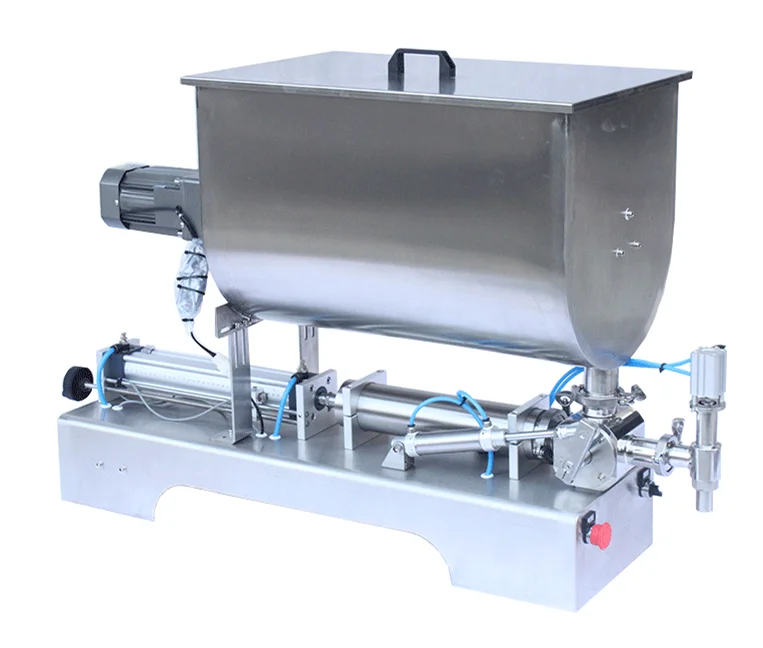

U Shaped Hopper With Mixer
1.Stainless Steel 304
2.Big hopper.
3.Mixing Function.
Three way Valve
1.Stainless Stell 304
2.No Leakage..
1.Stainless Stell 304
2.No Leakage..

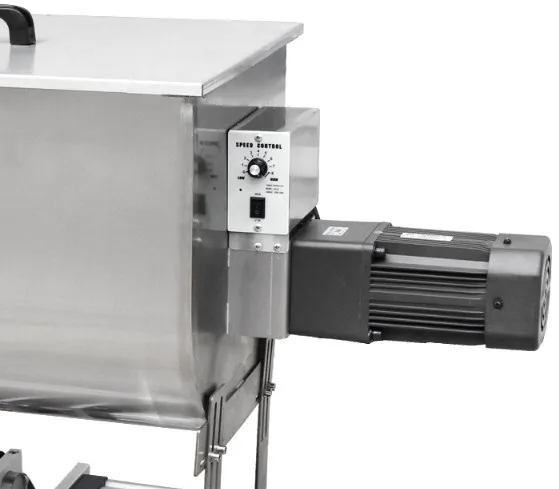

Big Motor------Low Noise, Stable Perfermance

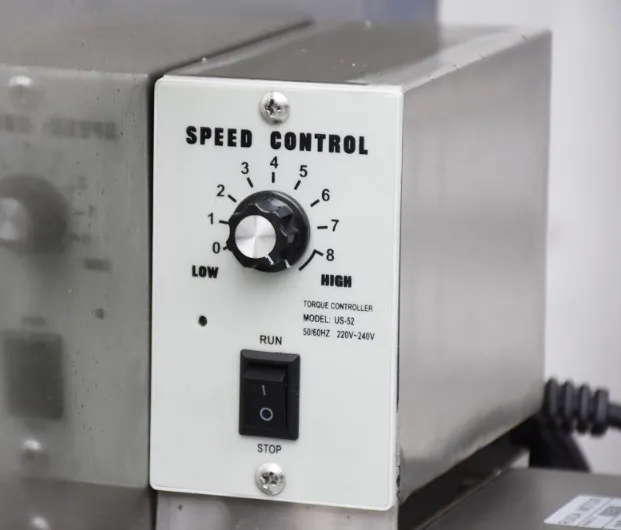

Speed Control -----change Speed
High quality cylinder------Genuine accessories, good sealing, stable air pressure, long service life High quality..
Foot Switch------Easy Operate, Easy Control
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
<1> What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems. Please feel free to contack us 7*24hours.
<2> How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters).
Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
<3> How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
<4> Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems. Please feel free to contack us 7*24hours.
<2> How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters).
Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
<3> How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
<4> Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
