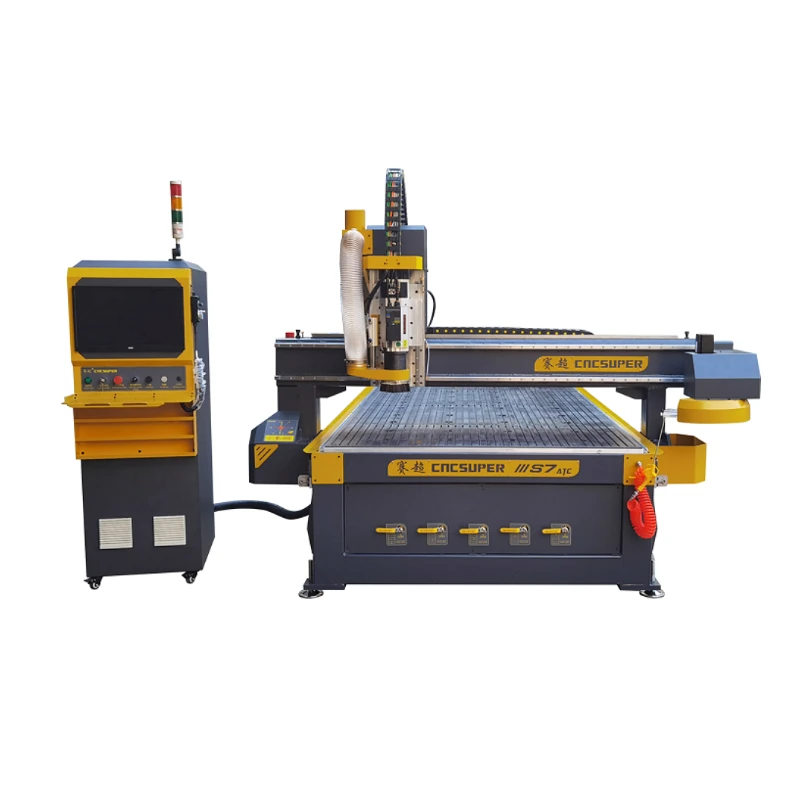

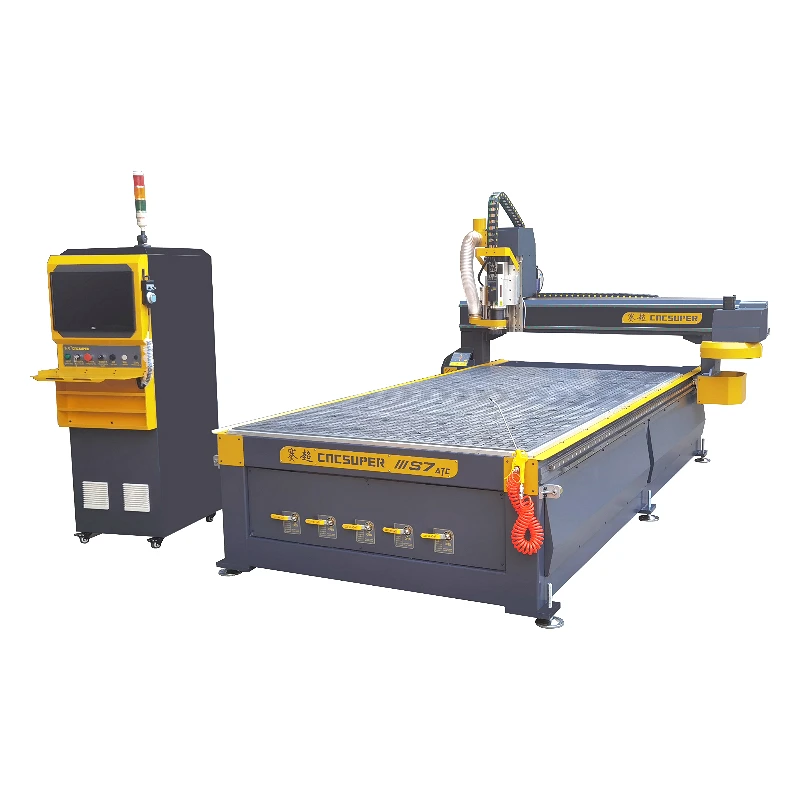

High Accuracy 220 380v Voltage Woodworking Machinery 1325 1530 2040 Automatic Atc Wood Cnc Router Machine
Features
1 Gantry moving design, Y-axis dual motors with precision grinding helical gear transmission to ensure the accuracy of the machine;

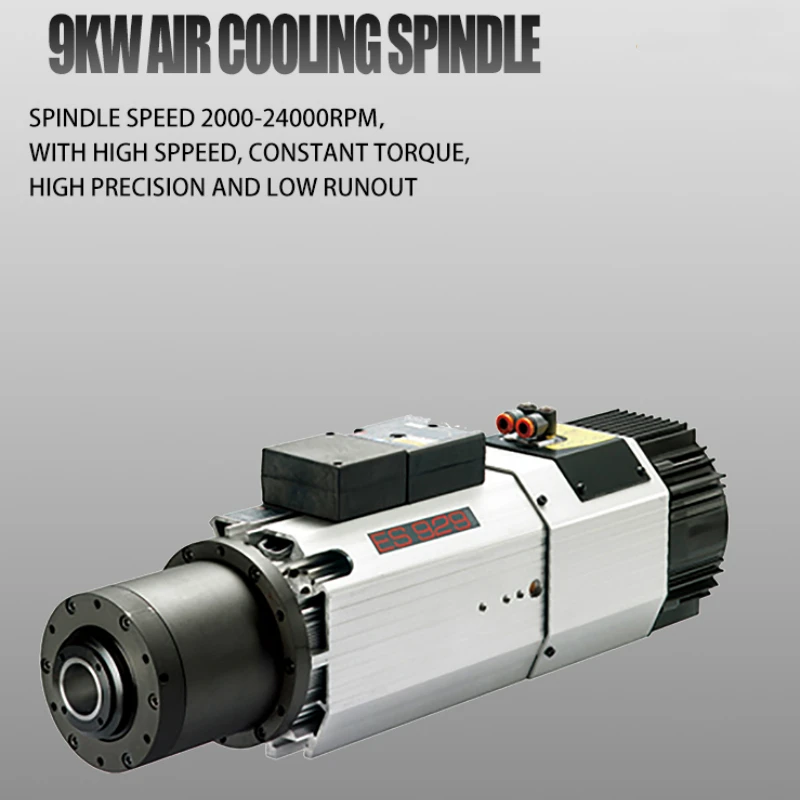

2. Equipped with high-precision 9KW ATC tool change spindle, rotating speed 24000rmp / min, save time and avoid manual tool change error;

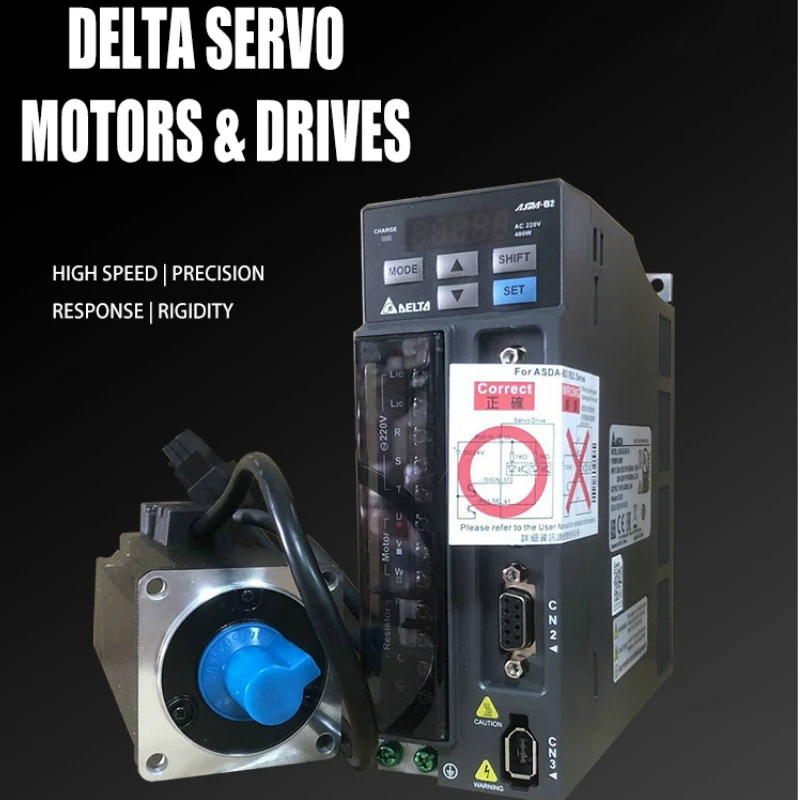

3. Adopted whole set DELTA servo motors and drivers, working speed up to 25000mm / min;

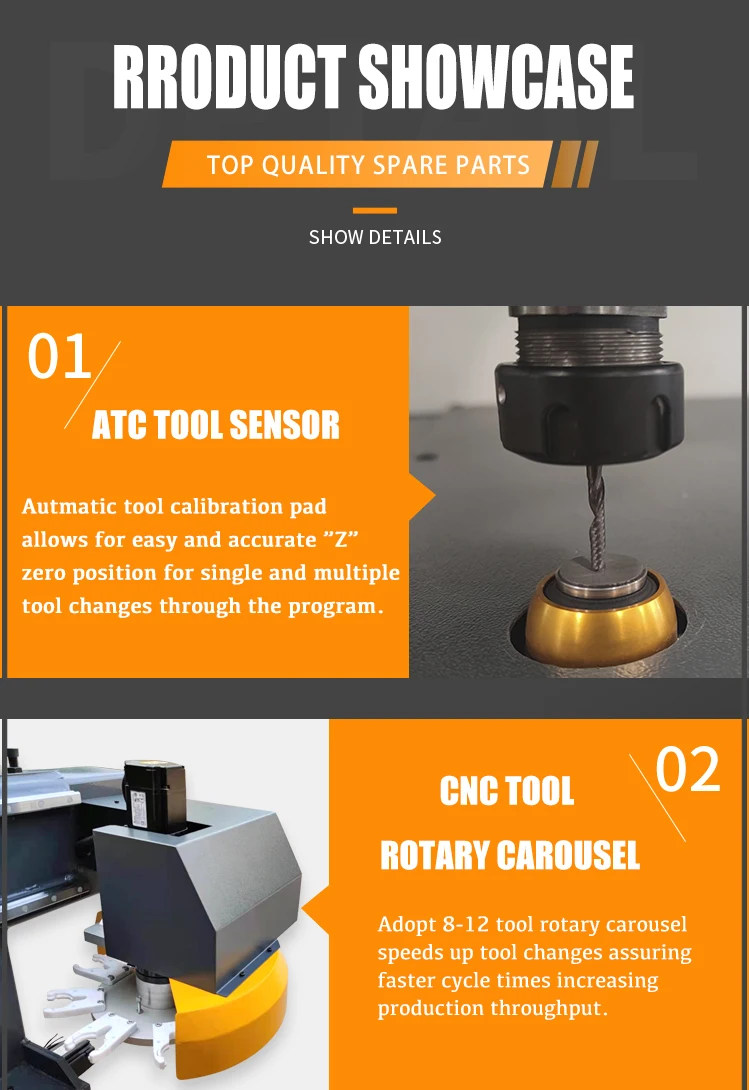

4. Automatic tool sensor, precision tool setting, practical and convenient;
2. Equipped with high-precision 9KW ATC tool change spindle, rotating speed 24000rmp / min, save time and avoid manual tool change error;
3. Adopted whole set DELTA servo motors and drivers, working speed up to 25000mm / min;
4. Automatic tool sensor, precision tool setting, practical and convenient;

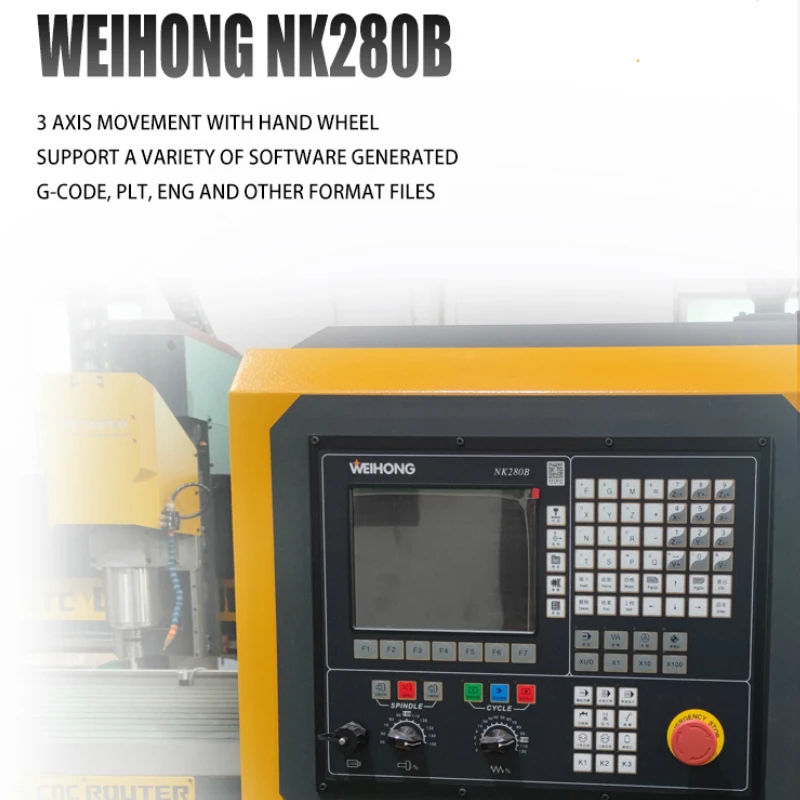

5. NC Studio NK280 Control system with hand wheel, easy to operate and control;
6. Dry rotary vane Taiwan EUROVAC 7.5kw vacuum pump plus vacuum table section design, makes the smaller material can be processed at any time.
6. Dry rotary vane Taiwan EUROVAC 7.5kw vacuum pump plus vacuum table section design, makes the smaller material can be processed at any time.
Product Paramenters
NO. | Description | Parameter |
1 | XYZ working area | 1300*2500*200mm, 4*8ft |
2 | Optional working area | 1500*3000*200mm, 5*10ft 2000*3000*200mm, 6*10ft 2000*4000*200mm, 6*13ft |
3 | Lathe Structure | Annealing heavy-duty structure |
4 | Guide | Original TAIWAN HIWIN |
5 | Z Structure | Original TAIWAN TBI Ball Screw transmission |
6 | Traveling Positioning Accuracy | ±0.03/300mm |
7 | Repositioning Positioning Accuracy | ±0.03 |
8 | Table | 5 zones vacuum table plus T-slot |
9 | Vacuum pump | 7.5KW Taiwan EUROVAC vacuum pump |
10 | Max. Speed | 35000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power Motor | 9KW air cooling ATC Spindle |
13 | Spindle Speed | 24000RPM |
14 | Drive Mode | DELTA servo motors and drivers |

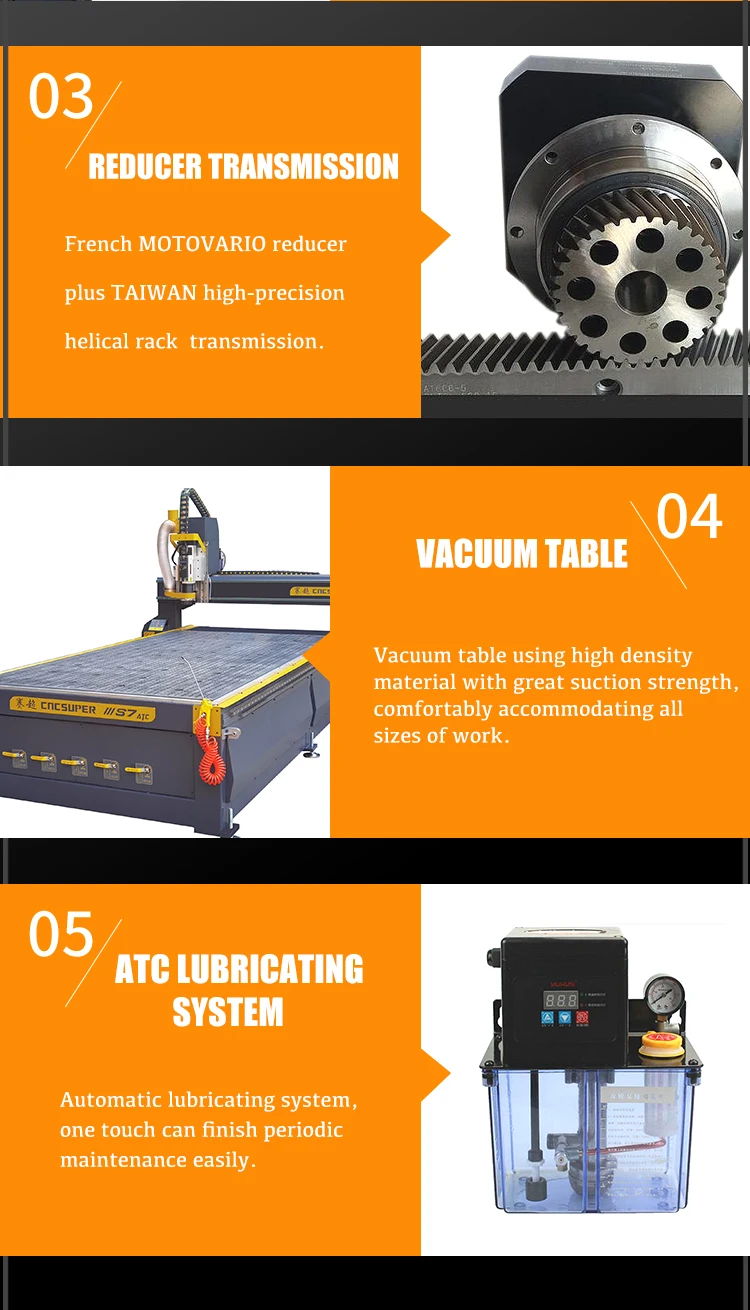

15 | Reducer | French MOTOREDUCER |
16 | Lubrication system | Automatic lubrication system |
17 | Working Voltage | 380V/50Hz/3 phases |
18 | Command | G Code, *uoo, *mmg, *plt |
19 | Operating System | Original NC Studio controller (NK280 with hand wheel) |
20 | Tool change type | Rotary type knife library |
21 | Tool magazine motor | MIGE servo motors and drives |
22 | Magazine capacity | 8 positions ATC |
23 | Collet | ER32 |
24 | Software | Type3/Artcam |
25 | Dust cleaning system | Spindle cover+dust collector+pipe+bags |
