Metal Pully type copper wire drawing machine
- Category: >>>
- Supplier: SSS Hardware International Trading Co. Ltd.
Share on (1600250816978):
Product Overview
Description
Product Description

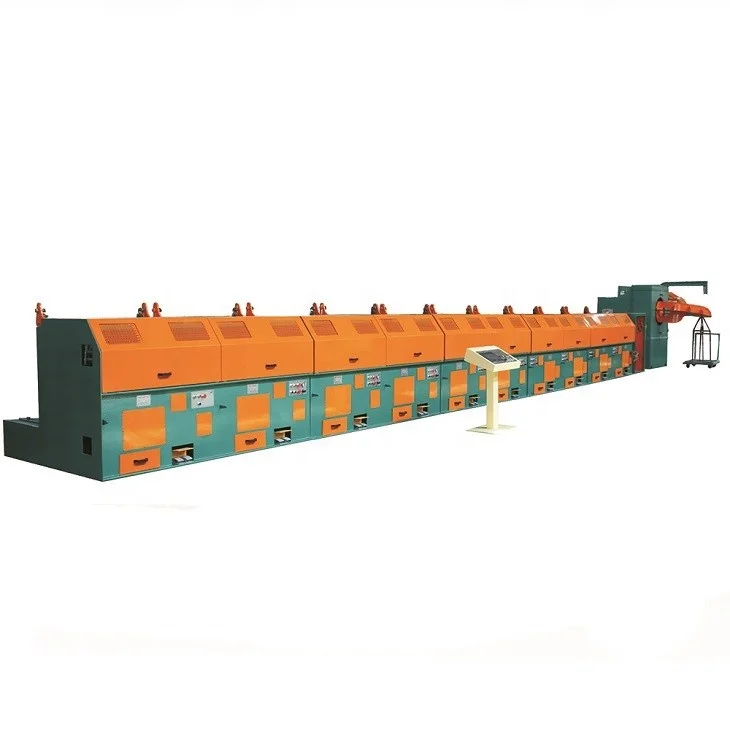

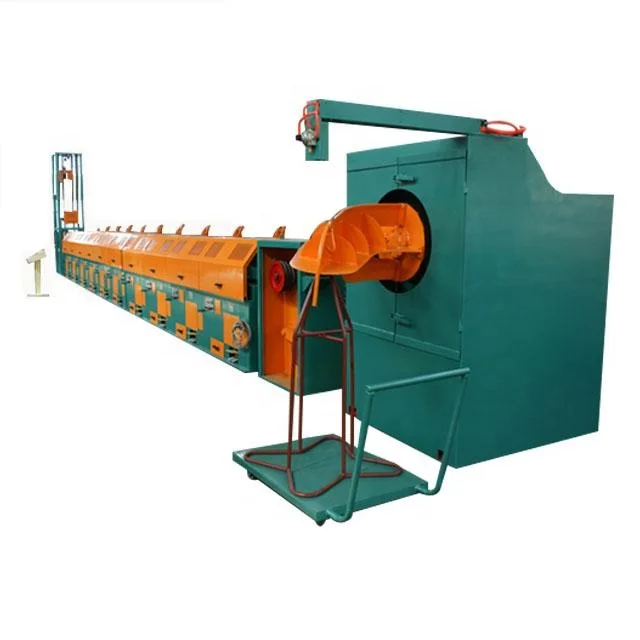

Metal Pully type copper wire drawing machine
SSS-LZ-6-560 is a new model self-adaption wire drawing line, which adopts AC variable frequency driving, field bus communication and industrial computer control. The drawing line is capable to draw steel wire,aluminum wire and brass wire stably at high speed.The line is equipped with complete electrical control system and relatively independent artesian sealed cooling system.
Wire Drawing Processes

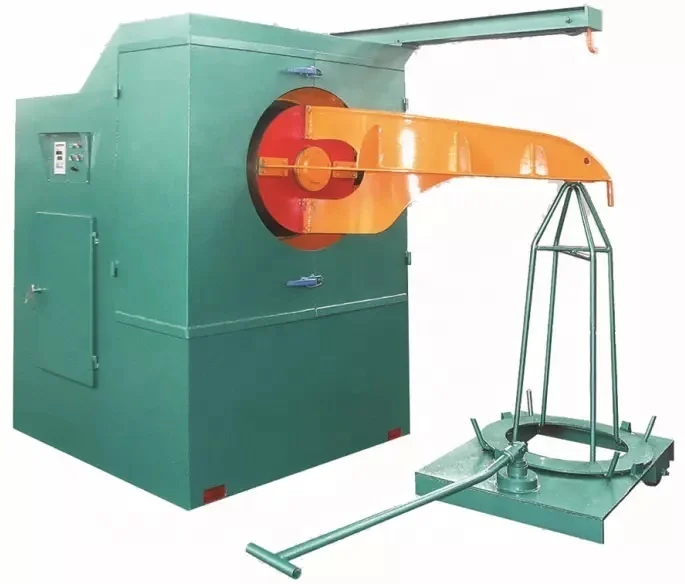

Steel in coil →Altitude wire discharging rack→Straight type wire drawing machine→Automatic roll-up
Steel in coil →Altitude wire discharging rack→Straight type wire drawing machine→Automatic roll-up
Specification
Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 | ||||||||
Material Intensity | ≤1250Mpa | ||||||||||||||||
Drawing Passes | 2 ~ 11 | 2 ~ 11 | 2 ~ 11 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 9 | 2 ~ 9 | ||||||||
Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 5.0mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm | ||||||||
Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm | ||||||||
Max. Speed Of Drawing | 25m/s | 20m/s | 20m/s | 16m/s | 15m/s | 15m/s | 12m/s | 12m/s | 8m/s | ||||||||
Drawing Power (KW) | 7.5~18.5 | 11~22 | 11~30 | 15~37 | 22~45 | 22~55 | 30~75 | 45~90 | 55~110 | ||||||||
Our Advantages
Machine Advantages
1. The drawing line is fully automatic and intelligentized, and easy to operate.
2. Noise is very low when the machines are working with little pollution.
3. The line works very stable at high speed and the service life is long.
4. The quality of finished wire is good, with high passing rate.
2. Noise is very low when the machines are working with little pollution.
3. The line works very stable at high speed and the service life is long.
4. The quality of finished wire is good, with high passing rate.
Packing & Delivery
export standard wood case

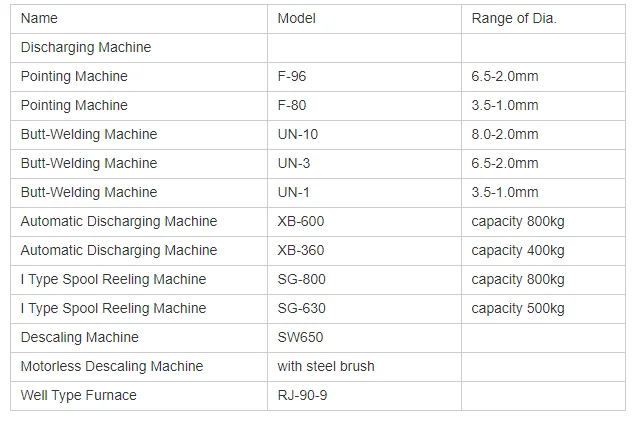

Related Product
CERTIFICATE

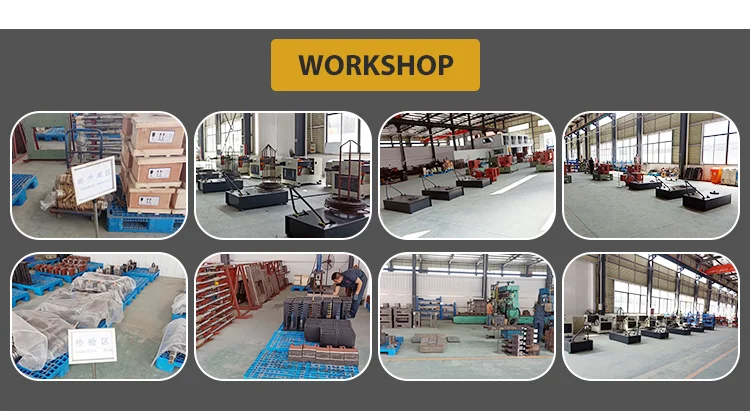

Our Company
FAQ
Q:What your machine can weld wire?
A:steel wire,galvanized wire,aluminum wire,brass wire,etc
Q:how to adjust the speed of the wire mesh welding machine?
A:Through the control cabinet
Q:How to confirm the quality before you place the order?
A:We warmly welcome your friends and you come to visit our factory and check the machine . We have the ISO 9001 Certificate and the CE Certificate.
A:steel wire,galvanized wire,aluminum wire,brass wire,etc
Q:how to adjust the speed of the wire mesh welding machine?
A:Through the control cabinet
Q:How to confirm the quality before you place the order?
A:We warmly welcome your friends and you come to visit our factory and check the machine . We have the ISO 9001 Certificate and the CE Certificate.
