Product Overview
Description
Specification
Grade Flow rate NM3/min | E1 Filter element for eliminating oil and odour | E3 Super-high efficiency filter element for eliminating oil | E5 High efficiency filter element for eliminating oil | E7 Intake pipe filter element | E9 Separator/filter element |
0.57 | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 |
1 | E1-16 | E3-16 | E5-16 | E7-16 | E9-16 |
1.72 | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 |
2.9 | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 |
4.9 | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 |
7.2 | E1-32 | E3-32 | E5-32 | E7-32 | E9-32 |
11 | E1-36 | E3-36 | E5-36 | E7-36 | E9-36 |
14 | E1-40 | E3-40 | E5-40 | E7-40 | E9-40 |
18 | E1-44 | E3-44 | E5-44 | E7-44 | E9-44 |
22 | E1-48 | E3-48 | E5-48 | E7-48 | E9-48 |
Filtration Rating (micron) | Residual Oil Content (ppm) |
E1: 0.01 | 0.001 |
E3: 0.01 | 0.001 |
E5: 0.01 | 0.01 |
E7: 1 | 1 |
E9:3 | 5 |
Product Description
1. Introduction:

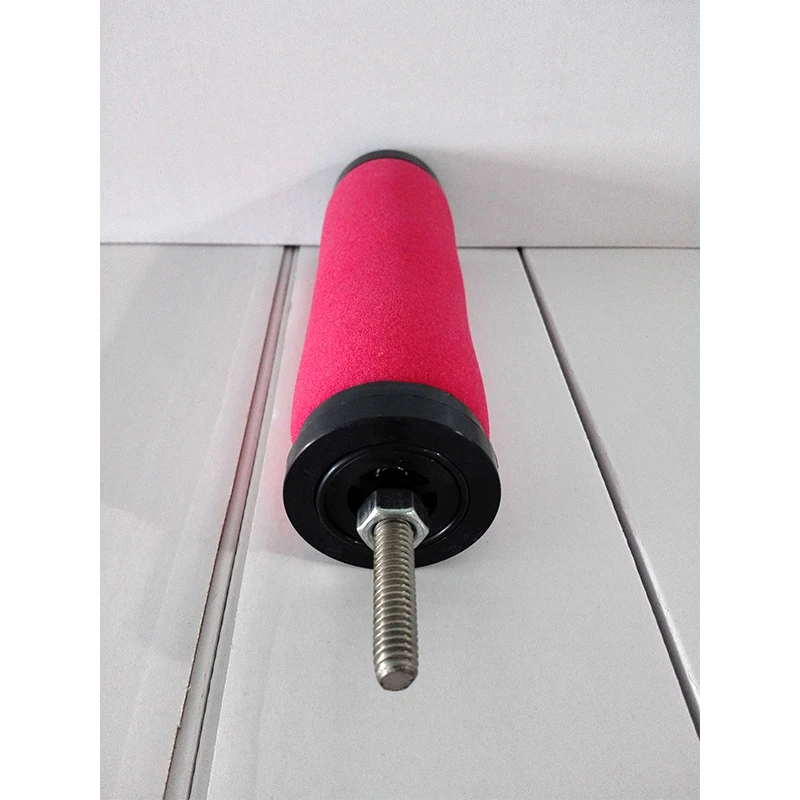

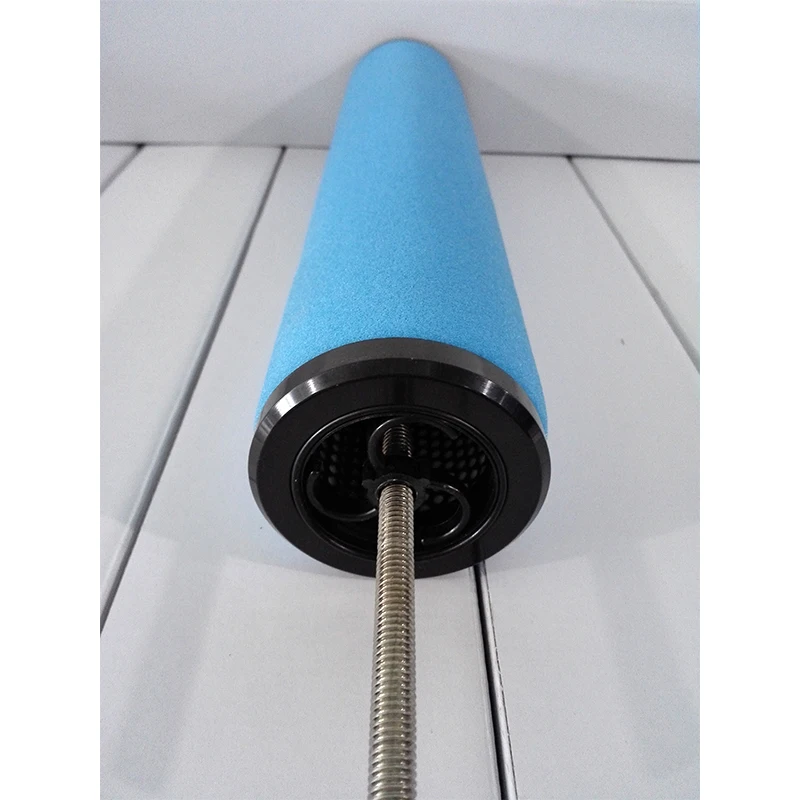

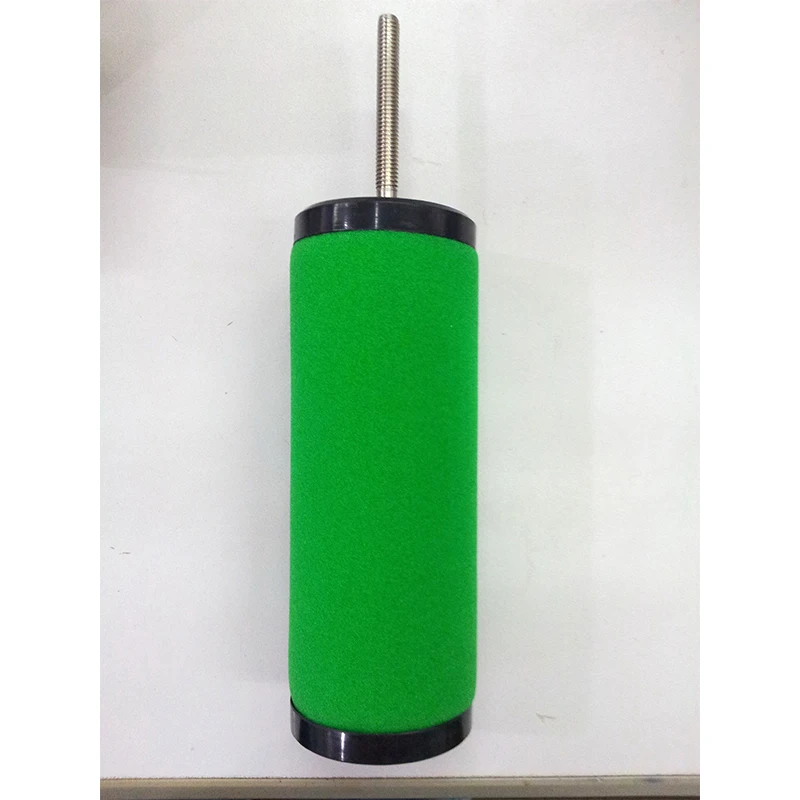

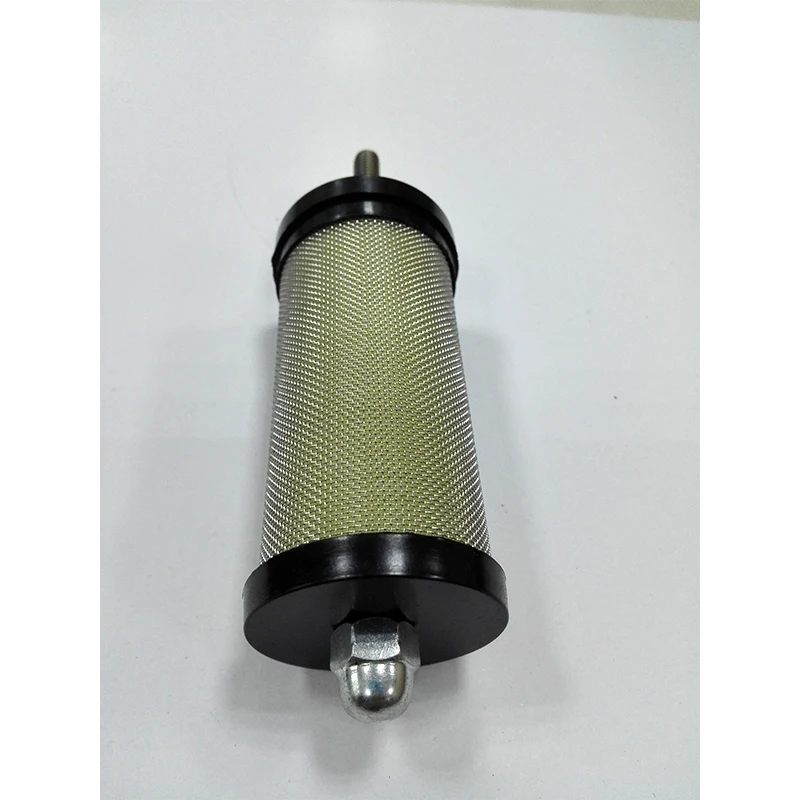

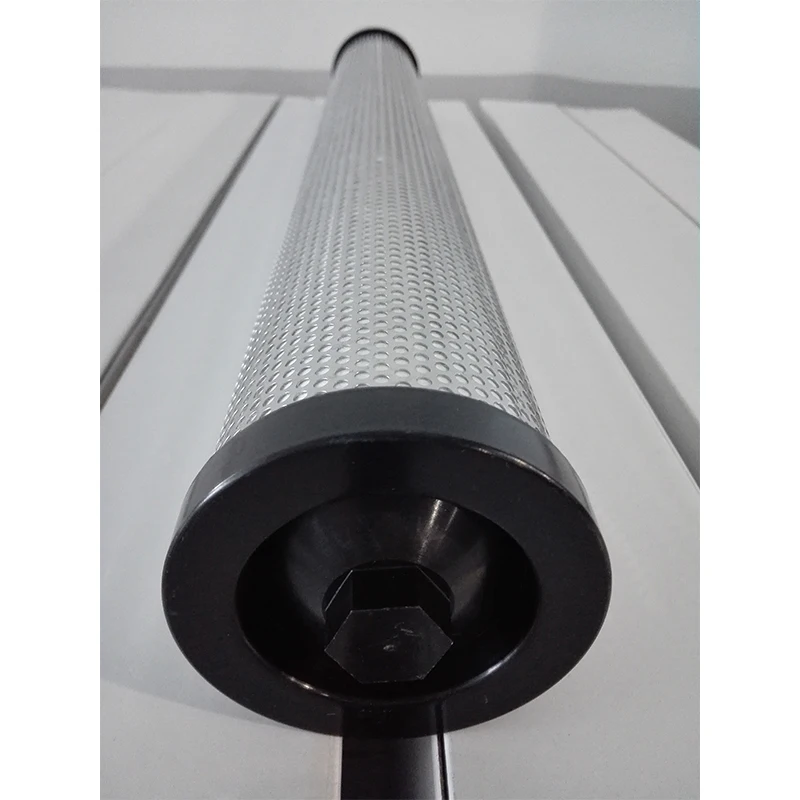

Hankison series replacement filter elements are the best popular product among our customers and are most acceptable by customers. It is the standard filter element for XF series compressed air filter, which has thicker aluminium housing, holding higher pressure and higher compression strength.
2. Technical specifications:
a. Model: E-16, E-20, E24, E-28, E-32, E-36, E-40, E-44, E-48
b. Grade: Grade 9, Grade 7, Grade 5, Grade 3 and Grade 1
c. Flow rate: 0.57~22Nm3/min.
d. Type: inserted and tie rod
e. Operating temperature: 65℃
f. Operating pressure: 16 bar
g. Filtration rating: 0.01, 1, 3 micron
h. Residual oil content: 0.001, 0.01, 1, 5 ppm
i. Color: blue, red, green
j. Material: foam/sponge, perforated sheet, stainless steel
k. Filter media: glassfibers, imported
l. Function: high efficient coalescing filter
m. Application: remove liquid, particles, oil in the compressed air
n. Quality class: ISO 8573.1
Hankison series replacement filter elements are the best popular product among our customers and are most acceptable by customers. It is the standard filter element for XF series compressed air filter, which has thicker aluminium housing, holding higher pressure and higher compression strength.
2. Technical specifications:
a. Model: E-16, E-20, E24, E-28, E-32, E-36, E-40, E-44, E-48
b. Grade: Grade 9, Grade 7, Grade 5, Grade 3 and Grade 1
c. Flow rate: 0.57~22Nm3/min.
d. Type: inserted and tie rod
e. Operating temperature: 65℃
f. Operating pressure: 16 bar
g. Filtration rating: 0.01, 1, 3 micron
h. Residual oil content: 0.001, 0.01, 1, 5 ppm
i. Color: blue, red, green
j. Material: foam/sponge, perforated sheet, stainless steel
k. Filter media: glassfibers, imported
l. Function: high efficient coalescing filter
m. Application: remove liquid, particles, oil in the compressed air
n. Quality class: ISO 8573.1
Company Profile
Wuxi Hualing Filter Equipment Co., Ltd, founded in 1992, specializes in manufacturing high-efficient precision filters for compressed air, filter elements, air oil separators for vacuum pump, lubrication station of centrifugal compressor and mechanical machining.
The company is one of the drafters for national standard GB/T 30475.1 & GB/T 30475.2, and possesses the most advanced test stand, imported from German GMN Company, which is in accordance with ISO 8573-2 and ISO 12500-1 standard, to guarantee the product quality.
It mainly supplies the filter products for such industries as machinery, textile, chemical, electronic, transportation, aviation and environmental protection etc. The products export to Europe and America, Asia, South Africa, accounting for around 30% of the overall business.
With good credit and rich practical experiences, the company provides you with advanced manufacturing and testing methods, high-quality products, reasonable prices and efficient service.
The company is one of the drafters for national standard GB/T 30475.1 & GB/T 30475.2, and possesses the most advanced test stand, imported from German GMN Company, which is in accordance with ISO 8573-2 and ISO 12500-1 standard, to guarantee the product quality.
It mainly supplies the filter products for such industries as machinery, textile, chemical, electronic, transportation, aviation and environmental protection etc. The products export to Europe and America, Asia, South Africa, accounting for around 30% of the overall business.
With good credit and rich practical experiences, the company provides you with advanced manufacturing and testing methods, high-quality products, reasonable prices and efficient service.
Our Advantages
Exhibition
Customer Photos
Packing & Delivery
Why Choose Us
a. 25 years’ practical experiences in design, development and manufacturing;
b. Strong technical force and advanced testing method;
c. Complete and perfect process documents and production lines;
d. Reliable and durable products with affordable prices;
e. High-quality and efficient service;
f. Sufficient inventory and timely delivery
b. Strong technical force and advanced testing method;
c. Complete and perfect process documents and production lines;
d. Reliable and durable products with affordable prices;
e. High-quality and efficient service;
f. Sufficient inventory and timely delivery
Our service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
FAQ
Q1. What kind of your company is it?
We’re the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Q3. What is the delivery time?
Q4. Do you have a warranty?
Q5. Can you supply customized product?
Q2. How about your technical conditions and production capability?
Complete process documents and equipments, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 1-30 working days after 100% payment.
Q4. Do you have a warranty?
Yes, for filters, it is 1 year and for elements, it is 8000 hours at least.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
