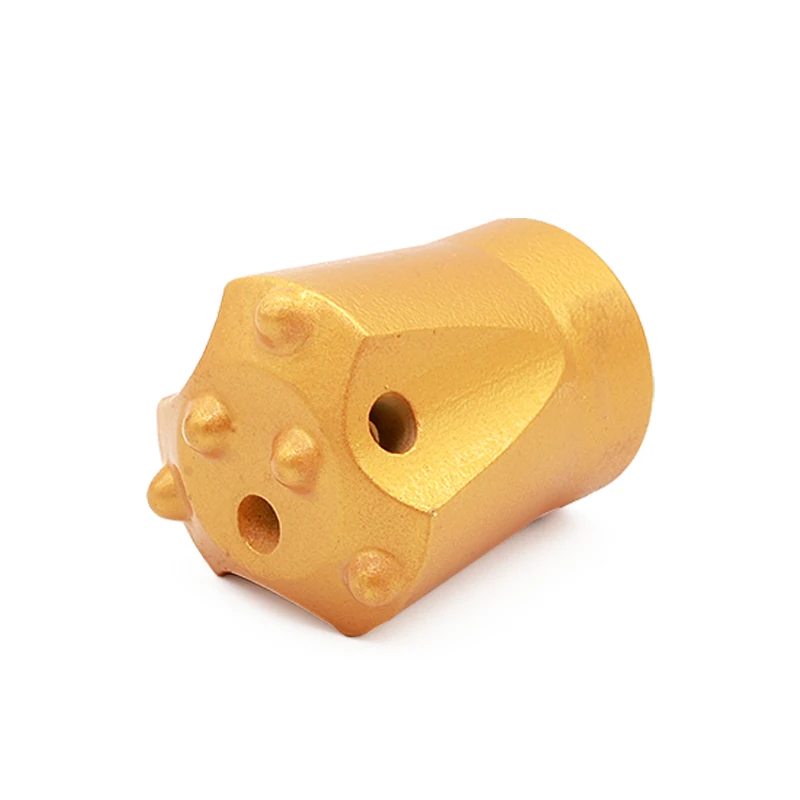

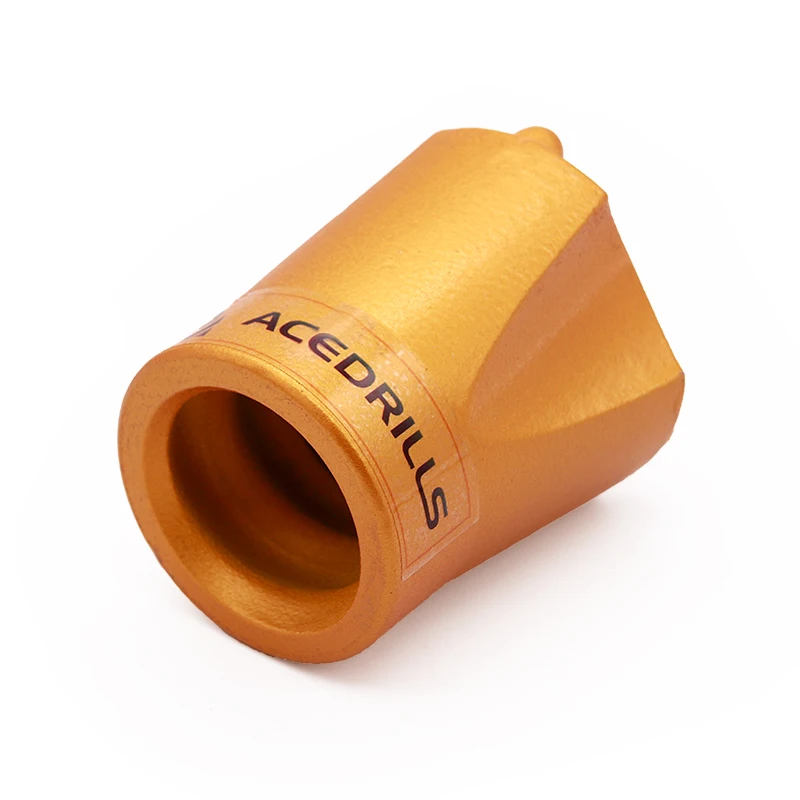

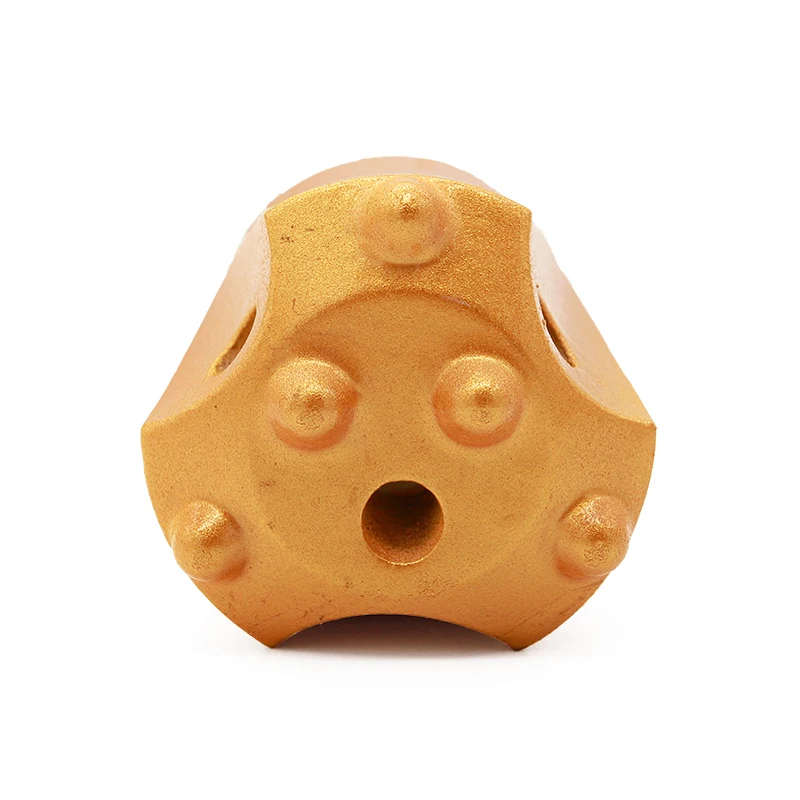

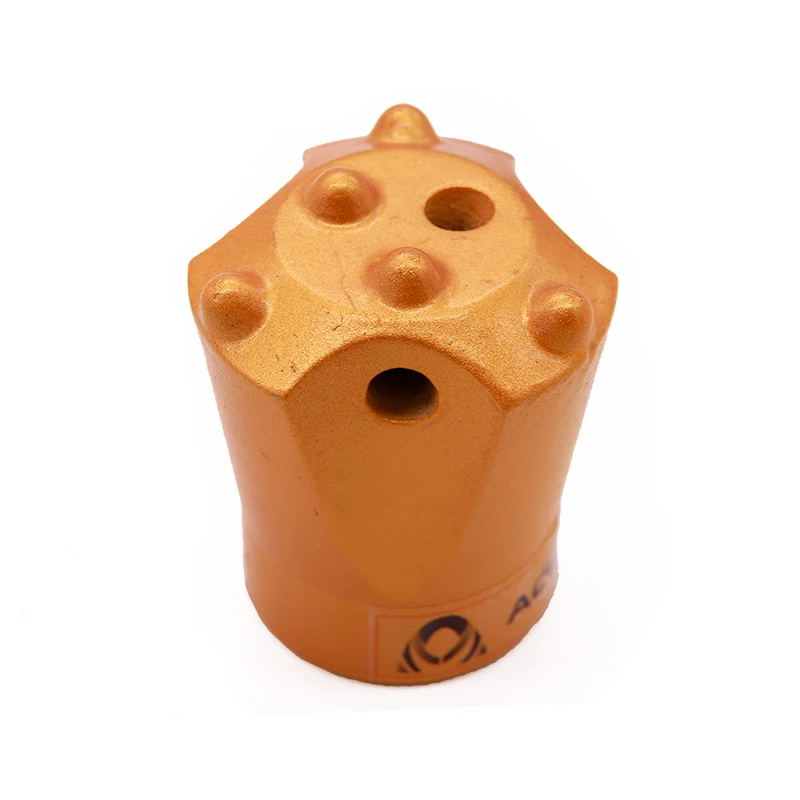

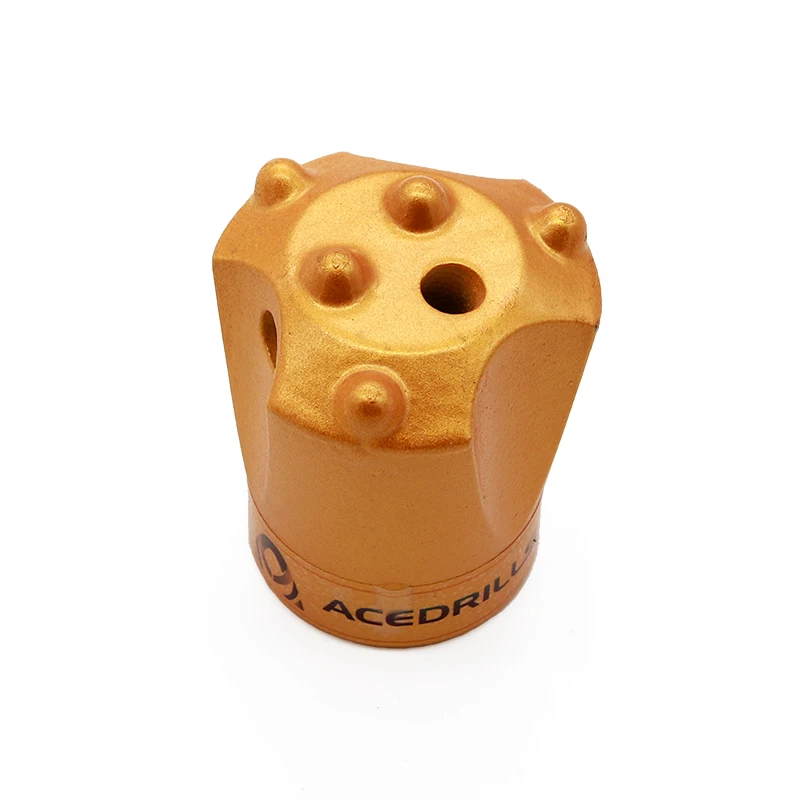

R32 51mm Self Anchor Button Drill Bits Drilling Tools For Ground Anchor

Product Overview

Description

R32 51mm Self Anchor Button Drill Bits Drilling Tools For Ground Anchor



The self-drilling hollow bar anchor system consists of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation. The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately after drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplings can be used to join hollow bars and extend the bolt length while nuts and plates are used to provide the required tension.

Self-drilling hollow bar anchor system is the most common used system for rock mass stabilization, especially in tunneling, underground mining and ground engineering industry. It is mainly used for the supporting engineering in the loose and broken rock stratal with difficult to drilling hole. It provides the optimal solution for soil nailing, lock bolting, micro-piling.

Self-drilling hollow bar anchor system fulfills current and increasing demands of the tunneling, mining industry and ground engineering for safer and faster production. The system provides advantages for all areas of its applications, where boreholes would require the time consuming drilling with casing systems in unconsolidated or cohesive soil.





PRODUCT SPECIFICATION



Anchor Type	Bit Size	Front Design
R25N	R25-42mm, R25-51mm	Cast Cross Bits, Steel Cross Bits, Steel 3-Cutter Bits, TC Cross Bits, TC 3-Cutter Bits, Steel Arched Bits, TC Arched Bits, Steel Button Bits, TC Button Bits
R32N & R32S	R32-51mm, R32-76mm
R38N	R38-76mm, R38-90mm, R38-115mm
R51L & R51N	R51-85mm, R51-100mm, R51-115mm
T76N & T76S	T76-130mm





Applications in Tunneling & Ground Engineering: Radial bolting Tunnel repair and refurbishment Cliff and Slope stabilization and reinforcement Fore poling Micro injection pile Face stabilization Temporary support anchor Portal preparation Soil nailing Rocknetting retention   How to order? Chisel Bit: Bit Diameter + Taper Degree + Socket Diameter + Head Design Cross Bit: Bit Diameter + Taper Degree + Socket Diameter Button Bit: Bit Diameter + Taper Degree + Socket Diameter + Skirt length + Insert Configurations
