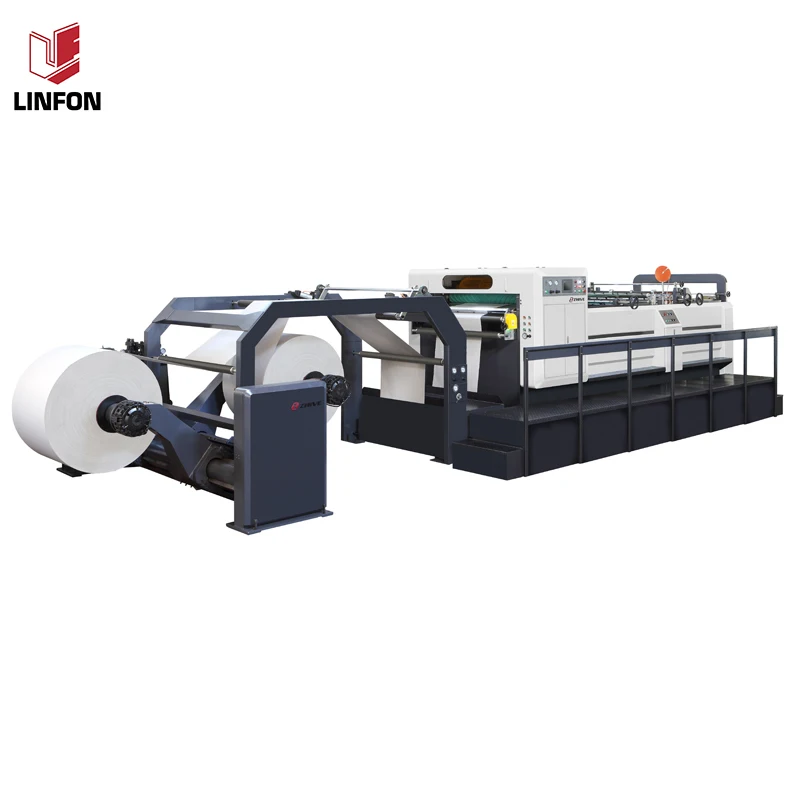

QFJ 1400 Two Roll Model Full Automatic Paper Roll Rotary Cutting Machine with Stacking
- Category: >>>
- Supplier: Ruian Lingfeng Machinery Co. Ltd.
Share on (1600250938093):
Product Overview
Description
QFJ-1400-2 Reels Full Automatic Paper Rotary Cutting Machine
Introduce:
QFJ-1400/1700 Model Rotary Cutting Machine is used for cutting from 50gsm to 500gsm thickness, such as regular paper, kraft paper, news paper etc. It has merits of easy operation and convenient repair. All the points enable him run high appraisal from customers in both paper industry and printing industry.

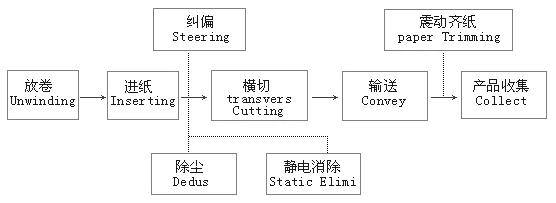

Working Process:
Machine Specification:
Model | QFJ-1400-2 | QFJ-1700-2 |
Reference weight of cutting paper | 50-500g | 50-500g |
Max.Diameter of paper | 1800mmMax | 1800mmMax |
Max.Pieces of paper | 1400mmMax | 1700mmMax |
Total power | 25KW | 30KW |
Cutting length | 400-1600mm | 400-1600mm |
Cutting accuracy | +/-0.4mm | +/-0.4mm |
Maximum cutting speed | 300cuts/min | 300cuts/min |
Maximum cutting meter speed | 300m/min | 300m/min |
Atmospheric pressure | 0.8MPa | 0.8MPa |
Power supply
| AC380V/220Vx50HZ | AC380V/220Vx50HZ |
Total weight | 11000kg | 13000kg |
Dimensions | 12m×3.9m×2.35m | 12m×4.2m×2.35m |
Feature:
1. Can do 2-roll paper feed, 4-roll paper feed, 6-roll paper feed
2. Adopt PLC control system, motor frequency conversion speed regulation. Touch screen operating system.
3. Motor frequency conversion speed regulation, automatic counting, alarm stop and other functions.
4. Using heavy-duty and high-quality cutting tools, the products are neat and without edges and corners.

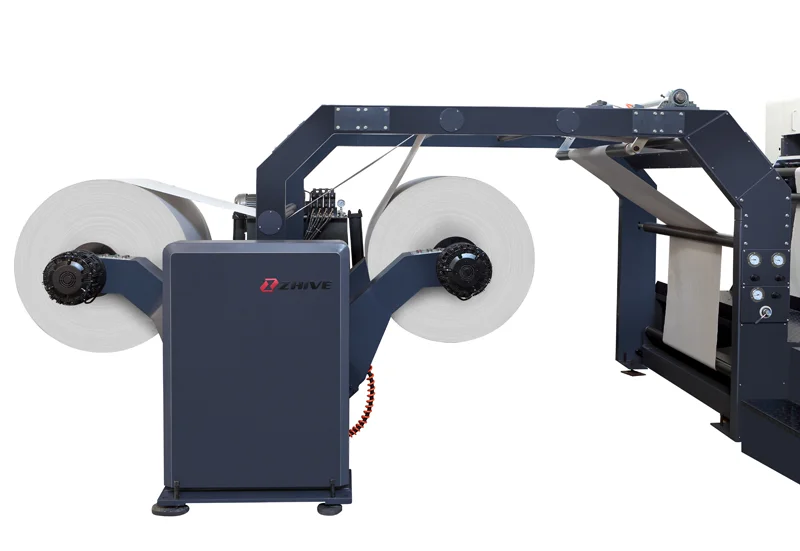

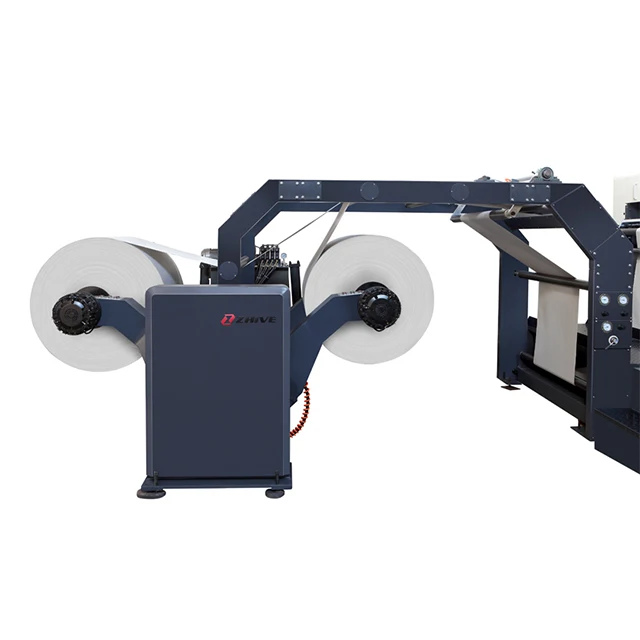

Automatic Roll Unwinding Unit:

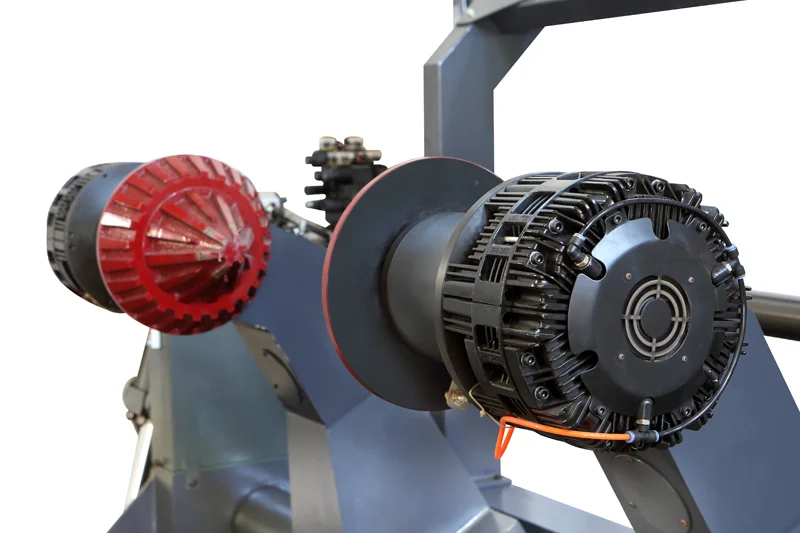

Automatic Roll Unwinding Unit is Equipped with Hydraulic Shaftless Roll Stands two clamps and Braking system, which are Easy-to-use During Roll Manipulations.

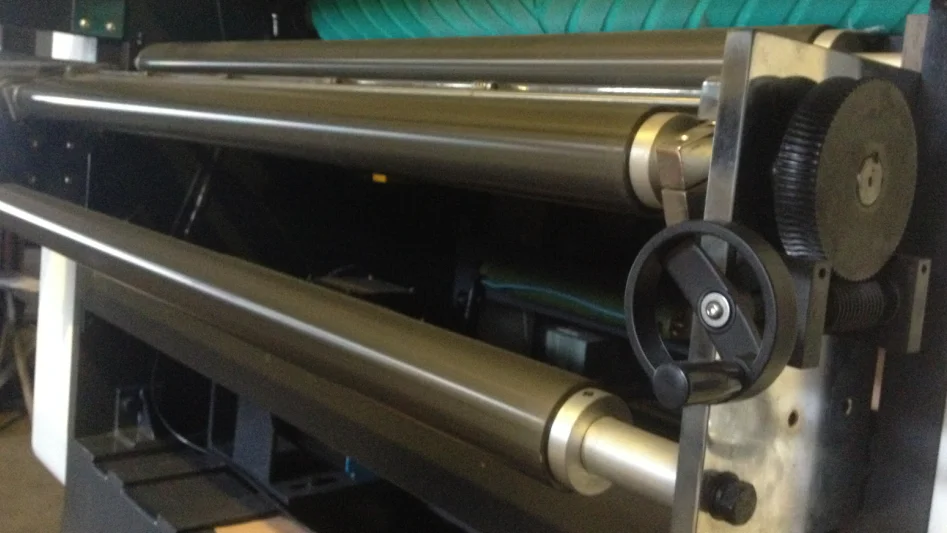

Prevent curling system:
Adjusting the roll paper due to the curl of the paper, make the paper smooth after cutting.

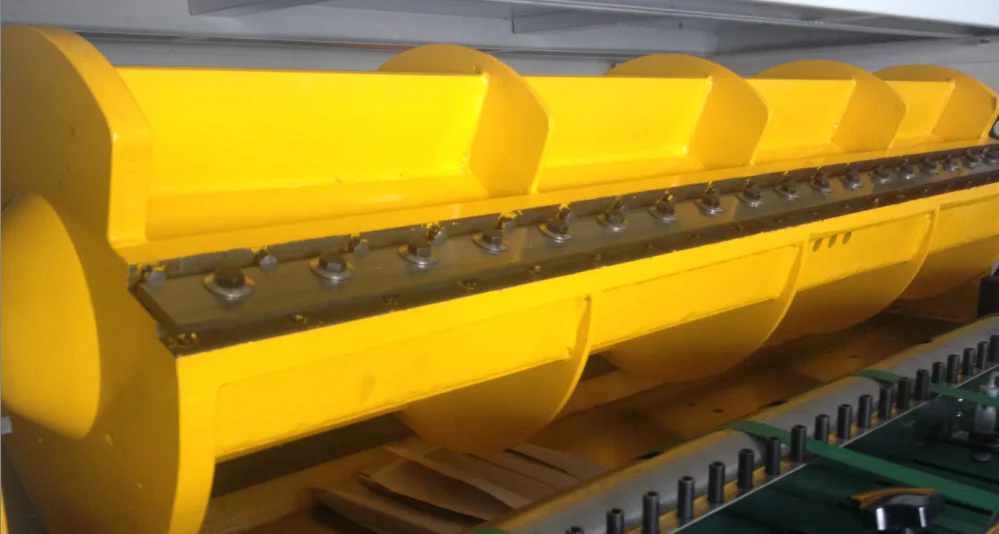

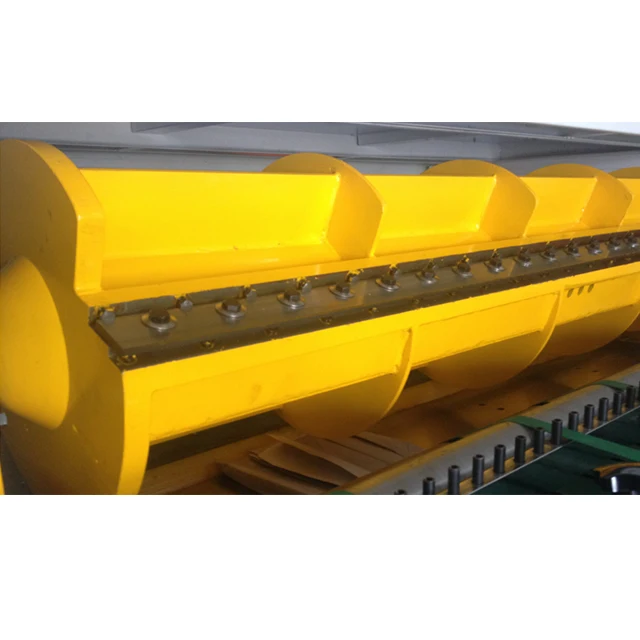

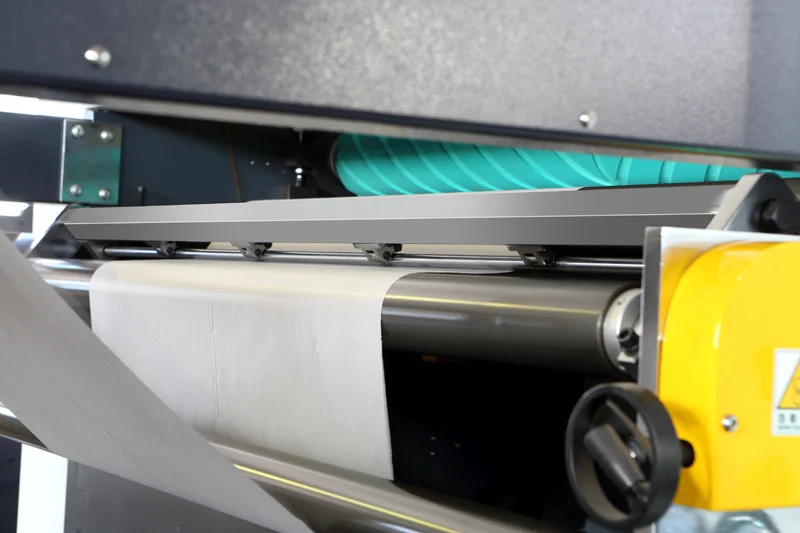

Knife holder and Cutting blade Automatic squaring system
A total of two knives, one fixed on the base Automatically adjust the paper to square
the other is on the holder for rolling cutting.

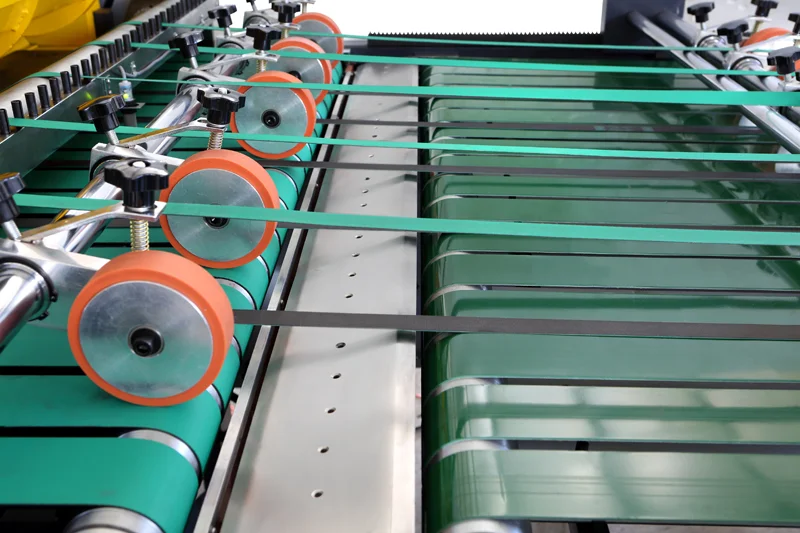

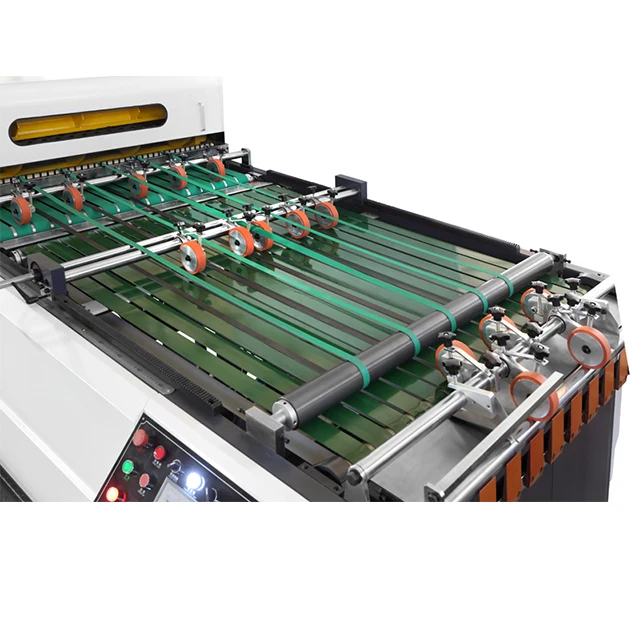

Antistatic device Conveyor
Eliminate the static electricity on the paper, Taking advantage of the velocity distinction of
the flow-up operation of the paper more the conveyor, makes the paper superposition
smoothly. transport.

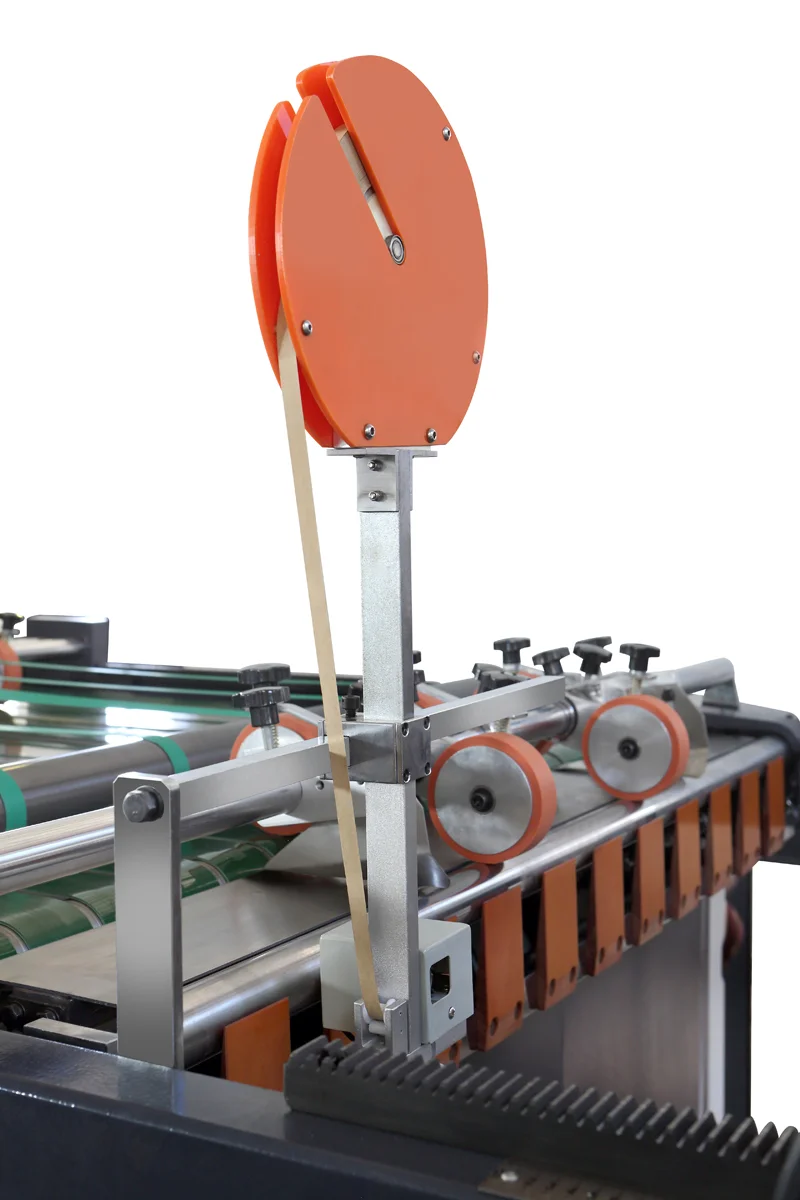

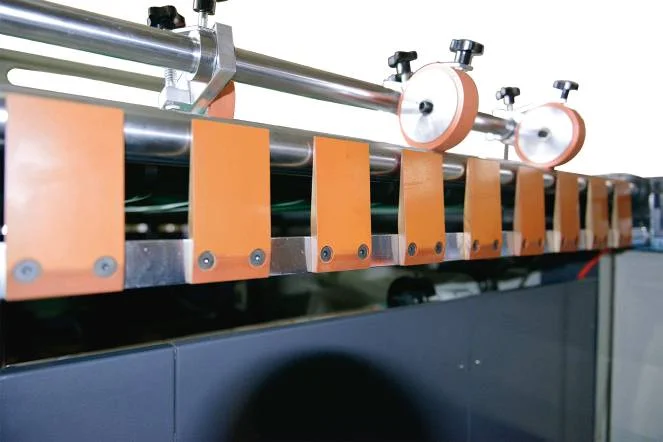

Counting Marker:
Inserting marks according to the
number of sheets of paper set.

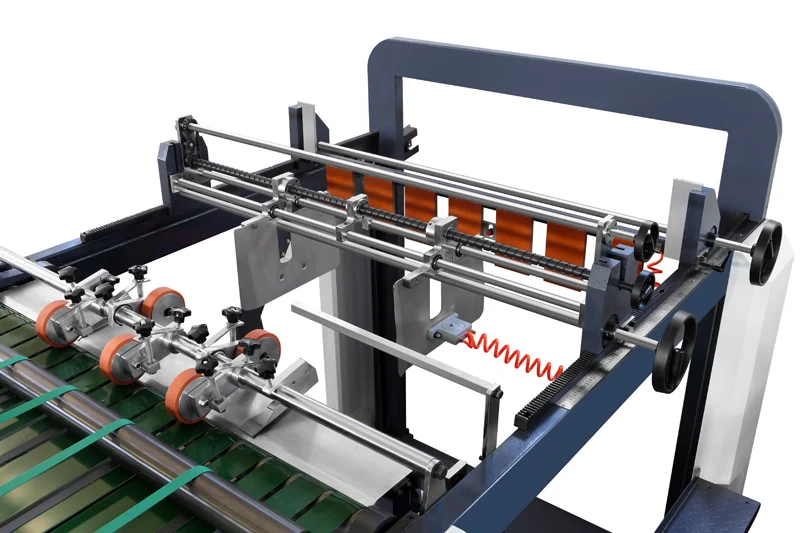

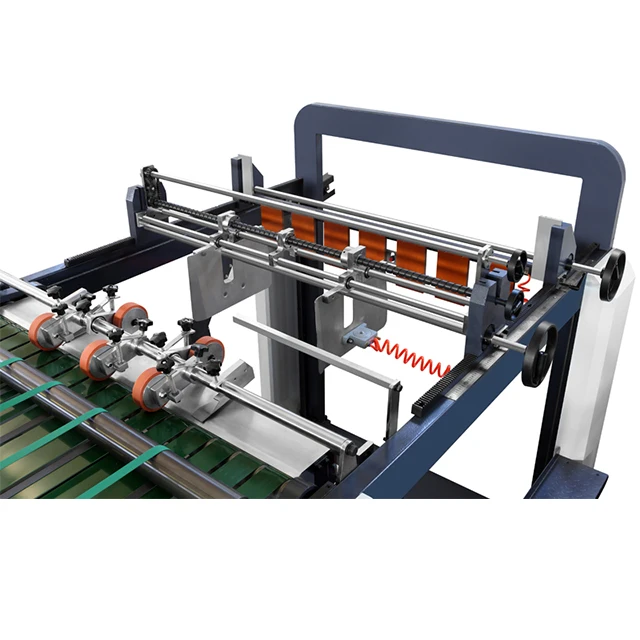

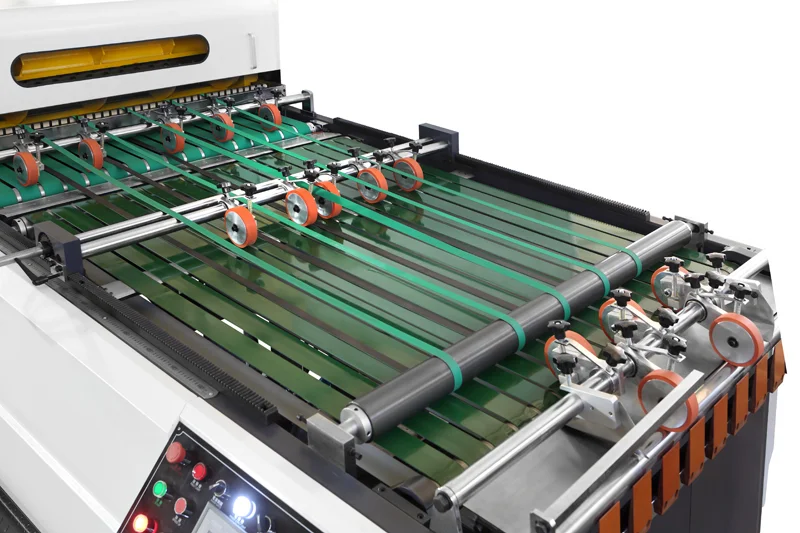

Automatic paper collection equipment:
After cutting, automatic collection of neatly stacked.

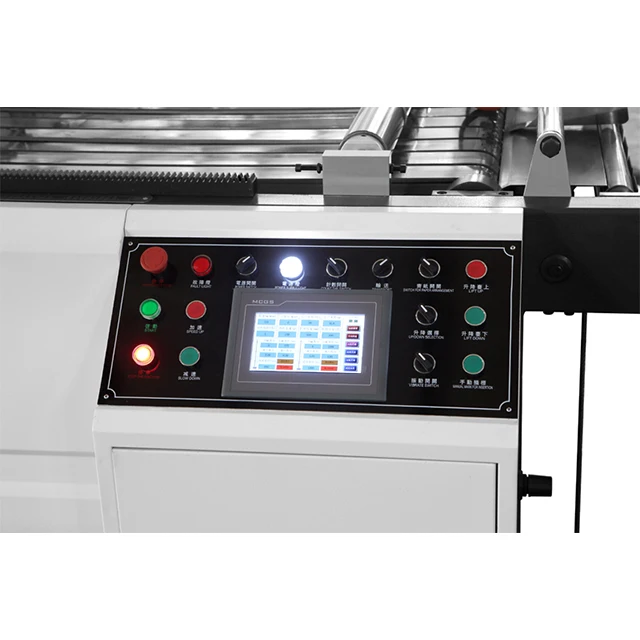

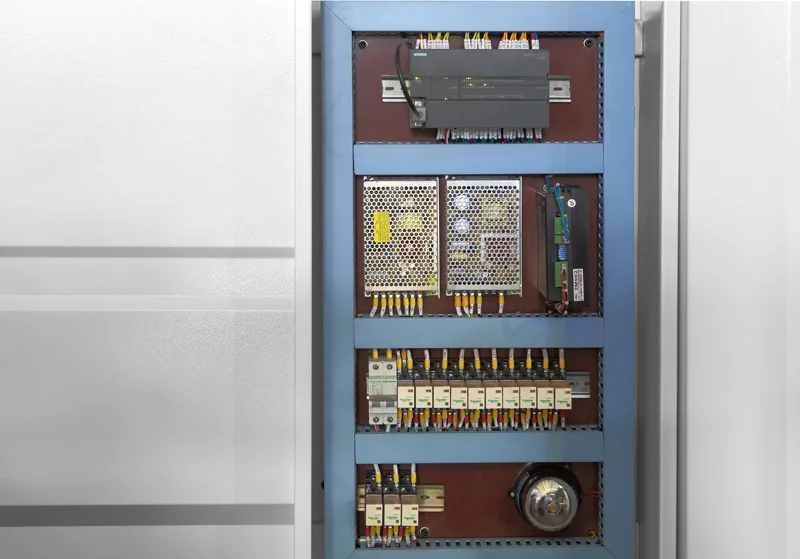

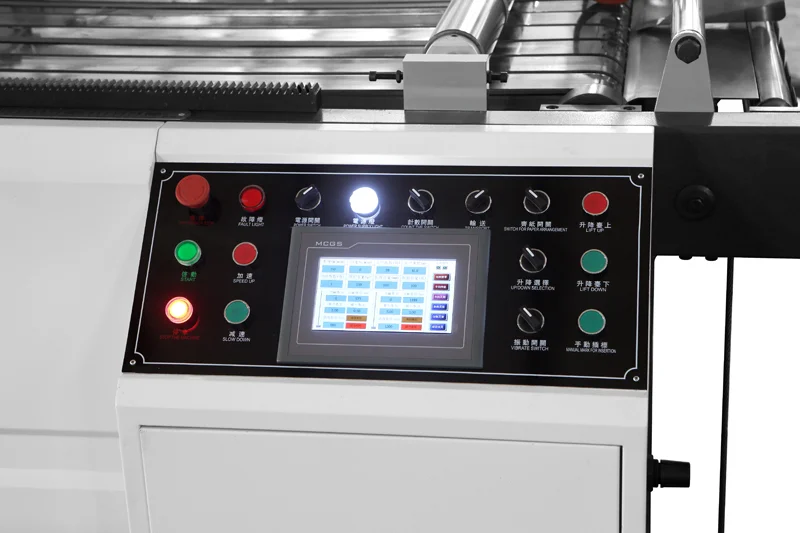

PLC and Operation Interface:
Concise, Sensitive and Friendly.Using the world’s advanced technology Siemens PLC, keeps the whole equipment’s program and circuit control stable and runs without accident.
Certificate:
Packaging Picture:
Company Information
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.
6.OWNNER WORKSHOP
