500w Aluminum Stainless Steel Channel Letter Portable Yag Metal Laser Welding Machine With High Precision Table And Welding Gun
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600251008317):
Product Overview
Description
Product Description

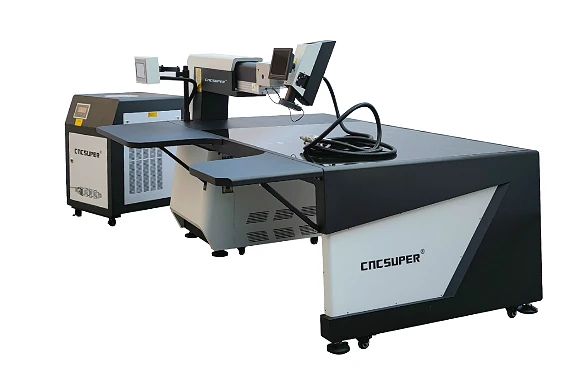

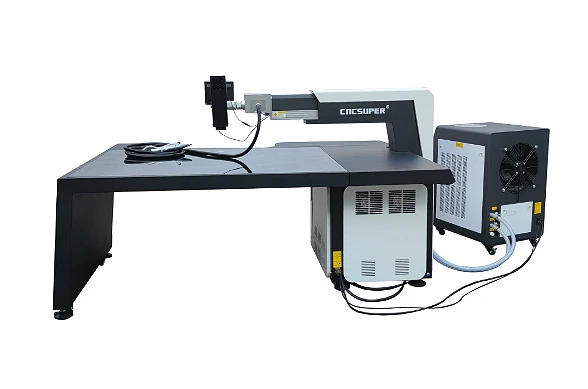

500w Aluminum Stainless Steel Channel Letter Portable Yag Metal Laser Welding Machine With High Precision Table And Welding Gun
Main features
1. Laser crystal: The 7*145 high-quality laser rods produced by the top domestic optical crystal military academy are used, each with
an LQC inspection certificate. It has the characteristics of high gain, low laser threshold, high laser power, beautiful solder joints,
stable vitality, good thermal conductivity and thermal shock.
2. Laser power supply: 8 high-quality brand laser power supplies and imported IGBT bipolar transistors are used to make the power
supply pulse xenon lamp current constant, high-frequency continuous welding stable, not easy to weaken, and long life.
3. High-power constant-temperature refrigeration water tank, with automatic constant temperature function for heating and cooling,
high control accuracy, German EBM electronic fan as a supporting part of the condensing part, large air volume, low noise and
filtering device, effectively filtering dirt and impurities in the water.
4. Controller: independent high-definition touch control screen, control pulse current, etc., set parameters will be automatically saved.
5. Adapted to CCD micro-monitor, the welding effect is clear and intuitive.
6. Special mobile light path, flexible expansion and contraction, lengthened focus lens F=200MM.
7. Simple operation: both men and women can get started, high efficiency, ready to use, welding speed is 5 times that of traditional
technology.
8. Environmental protection and safety: derived from German technology, no noise, no pollution, no radiation, 24 hours of continuous
work.
9. Innovative structure, stable and solid, convenient operation, user-friendly, beautiful atmosphere.
Product Details
Adopts China famous brand CCD camera. It can photo-shot the welding details screen and red pointerand transmit the signal to LCD ScreenThe welding effect is more clear and intuitive.
Hand-held moving optical path, flexible, extending focusing lens F = 200MM, 5m long handheld tube, suitable for different metals welding, more convenient.
Adopted super tempered glass working table.About 12mm thickness, with explosion proof film and paint, flat and smooth. Table can also be folded.
Large 2P integrated water chiller, automatic constant-temperature with cooling and heating, high control accuracy, large air volume, low noise, effectively filters and dirty impurities in water.
Machine Parameters
| Model | SC-THW300 Single | SC-THW300 Double | SC-THW500 Single | SC-THW500 Double |
| Condenser emitter | 300W imported gold cavity concentrator | 300W imported gold cavity concentrator | 500W imported gold cavity concentrator | 500W imported gold cavity concentrator |
| Laser wave length | 1064nm | 1064nm | 1064nm | 1064nm |
| Laser type | Nd: YAG | Nd: YAG | Nd: YAG | Nd: YAG |
| Monopulse max power | 90J | 90J | 120J | 120J |
| Laser spot size | 0.2-3.0mm | 0.2-3.0mm | 0.2-3.0mm | 0.2-3.0mm |
| Laser welding depth | 0.1-2.5mm | 0.1-2.5mm | 0.1-3.2mm | 0.1-3.2mm |
| Pulse width | 0.1-20ms | 0.1-20ms | 0.1-20ms | 0.1-20ms |
| Water Chiller | 1.2P | 1.2P | 2P | 2P |
| Total power | ≤7.5KW | ≤7.5KW | ≤16KW | ≤16KW |
| Working voltage | 220V±10%/50HZ/40A | 220V±10%/50HZ/40A | 380V±10%/50HZ/40A | 380V±10%/50HZ/40A |
| Hand-held welding range | None | 5 Meter (Optical Fiber Tube) | None | 5 Meter (Optical Fiber Tube) |
| Working table size | 1700x2200mm | |||
| Observing system | CCD camera & red light positioning | |||
| VAG Transmission System | Hand-held Welding Gun (120 Focus Distance) | |||
| Laser device vertical travel | ≥200mm | |||
Applications
Applicable material:
Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.
Applicable industry:
Widely used in all kinds of stainless steel ,LED channel letter ,LOGO identity,signage,advertising products such as rapid,precision welding.
Samples:
About us
Packing and shipping
