China Suppliers High Quality Foam Flat Microwave Absorbing Material for rf Shielding Anechoic Chamber
- Category: >>>
- Supplier: Seattle Electronics Manufacturing (Shenzhen) Co. Ltd.
Share on (1600251095832):
Product Overview
Description
Product Description

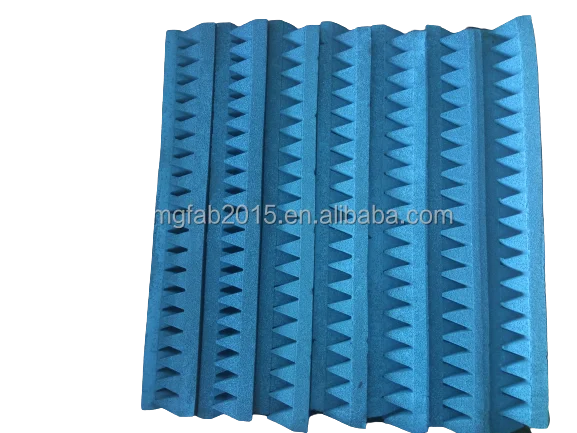

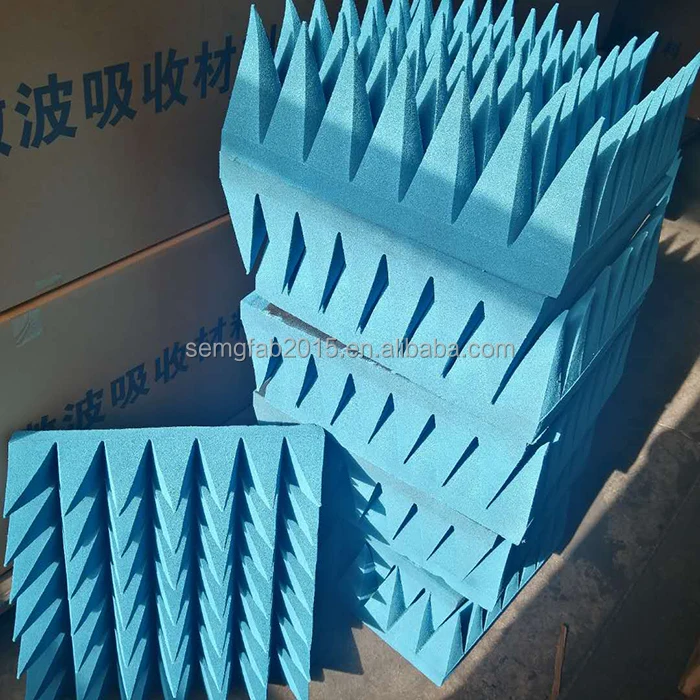

Microwave anechoic chamber material is a pyramidal shaped, carbon loaded elastic polyurethane foam EM absorber material. This material may be applied for covering of anechoic chambers, and for construction of test equipment for antenna measurements. Absorber is made in form of panel.
Applications
Broadband absorbers suitable for in-door measurements.
Below 100mm thickness, used for small shielding room
Above 100mm thickness, used for huge shielding room or dark room
It is available in other sizes and customer specified configurations upon request
Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.
Below 100mm thickness, used for small shielding room
Above 100mm thickness, used for huge shielding room or dark room
It is available in other sizes and customer specified configurations upon request
Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.

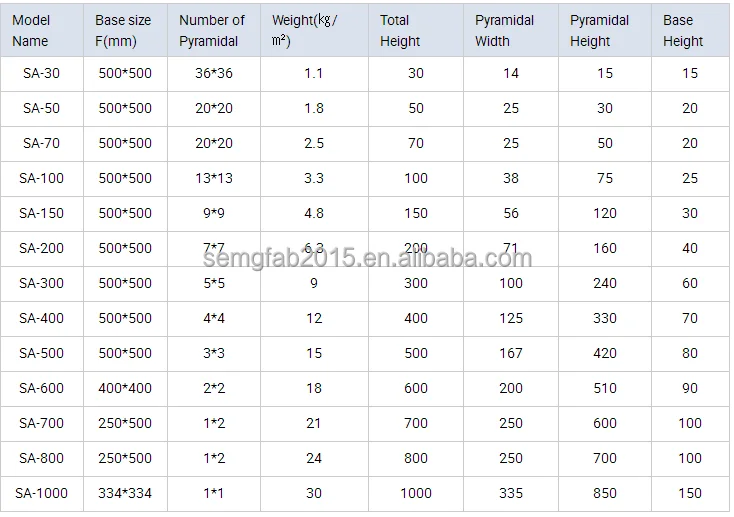

Specification
Features and Benefies | Specifications | Market |
Flexible, foam material Fire retardant Pyramid Electronic No requirement for the substrate. Blue or as request | Frequency Range : ≥ 1 GHz Service Temperature °C : -50-80oC Thickness Size Range : 20mm-1000mm | Commercial Telecom Security and Defense Electronic equipment test |
item | value |
Model Number | SA-Type |
Type | EMC Filter |
Place of Origin | China |
Guangdong | |
Brand Name | SEMG |
Material | Natural Foam |

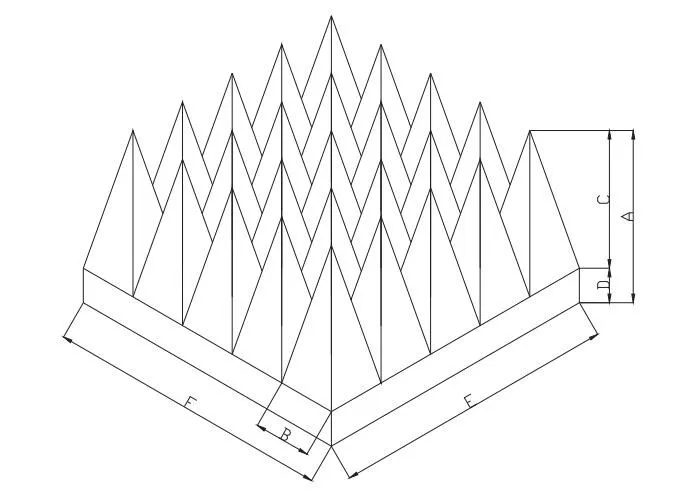

Appearance | Pyramidal Shape |
Product name | microwave absorbing material |
Size | 500*500mm |
Color | Blue |
Thickness | 30-1000mm |
Application | EMC Chamber, Anechoic Chamber, EMC Box, RF Cabinet etc. |
Using polyurethane foam as matrix materials and with warter-proof coating on the surface ,the absorption element is carbon, dust-free drop;usually the color of product surface is light blue ,of course ,the surface color could be changed as customization.
Product meets the testing standard of NRL8093 (US),all raw materials of comply with RoHS,by using flame retardant material, no volatilization,no abnormal odour, non-toxicity;materials is stable after a long-term use .
Packing & Delivery
Standard packing
Company Profile
SEMG offers a diverse product line that includes microwave absorbing elastomers, phase
cancellation materials, microwave absorbing foam, specialty microwave absorbers, custom magnetic absorbers and advanced frequency selective products.
All of our absorbers can be used at higher frequencies than traditional shielding and with other EMI shields to extend frequency range. SN-MA series and other sheet form elastomeric absorbers can be installed easily with pressure sensitive adhesive, often directly onto high-frequency board-level components to absorb unwanted radiated and surface wave EMI, and meet FCC requirements without shielding.
P.S. Microwave absorbers are used to solve a wide variety of problems such as internal cavity resonances, antenna pattern shaping, and high-frequency interference.
cancellation materials, microwave absorbing foam, specialty microwave absorbers, custom magnetic absorbers and advanced frequency selective products.
All of our absorbers can be used at higher frequencies than traditional shielding and with other EMI shields to extend frequency range. SN-MA series and other sheet form elastomeric absorbers can be installed easily with pressure sensitive adhesive, often directly onto high-frequency board-level components to absorb unwanted radiated and surface wave EMI, and meet FCC requirements without shielding.
P.S. Microwave absorbers are used to solve a wide variety of problems such as internal cavity resonances, antenna pattern shaping, and high-frequency interference.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to North America(37.00%),Southeast Asia(15.00%),Northern Europe(15.00%),South America(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),South Asia(5.00%),Mid East(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We are based in Guangdong, China, start from 2015,sell to North America(37.00%),Southeast Asia(15.00%),Northern Europe(15.00%),South America(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),South Asia(5.00%),Mid East(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
