Servo Motor Driven Three platen injection Moulding Machine Plastic Stackable Crate Making Machine 520Ton Machine
- Category: >>>
- Supplier: Ningbo Hoy Machinery Technology Co. Ltd.
Share on (1600251362697):
Product Overview
Description
1.Technology parameters:
DESCROPTION | UNIT | MODEL: M520 | ||
| A | B | C | |
INJECTION UNIT | ||||
Screw Diameter | mm | 85 | 90 | 100 |
Injection Pressure | kg/cm2 | 198 | 177 | 143 |
Shot Volume (Theoretical) | cm3 | 2554 | 2863 | 3534 |
Shot Weight (PS) | g | 2324 | 2605 | 3216 |
oz | 81.98 | 91.89 | 113.44 | |
Injection Rate | cm3/s | 433 | 485 | 599 |
Plasticizing Capacity | kg/hr | 69 | 80 | 106 |
Screw Speed | rpm | 120 | ||
CLAMPING UNIT | ||||
Clamp Force | kn | 5200 | ||
Space Between Tie Bars (W*H) | mm | 820X770 | ||
Max. Mold Height | mm | 855 | ||
Min. Mold Height | mm | 380 | ||
Mold Locating Ring Diameter | mm | 160 | ||
Ejector Stroke | mm | 230 | ||
Ejector Force | kn | 160 | ||
OTHERS | ||||
Motor Power | kw | 55(160*2500) | ||
Heater Power | kw | 40 | ||
Oil Tank Capacity | l | 800 | ||
Machine Dimension (LxWxH) | m*m*m | 8.5X2.0X2.5 | ||
Machine Weight | Ton | 20.9 | ||

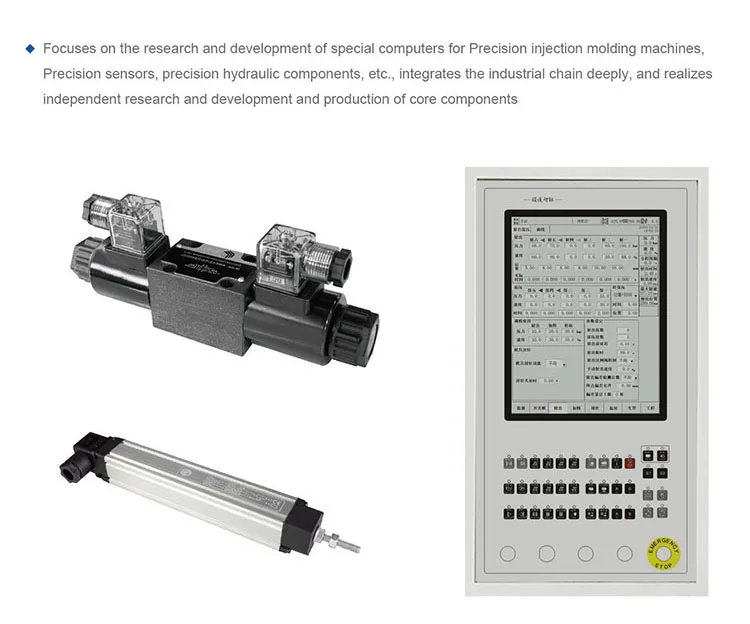

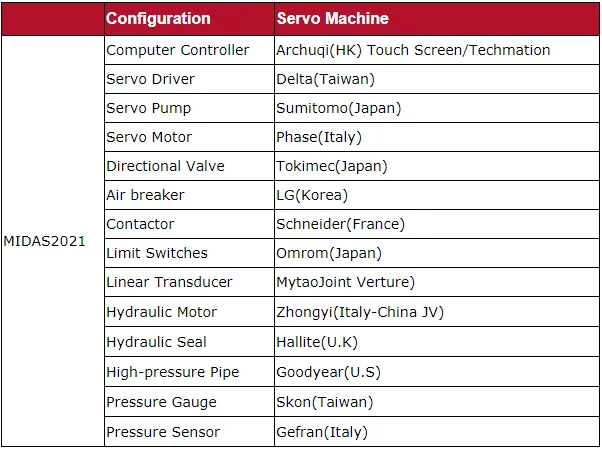

2.The famous and high-performance components

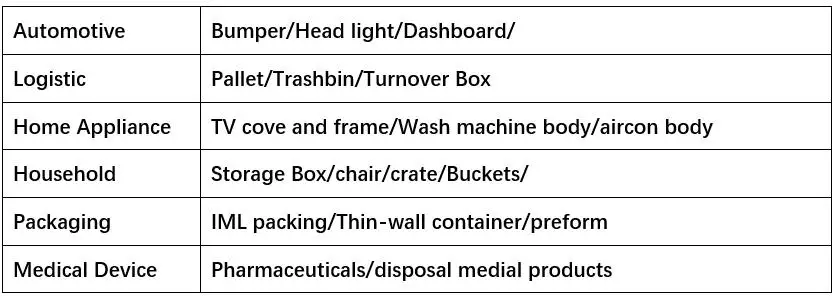

3. Application Industry
4. Innovation Technology
