Factory direct commercial automatic screw oil press large tea seed, soybean, rapeseed, peanut oil press machine

Product Overview

Description

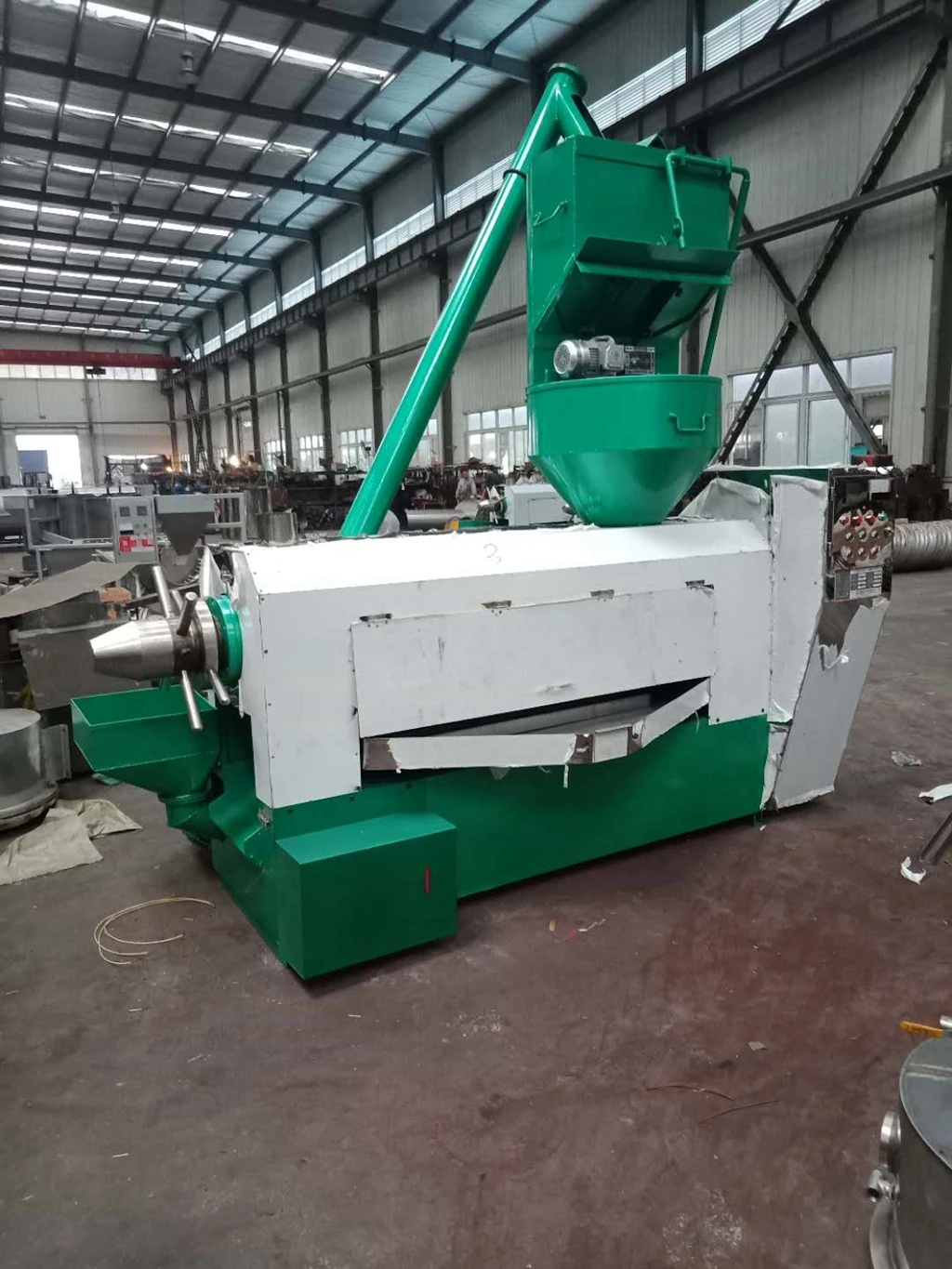

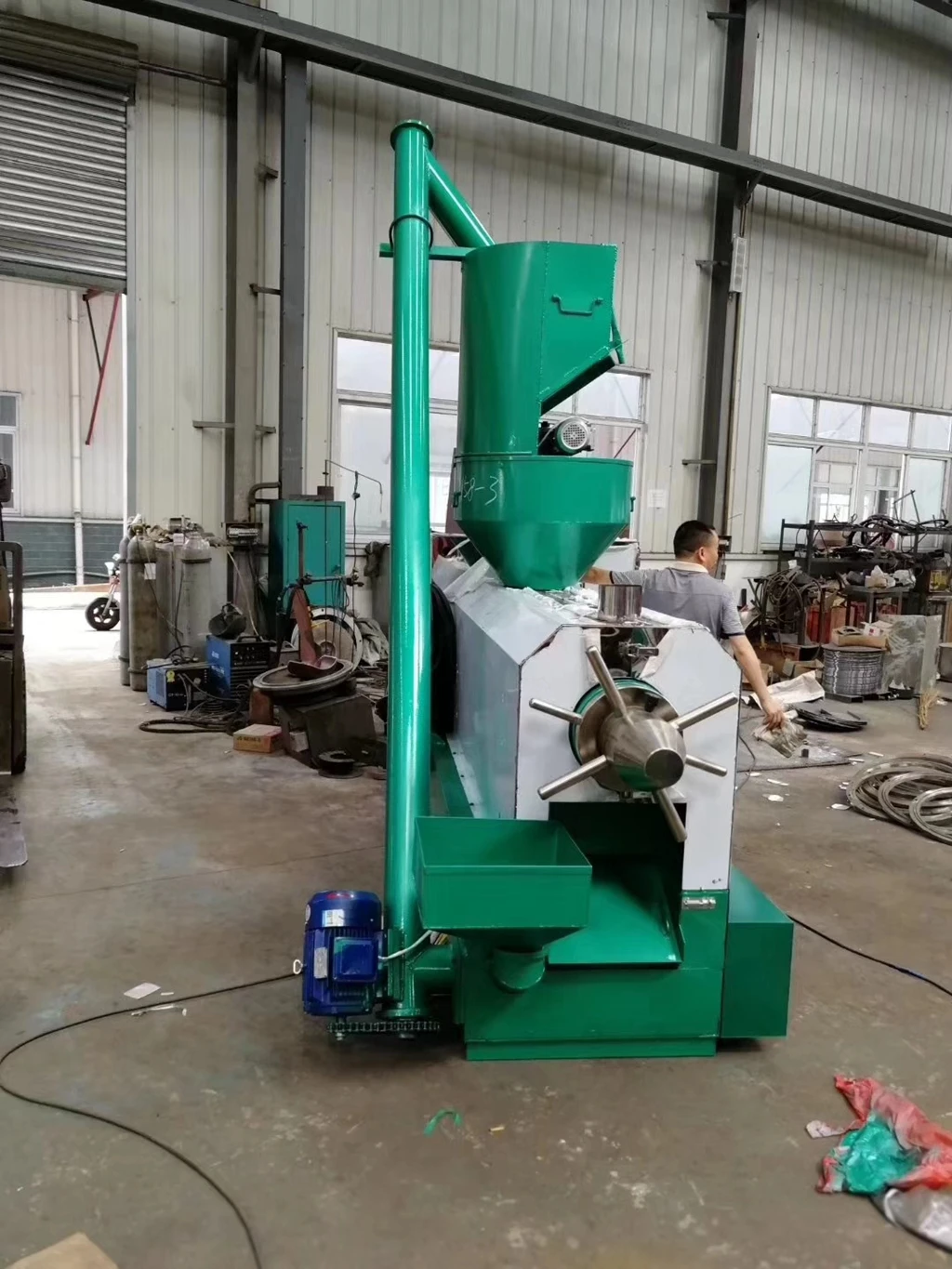

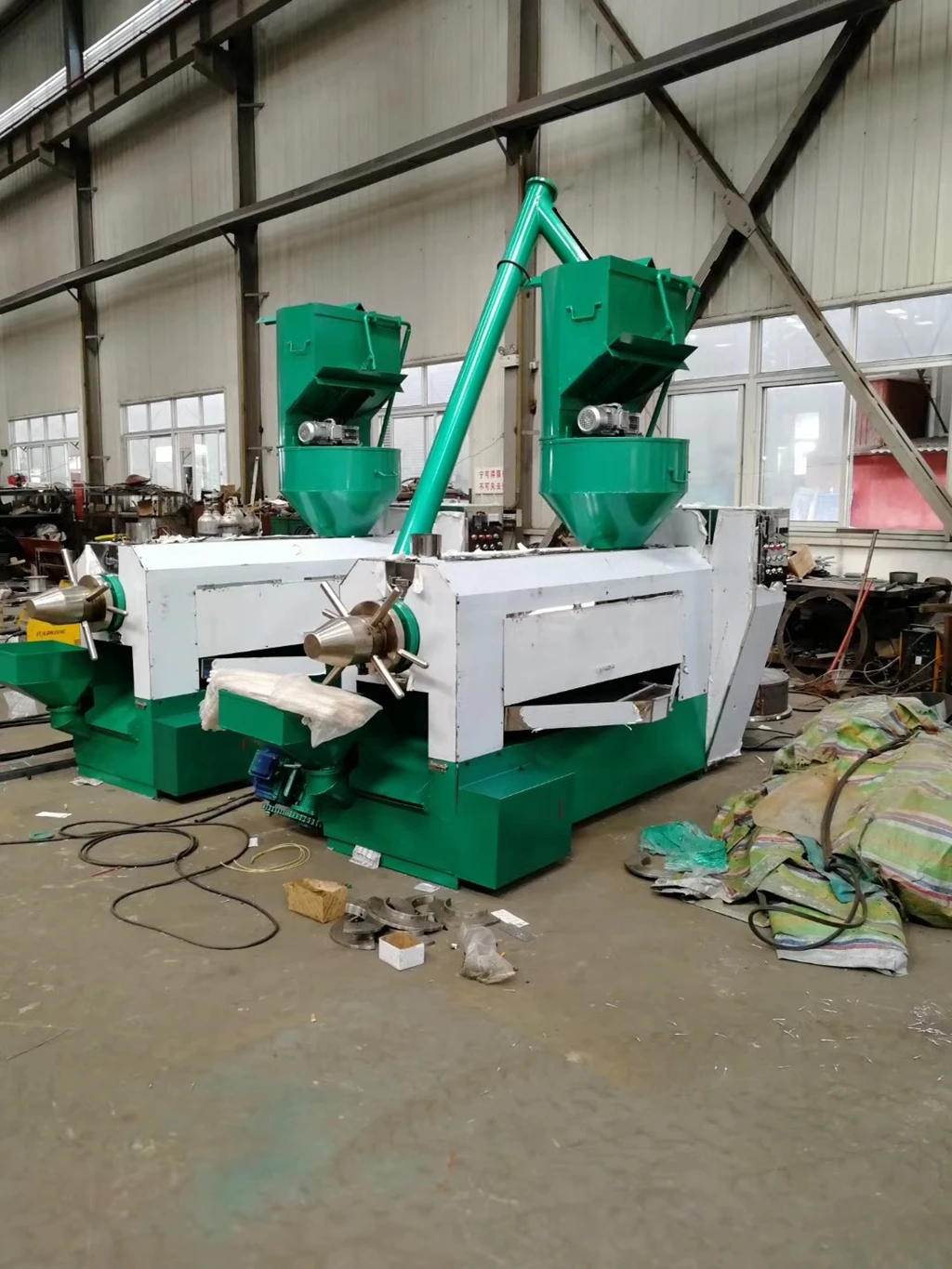

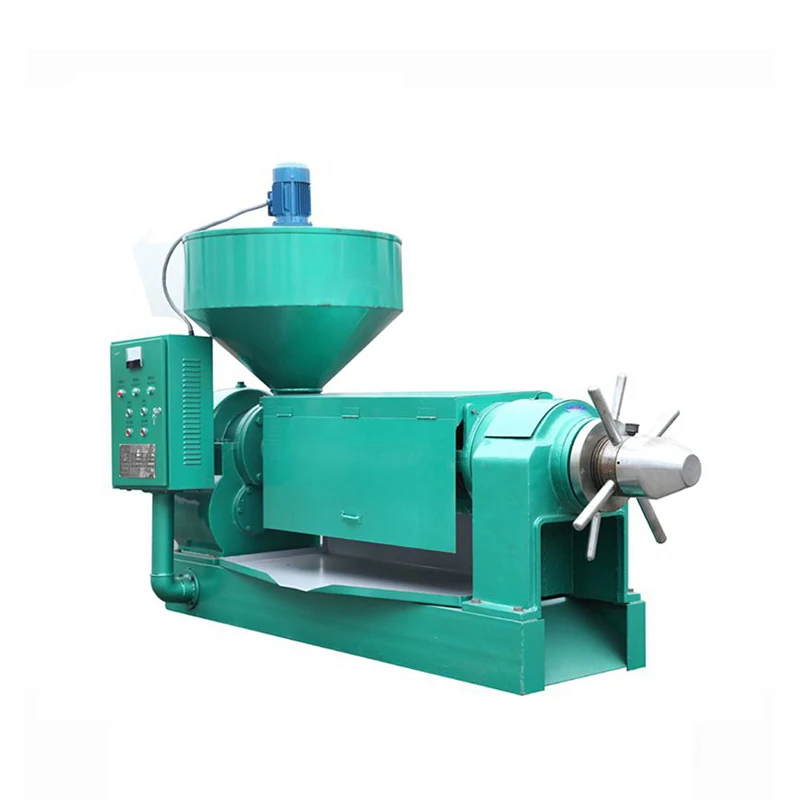

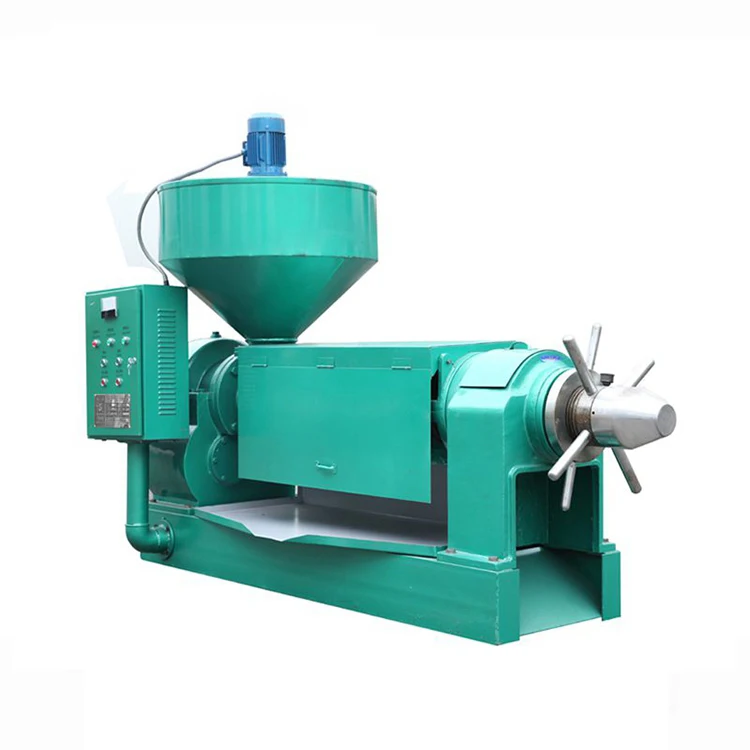

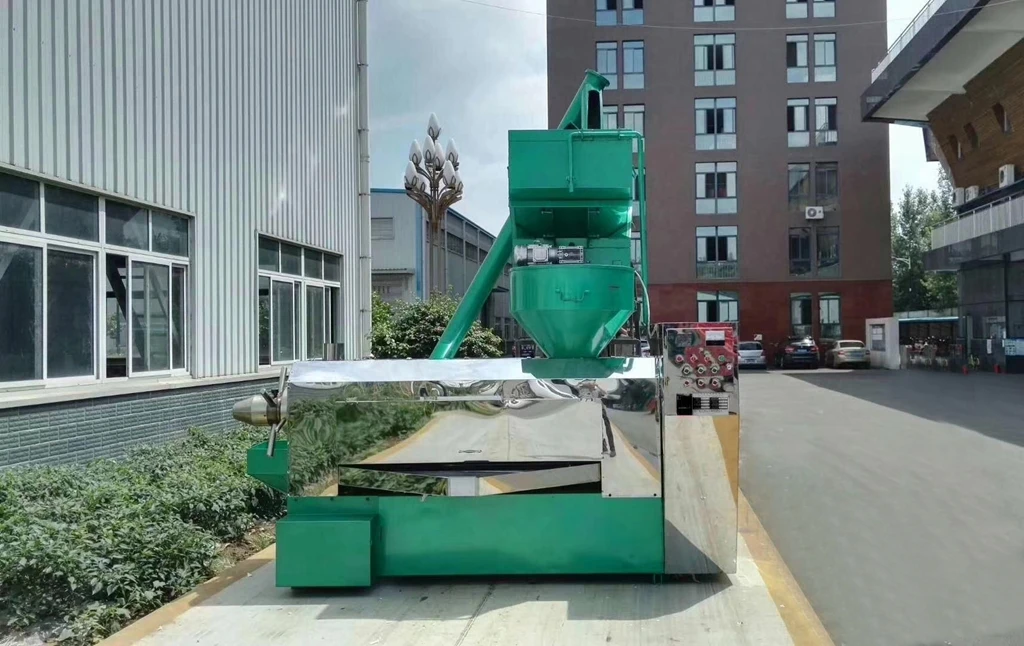

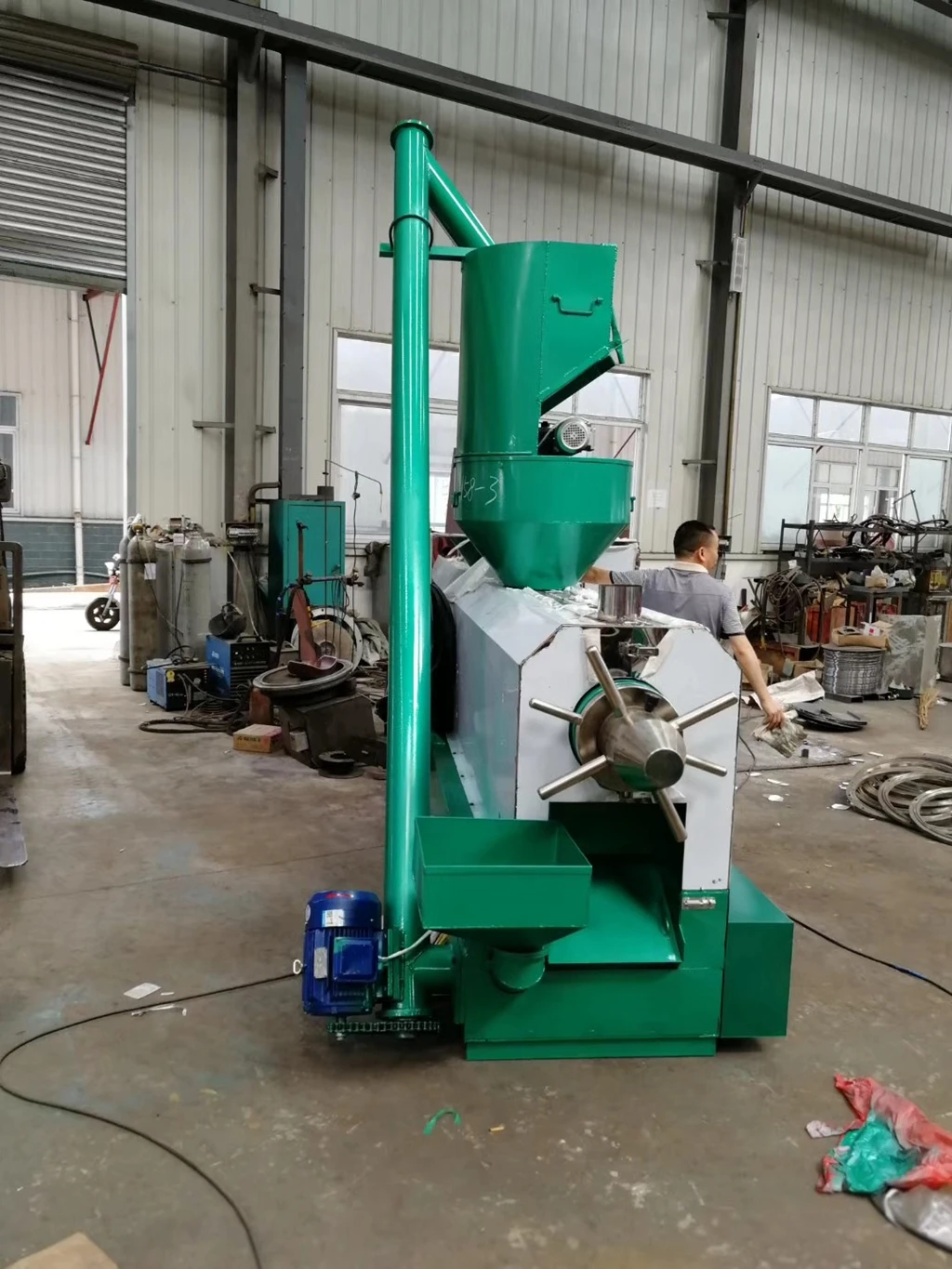

                                              6YL-165 large oil press machine

6YL-165 large-scale oil press, in order to adapt to the development needs of the oil processing industry, on the basis of continuously summarizing the practical experience of production, and the development of larger products. The main features are: large processing capacity, long press stroke in the pressing mill, and further improvement of the pressing pressure, thereby improving the oil discharge efficiency and reducing the residual oil rate of the dry cake; and the wearing parts are made of high-quality alloy steel. Significantly increase the service life.

6YL-165 screw press is not only suitable for pressing rapeseed, cottonseed, soybean, peanut kernel, flax seed, sunflower seed, palm kernel and other vegetable oils, but also can complete the work of pollution-free treatment of livestock.

 Technical Parameters:

model	6YL-165
Spiral shaft speed	37-44 r/min
Power supply (kW)	37-45kW
Push power (kW)	0.55kW
Dimensions	2500×1008×1726(with Feeder)
	2500×1008×1522 (without Feeder)
Net weight of the host	1780kg

 Performance:

project	Processing capacity	Dry cake residual oil rate	Oil production efficiency	Tons of electricity consumption
Rapeseed	≥20t/24h	≤8.0%	≥80%	≤35kW.h/t
Cottonseed	≥20t/24h	≤7.5%	≥75%	≤50kW.h/t
Soy	≥18t/24h	≤7.0%	≥65%	≤50kW.h/t
peanut kernel	≥20t/24h	≤8.0%	≥91%	≤35kW.h/t

Note: The daily processing volume refers to the processing amount when hot pressing (cooking) is performed once; the actual result will be inaccurate with the data in the table due to factors such as the variety of oil, the quality, and the difference in operation.
