Product Overview
Description
Price Single Axis Solar Tracking Mounting Bracket Solar Panel Tracker System
Description
Kseng’s KST-1P Tracking System implements distributed actuation architecture, enabling each row to be independently controlled by its own motor with the tracking method “Astronomical algorithm + closed-loop control”. making the system accurate and reliable,real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Specification
Tracking Structure Parameters | ||||||||
Tracking Technology | Single- Horizontal flat single-axis tracking system | Maximum capacity per row | ≤48kWp (Estimated with 540W PV -Modules) | |||||
PV-Modules quantity per row | 90 PCS (1Px90) | Tracking range | ±45°to ±60° | |||||
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |||||
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |||||
Tracking Controller Parameters | ||||||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |||||
Night stow mode | Have | Backtracking algorithm | Have | |||||
Overload prevention | Have | Self trouble checking Function | Have | |||||
System voltage | DC24 | Drive System | Slewing drive | |||||
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical algorithm + closed loop（AI Control） | |||||
Advantages

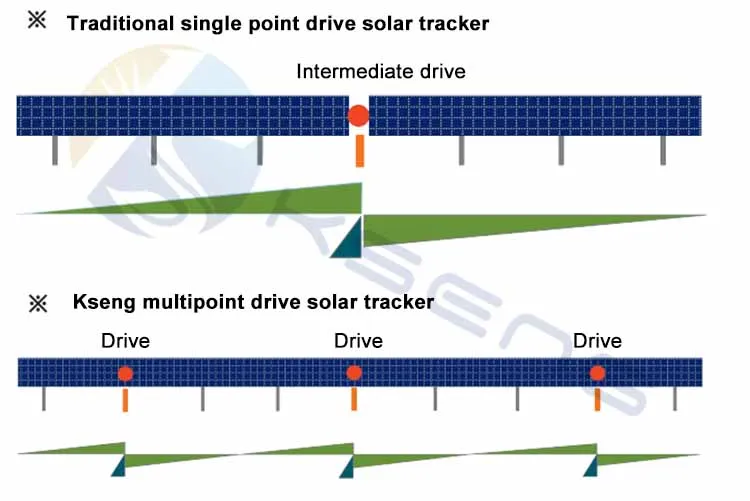

Kseng Solar Tracking System Advantages
1. System damping ratio is greater,can reduce the component amplitude by 50%.
2. spindle force can reduce 40%.
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.
2. spindle force can reduce 40%.
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.
Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
3. Unlimited slope in the east-west.
CPP Wind Tunnel Test
Kseng established a partnership with CPP WIND ENGINEERING，the first American company to provide wind engineering services to architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the operation of the system.
Main Structural Parts
Component arrangement scheme
We have different scheme to meet different customer's requirement.
Certificate
Ksheng tracking series products have passed international standard certification, such as SGS,CPP,TUV,UL,IEC,etc.
