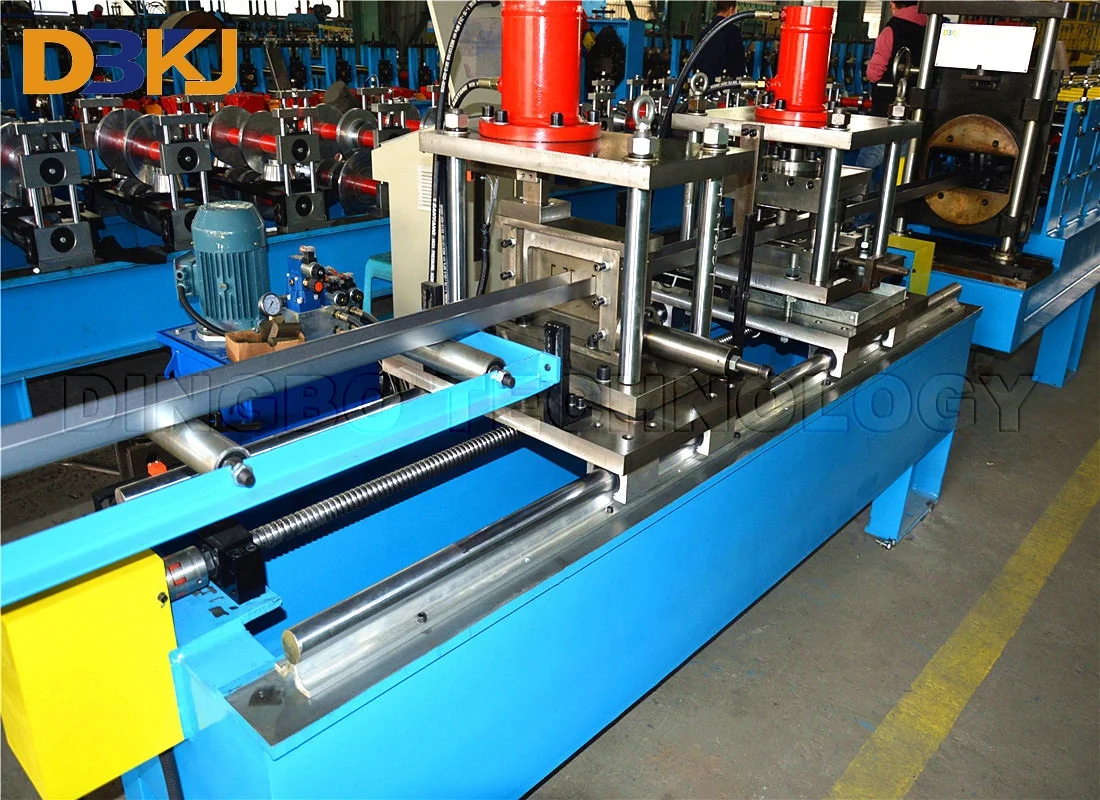

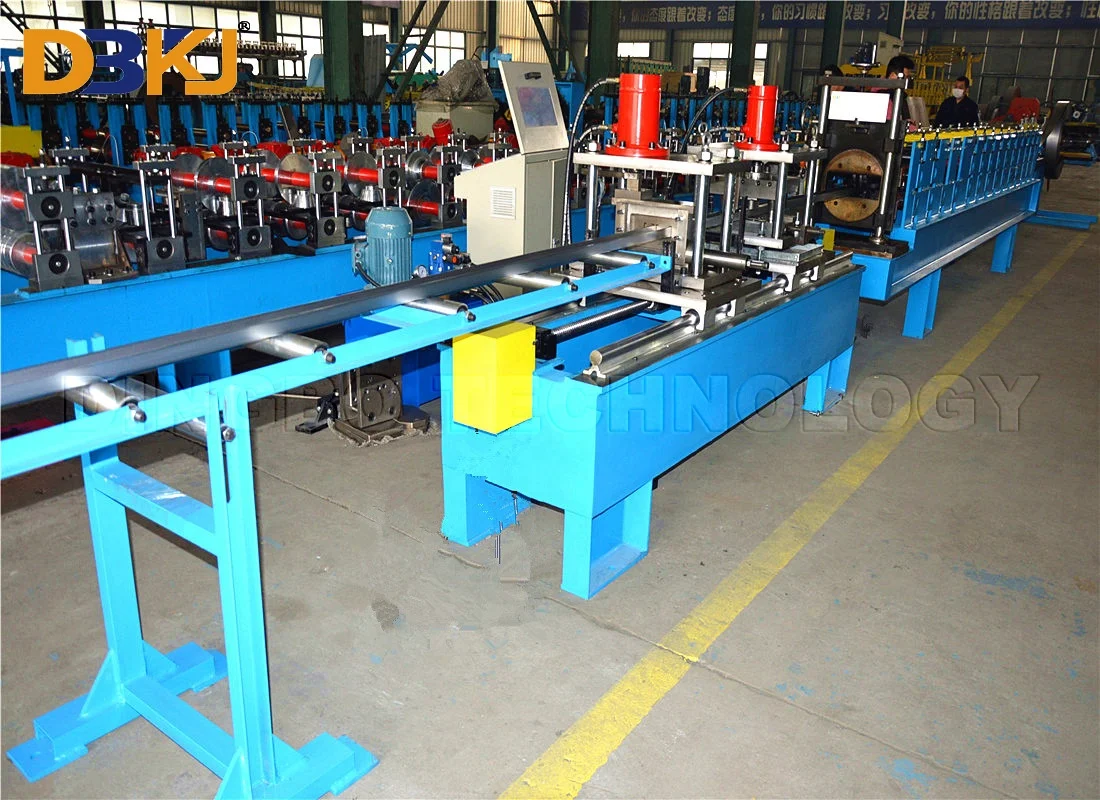

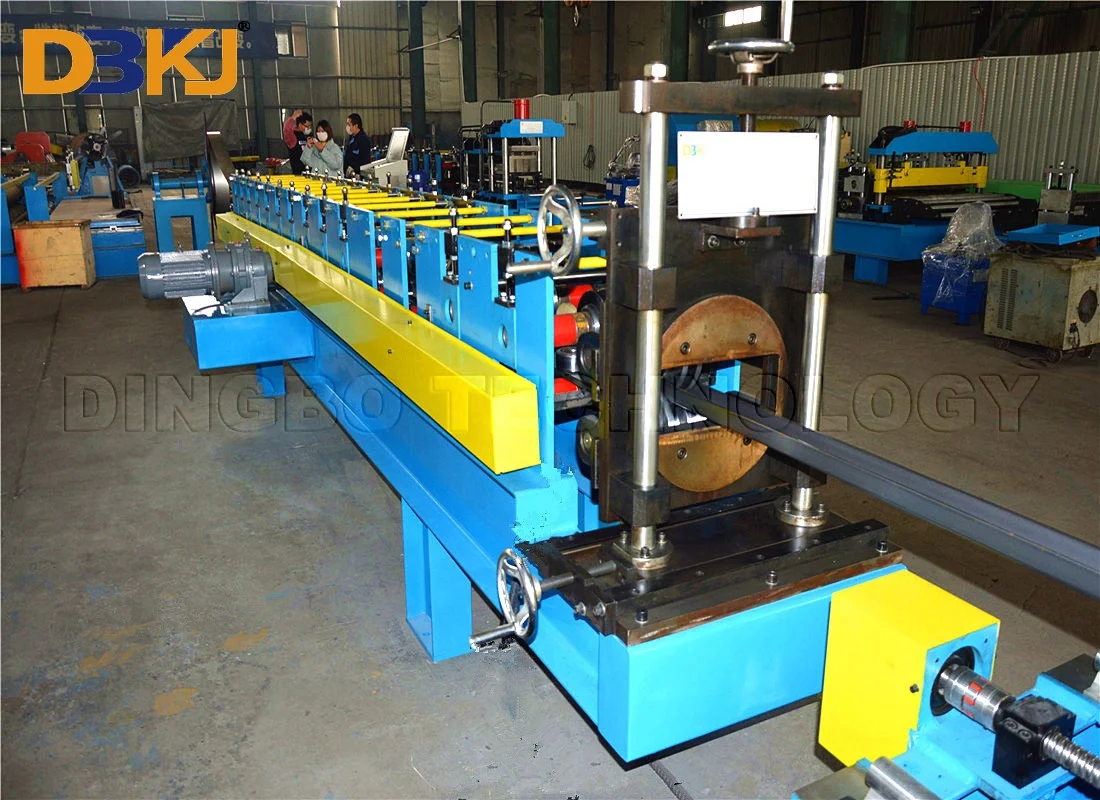

Hot Sale Light Gauge Steel Framing Frame Keel Roll Forming Machine
- Category: >>>
- Supplier: Jiangyin Dingbo Technology Co. Ltd.
Share on (1600251925471):
Product Overview
Description

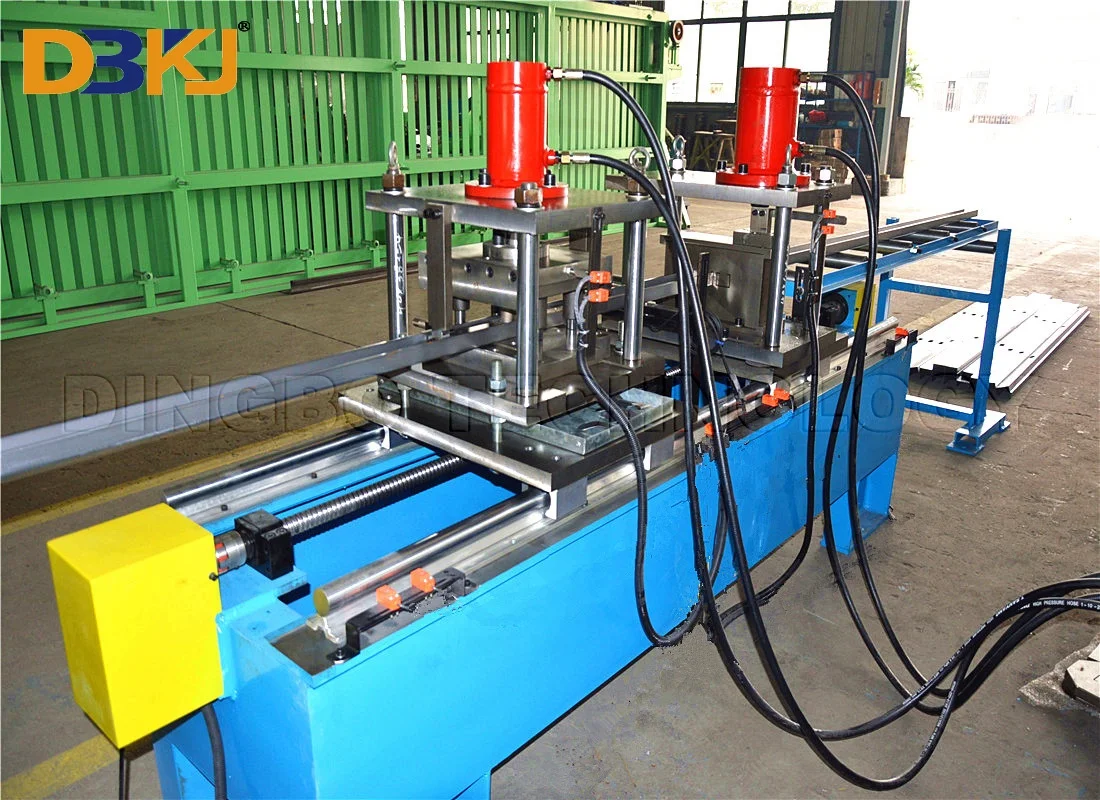

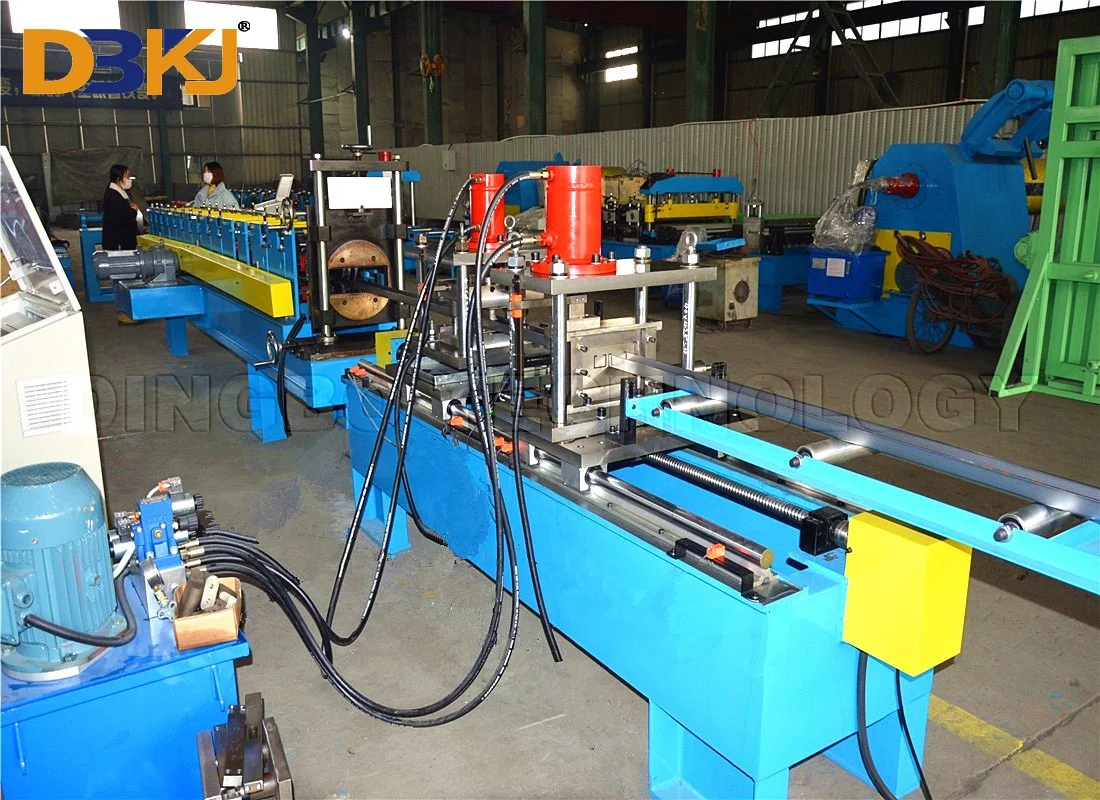

Hot Sale Light Gauge Steel Framing Frame Keel Roll Forming Machine
Product Description
L-type hanging keel, also known as Wall angle keel, breaks the traditional form of ceiling keel in design and manufacture, and uses high-quality snowboard as raw material, which has strong fireproof, rust-proof and anti-aging properties. The detection, the construction is convenient, the effect is outstanding, and it is widely used in modern decoration engineering.The two sides of the L-shaped groove are symmetrically and orderly arranged with an anchor-like hook. The hook can be formed into an imperial or metric combination with the auxiliary keel. The main keel and the auxiliary keel are connected with an eight-centimeter screw to make it stronger and durable.

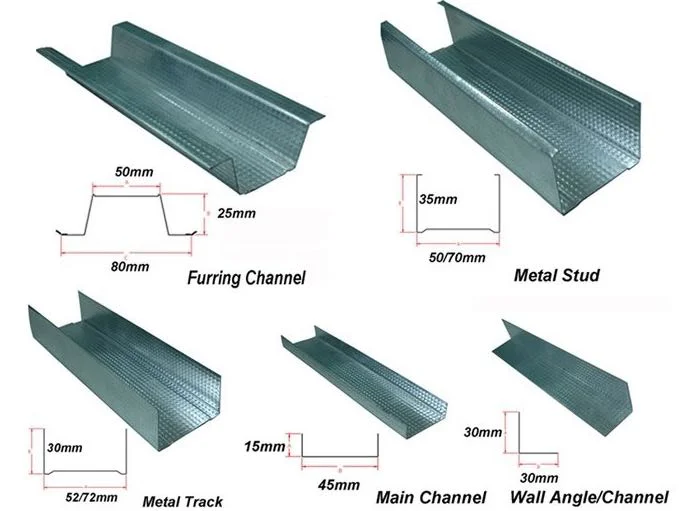

Version to design
Version to design

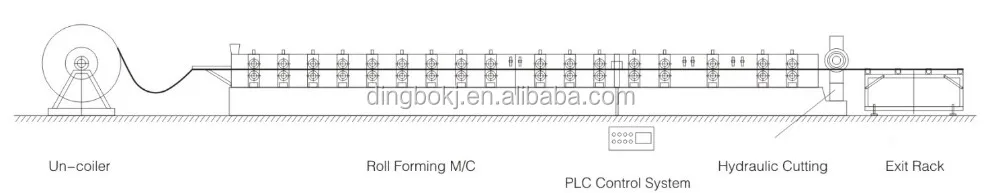

technological process
technological process
Specification
Specification
item | value |
Type | Furring channel roll forming machine |
Condition | New |
Production Capacity | 10-15m/min |
Forming Speed | Mini 12m/min |
Weight | 5-15T |
Thickness | 0.3-0.8mm |
Roller Stations | 7-15stations |
Roller Material | 45#steel |
Cutting blade material | Cr 12mould steel |
Material of shaft | 45#steel |
Diameter of shaft | 65-95mm |
Motor Power | 4-7.5kw(Depend on final design) |
Hydraulic Power | 3kw(Depend on final design) |
Voltage | 380V 50Hz 3Phases |
Length Tolerance | +-1.5mm |
Drive Way | Chain transmission |
Chain Size | 0.6-2inch |
Main Components
Main Components
No. | Name | Qty |
1 | Decoiler | 1 |
2 | Main roll forming machine | 1 |
3 | PLC Control box | 1 |
4 | Hydraulic station | 1 |
5 | Output table | 2 |
Delivery & after-sales service
Delivery & after-sales service
Company Profile
Company Profile
We are a manufacturer specialized in customizing roll forming machine, tube mill, slitting and cut to length line and PU sandwich panel line. With our advanced techniques and experienced staff members, we can produce simple profiles as well as complex components with precision tolerances. Most of our main production staff members have about 10 years of experience, ensuring quality machinery and high values for our customers. Our products are widely used in Construction, Food Services, Lawn & Garden Shelving, Automotive Fencing, Lighting Store Fixture, Industry Display Furniture, Material Handling Products, Sports Goods, Farming, HVAC, Mining, Transportation, etc. Advantages of Roll Forming:Roll formed parts have a variety of shapes, angles and curves. Many materials are suitable for our custom roll forming machines, which allows us to provide components and parts with a wide variety of plated, pre-painted and laminated materials to meet your roll forming needs. We design products that best meet specific needs.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.Welcome to visit our factory!!!
