Agv Helmet Making Machine Price China
- Category: >>>
- Supplier: Hangzhou Dingchuan Import&export Co. Ltd.
Share on (1600252178504):
Product Overview
Description
Contact: Mr. Kevin Kong
Mobile&WhatsApp&Wechat: +86-18768196956

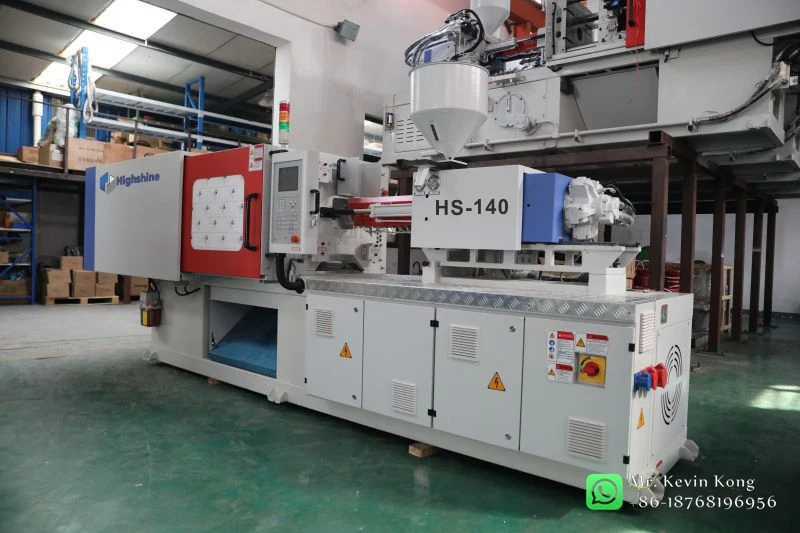

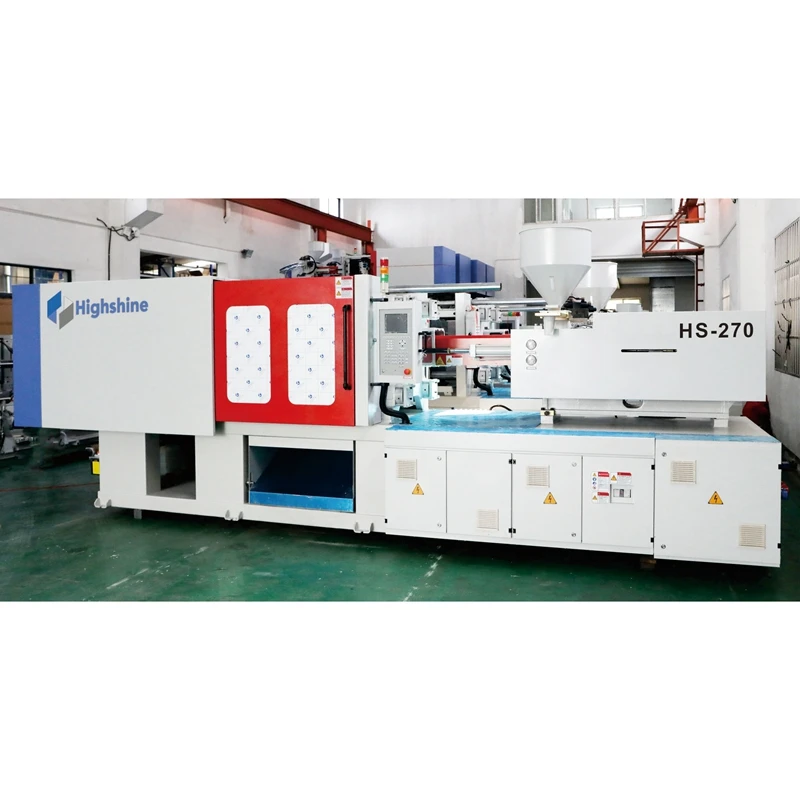

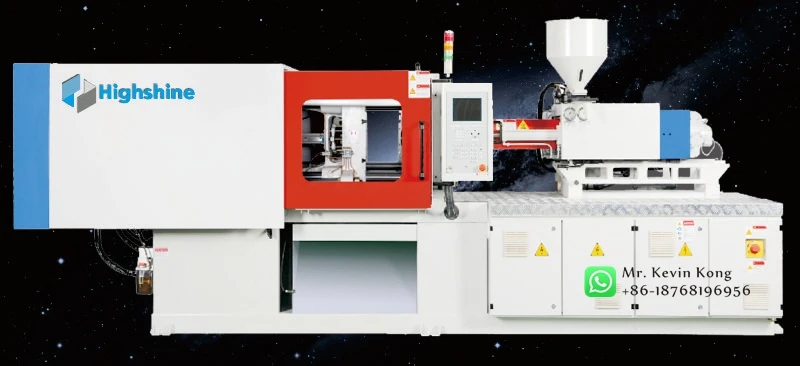

| HIGHSHINE HS INJECTION MOLDING MACHINE | |||
| Model List | Clamping Tonnage | Distance Between Tie Bar (HxV) | Shot weight (gram) B SCREW |
| UNIT | ton | mm | g |
| HS120 | 120 | 370X370 | 175 |

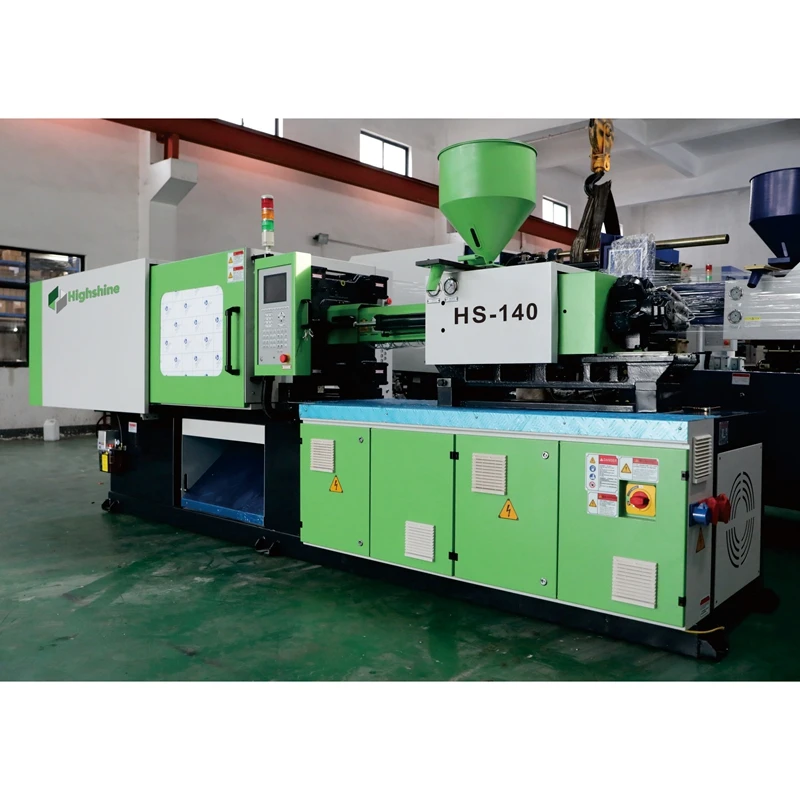

| HS140 | 140 | 420X420 | 217 |

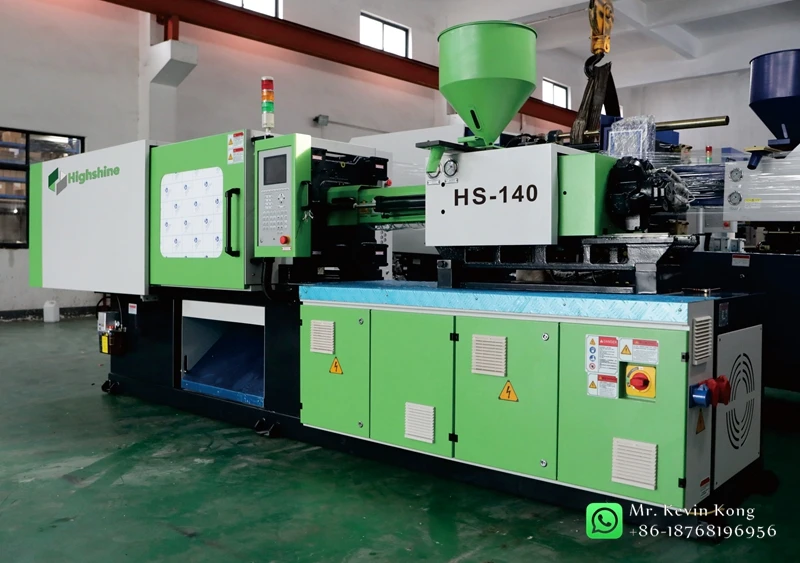

| HS158 | 158 | 470X420 | 226 |
| HS170 | 170 | 470X470 | 325 |
| HS230 | 230 | 520X520 | 450 |

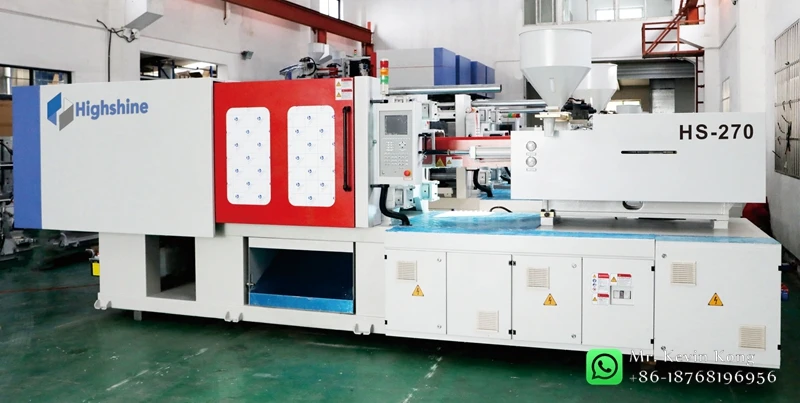

| HS270 | 270 | 580X580 | 670 |
| HS300 | 300 | 620X620 | 732 |
| HS330 | 330 | 660X660 | 1000 |
| HS400 | 400 | 730X730 | 1250 |
| HS470 | 470 | 770X770 | 1567 |
| HS530 | 530 | 820X780 | 2200 |
| HS600 | 600 | 875X875 | 2579 |
| HS650 | 650 | 925X875 | 2774 |
| HS780 | 780 | 980X950 | 2901 |
| HS1080 | 1080 | 1125X1085 | 717 |
| HS1250 | 1250 | 1180X1100 | 1125 |
| HS1600 | 1600 | 1500X1350 | 1302 |
We are an enterprise full of vitality, inspiring its creativity and courage everyday; we always will be an enterprise that grows with steady, stepping consistently towards our great vision everyday; we always will be an enterprise that keeps surmounting itself, facing all challenges with brand new status everyday.
Super Energy Saving
40% more energy efficient than the variable pump system. 60% energy saving than the fixed pump + fixed speed motor (depending on the product can not save energy)
High Precision, High Response
The high-precision, high-sensitivity pressure sensor and rotary encoder realize closed-loop control of pressure and flow, and the repeat progress error is less than 1%. The servo motor reaches the maximum output power in only 0.05 seconds.
Low Noise
The noise value is within 78 db. When the machine is not operating, the servo motor stops almost no noise.
Save Cooling Water
Overflow heating of the non-quantitative pump + fixed speed motor system. Low temperature of hydraulic oil, greatly reducing the amount of cooling water

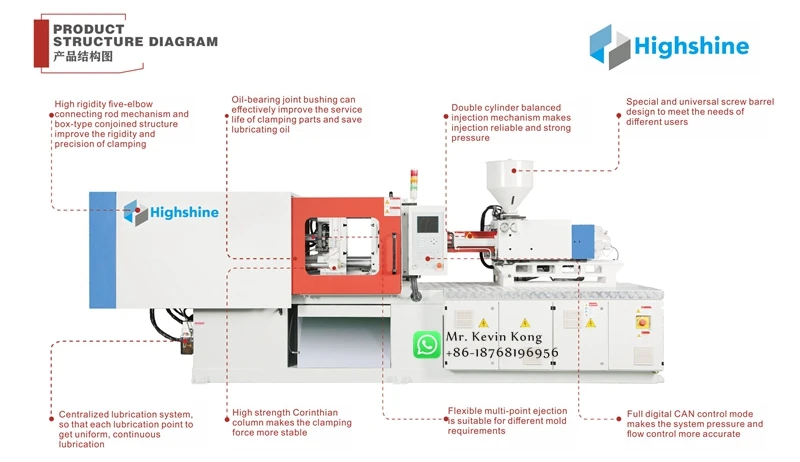

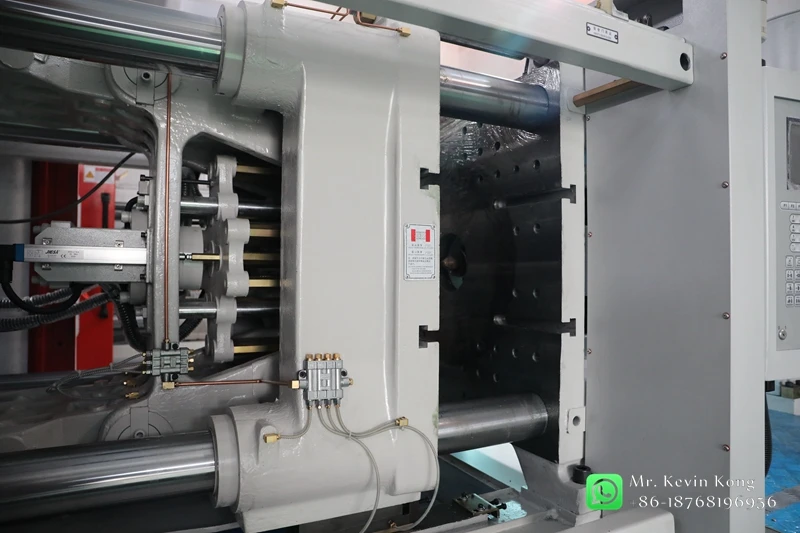

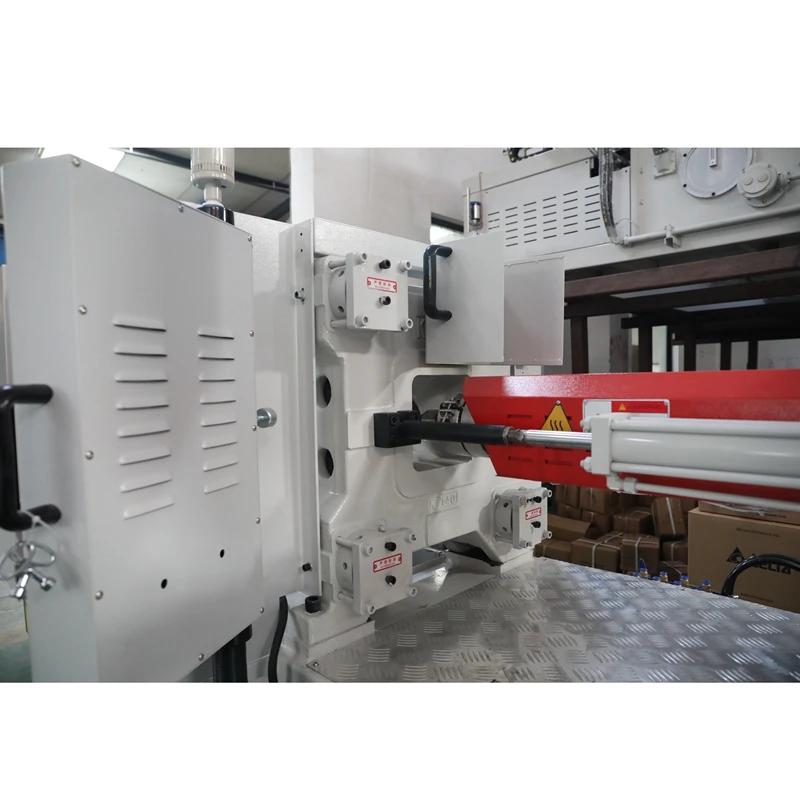

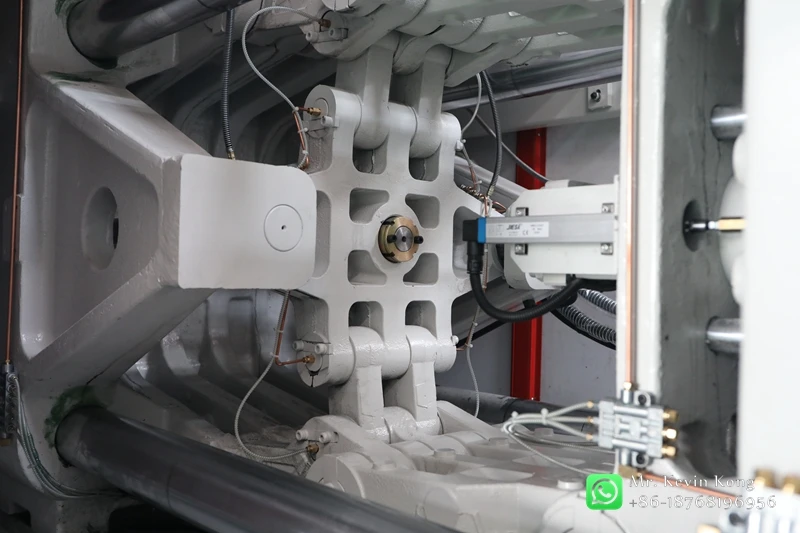

New Clamping Structure
The involute five-point elbow type clamping mechanism, the connecting rod and template of the cast-connected structure strengthened by finite element analysis effectively reduce the stress and deformation, and improve the rigidity and precision of the clamping part

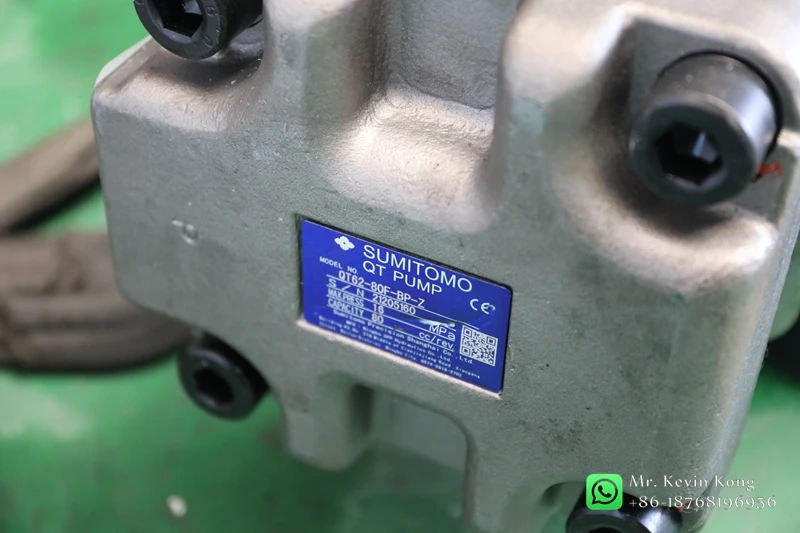

New Power Composition

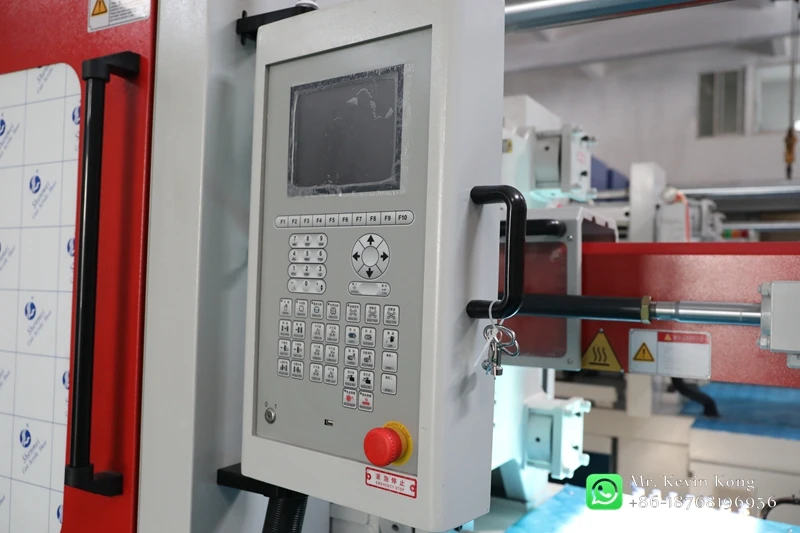

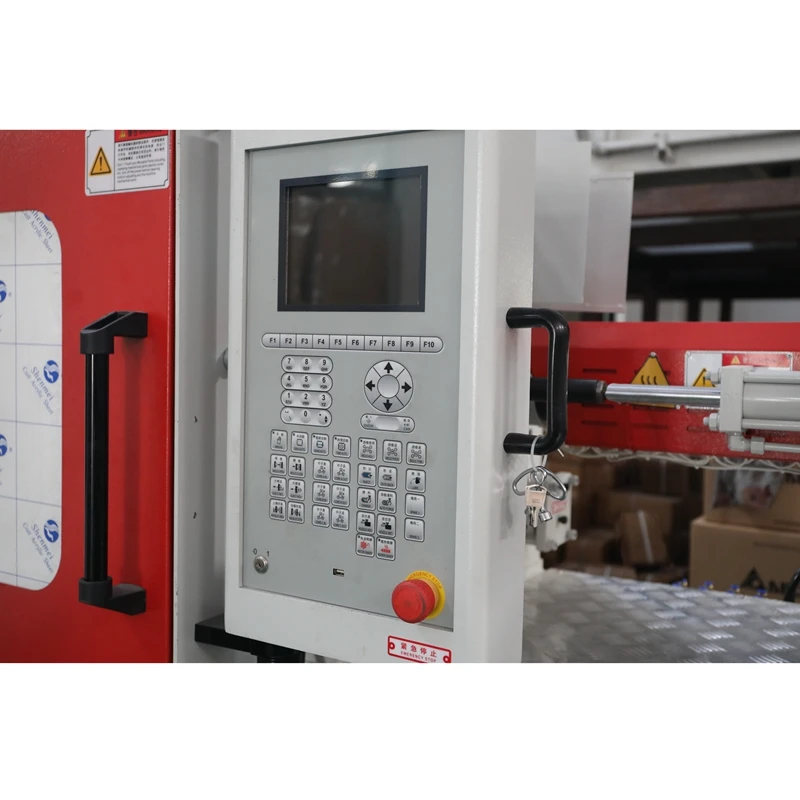

The servo motor, servo drive, pressure sensor, rotary encoder, gear pump and high-precision injection molding machine special injection molding controller constitute a new power system, so that the energy demand of the injection molding machine is best matched.
Main Applications:
Contact us:
