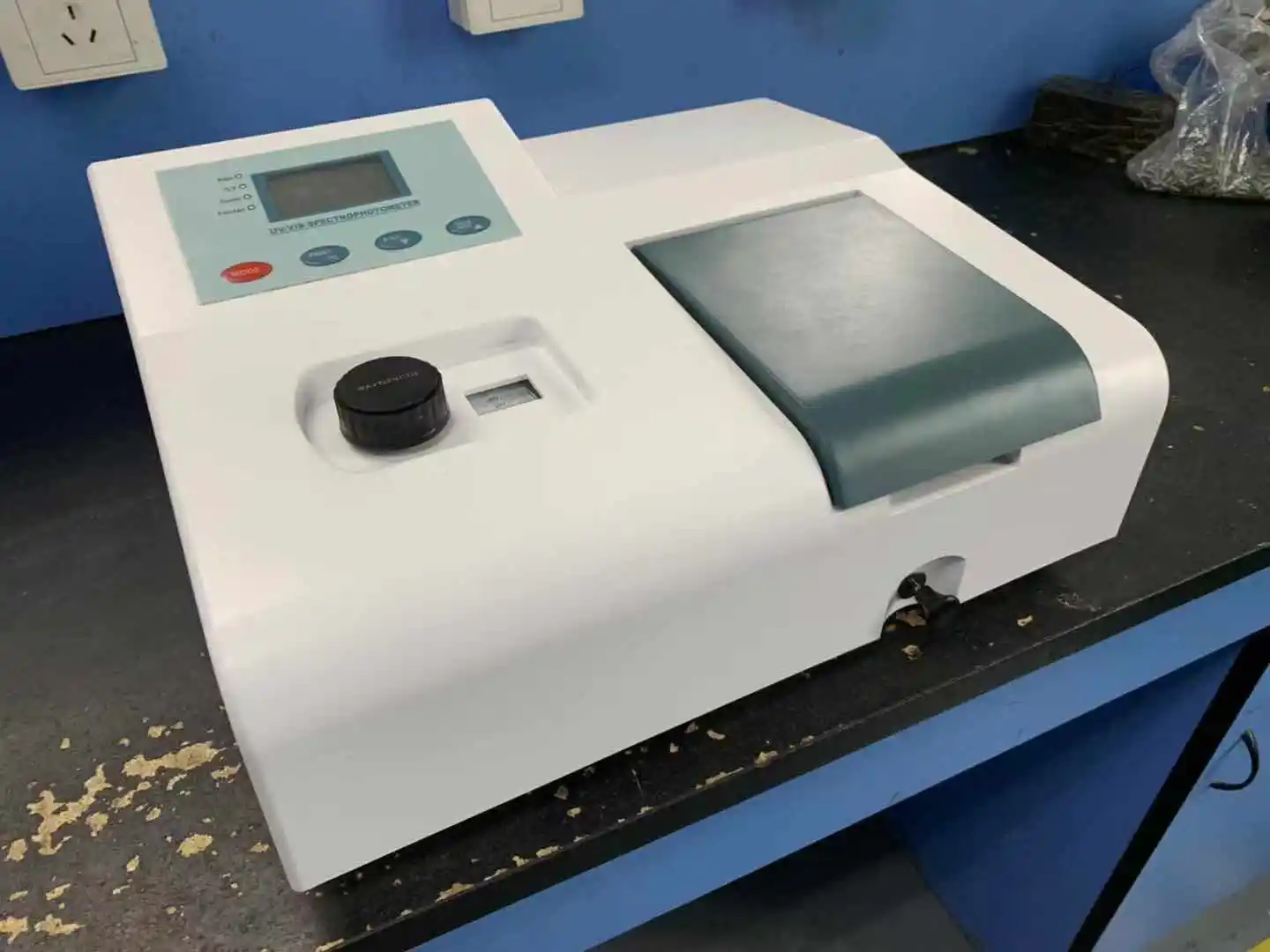

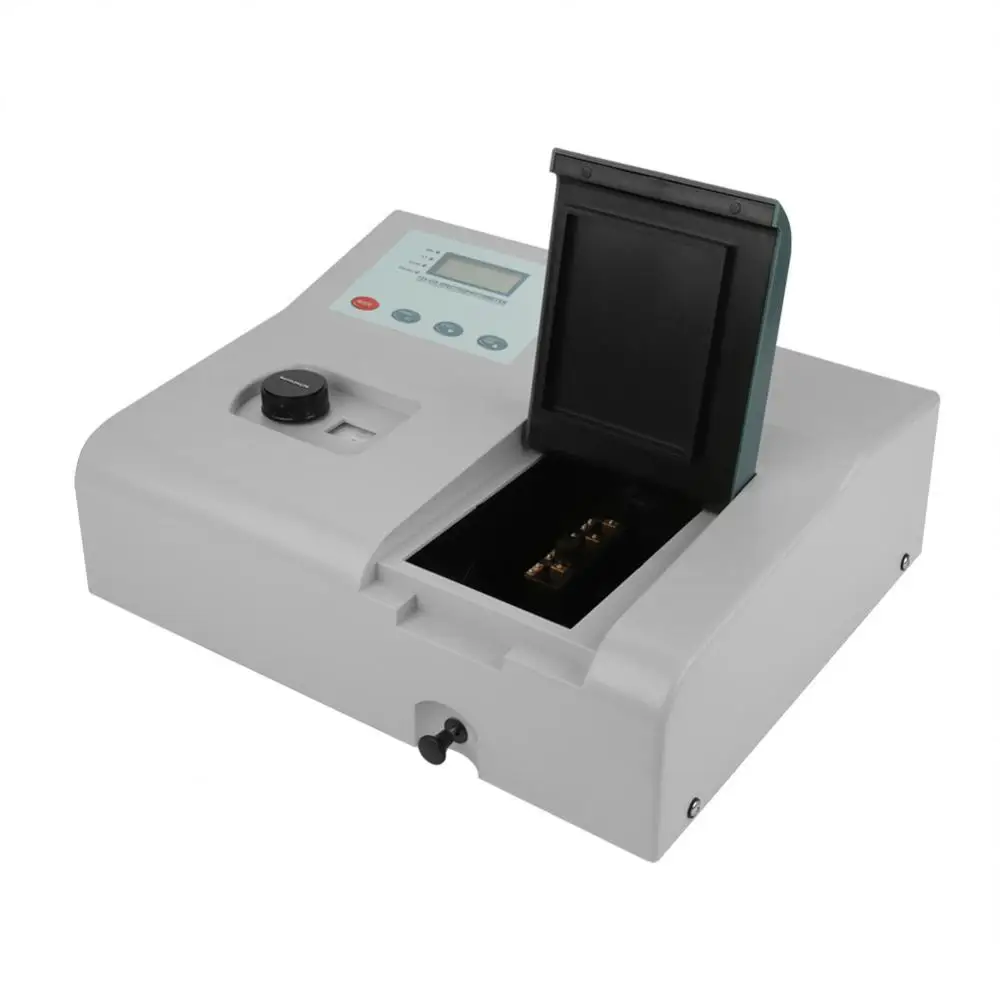

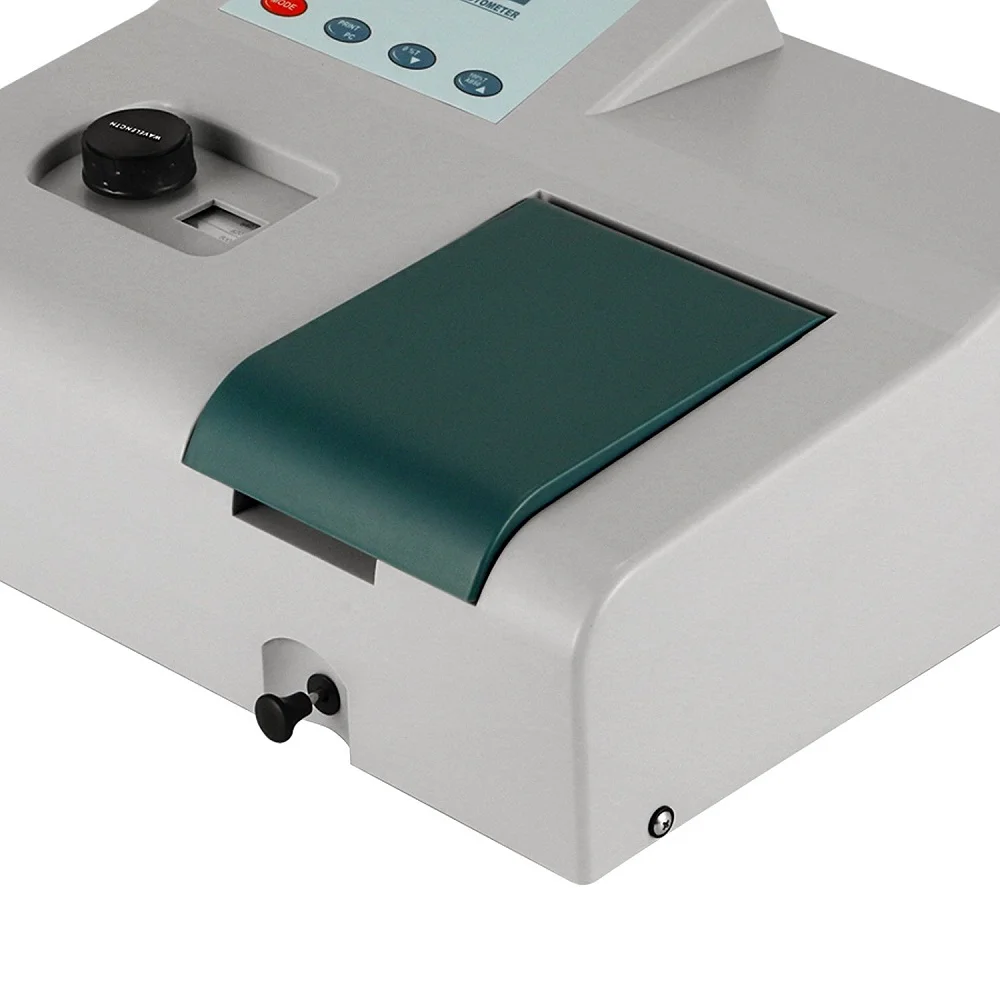

UV Visible Spectrophotometer UV1100N/752N Laboratory Spectrometer Wavelength:195 1020mm Bandwidth:4nm
- Category: >>>
- Supplier: Shanghai Yoke Instrument Co. Ltd.
Share on (1600252535610):
Product Overview
Description
Product Description
Details Images

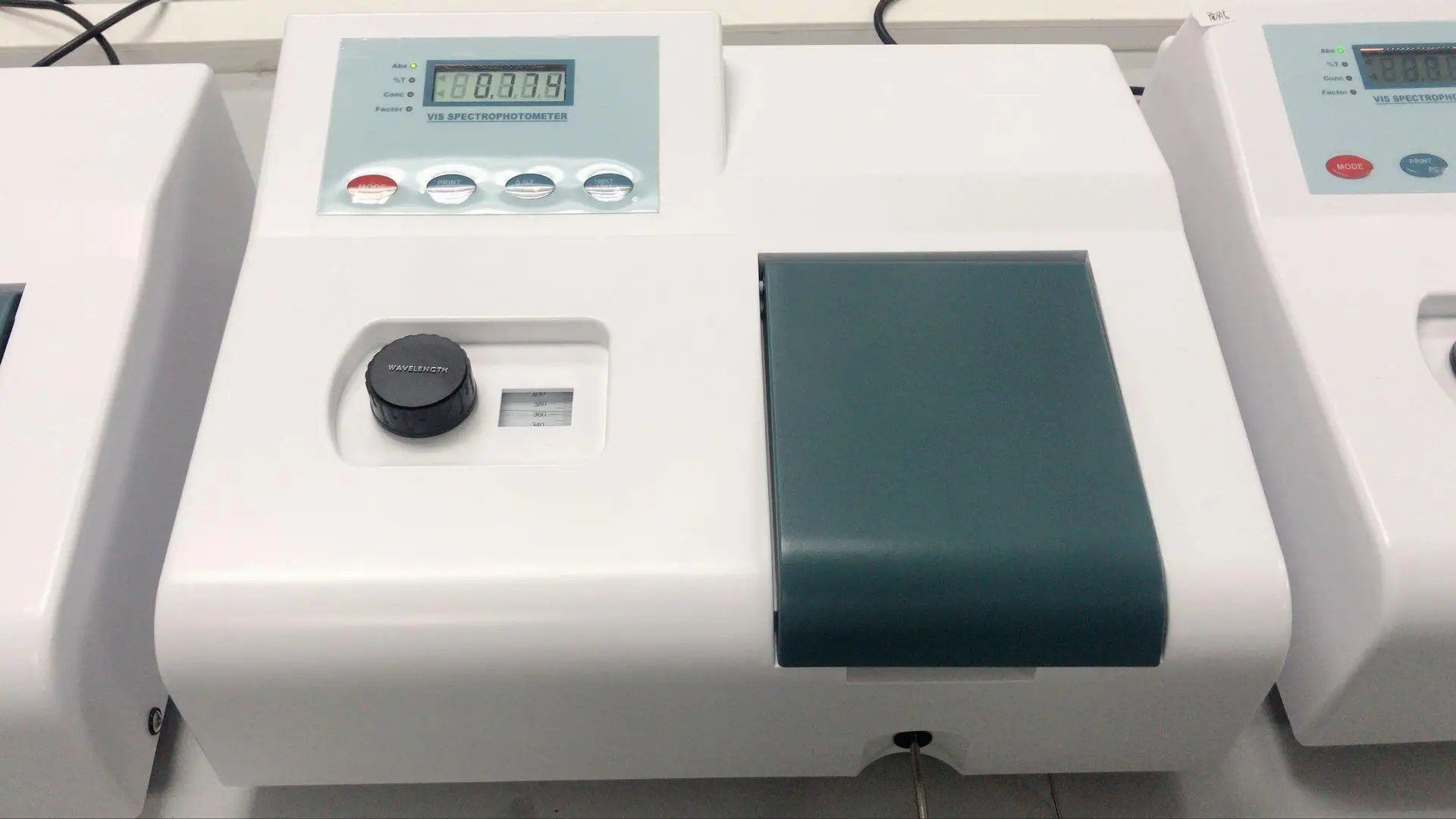

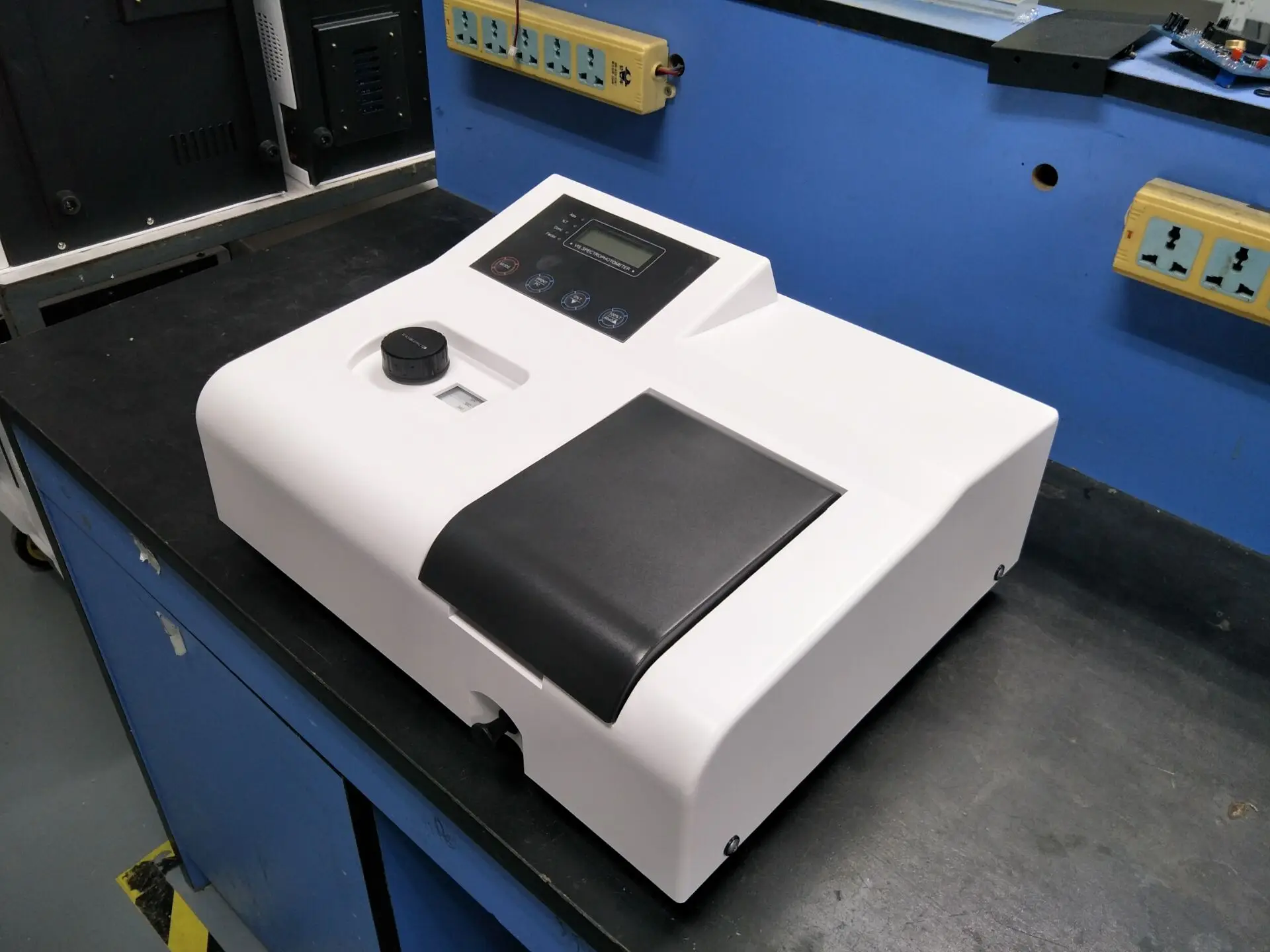

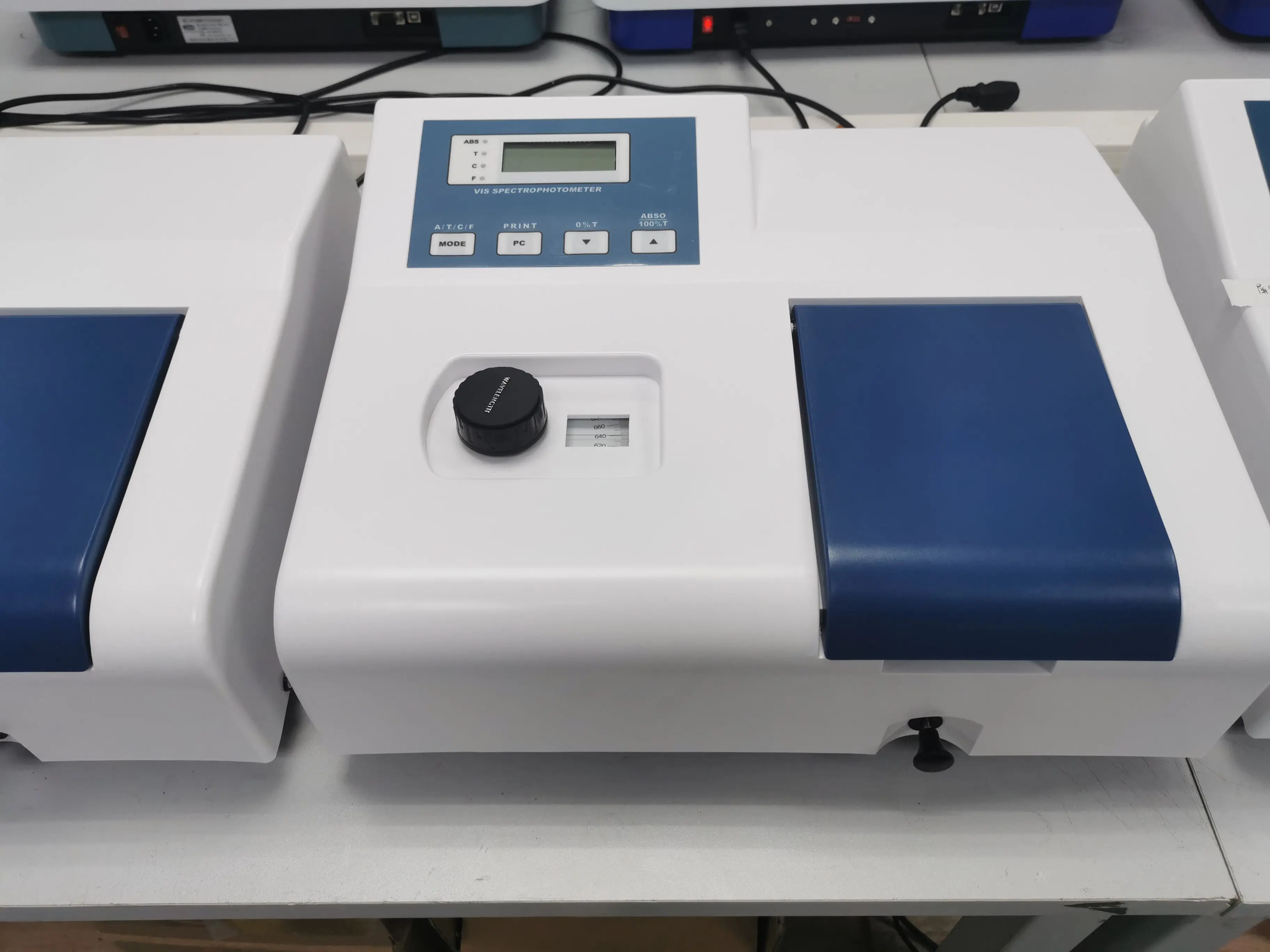

Three colors are available.
1000 series is a basic spectrophotometer, which is widely used in education in universities and colleges, food & beverage production and quality control, agricultural monitoring, etc. It is an ideal choice for routine analysis and gerneral experiments. Measured values can be transferred to PC via RS232 port for further analysis. PC software is optional.
Operation Procedures
1. Plug the instrument into a grounded outlet.
2. Turn the instrument on. Allow the instrument to warm up for 30 minutes.
3. Set to desired wavelength with the Wavelength Knob, press the MODE key to select A/T/C/F.
4. If you want to know T value, press MODE key to change to “T” mode，fill one of matched cuvettes with a blank solution.
5. open the sample compartment cover, set 0.000%T by pressing the ▽/0%T key until display reads “0.000”.
6. if you use air as reference sample, please close the sample compartment cover directly, and press the △/0Abs/100%T key until display reads 100.0.
open the sample compartment cover and Insert the cuvette into the cuvette holder, then close the sample compartment cover. read results directly on the digital display.
2. Turn the instrument on. Allow the instrument to warm up for 30 minutes.
3. Set to desired wavelength with the Wavelength Knob, press the MODE key to select A/T/C/F.
4. If you want to know T value, press MODE key to change to “T” mode，fill one of matched cuvettes with a blank solution.
5. open the sample compartment cover, set 0.000%T by pressing the ▽/0%T key until display reads “0.000”.
6. if you use air as reference sample, please close the sample compartment cover directly, and press the △/0Abs/100%T key until display reads 100.0.
open the sample compartment cover and Insert the cuvette into the cuvette holder, then close the sample compartment cover. read results directly on the digital display.
Specification
Model | V1000/721 | V1100 | UV1100 | UV1100N | |||
Optical System | Single Beam, Grating 1200 lines/mm | ||||||
Wavelength Range | 340‐1020 nm | 330‐1020 nm | 195-1020 nm | ||||
Spectral Bandwidth | 6 nm | 5 nm | 4 nm | ||||
Wavelength Accuracy | ±3 nm | ±2nm | |||||
Wavelength Repeatability | 1 nm | ||||||
Photometric Accuracy | ±1%T | ±0.5%T | |||||
Photometric Repeatability | 0.5%T | 0.2%T | |||||
Stray light | 0.5%T | 0.3%T | |||||
Stability | 0.004A | 0.002A | |||||
Wavelength Setting | Manual | ||||||
Work Mode | T, A, C | ||||||
Display | 4 LCD | ||||||
Light Source | Tungsten lamp | Deuterium &Tungsten lamp | |||||
Detector | Silicon Photodiode | ||||||
Cuvette Holder | 10mm manual 4-cell holder | ||||||
Output | RS232 | ||||||
Power | AC 220V/50Hz or AC 110V/60Hz | ||||||
Shipping Size | 520*450*320mm | ||||||
Gross Weight | 10kg | ||||||
Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV) , Power cord, User's Manual | ||||||

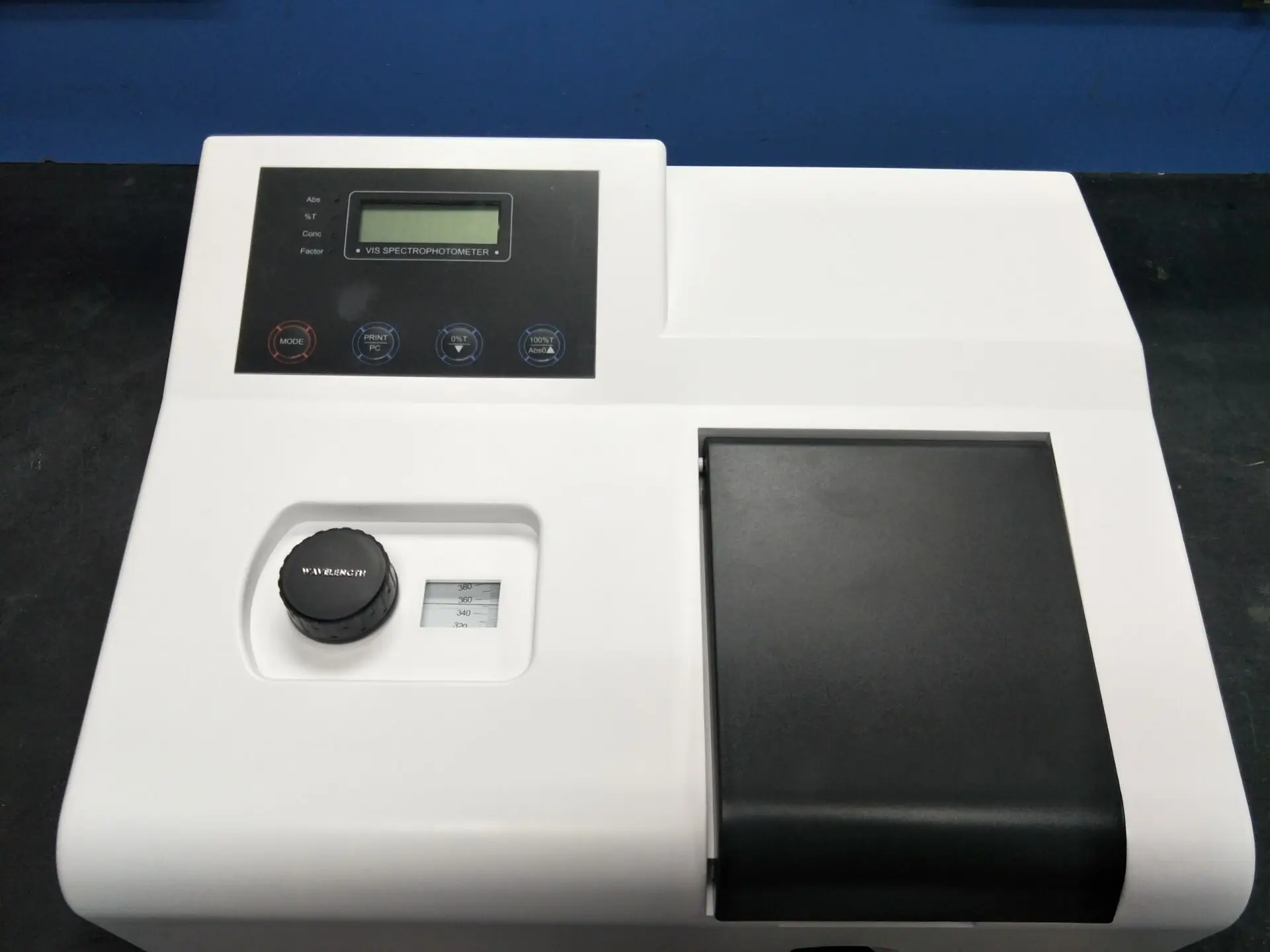

Set to desired wavelength with the Wavelength Knob
10mm manual 4-cell holder
RS232,and your company name can be shown on the nameplate
User's Manual
PC Software is optional,If buy software,we can send computer wire.

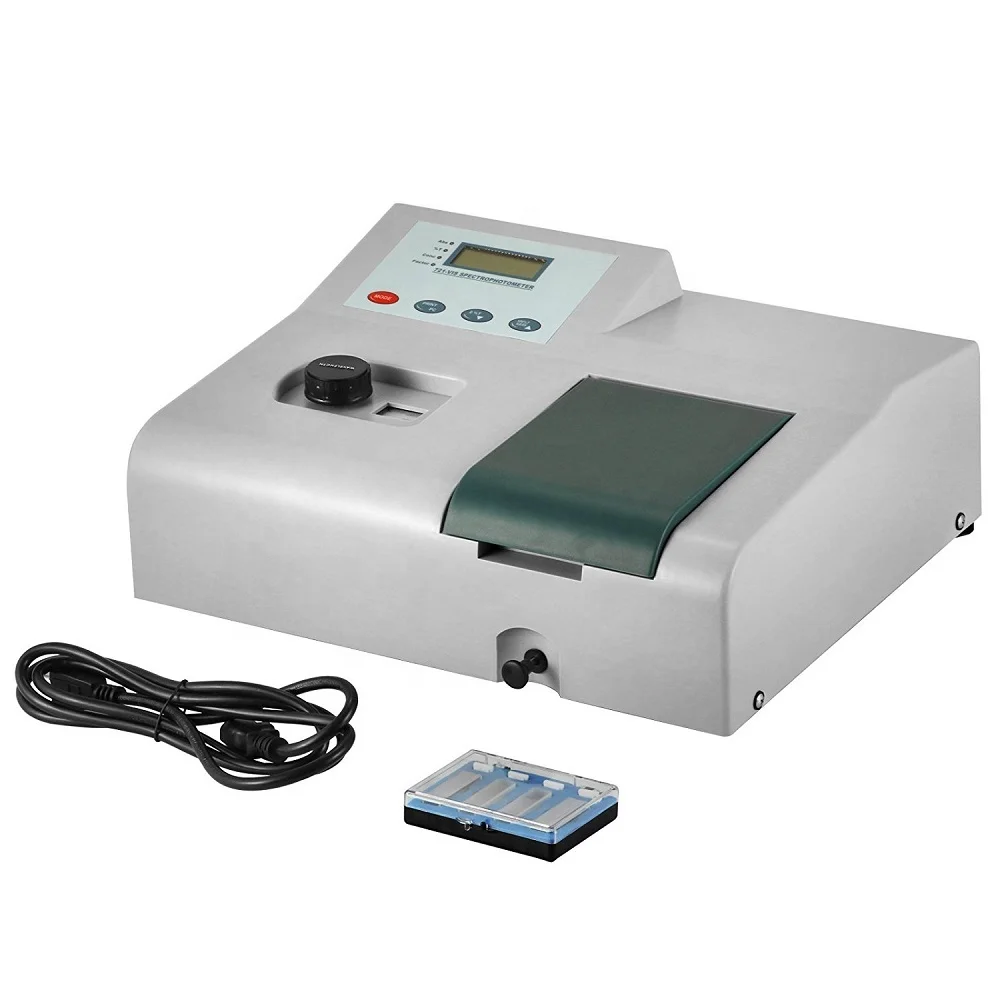

10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV)
Thermal Printer is optional

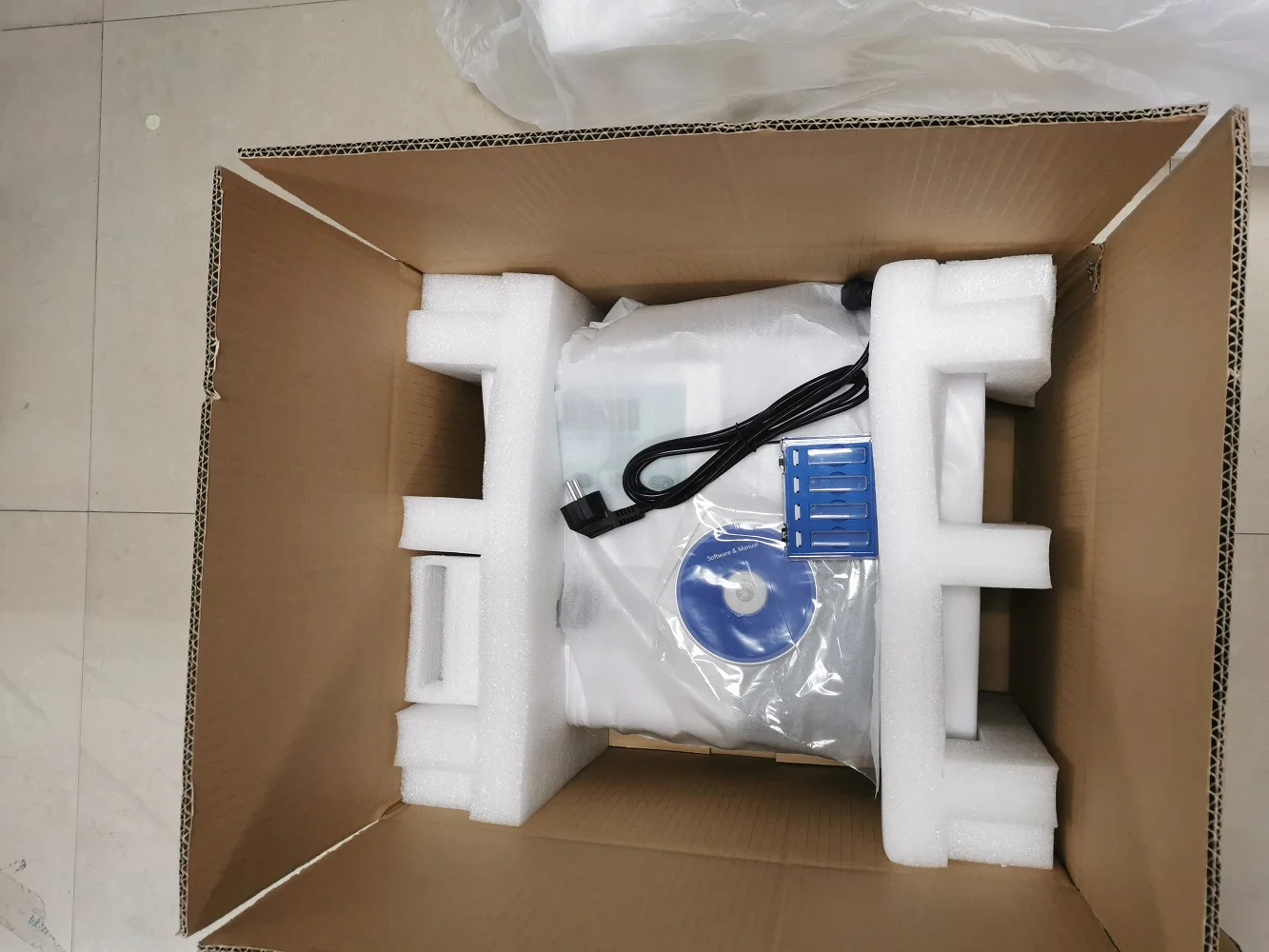

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
CE
CE
ISO9001
Company Profile
Shanghai Yoke Instrument Co.,Ltd.
Yoke Instrument was founded in 2007, we are a specialized manufacturer of laboratory analytical instruments based in Shanghai.
Main products: Spectrophotometer, GC. pH/Conductivity/DO Meter, lon Meter, Turbidity Meter, Colorimeter, COD, Moisture Analyzer, Balance and biological microscope, etc.
Using advanced production equipment from Japan, our products are manufactured to CE standards. And we inspect 100 percent of products before shipping. OEM/ODM orders are welcomed. and our senior R&D staff will meet your requests quickly, we are constantly striving to innovate- a thirst which has aided us in garnering nine patents in China
With reliable quality, favorable price and sincere service, Yoke has successfully established business cooperation with customers from more than 80 countries and have good reputation. We will further promote ourselves and enhance customer satisfaction to create a win-win situation between Yoke and customers.
Laboratory Room

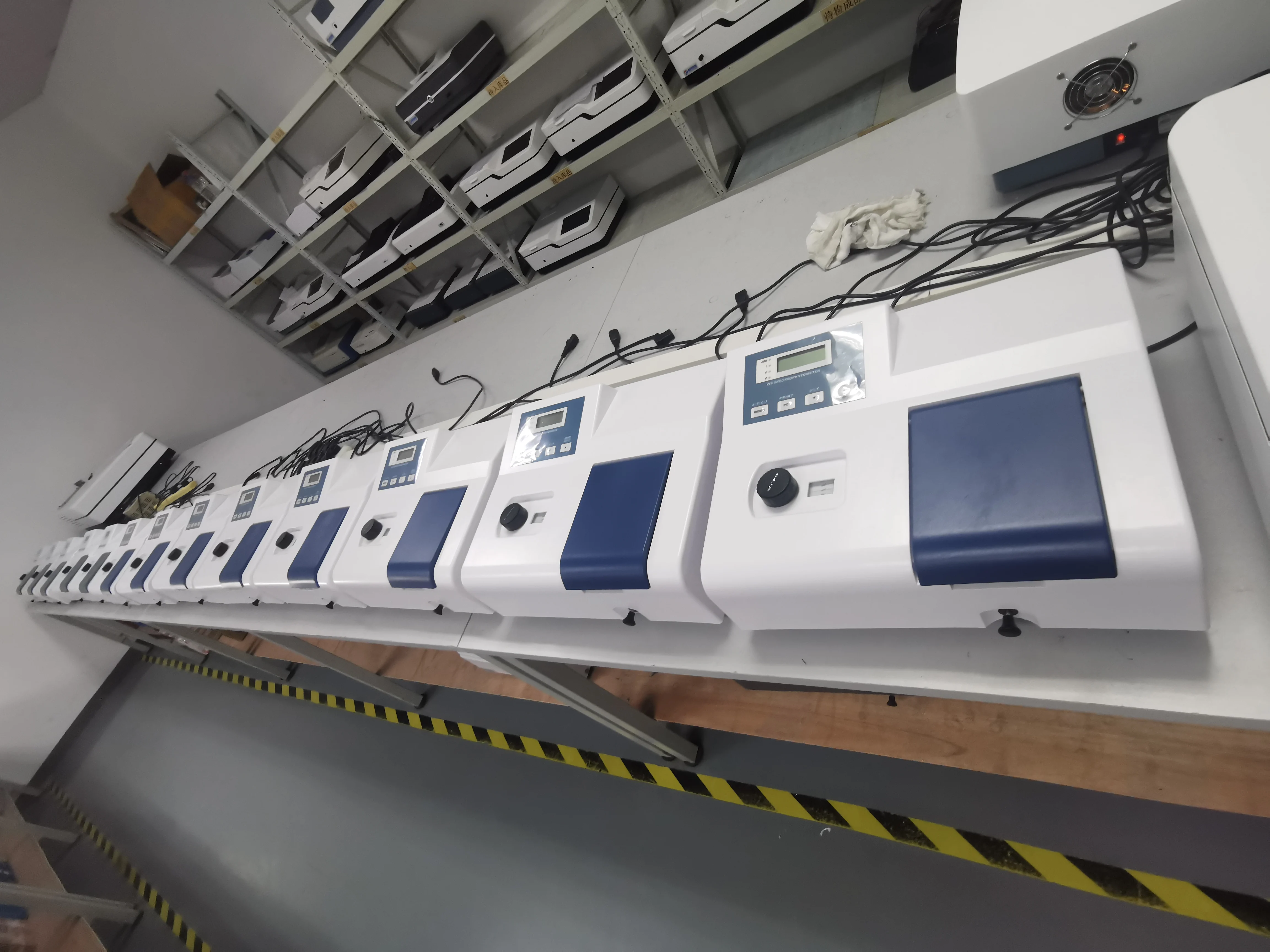

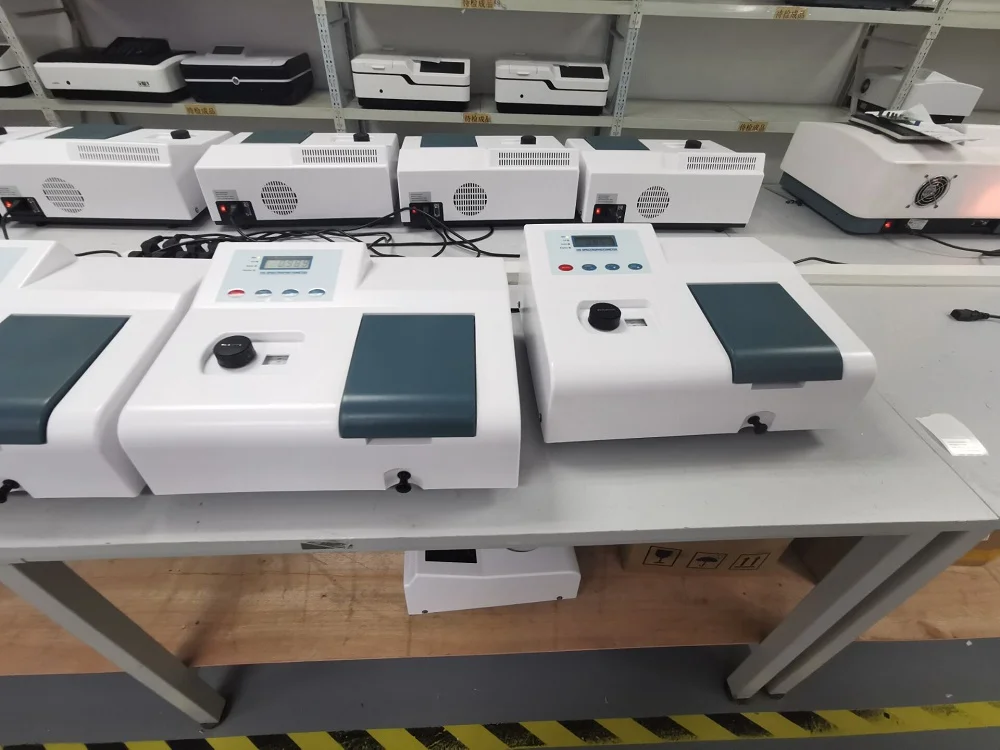

Manufacturing Shop
Inspection Area
Exhibition
Troubleshooting
Troubles | Causes | Remedies |
1.No functioning after power is on | 1.Powersupply not connected. 2.Power fuse melted. 3.Loose contact of power switch. | 1Check power line. 2.Replace fuse. 3.Replace power switch. |
2.Unstable display | 1.Insufficient warm-up time. 2.Excessive vibration, strong air current near light source, or strong external light. 3.Unstable voltage 4.Poor grounding | 1.Ensure 20 mins warm-up time. 2.Improve working conditions. 3.Use a voltage stabilizer. 4.Check ground connection. |
3.Unable to set zero | 1.black block in the light path. 2.Amplifier failure. | 1.Remove the block. 2.Repair amplifier. |
4.Unable to set 100%T | 1.Tungsten-halogen lamp not lit. 2.Inaccurate light path. 3.Amplifier failure. | 1.Check or repair lamp power circuit. 2.Readjust light path. 3.Call Repair amplifier. |
5.Concentration incorrectly calculated | 1.Display board out of order. | 1.Repair or replace display board. |
