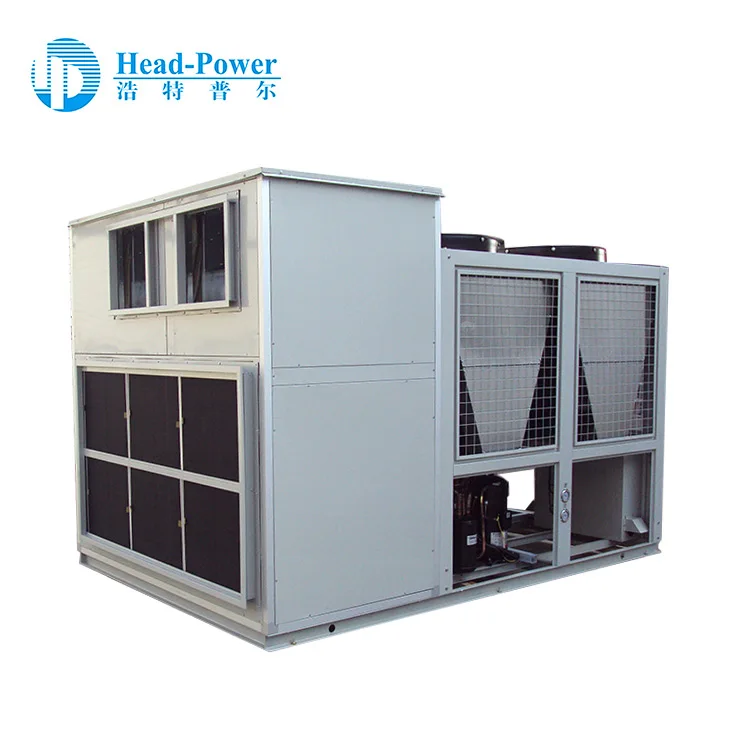

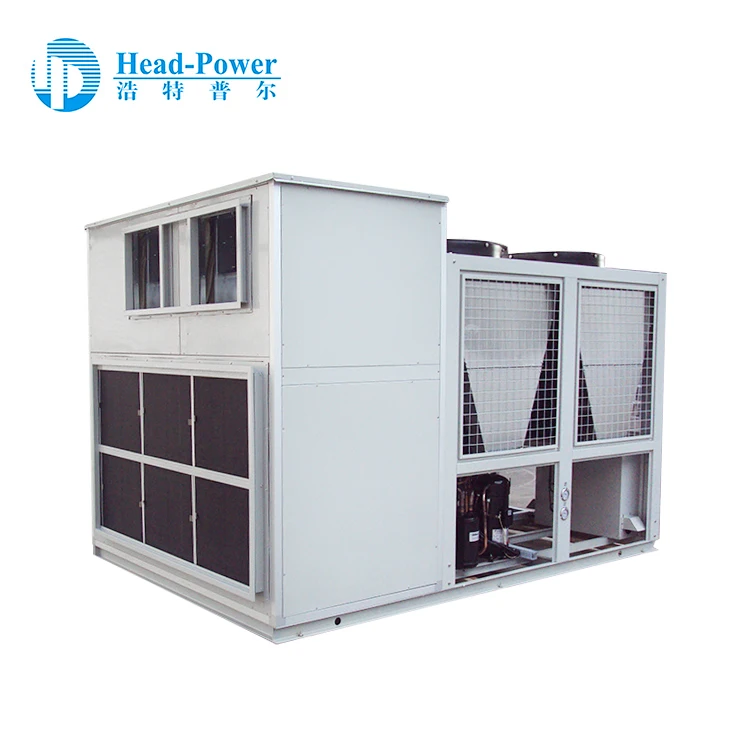

20 Ton Air Conditioner for Outdoor Event Cooling Tent Cooling HVAC System
- Category: >>>
- Supplier: Guangdong Head-Power Air Conditioning Co. Ltd.
Share on (1600252544784):
Product Overview
Description
Product Description

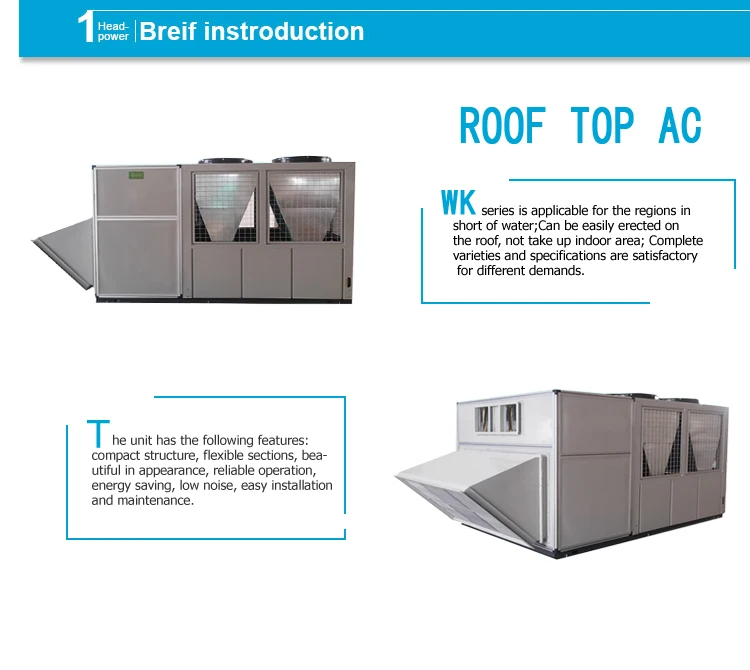

The rooftop air-conditioning system is an all-air system with an integrated design of the entire air-conditioning system. It does not require supporting equipment such as water pumps, cooling towers, fan coils, and condensation drainage pipes. It is extremely convenient to install and use. There are no moving machinery and water pipes in the system room, so users do not need to worry about noise and water leakage, and maintenance is convenient. The unit is placed on the roof or outdoor open space, without a machine room, saving initial investment. The unit does not need secondary refrigerant, and the system efficiency is high. The unit is full of functions, which can easily achieve multiple functions such as air purification, dehumidification, humidification, cooling, heating, and fresh air volume adjustment. The unit is not only suitable for places such as shopping malls, restaurants, entertainment, office buildings, halls and general industrial workshops, but also for clean places in industrial workshops such as medicine, food, electronics, chemical industry, scientific research, and machinery.
| WKL Series Air Cooled Cooling Type Rooftop Air Conditioners | |||||
| Model Type | WKL36 | ||||
| System Characters | Cooling Capacity | KW | 105 | ||
| Electric Heating Capacity | KW | 54 | |||
| Air Volume | m3/h | 19200 | |||
| External Static Pressure | Pa | 350 | 550 | ||
| Noise Level | dB(A) | 76 | 78 | ||
| Temperature Range and Accuracy | 18℃~30℃±1℃ | ||||
| Power Supply | 3N~50HZ 380-400V | ||||
| Total Power | Cooling | KW | 37.5 | 37.5 | |
| Heating | KW | 56 | 56 | ||
| Refrigerating System | Refrigerant | Type | R22/R407C/R410A/R134A | ||
| Way of Throttling | Outside Balanced Thermal Expansion Valve | ||||
| Compressor | Type | Hermetic Scroll Compressor | |||
| Power | KW | 9×3 | |||
| Evaporator | Type | Tube with Fins | |||
| Fin Type | Slotted-type Two-way Aluminum Fins | ||||
| Condenser | Type | Tube with Fins | |||
| Fin Type | Corrugated Aluminum Fins | ||||
| Air Sending System | Condenser Fan | Type | Ultra-low-noise Axial Type | ||
| Drive Method | Direct-drive | ||||
| Motor Power | KW | 1.5×2 | |||
| Evaporator Fan | Type | Ultra-low-noise Double-inlet Centrifugal Type | |||
| Drive Method | Belt Transmition | ||||
| Motor Power | KW | 5.5 | 7.5 | ||
| Heater | Type | Electric Heating | |||
| Power | KW | 54 | |||
| Air Filter | Nylon Bump Net | ||||
| Dimensions | Length | mm | 4000 | ||
| Width | mm | 1600 | |||
| Height | mm | 2160 | |||
| Weight | kg | 2160 | |||
| MOQ | units | 1 | |||
| Delivery Time | days | 35 | |||
| Note: | ||||||||||||||||||||||||||||||||||||
| 1. Cooling capacity is based on the following conditions: indoor air temperature DB27℃/WB19℃,ambient temperature,35℃ DB/24℃ WB. | ||||||||||||||||||||||||||||||||||||
| 2.Normal working conditions: ambient temperature 15℃~43℃ | ||||||||||||||||||||||||||||||||||||
| 3. The specifications are subject to change without notice for improvement.. | ||||||||||||||||||||||||||||||||||||
| 4. If any other special specifications are needed, please notify us in advance. | ||||||||||||||||||||||||||||||||||||
