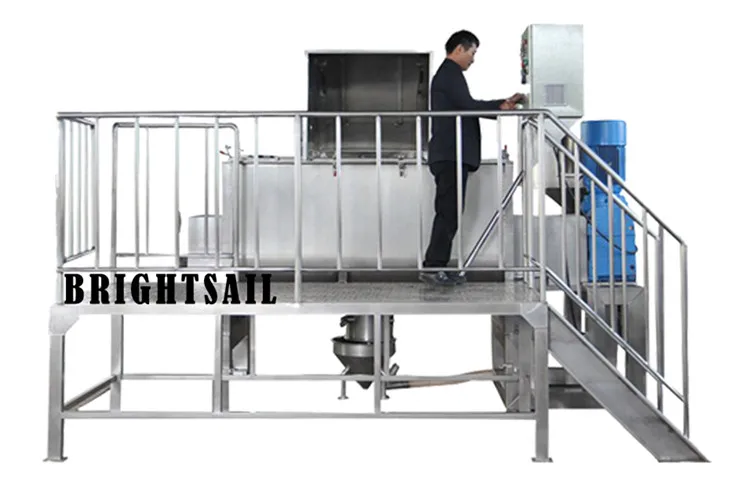

Lab pharmacy spice masala flour starch sugar tea leaf milk powder mixing machine

Lab pharmacy spice masala flour starch sugar tea leaf milk powder mixing machine

Application:

The industrial horizontal powder ribbon blender mixer is widely applied by the pharmaceuticals, chemical, foodstuff, pigments, cosmetics and so on.

Structure:

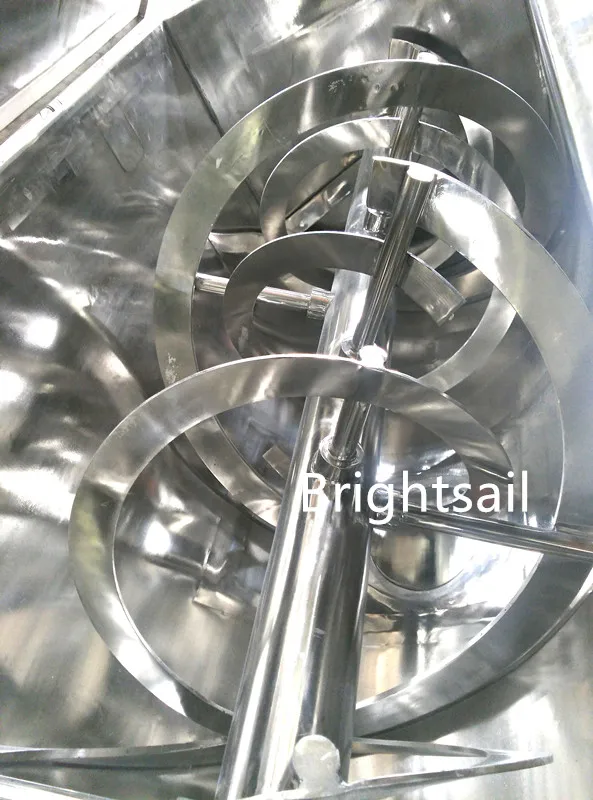

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.

It has a very good effect for mixing powder, or mixing powder with liquid.

Features:

1) Simple structure in horizontal U shape ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.

3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material

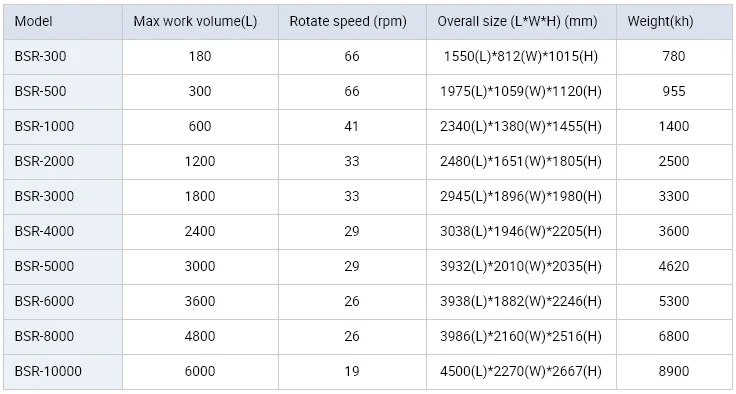

Technical data:

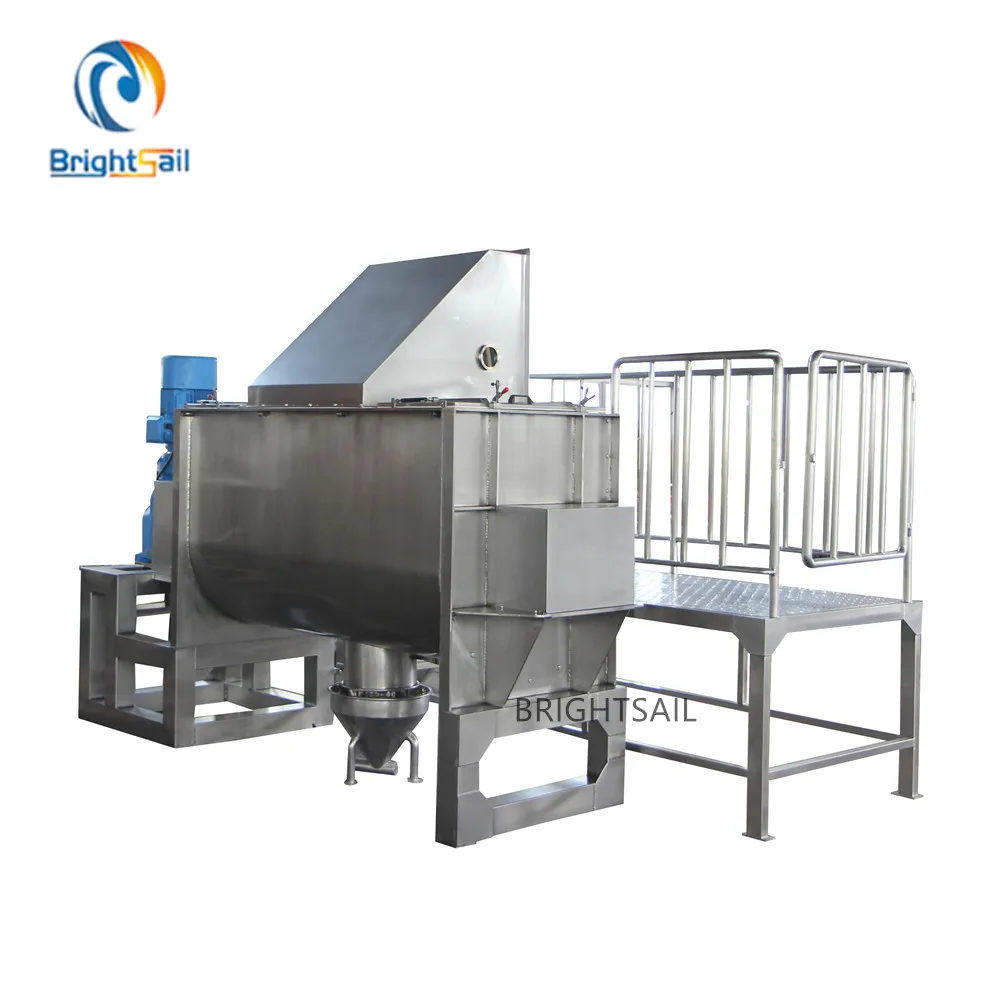

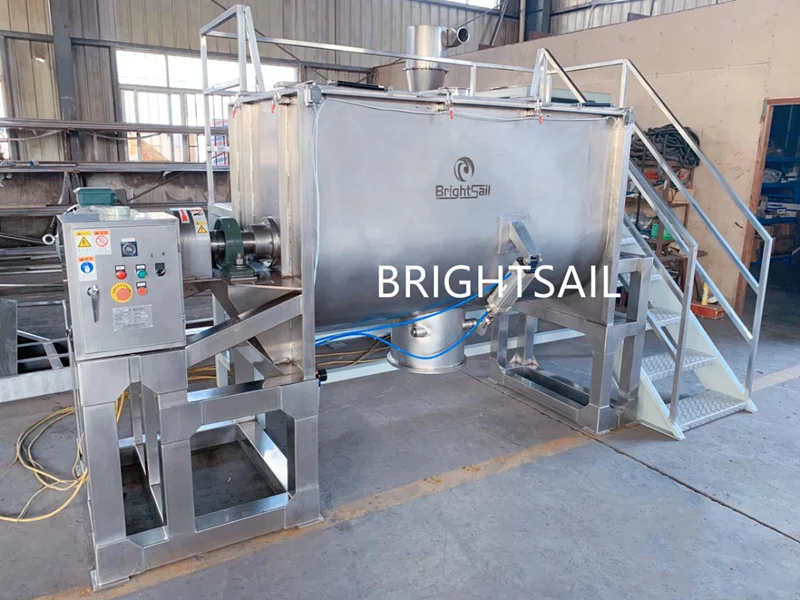

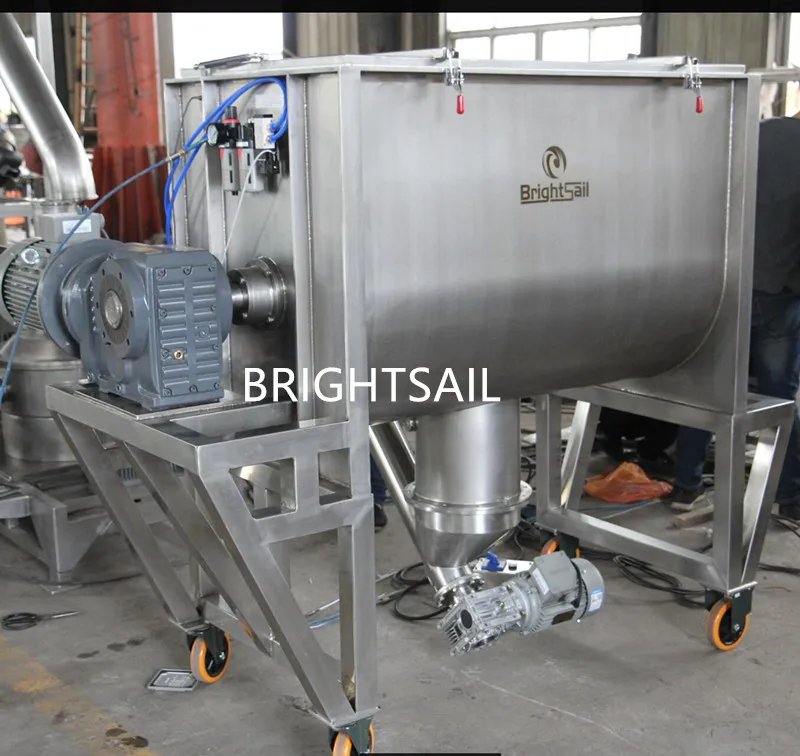

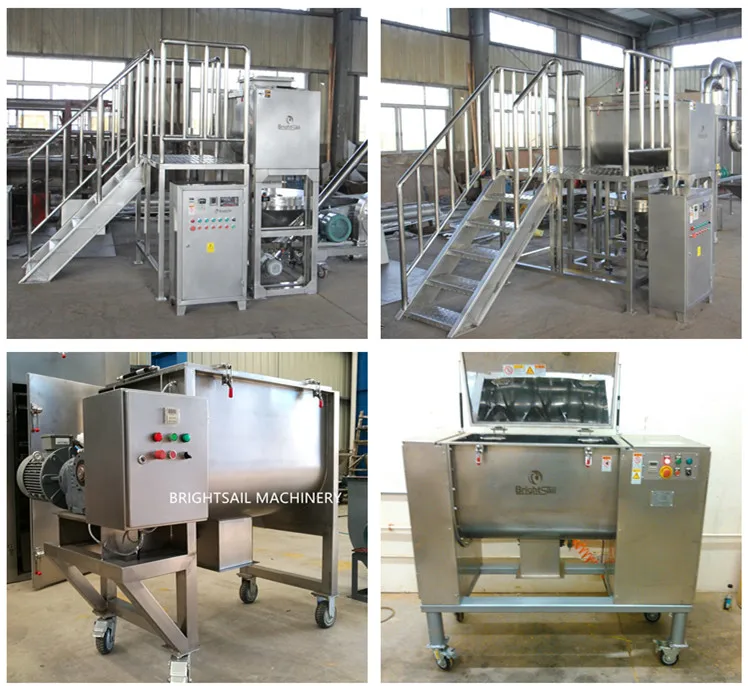

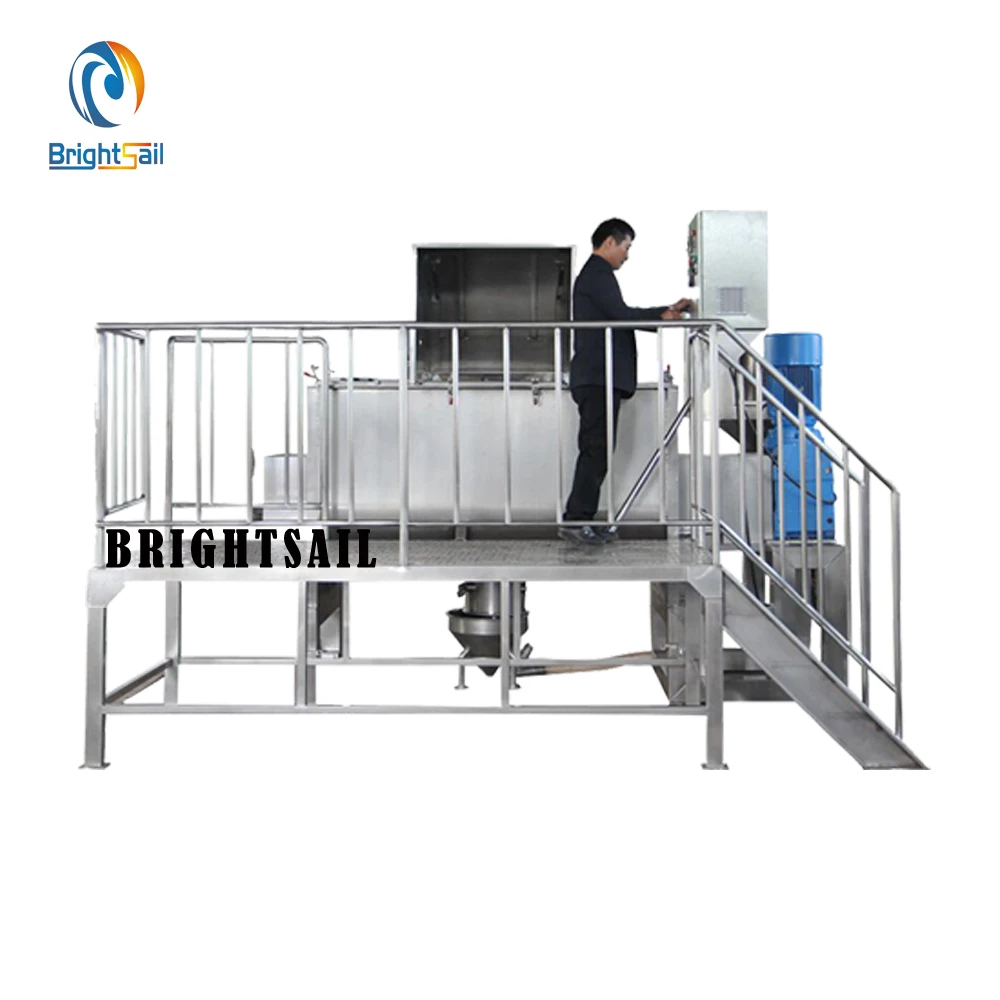

Pictures of Ribbon Blender:

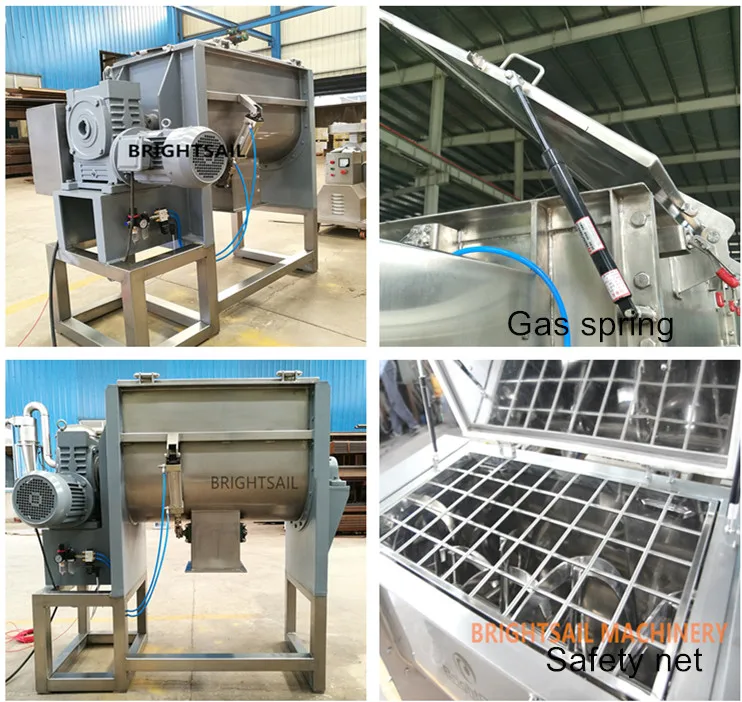

Product details:

1) Safety net can protect workers from danger

2) Usually we use pneumatic valve to discharge on ribbon blender

3) Gas spring will be installed on the cover, it will be easy to open cover of mixer. Open degree is 80°

Two types of sealing:

(1) The packing seal is a conventional seal on which the gas seal can be added to increase the sealability.

(2) The mechanical seal has better sealing performance than the packing seal, less leakage and long service life. It can be used for powder and liquid, and has a wider range of use and higher price.

Its components are moving ring, static ring, cooling device, compression spring and so on (It depends on the specific equipment).

*The pictures are for reference only, depending on the specific equipment.

Packaging Details:

Export standard package. Fumigation wooden box or container.

For small machine, we pack it in wooden box.

For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.

Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Hengsheng Steel Structure Co.Ltd which is established in 2002. We provide professional powder processing overall solution, grinder, mixer, sifter, conveyor, welding service, welding machine, chemical powder...etc.

We have sent our products to more than 60 countries around the world for now.

Our certificate:

Our customers:

We have exported grinder and mixer equipment to more than 60 countries including Europe, America, Japan, Germany, Pakistan, Ukraine, Turkey, Burma, Thailand, Poland, Korea, Hungary, India, etc. And our products and services are well received in overseas markets.

Frequently Asked Questions:
