Цифровой инверторный генератор 3 кВт со скидкой

Share on:

Price in USD:Details


Product Overview



PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.


DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.


HIGH QUALITY POWER OUTPUT:  A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.


HIGH FUEL EFFICIENCY:  As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.


POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.

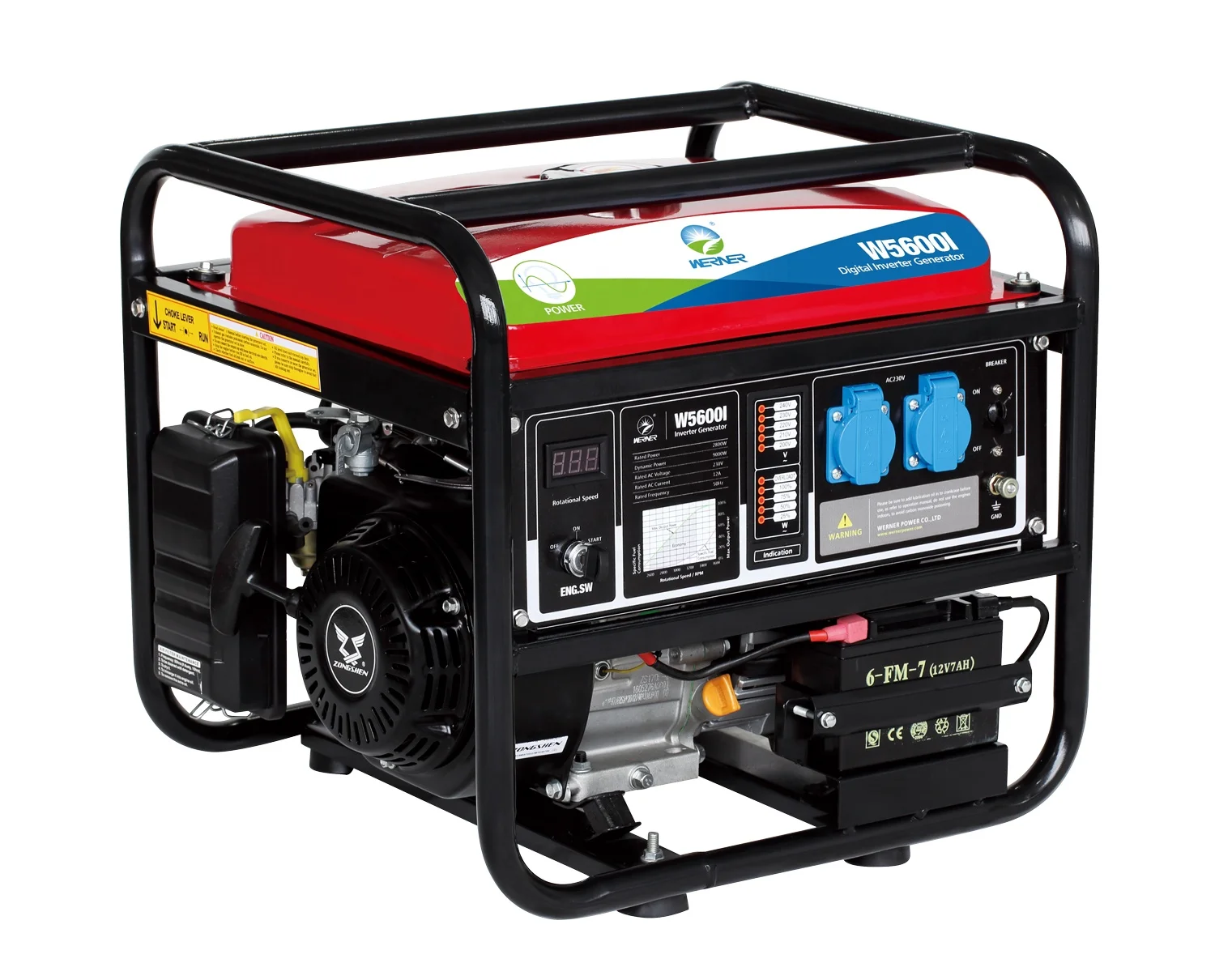

Model NameW5600I
Engine Type4-stroke, OHV, single cylinder, cylinder inclined, air cooled
Rated rev3600r/min
Ignition systemT.C.I
Start systemRecoil hand-operated, electric system
engine rated output3400W
Fuel tank capacity14L
Fuel comsumption316g/kw.h
Lube Oil capacity0.6L
Rated AC frequency50/60HZ
Rated AC voltage230V
Rated AC current12.1A
Rated AC output2800W
DC output12V   5A
output waveformpure sine wave
output efficiency90%
Total Harmonic Distortion1.5%
Phase single phase
Power factor1
Frequency stability±0.5Hz
Voltage regulation0.5%V
Dimension477×440×470 (mm)
Net weight33KG


 100% copper wire

LED Indication


Digital Inverter
