High Quality Grade Automatic Robotic Pallet Stretch Wrapper Wrapping Machine

Introduction of High Quality Grade Automatic Robotic Pallet Stretch Wrapper Wrapping Machine

TP1650F- L Automatic pallet stretch wrapping machine with Pre-stretch 250% 2000mm packing height  Introduction

Performance and features

Automatically operation
Packing height control with limiting switch
Adjustable Mechanical brake film carriage
Manual carriage up/down,turntable start buttons
Base front & rear forklift slots allow forklift truck to move the machine safely and easily
Turntable soft start /soft stop
Turntable heavy duty chain drive
Minimum maintenance

Optional parts

♦Ramp

♦Electromagnetic clutch

♦Turntable diameter up to 3000mm(max)

♦Turntable capacity2500kg/3000kg

Parameters of High Quality Grade Automatic Robotic Pallet Stretch Wrapper Wrapping Machine

Wrapping size(L*W)	(500-1200)mm*(500-1200)mm
Packing height	L type:(500-2000)mm
	H type:(500-2400)mm
	Y type:(500-higher than 2400)mm
Packing efficiency	20-40 loads/hour
Turntable speed	0-12rpm
Turntable diameter	Diameter:1650mm height:85mm
Turntable loading(max)	2000kg
Up-down frame	Double-chain,Up-down speed variable
Film carriage	Pre-stretch
Control system	PLC
Machine weight(max)	700kg
Machine size	2650mm*1650mm*2400mm
Packing size	2650mm*1650mm*700mm
Electrics	Single-phase 220V/50Hz
Power	Turntable:0.75kw,film carriage:0.3kw,up-down:0.4kw

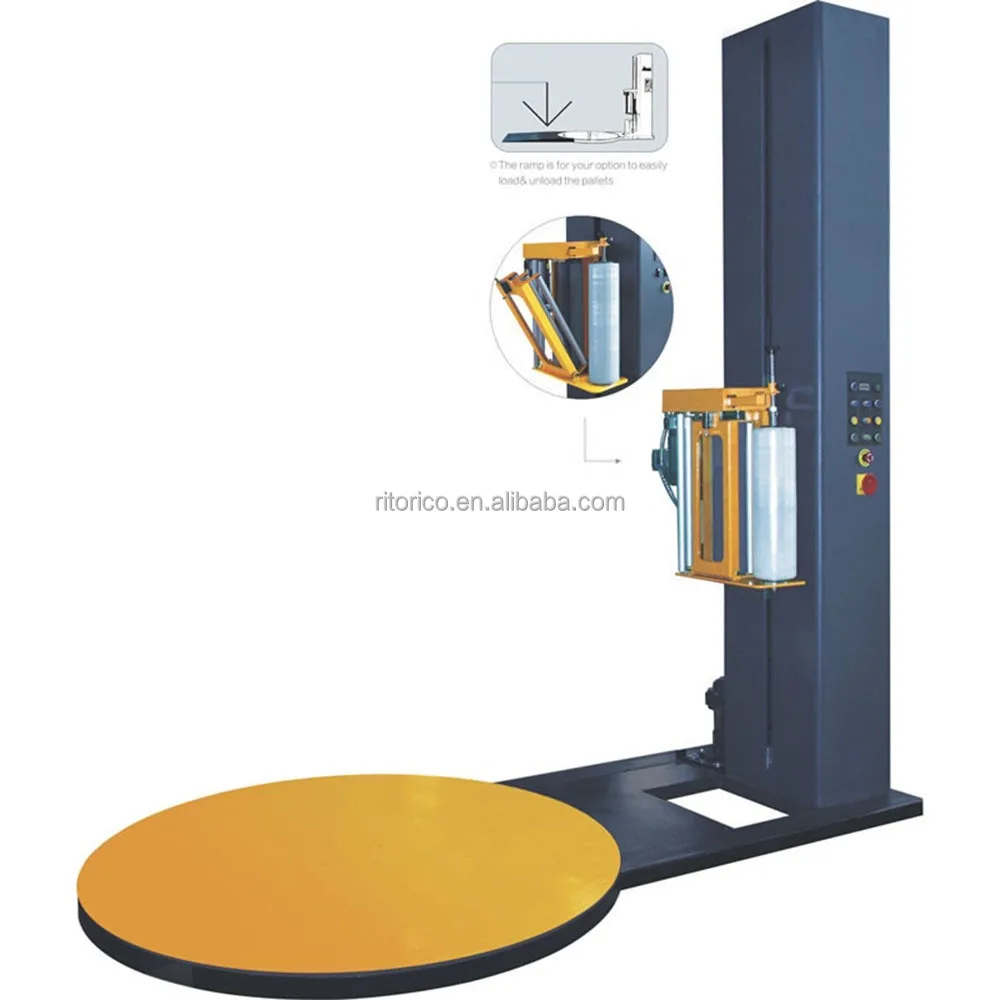

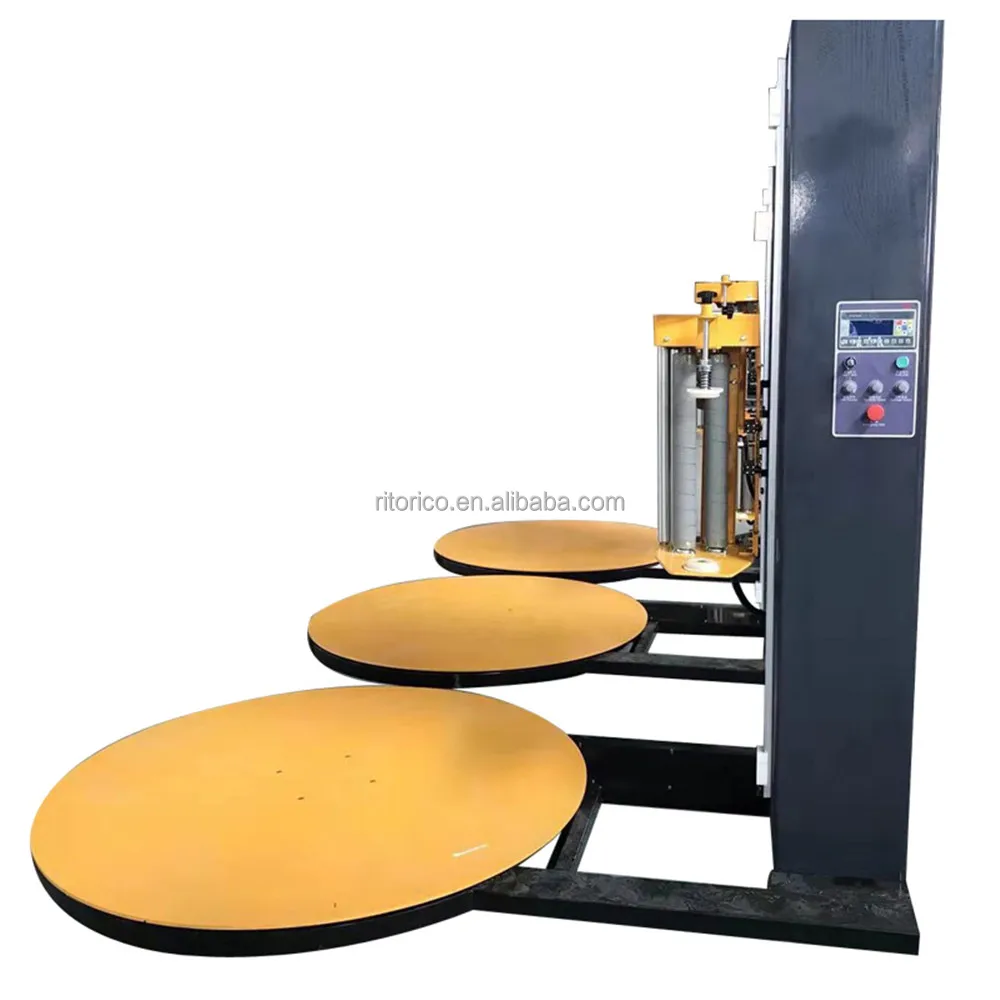

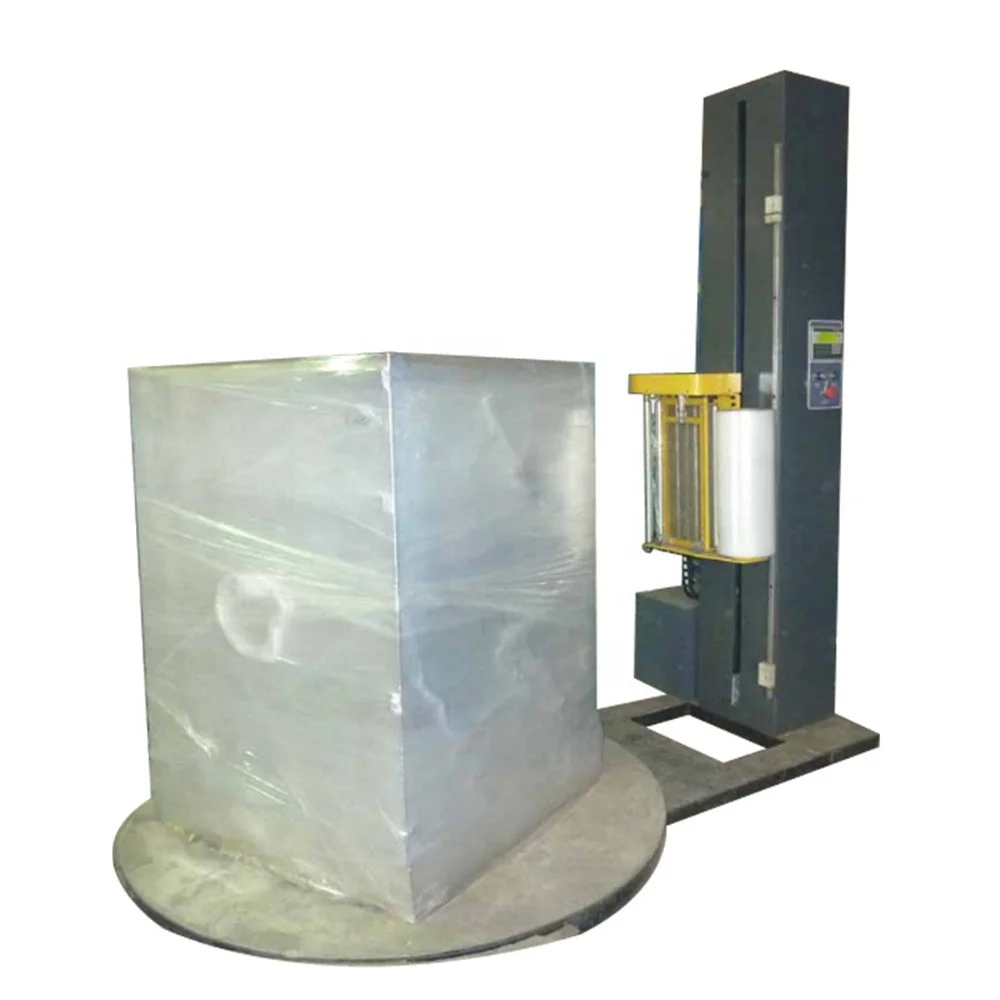

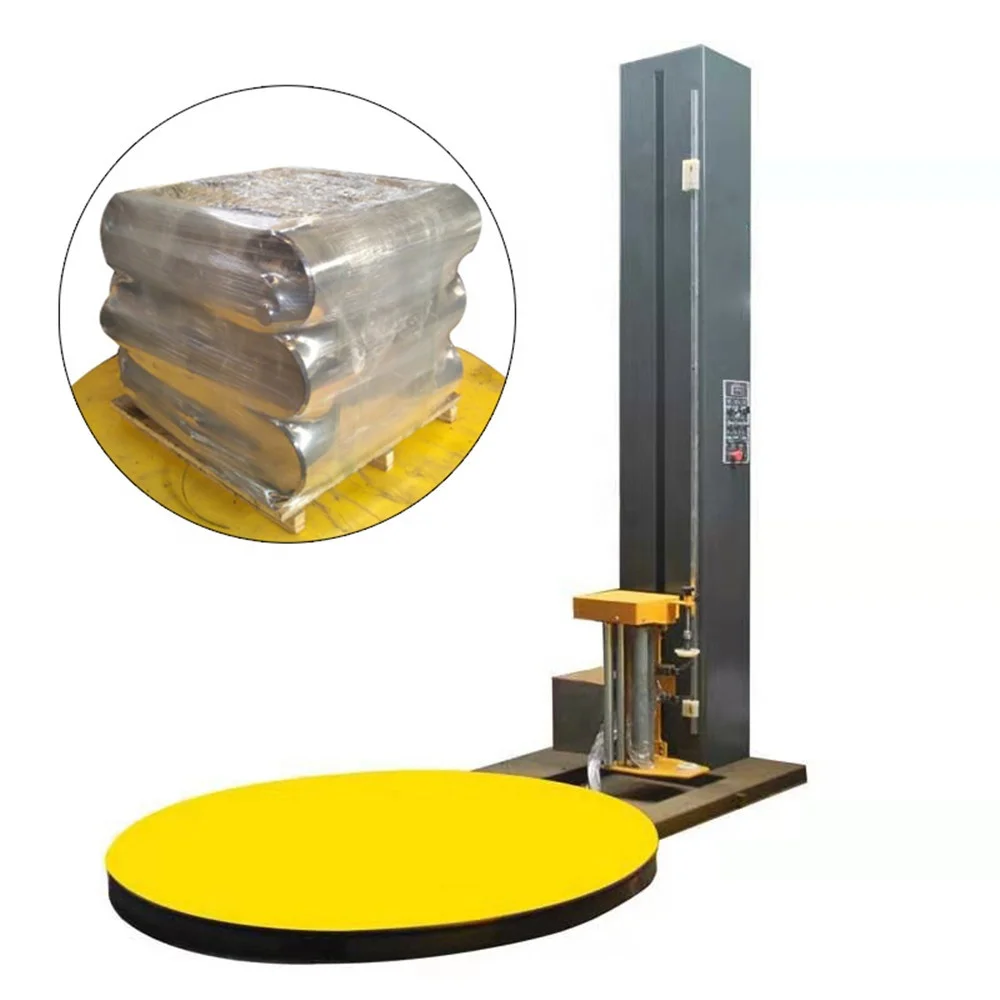

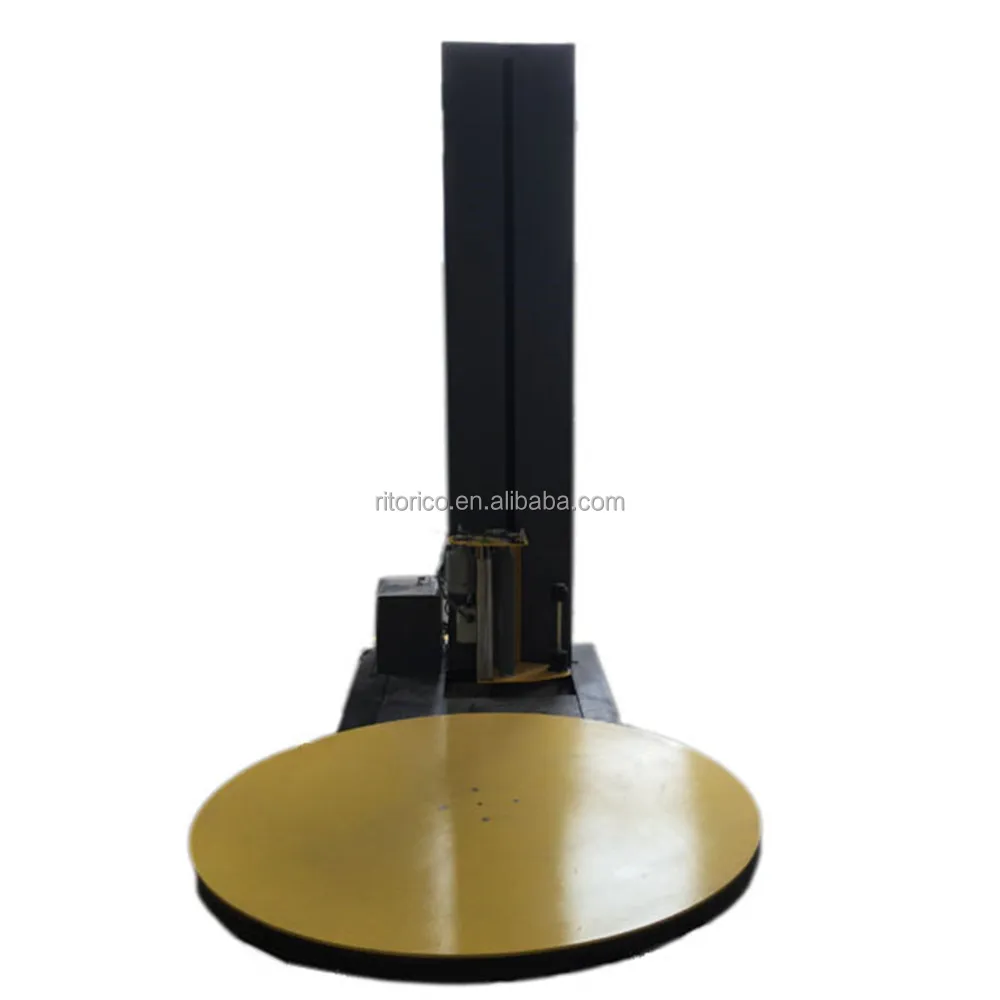

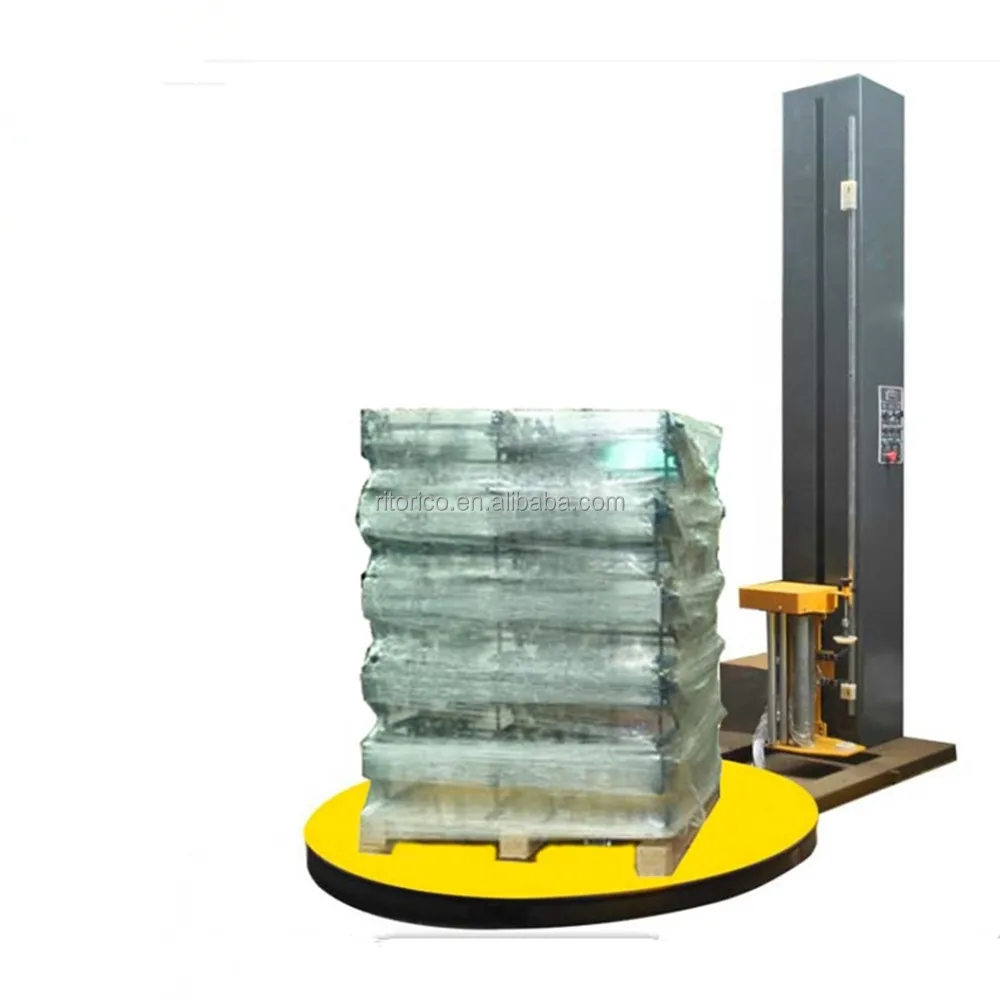

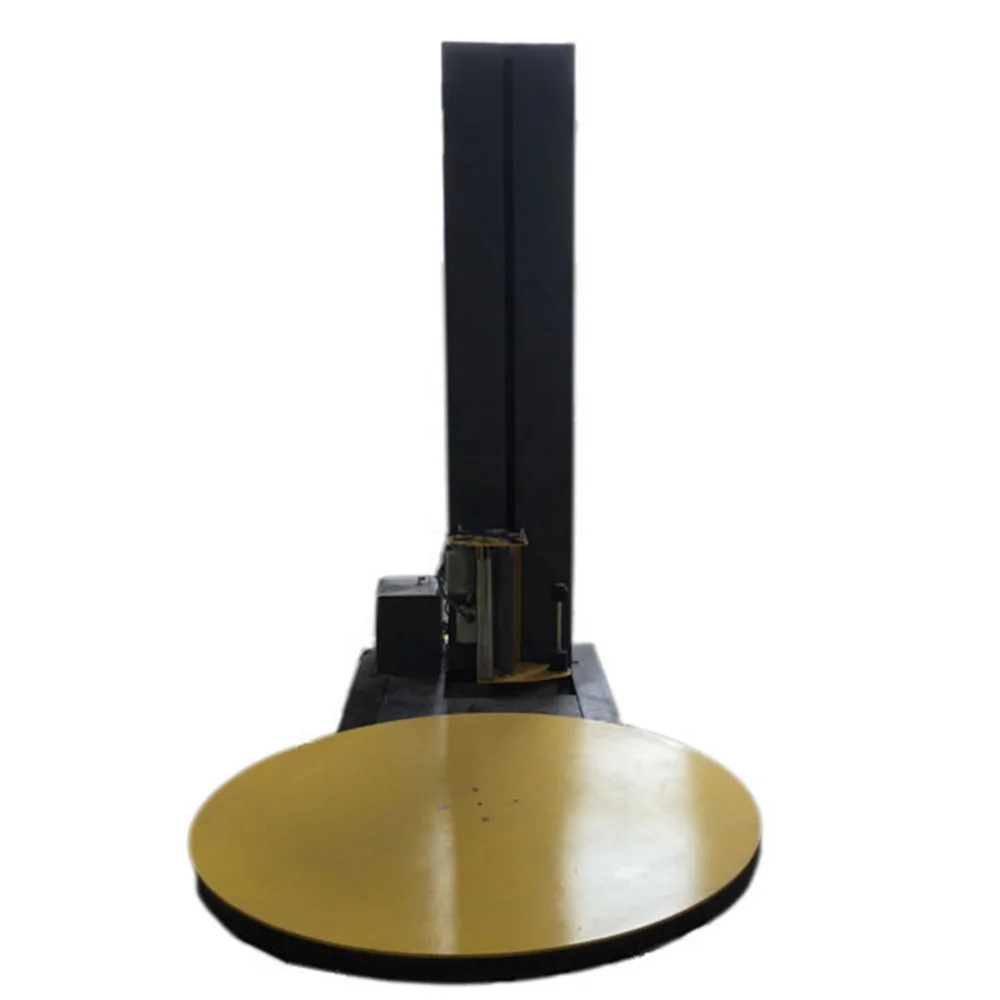

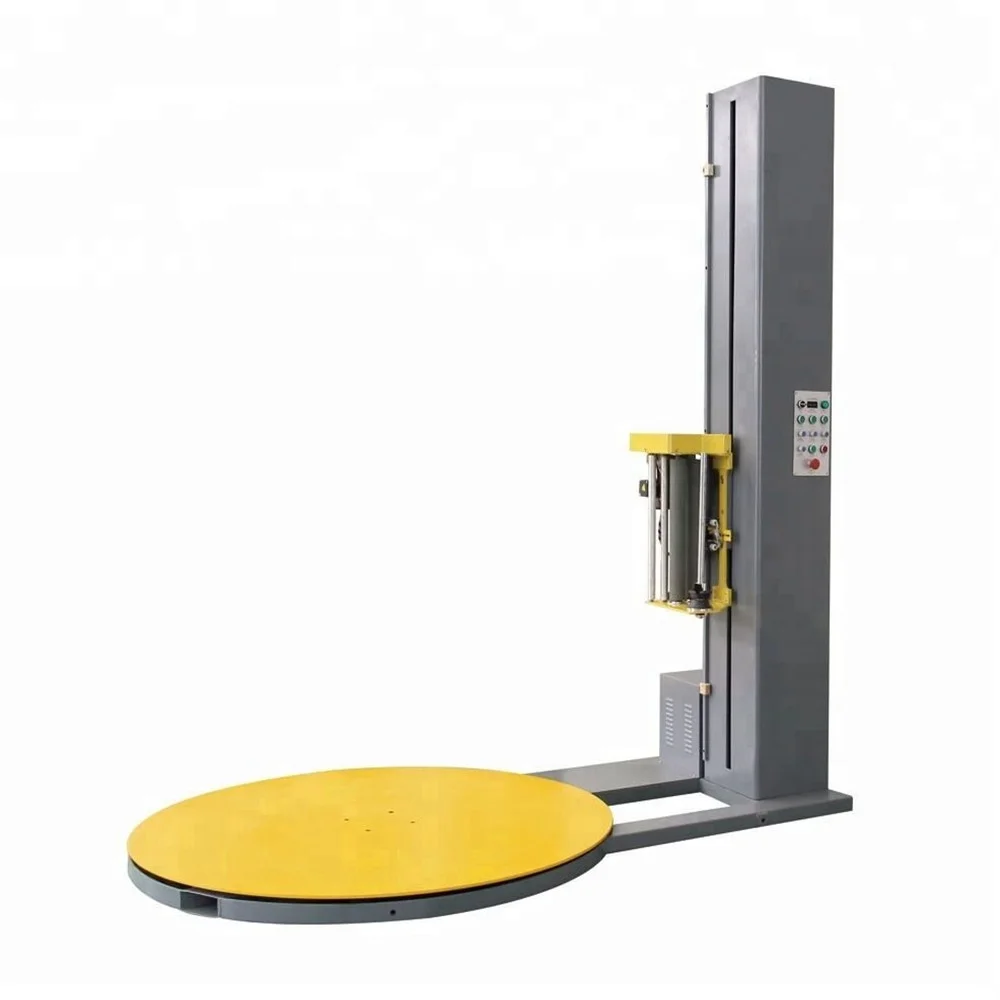

 Images of High Quality Grade Automatic Robotic Pallet Stretch Wrapper Wrapping Machine
