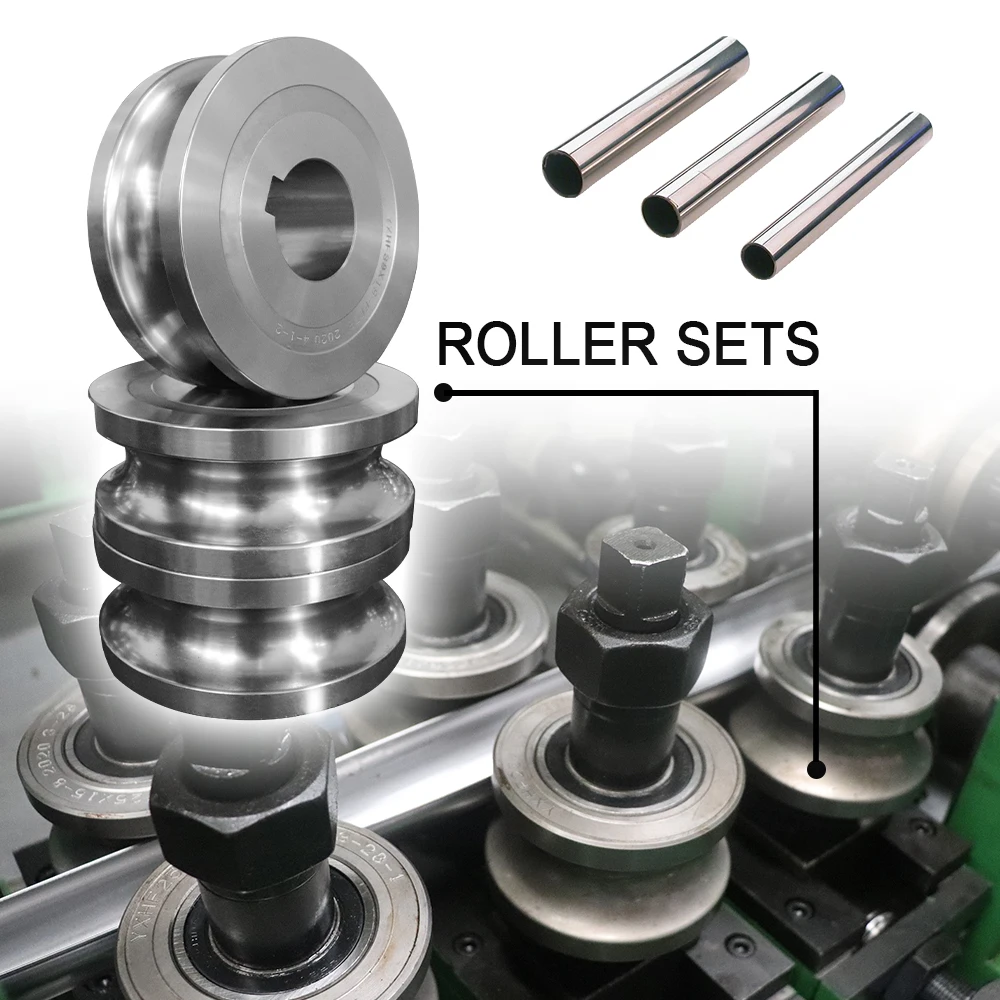

YXH Manufacturer Square Steel Pipe/Tube Roll Sets/ Die/ Mould/ Tooling
- Category: >>>
- Supplier: Foshan YXH Import & Export Co. Ltd.
Share on (1600253129149):
Product Overview
Description

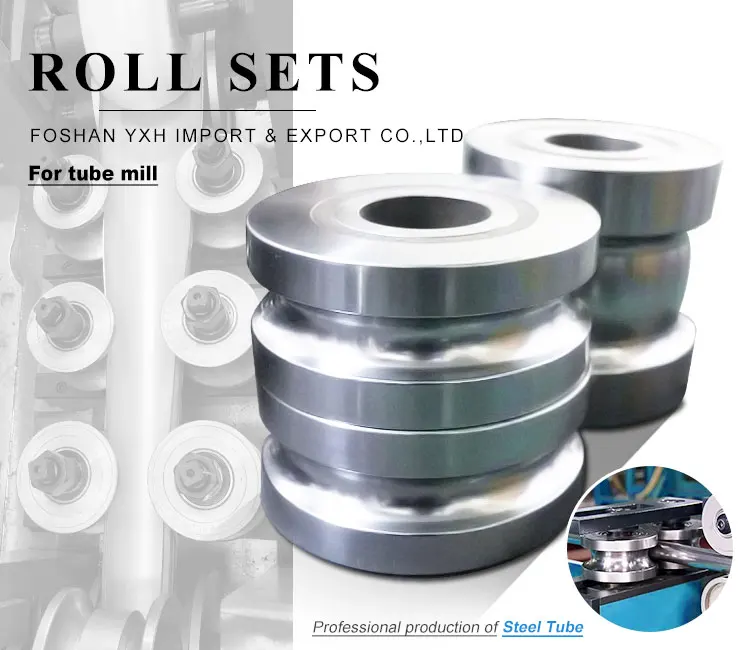

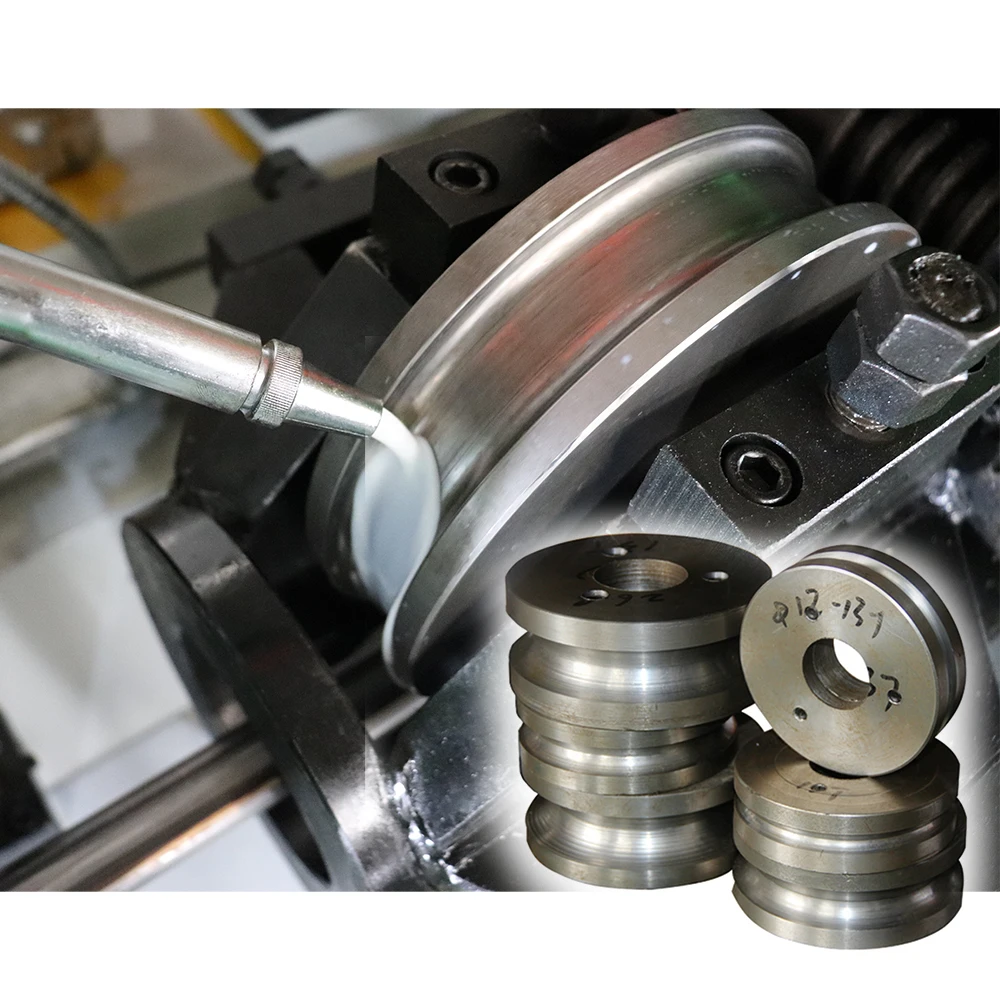

Square Steel Pipe/Tube Roll Sets/ Die/ Mould/ Tooling
YXH —— The first foreign office established in the industry
Parameter

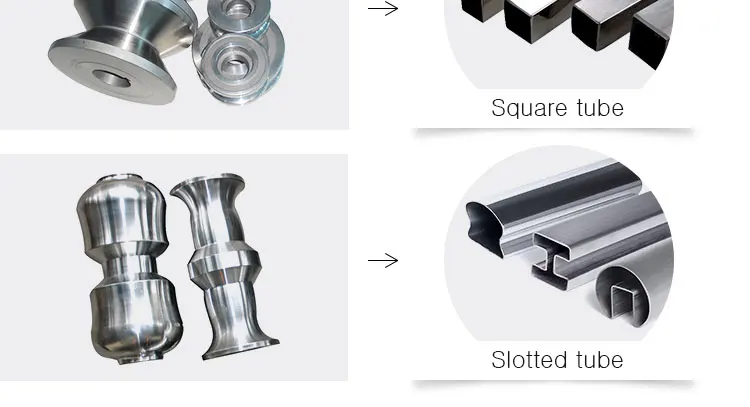

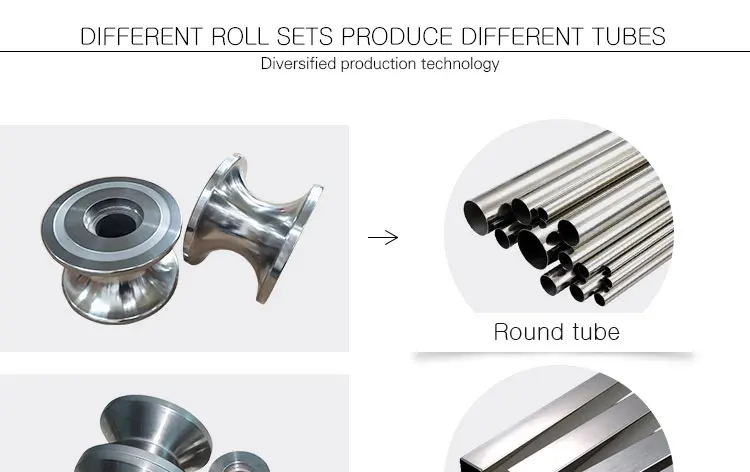

Tube and Pipe Mould, Mold, Roller, Roll Set, Tooling, Die for tube mill machine to make stainless steel ,carbon steel ,copper round, square, oval, rectangular, shaped tubes .
Pipe Specs:
| Pipe Type | Specification(mm) | Tolerance Range | Hardness |
| Round Pipe | φ5~325 | Roundness+/-0.05 | HRC63~65 |
| Square Pipe | F10×10~F300×300 | Flatness+/-0.04 | HRC63~65 |
| Rectangle Pipe | F10×20~F120×60 | Flatness+/-0.04 | HRC63~65 |

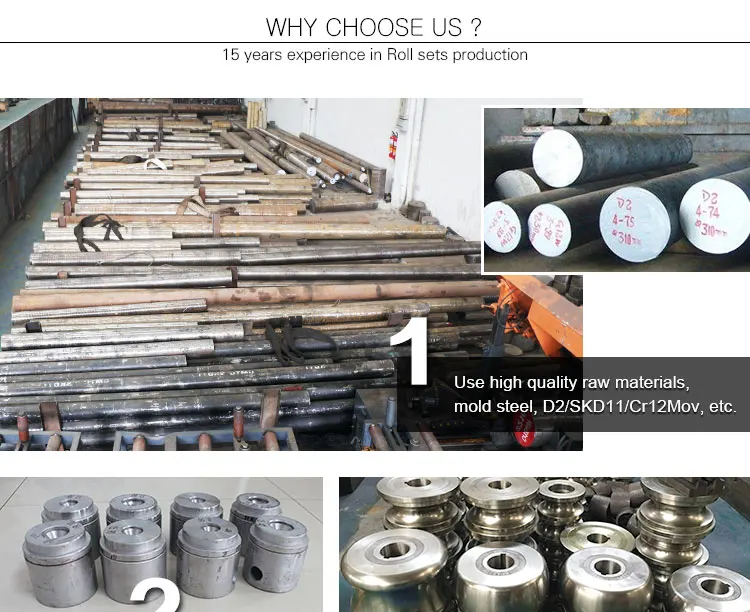

Material:
| NO. | Material Science | Varieties |
| 1 | Cr12Mov | Dongbei special steel Cr12MOV/Daye special steel Cr12Mov |
| 2 | SKD11 | Daye Special steel SKD11/Taiwan SKD11/Japan SKD11 |
| 3 | D2 | Daye special steel D2/Taiwan D2 |
Roller Heat:
| NO. | Treatment method | Roller HRC |
| 1 | Vacum Heat Treatment | HRC61-63 |
| 2 | Vacum gas quenching and minus 200°C degrees, cooling, tempering, to improve the hardness. | HRC63-65 |
Heat treatment way: There are four heat treatment way for your choose.
(1) Vacuum Heat Treatment :HRC 61-63
(2) Black treatment: HRC61-63
(3) Nit riding treatment: HRC61-63
(4) Vacuum Gas Quenching and Subzero Heat Treatment:HRC63-65
Warm reminding: Tube diameter≥133mm, HRC:58-61
Different heat treatment way , different price!

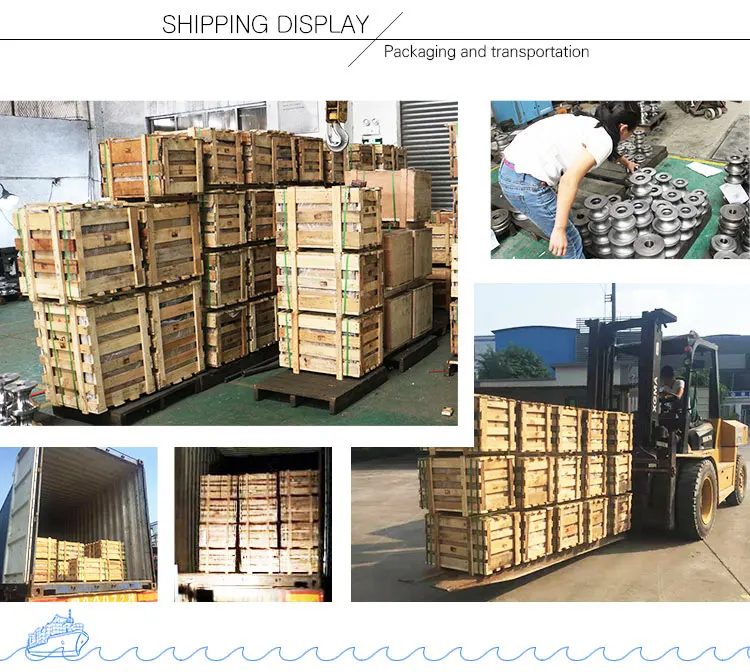

Packaging & Shipping
- We use steel wire and wooden frame to fix the Pipe Making Machinery;
- In addition, used shockproof film to protect the main motors.
- We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
Company Information

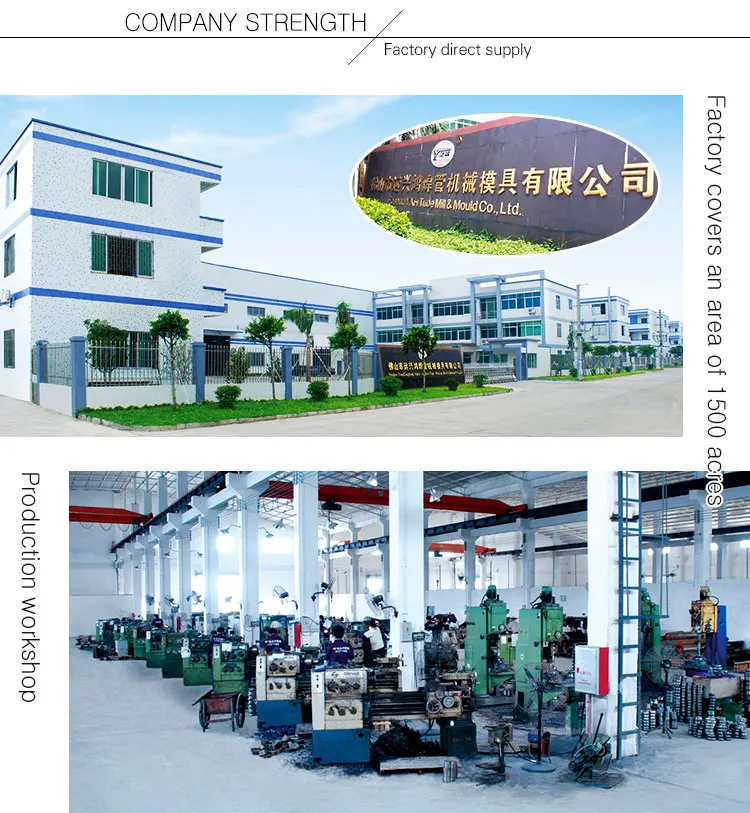

About YXH:

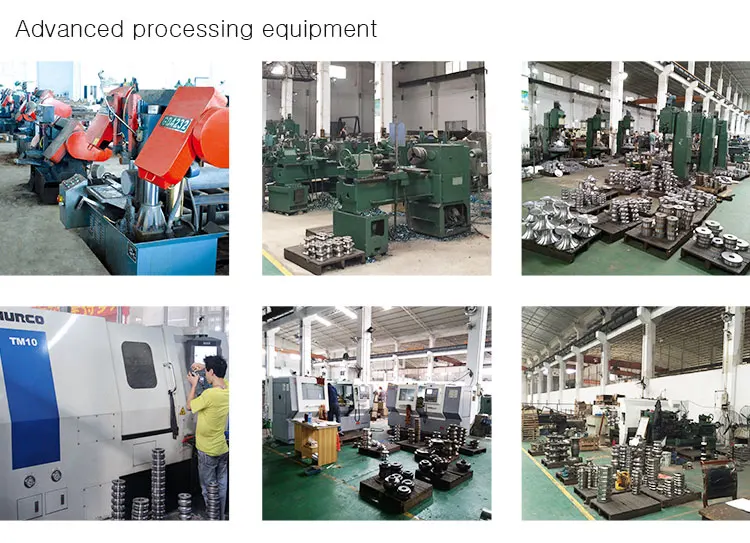

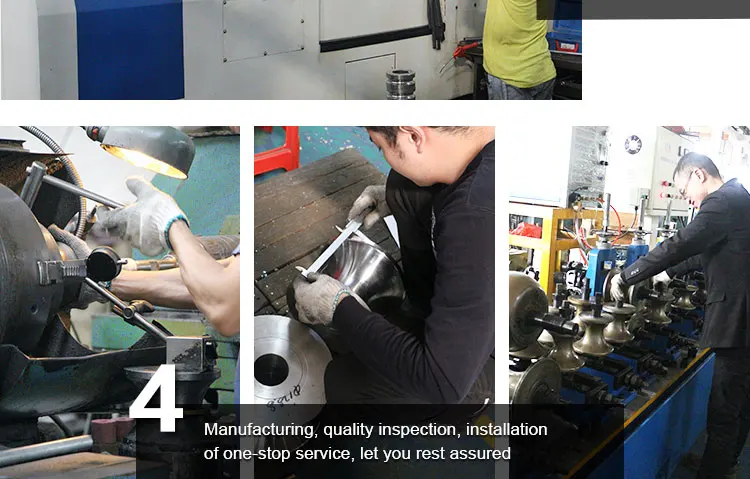

One of the leading manufacturers and exporters for 20 years, specializing in manufacturing the Stainless Steel Pipe Making Machine, YXH has passed the International standard quality system certification ISO9001:2008 and become one of the large-scale machinery and mould factories in China.
YXH Stainless Steel Tube Mill is hot selling in India, Bangladesh, Vietnam,Pakistan,etc.
