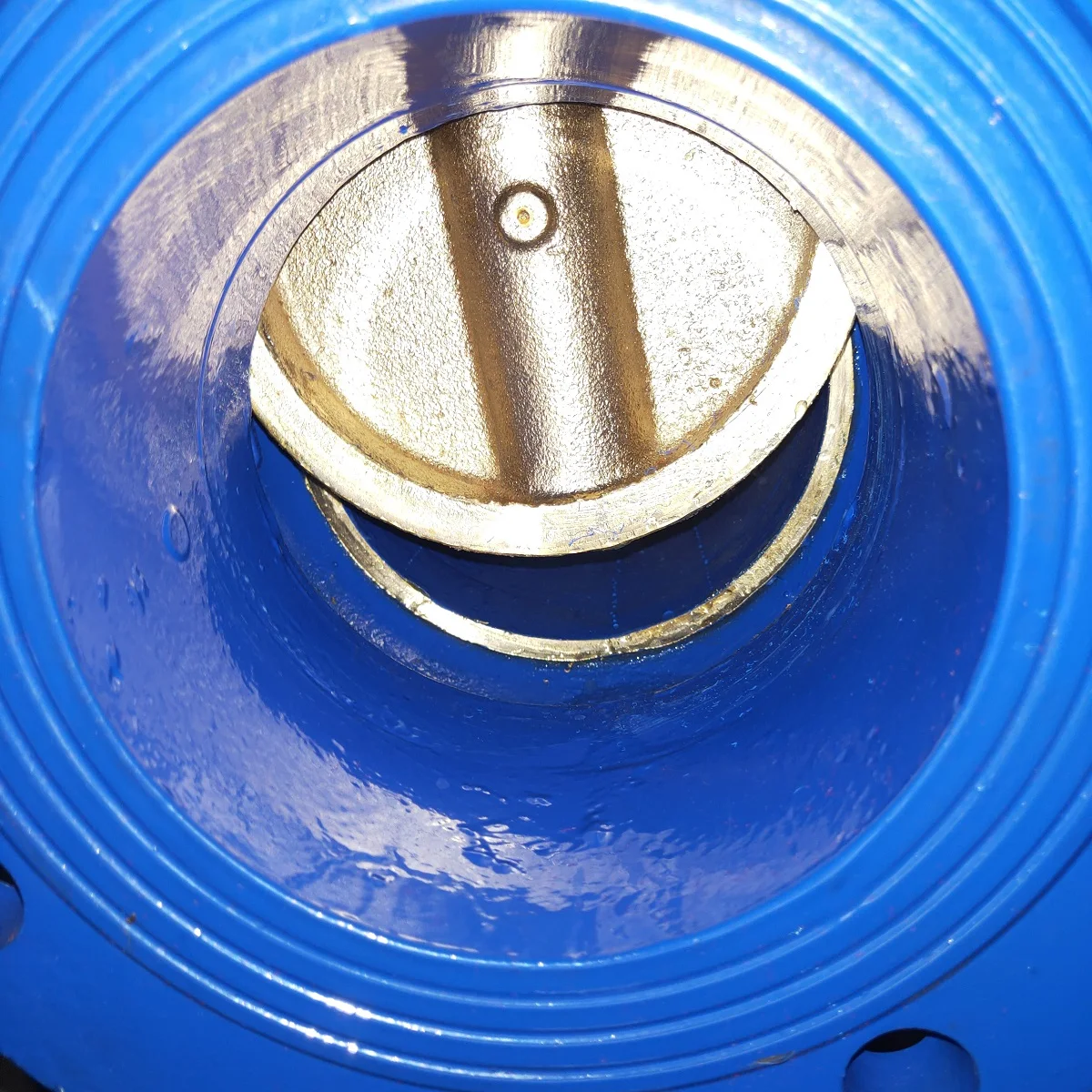

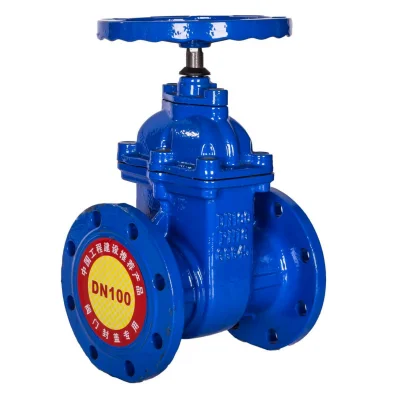

non rising stem hard faced seal cast iron gate valve
non rising stem hard faced seal cast iron gate valve
non rising stem hard faced seal cast iron gate valve
non rising stem hard faced seal cast iron gate valve

non rising stem hard faced seal cast iron gate valve

Share on (1600253222799):


Price:$40.00 - $60.00

Quantity:


Product Overview

Description



PRODUCT SPECIFICATIONS


SIZE
L
ΦD
(1.0/1.6/2.5MPA)
ΦK
(1.0/1.6/2.5MPA)
(N-Φ)
(1.0/1.6/2.5MPA)
Φd
(1.0/1.6/2.5MPA)
MM
INCHES
50
2”
178
165
125
4-Φ19
99
65
21/2”
190
185
145
4-Φ19/4-Φ19/8-Φ19
118
80
3”
203
200
160
8-Φ19
132
100
4”
229
220/220/235
180/180/190
8-Φ19/8-Φ19/8-Φ23
156
125
5”
254
250/250/270
210/210/220
8-Φ19/8-Φ19/8-Φ28
184
150
6”
267
285/285/300
240/240/250
8-Φ23/8-Φ23/8-Φ28
211
200
8”
292
340/340/360
295/295/310
8-Φ23/12-Φ23/12-Φ28
266/266/274
250
10”
330
395/405/425
350/355/370
12-Φ23/12-Φ28/12-Φ31
319/319/330
300
12”
356
445/460/485
400/410/430
12-Φ23/12-Φ28/16-Φ31
370/370/389
350
14”
381
505/520/555
460/470/490
16-Φ23/16-Φ28/16-Φ34
429/429/448
400
16”
406
565/580/620
515/525/550
16-Φ28/16-Φ31/16-Φ37
480/480/503
450
18”
432
615/640/670
565/585/600
20-Φ28/20-Φ31/20-Φ37
530/548/548
500
20”
457
670/715/730
620/650/660
20-Φ28/20-Φ34/20-Φ37
582/609/609
600
24”
508
780/840/845
725/770/770
20-Φ31/20-Φ37/20-Φ40
682/720/720
700
28”
610
895/910/960
840/840/875
24-Φ31/24-Φ37/24-Φ43
794/794/820
800
32”
660
1015/1025/1085
950/950/990
24-Φ34/24-Φ40/24-Φ49
901/901/928
900
36”
711
1115/1125/1185
1050/1050/1090
28-Φ34/28-Φ40/28-Φ49
1001/1001/1028
1000
40”
811
1230/1255/1320
1160/1170/1210
28-Φ37/28-Φ43/28-Φ56
1112/1112/1140
1200
48”
1015
1455/1485/1530
1380/1390/1420
32-Φ40/32-Φ49/32-Φ56
1328/1328/1350
1400
56”
1080
1675/1685/1755
1590/1590/1640
36-Φ43/36-Φ49/36-Φ62
1530/1530/1560
1600
64”
1300
1915/1930/1975
1820/1820/1860
40-Φ49/40-Φ56/40-Φ62
1750/1750/1780
1800
72”
1500
2115/2130/2195
2020/2020/2070
44-Φ49/44-Φ56/40-Φ70
1950/1950/1985
2000
80”
1675
2325/2345/2425
2230/2230/2300
48-Φ49/48-Φ62/48-Φ70
2150/2150/2210
