Biuged BGD 186 Viscometer Viscosity Tester Intelligent Krebs Stormer Viscometer Viscosimeter

Product Overview

Description

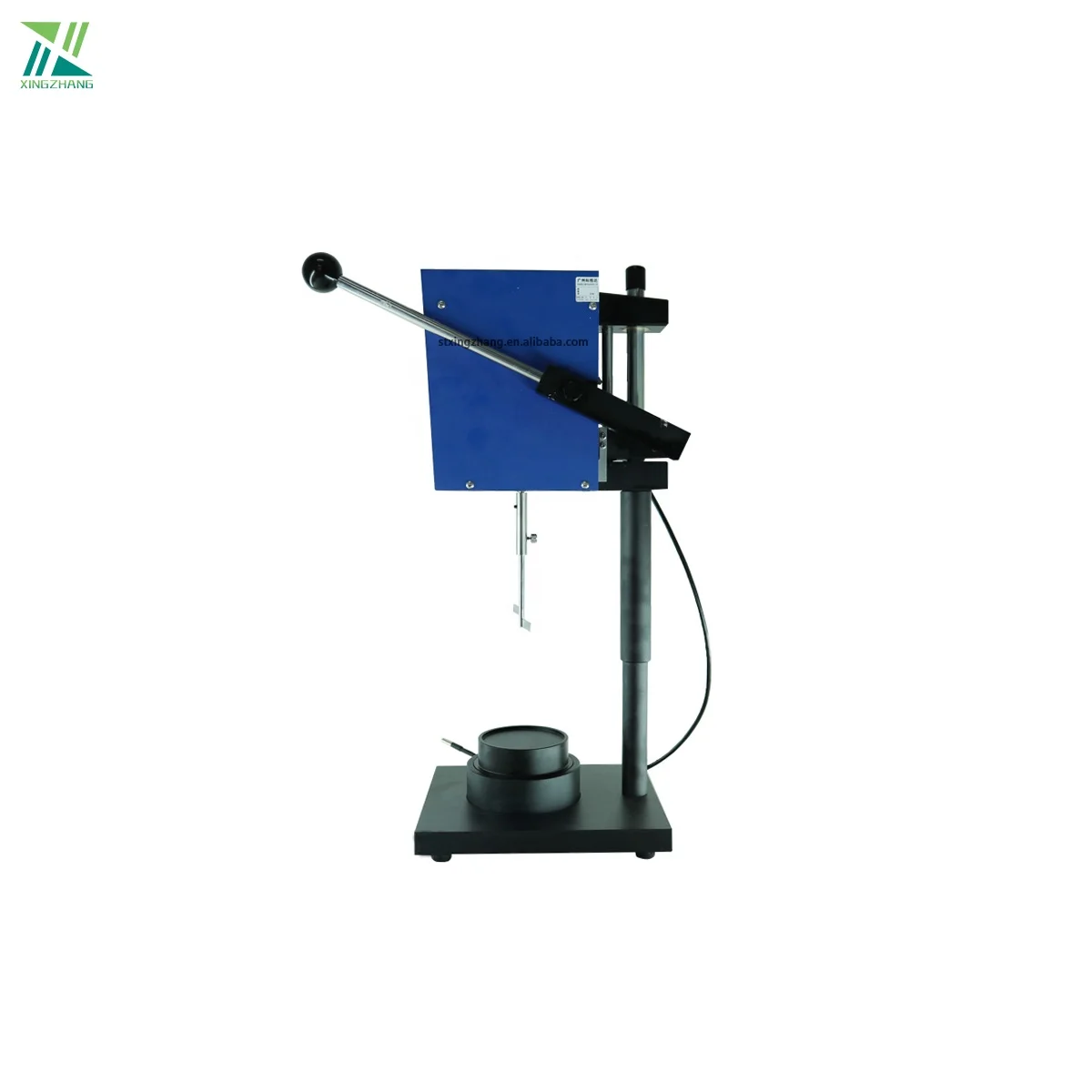

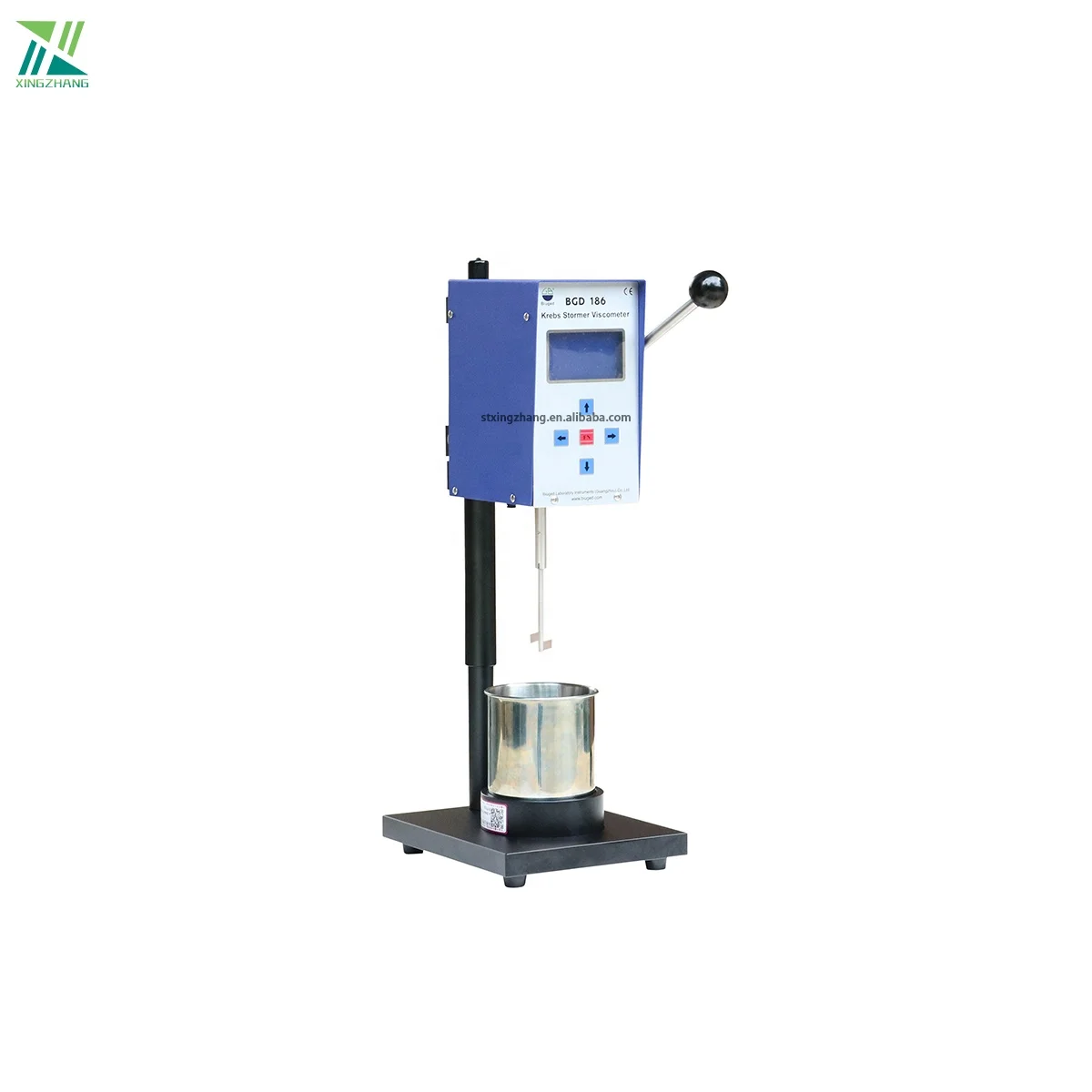

BGD 186Intelligent Krebs Stormer Viscometer

Introduction

BGD 186 is the newest Intelligent krebs Stormer viscometer which used to measure the paints and
other coatings which indicate the viscosity by KU values. It is an upgraded and modified product of BGD

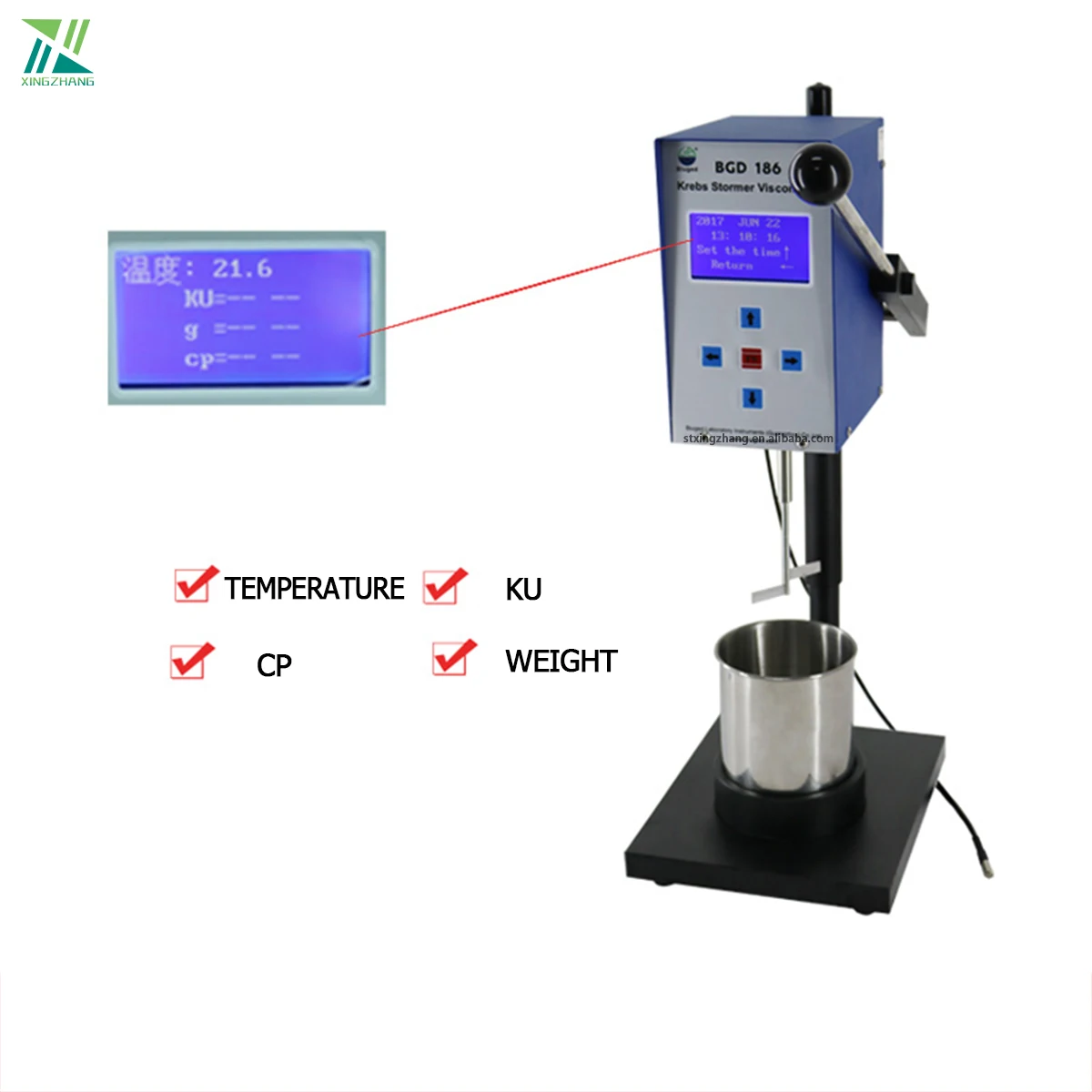

184 or STM-IV Stormer viscometer, through LCD show “KU” , “cp” , “g” value at the sample

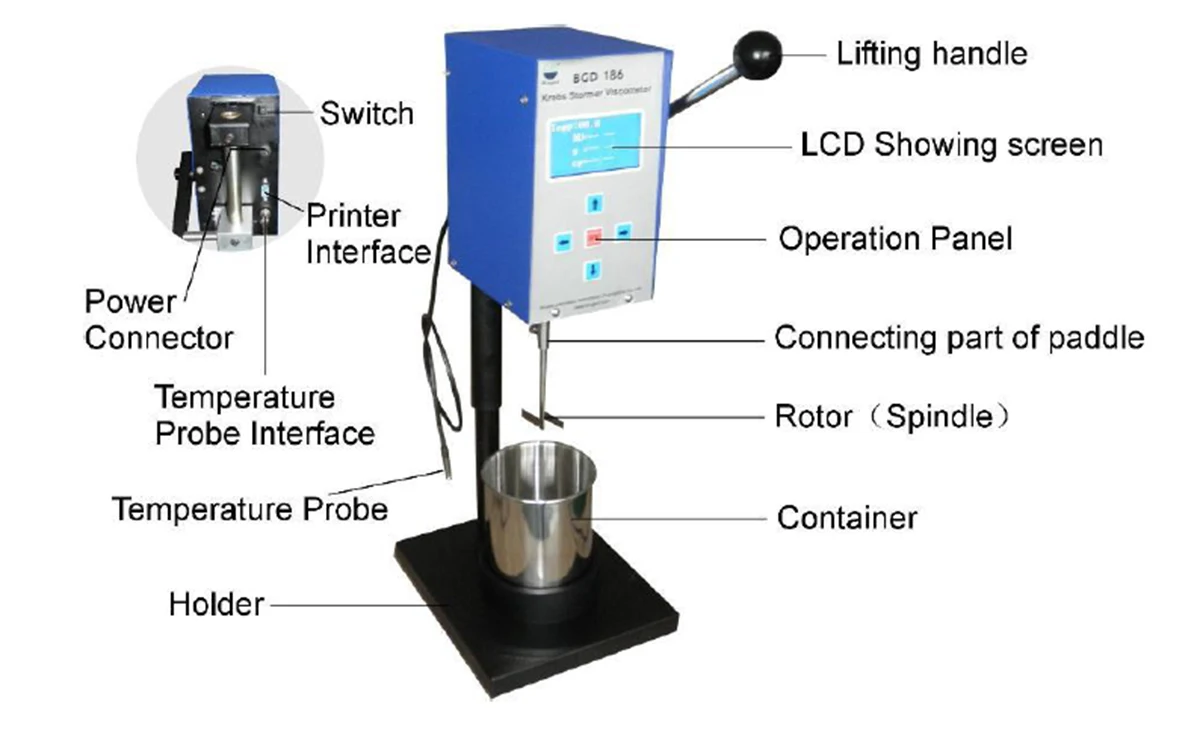

temperature at the same time. Meanwhile, it connects to the main part via a temperature probe, it can
also show the temperature values of the measured samples.
BGD 186 is controlled by microprocessor, A paddle type spindle is drived at 200r/min by specific
constant speed motor. The reaction torque of the spindle rotating at 200rpm is converted to a
logarithmic function which display in KU (Krebs) Units by microprocessor. It is usually use for marking
the viscosity of brush coating and roller coating. The instrument adopts special method of calculation ,it
can delete data which deviated from the centre area automatically, it improved index of repeatability in
measurement. The operator just need to let the spindle immerse into sample until a required depth. Then,
they can read out the KU values or the CP value of the tested samples from the display screen directly.
The Stormer Viscometer adopts single slice microprocessor. A paddle type spindle is driven at
200rpm by a constant speed motor. The reaction torque of the spindle rotating at 200rpm is converted to
viscosity in Kreb Units by microprocessor.
An operator immerse the spindle into the fluid. If the correct amount of fluid has been put into the
container, the surface of the fluid will be at the immersion mark of the spindle. The operator can directly
read out the KU values or the CP value of the tested samples from the display.
This instrument are designed according with ASTM D 562 and GB 9269.

Main Technical Parameters

Measuring Range: 40.2 KU-141.0 KU (KU value);27 cp -5,250 cp
Accuracy: ±1% of full scale range;
Repeatability: ±0.5% of full scale range;
Rotor speed:200r/min±0.5 r/min;
Volume of a container:approximately 500ml;
Lifting range: 90mm
Input voltage:110~220V/50~60Hz
Power:10W
