Forklift Diesel 7 Ton Forklift JAC Forklift Diesel 1.5 Ton 2 Ton 3 Ton 5 Ton 7 Ton 10 Ton Carretilla Elevadora Forklift
- Category: Forklifts >>>
- Supplier: Anhui,Heavy,And,Light,Industries,International,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
JAC J FORKLIFT ADVANTAGE:
1. Stream-line design: Exclusive streamline design, fashionable and spirituality.
2. Powerful Engine: Equip with high performance and quality engine: ISUZU, VM, YANMAR, MITSUBISHI, KUBOTA
3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.
4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.
5. High exhaust fans: Provide better working environment for operator.
6. Integrated overhead guard: Well protect the operator
7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.
8. Up market meter and car parking type brake: Totally enclosed car type meter desk, car parking type brake save effort for
operation.
9. Side shifter: Standard equip with side shifter, operation more easier and improve work efficiency.
1. Stream-line design: Exclusive streamline design, fashionable and spirituality.
2. Powerful Engine: Equip with high performance and quality engine: ISUZU, VM, YANMAR, MITSUBISHI, KUBOTA
3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.
4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.
5. High exhaust fans: Provide better working environment for operator.
6. Integrated overhead guard: Well protect the operator
7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.
8. Up market meter and car parking type brake: Totally enclosed car type meter desk, car parking type brake save effort for
operation.
9. Side shifter: Standard equip with side shifter, operation more easier and improve work efficiency.

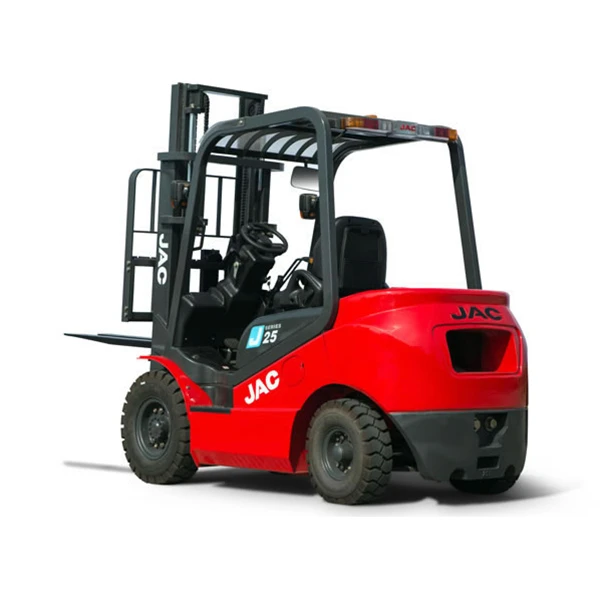

Model | Unit | CPCD25J | ||
Power type | Diesel | |||
Rated load | kg | 2500 | ||
Load center distance | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 140 | ||
Fork size L×W×T | mm | 1070×122×40 | ||
Minimum turning radius | mm | 2300 | ||
Maximum travel speed/Full load | km/h | 19 | ||
Maximum travel speed/Without load | km/h | 19.5 | ||
Fork height at maximum lift (with backrest) | mm | 4015 | ||
Standard Mast height | mm | 1995 | ||
Front wheel | 7.00-12-12PR | |||
Rear wheel | 6.00-9-10PR | |||
Wheelbase | mm | 1600 | ||
Front wheel/rear wheel | mm | 970/970 | ||
Self weight/Without load | Kg | 3800 | ||
Battery Voltage/capacity | V/Ah | 12/80 | ||
Model | AK-C240PKJ-30 | |||
Engine/ Rated output | kw/r.p.m | 34.3～36.5/2500 | ||
Engine/Rated torque | Nm/r.p.m | 137.7/1800 | ||
Tire type (FR/RR) | Pneumatic | |||
Number of wheels (FR/RR) | 2/2 | |||
Recommend Products
Company Profile
FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted | ||||||||
2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, | ||||||||
3: What about the delivery time? A: 7-20 days after receiving the deposit. | ||||||||
4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. | ||||||||
5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs | ||||||||
