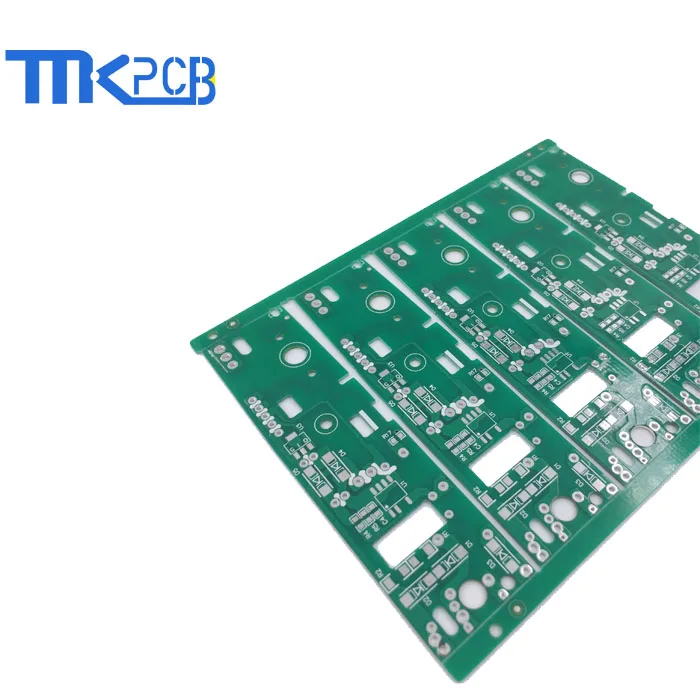

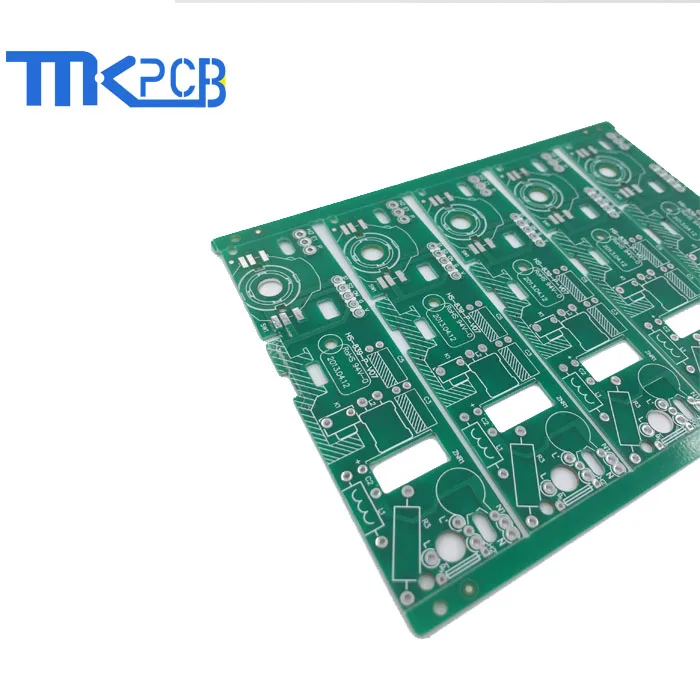

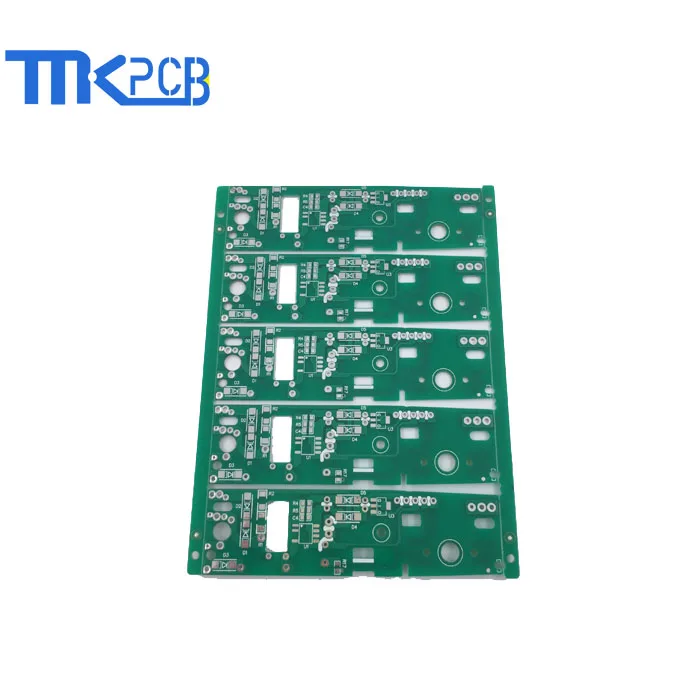

1Customize HDI tg170 PCB Solution electronic control module Printed circuit board
- Category: >>>
- Supplier: Tamingkee Electronic Technology Co. Limited [Guangdong China]Tamingkee
Share on (1600254118124):
Product Overview
Description
Quick Details
| Port: | Shenzhen |
| Payment Terms: | T/T |
| Supply Ability: | 10000 Piece/Pieces per Week |
| Board Thickness Tolerance: | ±8%(>1.0mm) ±5%(<1.0mm) |
| Place of Origin: | Guangdong China |
| Copper Thickness: | 1OZ(External) / 1OZ(Inner) |
| Min Bridge Width of Solder Mask Layer: | 5mils |
| Max Au Thickness of Immersion Gold: | 5u'' |
| Min. Hole Size: | 0.20mm |
| Model Number: | TMK7-3 |
| Min. Line Spacing: | 0.076mm |
| Max Board Size: | 1200mm x 600mm |
| Min. Line Width: | 0.076mm |
| Brand Name: | TMK |
| NPTH hole dia tolearance: | ±0.05mm |
| Max Au Thickness of Gold Finger: | 50u'' |
| PTH hole dia tolearance: | ±0.076mm |
| Hole Position Deviation: | ±0.05mm |
| Impedance Control Tolerance: | ±5%(≤50Ω) ±10%(>50Ω) |
| Base Material: | FR-4/ CEM-1/ CEM-3/ALU/FPC |
| Board Thickness: | 0.30mm~3.2mm,0.30mm~3.2mm |
| Surface Finishing: | HASL, OSP, ENIG, Flash Gold.immersion tin |
| Packaging Detail: | Box,pallet |
