WJ4586 Wire stripping machine of wire cutting machine for 1.5 35sqmm cable small cable peeler
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan,Weijiang,Automation,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
WJ-B35 Automatic wire stripping machine 1.5-35mm²
Parameters

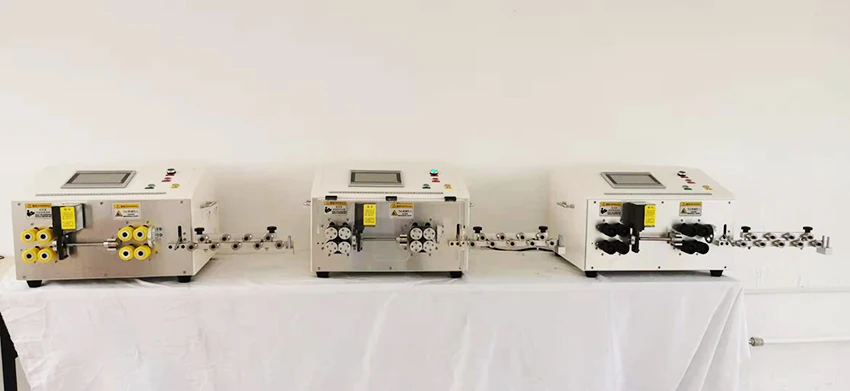

Machine Model | WJ-B35 | WJ-B70 | WJ-B150 | ||
Wire range | 1.5-35mm² | 4.0-70mm2 | 6-150 mm² | ||
Cutting Length | 0-100m | 0-100m | 60-99999.99mm | ||
Stripping Length | Head 0-250mm; Tail 0-120mm | Head 0-300mm; Tail 0-150mm | Head 0-500mm; Tail 0-250mm | ||
Conduit Diameter | ø16mm | Φ20mm | Φ28mm | ||
Drive Method | 8wheels drive | 12wheels drive | 14 wheels drive | ||
power | 650W | 800W | 1500W | ||
Wire types | Multi - strand copper wire, coaxial cable, sheath wire, etc | ||||
Blade material | Imported high speed steel | ||||
Production Rate | 1500-2500pcs/h | ||||
Display Screen | 7 inch touch screen | ||||
Wire Feed Method | Belt feeding wire, no indentation on cable | Belt feeding wire, no indentation on cable | Belt feeding wire, no indentation on cable | ||
Memory function | Up to 100 groups of programs can be stored | Up to 200 groups of programs can be stored | |||
Weight | 70KG | 80KG | 270KG | ||

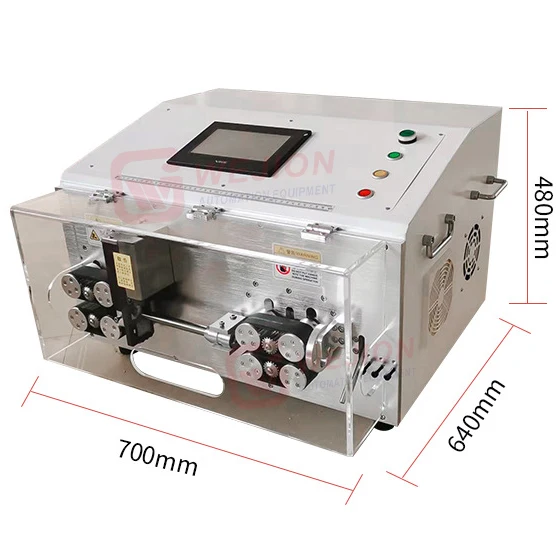

Dimensions | 560*520*450mm | 700*640*480mm | 1180*650*1200mm | ||
WJ-B35 Features：

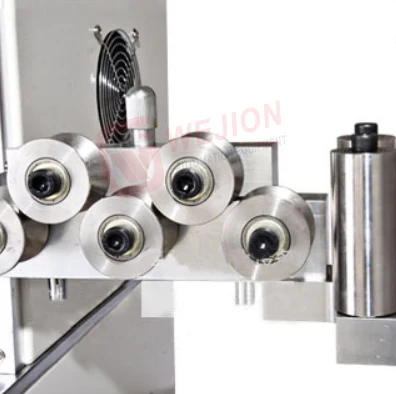

1. This machine adopts 8-wheel drive, strong power and high precision. The belt feeding system can ensure that the wire surface is not damaged and can be widely connected to the processing of product power cables, sheathed wires, and soft and hard wires.
2. The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without the need to manually adjust the pressure of the wheel. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program.
3. The color touch screen operation interface, the parameters are intuitive and easy to understand, and you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be stripped in three layers, or when the stripping length is shortened, it can be stripped up to three times; 100 groups of program memory function, can store the processing parameters of different wires in different program numbers.
4. It can be equipped with branching jigs, cutting jigs, and inkjet printers.
3. The color touch screen operation interface, the parameters are intuitive and easy to understand, and you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be stripped in three layers, or when the stripping length is shortened, it can be stripped up to three times; 100 groups of program memory function, can store the processing parameters of different wires in different program numbers.
4. It can be equipped with branching jigs, cutting jigs, and inkjet printers.
