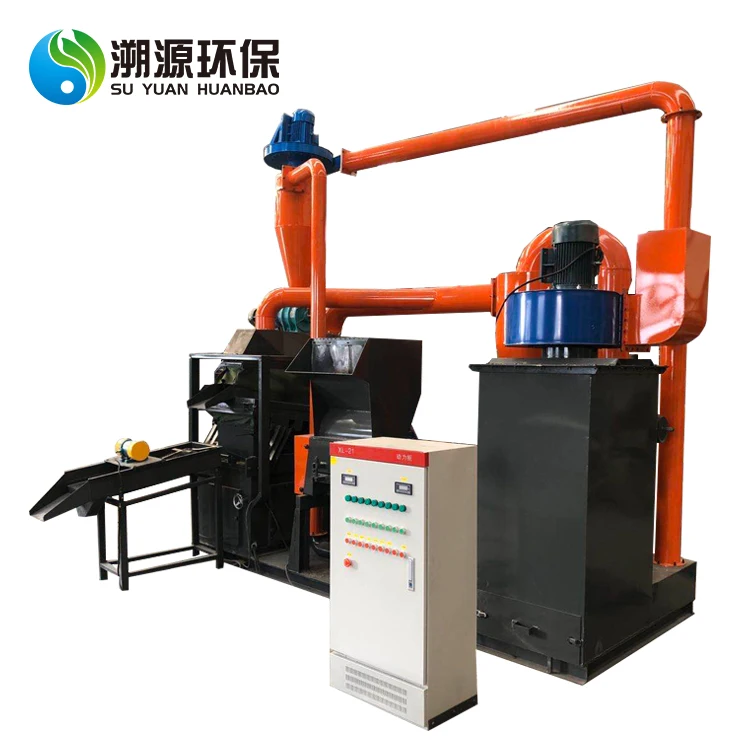

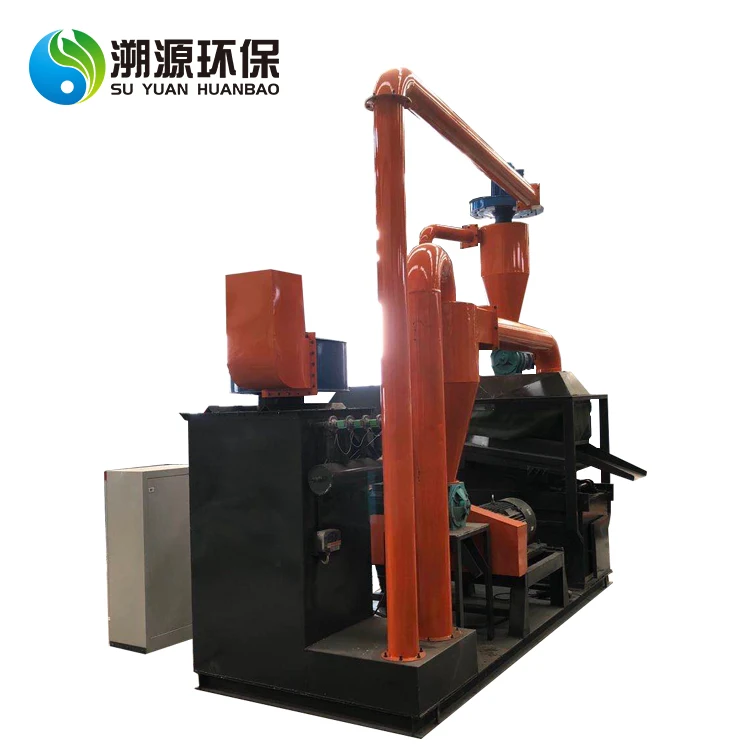

Scrap Copper Wire Cable Recycling Machine / Cable Granulators For Sale
is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC.
This machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.
External dimension
(mm)
External dimension
(mm)
Crusher
(KW)
Air conveying (KW)
Wind sorting
(KW)
Dust collection
(KW)
Output
(KG/H)
Weight (kg)
SY-400
2000*1850*2600
15
N/A
0.75+2.2
0.75
100-150
1800
SY-600
4200*1900*3800
117
3
3.75
2.2
300-400
3500
SY-1000
5180*2100*4200
45
4
3.75
3
800-1000
4600
Raw Material & Final Product
Such as scrap automotive or old vessel circuitry, telecommunication cable wire, kinds of civil wires, computer or laptopscircuitry or wire, abandoned or junk wires or cable, other PE plastic materials etc.

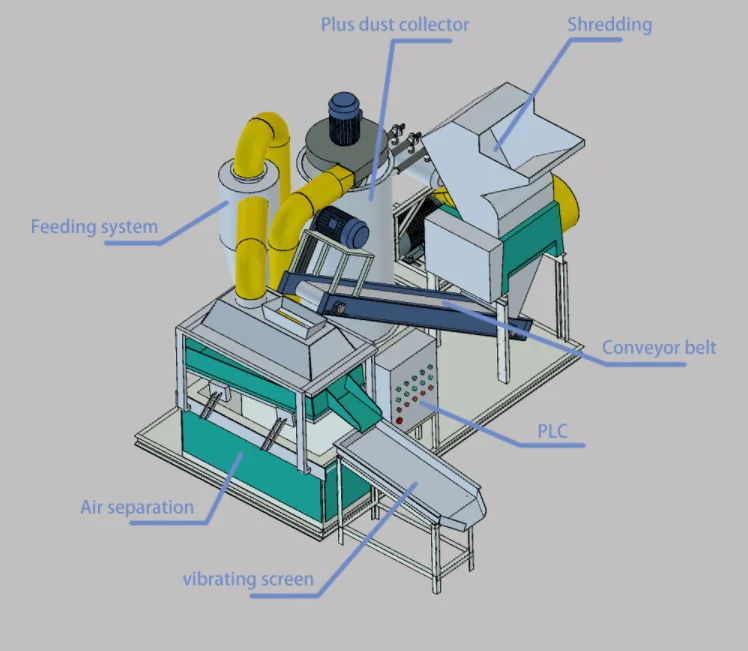

Structural feature

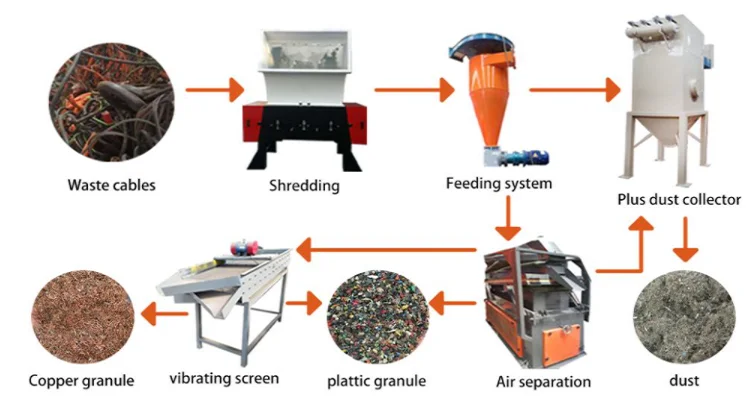

1. Integrated structure design, compact structure, small occupied area, easy to move and it can be operated by putting it on flat ground and turning on the power supply. 2. It adopts PLC control, the appearance is simple and beautiful and the operation is simple. One operator can operate it. 3. As an important part of the separation of copper wire and plastic, gravity separation adopts Italy air suspension separation process, and the vibration frequency and material suspension air supply device can be adjusted precisely according to different materials.
4. Crushing system adopts SKD-11 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation. 5. The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet. 6. Our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.
Our Advantages
1. Easy-operated: The entire assembly line uses the PLC intelligent programming automatic control and man-machine interface touch screen, so that the even feeding of the entire production line and coordinated work can be realized. 2. Lower noise: We use noise reduction treatment of the crushing equipment to reduce the noise. 3. Clean without pollution: We Use the negative pressure feeding system and pulse dust removal system to purify the working environment. 4. High separating rate: The sorting part adopts the proportion sorting combined with the static careful selection, so that the metal recovery rate can reach up to more than 99%. (Our electrostatic sorting equipment is our most important product which has won a high reputation in the world.) 5. Lowest price with warmed service: we promise to provide high quality product with warmed service forever.
Packaging & Shipping
Our Service
1. We not only provide you machines but also offer the professional technical guidance and market evaluate. 2. We will provide all the machines for the complete production according to customer's requirements. 3. We will provide complete service for factory layout and other information to help customer to build the factory. 4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production. 5. Except one year quality guarantee, we will provide after-sell service for all the life. 6. For long-term cooperation, we always provide good quality, good price and good service to customer.
Company Profile
OUR FACTORY:
Xinxiang Traceability Environmental Protection Equipment Co. Ltd. was established in the end of 2002.For more than ten years, wehave been committed to the research and manufacture of various waste resources separation and sorting recycling equipments. The company has always adhered to the principle of “ Service First, Customer First ”. We will serve the new and old customers with high quality products and service. We will contribute to create a healthy and environmental world together !
Certifications
FAQ
Q: Why Choose Us? 1). Several Year's Experience We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.) 2). Manufacturer, Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test. 3). Fast Delivery: We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine? A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like? A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use? A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation? A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
