Product Overview

Description



We are a professional manufacturer of 4 / 5G wireless network equipment, machine to machine (M2M) and IOT connectivity products
and services.

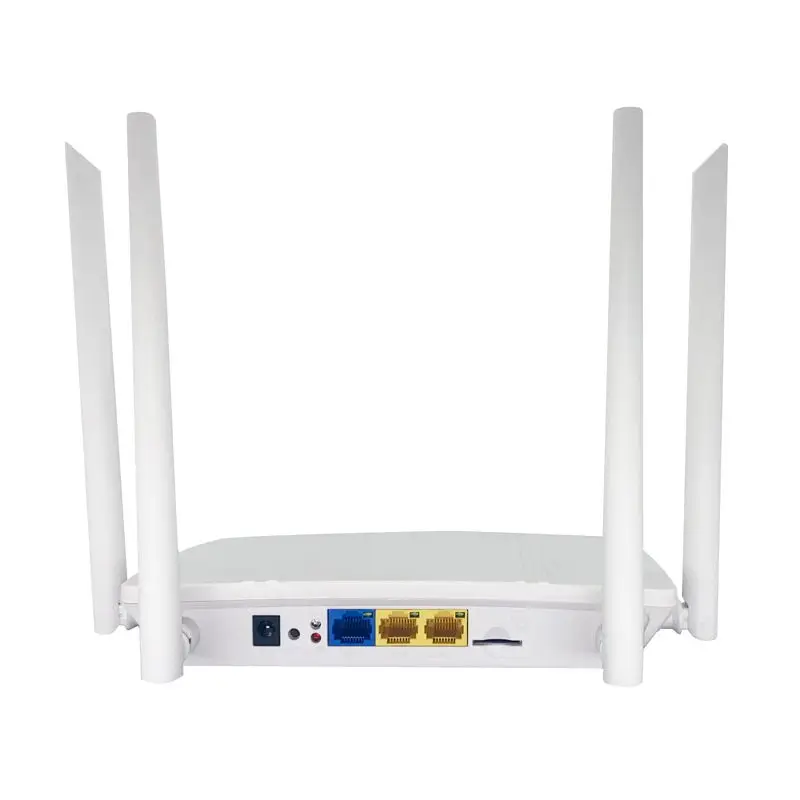

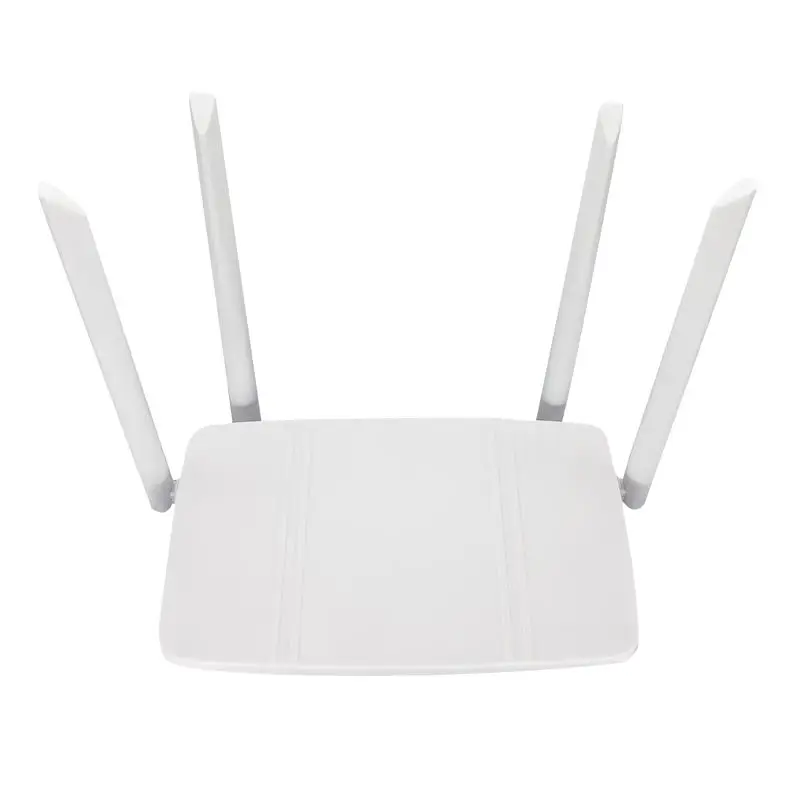

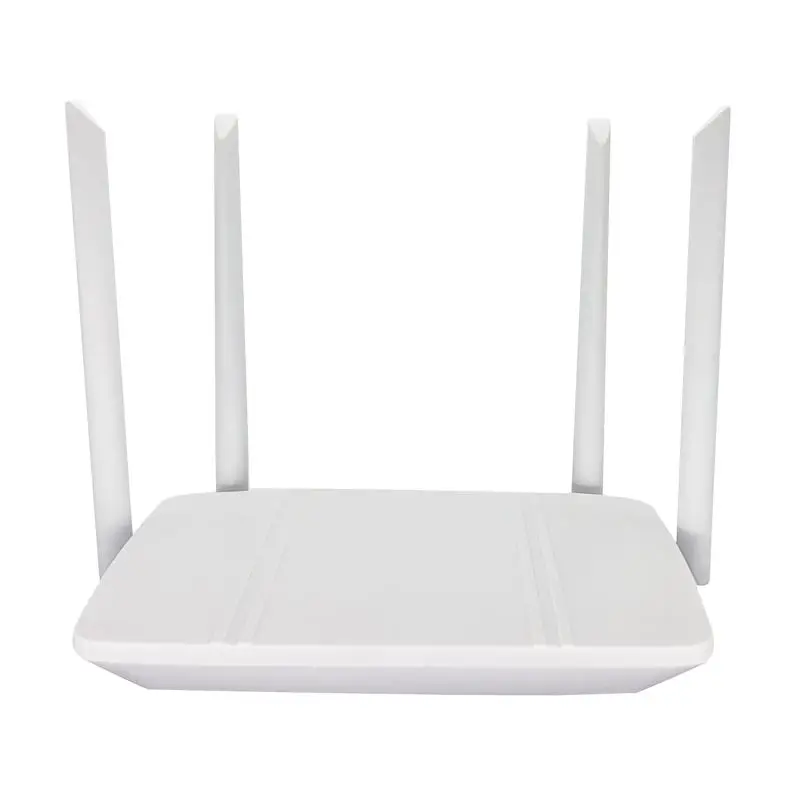

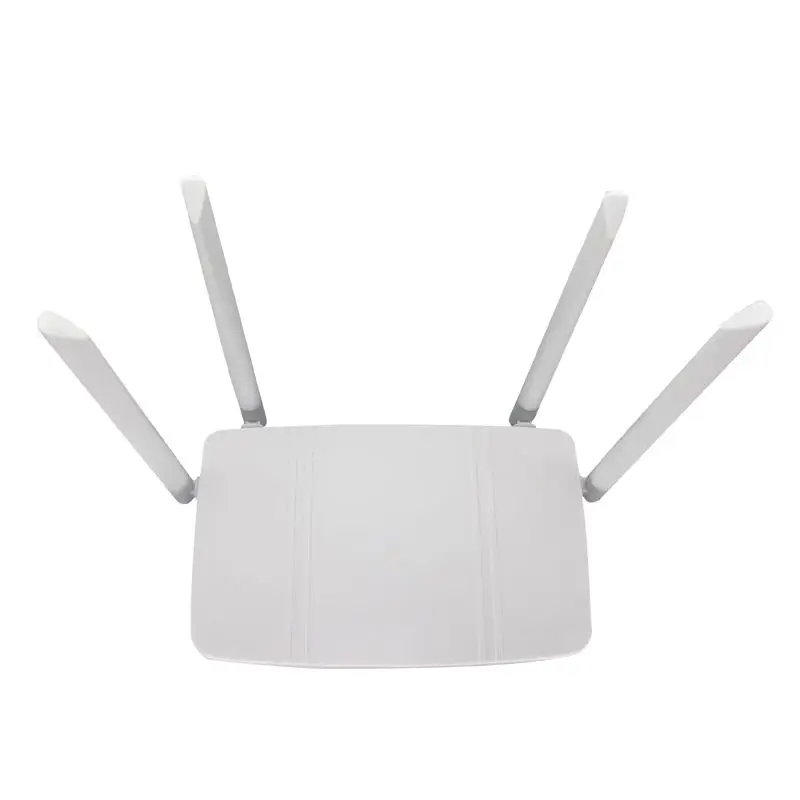

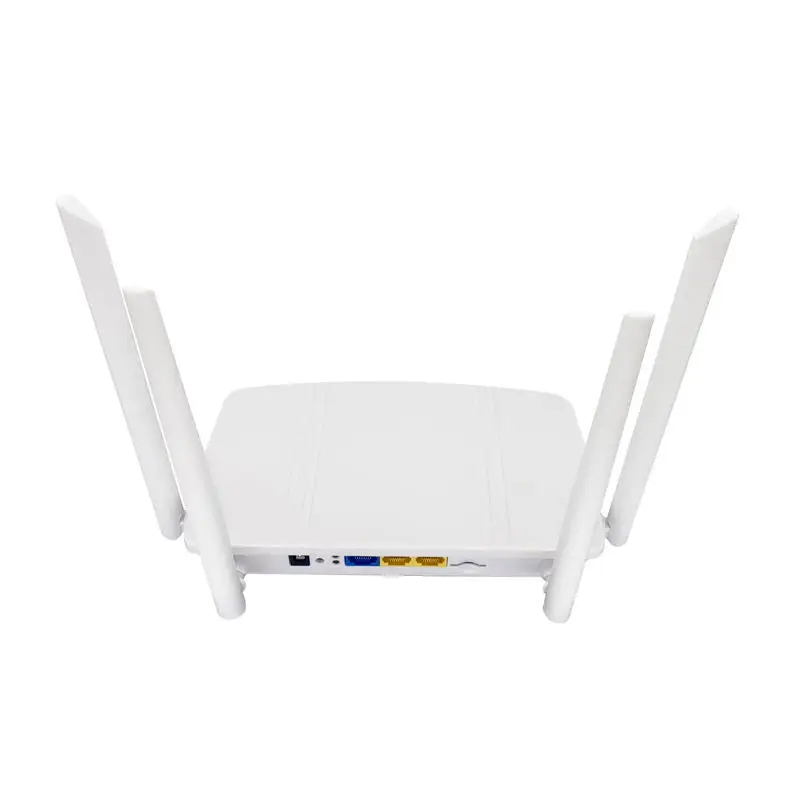

300Mbps openwrt 4G Lte router with sim card and High gain antenna


Overview:
7628R02A is a 2.4G, 300Mbps, high-speed, high-performance 4G wireless router, which can provide users with wireless long-distance big data transmission function through 3G / 4G network by directly inserting 4G SIM card.The proprietary and stable openwrt system provides two 100M Ethernet LANs and one 100M Ethernet WAN port. It can connect 32 + Ethernet devices and WiFi devices at the same time to realize transparent data transmission and routing functions. The product has been widely used in home / enterprise wireless broadband, aquaculture broadband access, finance, transportation, security monitoring and other industries.






Specification:
1) 300Mbps high-speed Complies with EEE802.11b/g/n protocol.
2)Provides 1* 10/100M WAN + 2*10/100M LAN + 1 SIM card.
3)Plug and play card,Solve the internet problem.
4)4G to wired network,4G to wifi .
5)WDT watchdog design ensures system stability.
6)Complete anti dropping mechanism ensures that data terminal is always online.
7) Supports Uboot brush.
8)Supports 64/128 bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption and security mechanism.
9)The wireless standby number is 30, HD video is 4~5, wired is about 64.
10)It can be easily applied to security monitoring transmission, 4K smart TV, HD movie playing, online
video, 3D games, etc.



Network:
--4G:LTE-FDD: B1/B3/B7/B8/B20/B28(2100/1800/2600/900/800/700 MHz)
--4G:LTE-TDD:B38/B40/B41（2600/2300/2500 MHz）
--3G：DC-HSPA+/HSPA/UMTS:B1/B8(2100/900MHz) --Wireless speen:up to 300Mbps(2.4G) --Transmit Power:<21dbm










Hardware Features
Chipset
MT7628NN/AR9344
FLASH
SPI 8MB
RAM
DDR2 64MB
Protocol
IEEE802.11n/802.11g/802.11b/g/n/ac 802.3/802.3u
Transmit Power
26dBm（11a），26dBm（11n/HT20/HT40），23dBm（11ac/MCS9/HT80）
Reception Sensitivity
802.11a 433Mbps ≤ -90； 867Mbps ≤ -90802.11n HT20 MCS 0 ≤ -95; MCS 7 ≤ -92
802.11n HT40 MCS 0 ≤ -92; MCS 7 ≤ -85
802.11ac 802.11ac(HT80):≤-90dBm@MCS0；≤-90dBm@MCS9
Wireless Speed
300Mbps
4g wireless parameters
--4G:LTE-FDD: B1/B3/B7/B8/B20/B28(2100/1800/2600/900/800/700 MHz) --4G:LTE-TDD:B38/B40/B41（2600/2300/2500 MHz）
--3G：DC-HSPA+/HSPA/UMTS:B1/B8(2100/900MHz)
Antenna Type
2*detachable 5dBi 5G antenna
2*detachable 5dBi 2.4G antenna
Interface
1* 10/100M/ 1000M WAN 2*10/100M/ 1000M LAN
1*SIM card
1*USB
1 * PCI-E slot(USB3.0)
LED
Power,SYS,2.4G,5.8G,WAN,USB,4/5G
Power Supply
DC 12V
Max power consumption
<8w
Dimensions(L*H*W)
180×132×42mm
Total Weight
0.7Kg
Work Environments
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -30°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Software
Default Setting
IP Address: 192.168.1.1
User/Password: admin/admin
WAN Type
PPPoE/ Dynamic IP/Static IP/3G/UMTS/4G/LTE，dhcp-4/5G
Working mode
AP;Router
System
Supports SDK，OpenWRT, eCos
DDNS
Support
WEB Style Change
Support
Band Ctrl
Support
Static Router
Support
System Log
Support
DHCP server
DHCP server
Client List；Static address assignment；
VPN Pass-Through
MVPN/IPsec/OpenVPN/PPTP/L2TP/GRE/N2N
Other Function
Mac clone
NTP Synchronize
Web firmware upgrade
Networking priority

4G priority （Y/N）
