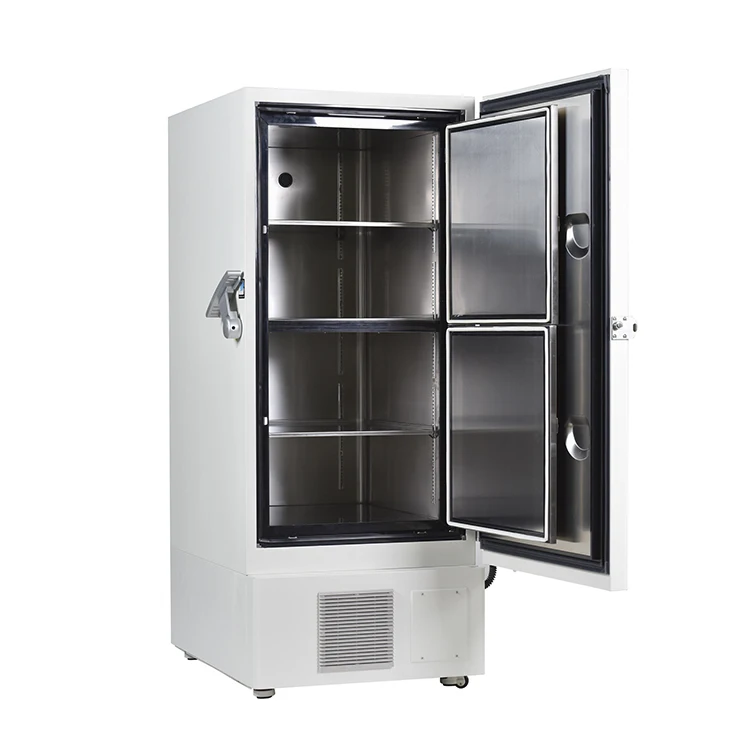

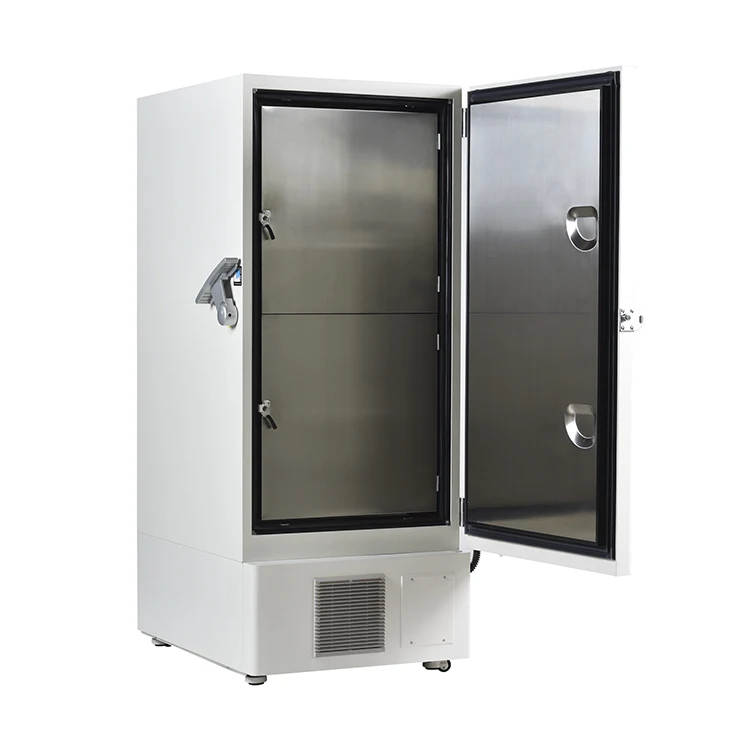

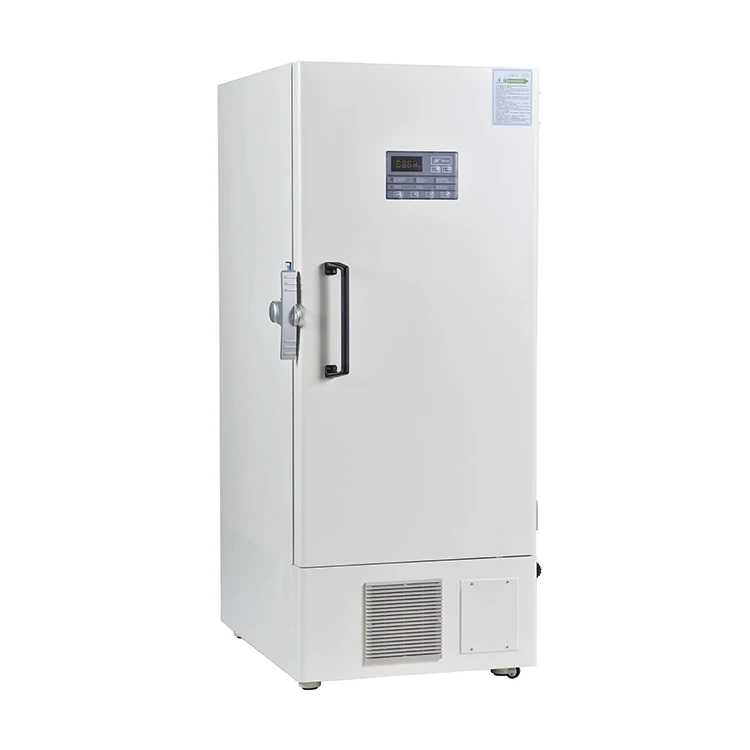

MDF 86V408E Large Volume 408L Lab Medical Refrigerator Laboratory Ultra Low Temperature Lab Freezer
- Category: Laboratory Refrigeration Equipments >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1600254801351):
Product Overview
Description
Features:
- Wide temperature range :10℃~32℃ambient temperature can reach -86℃.
- Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.
- Independent research and development of mixed refrigerant can make device save energy 50%.
- Better uniformity, uniformity is increased 30%.
- The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.
- 304 stainless steel inner chamber for friendly using and easy cleaning.
- VIPⅡPLUS technology, special narrow design for entering elevators.
MDF-86V408E | ||||
Performance | Temperature Range | -40~-86°C | ||
Ambient Temperature | +10~+32°C | |||
Cabinet Type | Vertical | |||
Control System | Controller | Microprocessor | ||
Display | Digital Display | |||

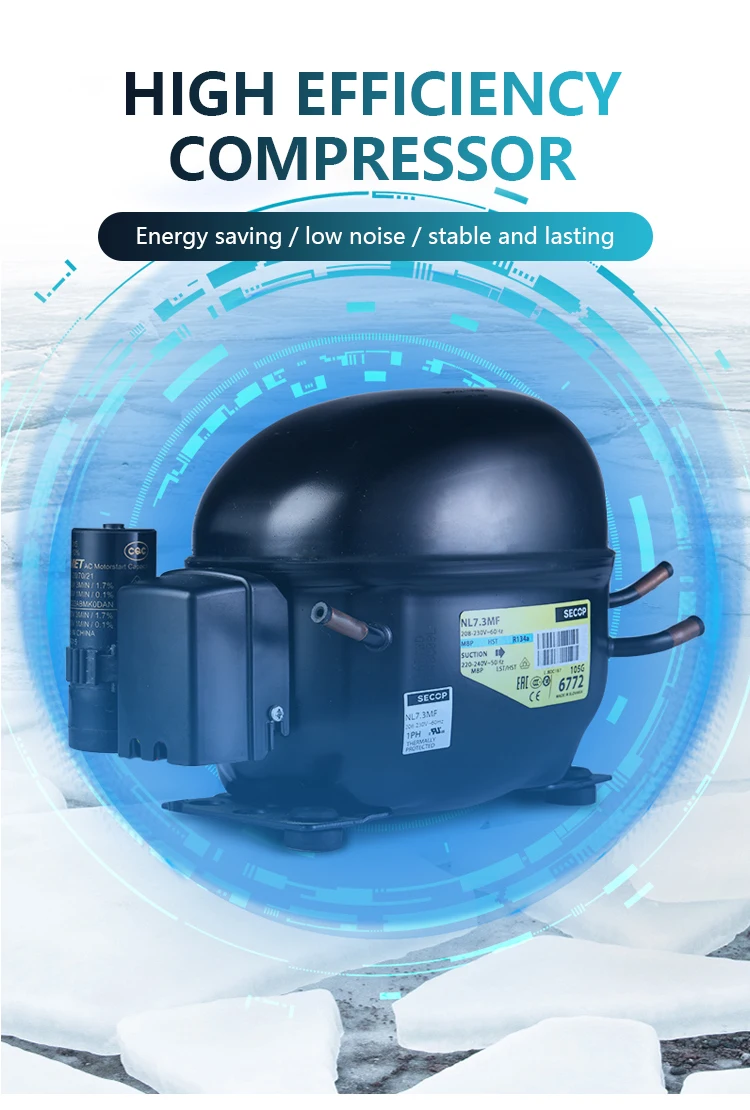

Refrigeration System | Compressor/Brand | 1/SECOP | ||
Refrigerant | Mixed | |||
Cooling Type | Direct cooling | |||
Defrost Type | Manual | |||
Electrical Data | Power Supply(V/Hz) | 220/50~60; 115/60 | ||
Rated Power(W) | 725 | |||
Electrical Current(A) | 5.7 | |||
Power Consumption | 11 kWh/24h | |||
Power failure alarm | 72H | |||
Dimensions | Capacity | 408L | ||
Interior Size(W*D*H) | 606*575*1180mm | |||
Exterior Size(W*D*H) | 872*1028*1945.5m | |||
Package Size(W*D*H) | 954*955*2094mm | |||
N.t./G.t.(approx) | 215/245kg | |||
Loading Qty(20'/40'/40'H) | 12/24/24 | |||
Alarm | High/Low Temperature | Y | ||
Sensor Error | Y | |||
Power Failure | Y | |||
Door ajar | Y | |||
High Ambient temp. | Y | |||
Condenser clean | Y | |||
Low battery | Y | |||
Filter screen check | Y | |||
Abnormal voltage | Y | |||
Accessories | chart recorder | / | ||

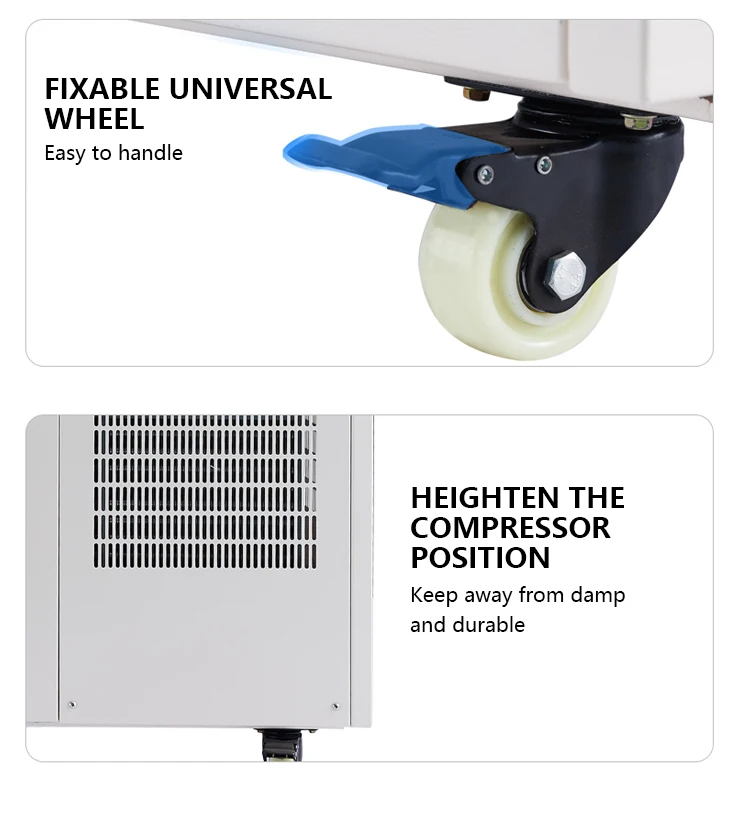

Caster | 4 | |||
USB port | Y | |||
Remote alarm port | Y | |||
RS232/485 port | Y | |||
Inner Door/shelf | 2/3 | |||
Test hole | 1/25MM | |||
CO2/LN2 back up system | Optional | |||
Cold storage box loading QTY | 28800 | |||
Application Field

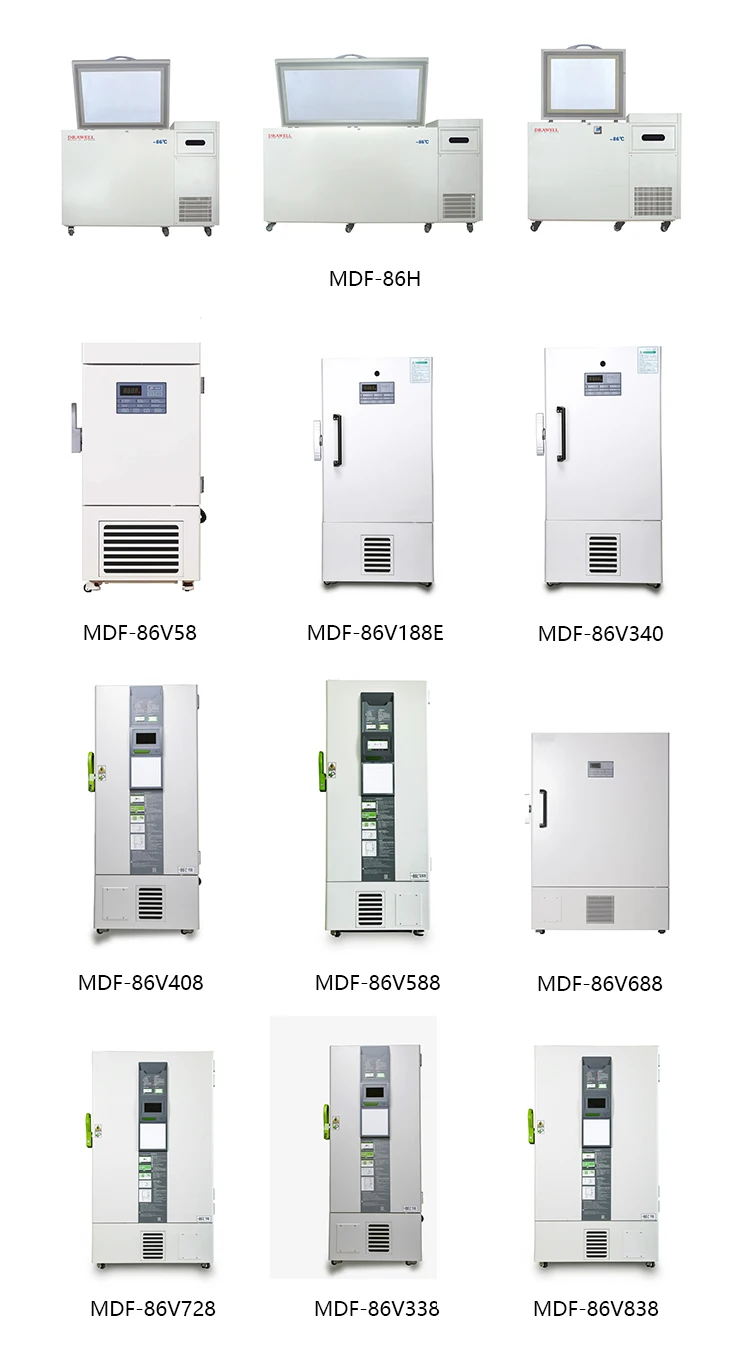

Product Display
