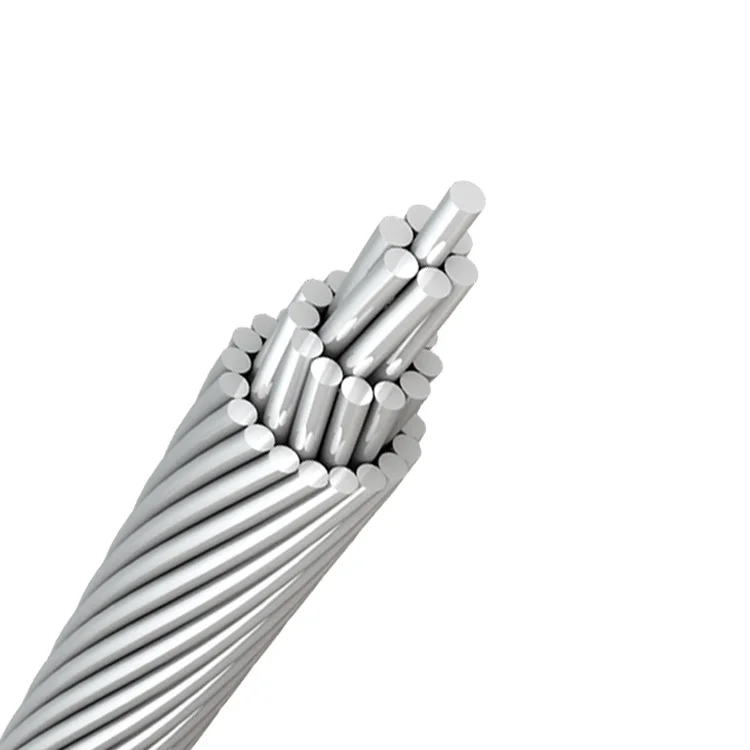

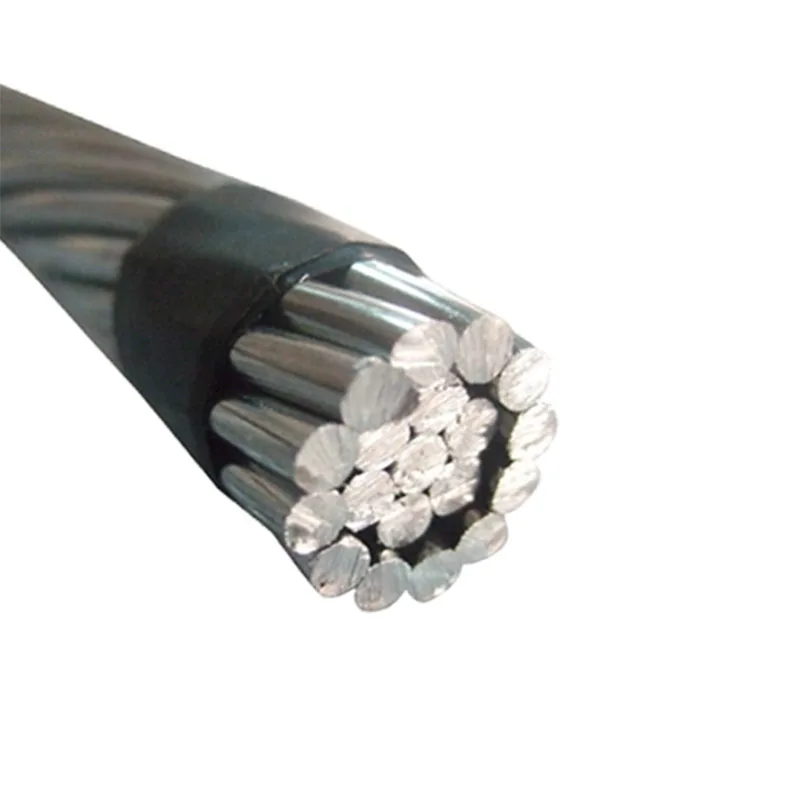

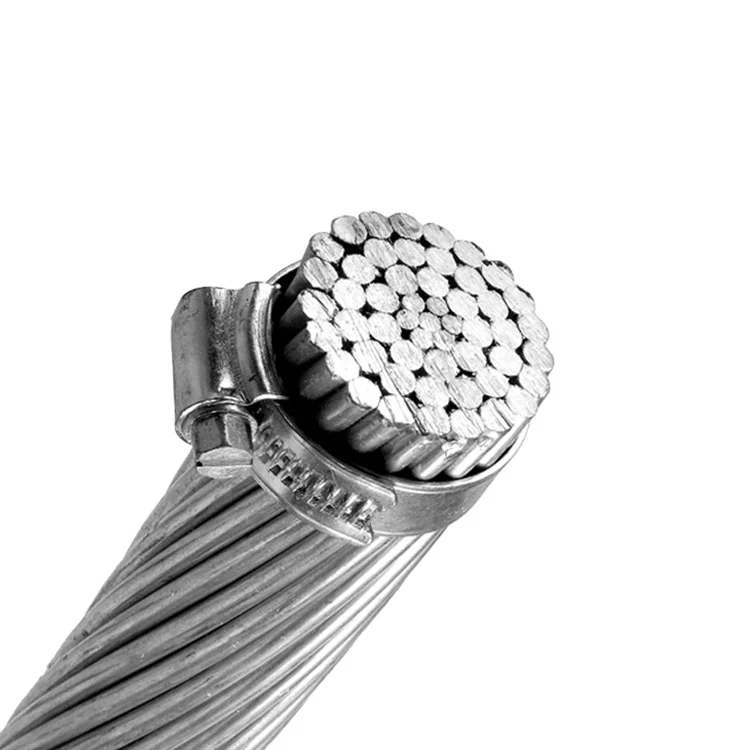

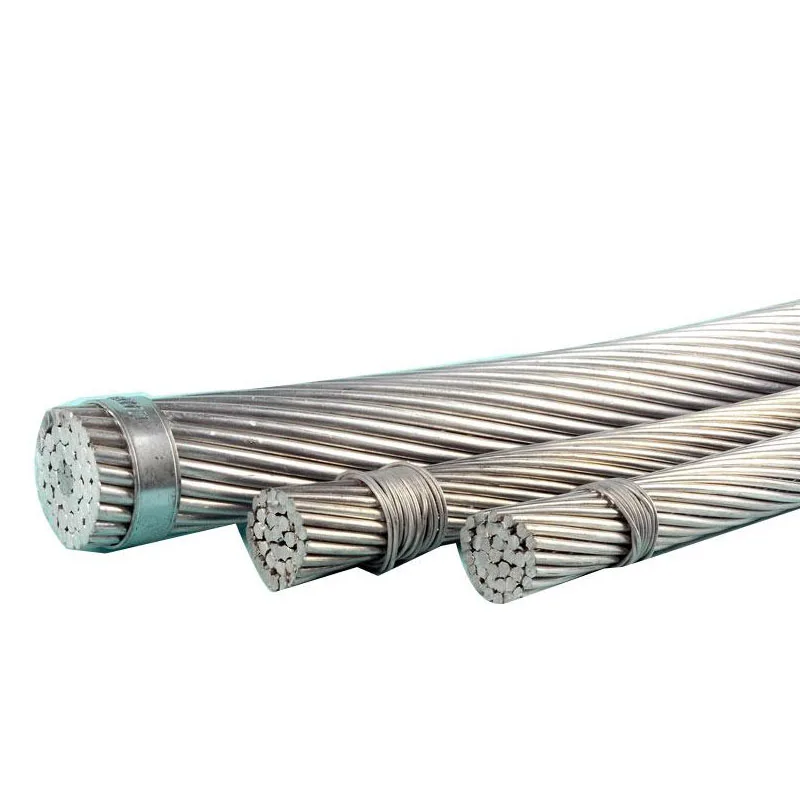

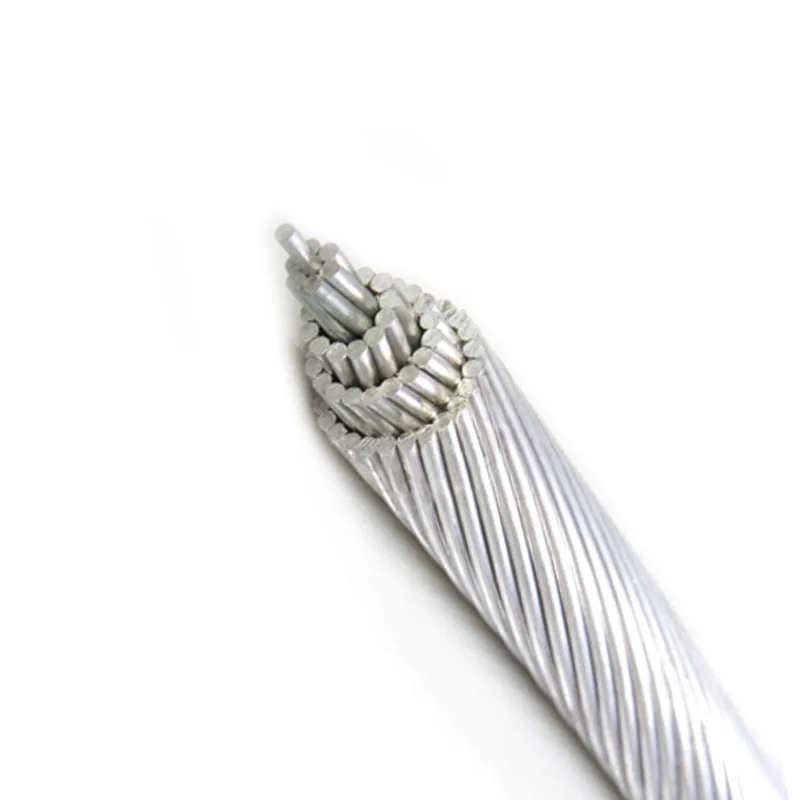

ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor
- Category: >>>
- Supplier: Zhengzhou Huadong Cable Co. Ltd.
Share on (1600254834658):
Product Overview
Description
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor
Product Description
AAAC Conductor All Alloy Aluminum Wire Cable Conductor Bare AAC Cable
Description:
AAC Conductor (All Aluminium Conductors) is also known as aluminium stranded conductor. We manufacture this conductor from electrolytically refined aluminium with the purity of minimum 99% aluminium. The spacing between All Aluminium Conductors is short and their supports are close.
These aluminium conductors are made up of one or more aluminium wires strands depending on their usage. These conductors are mainly used in urban areas for electricity transfer. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties. Apparently, we have gained recognition as one of the prominent AAC Aluminum Conductor Manufacturers and Suppliers.
CABLE ALMELEC 54.6 mm2 AAAC 54.6mm2 Specifications:
B-230 aluminum wires, 1350-H19 for electrical purpose
B-231 aluminum conductors, concentrically lay-stranded
B-400 compact round concentric-lay-stranded aluminum 1350 conductors
We manufacture AAC conductor as per following standards:-BS 215 Part 1,IEC 207, DIN 48201-5,ASTM B231,IS 398 Part 1.
AAC Conductor (All Aluminium Conductors) is also known as aluminium stranded conductor. We manufacture this conductor from electrolytically refined aluminium with the purity of minimum 99% aluminium. The spacing between All Aluminium Conductors is short and their supports are close.
These aluminium conductors are made up of one or more aluminium wires strands depending on their usage. These conductors are mainly used in urban areas for electricity transfer. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties. Apparently, we have gained recognition as one of the prominent AAC Aluminum Conductor Manufacturers and Suppliers.
CABLE ALMELEC 54.6 mm2 AAAC 54.6mm2 Specifications:
B-230 aluminum wires, 1350-H19 for electrical purpose
B-231 aluminum conductors, concentrically lay-stranded
B-400 compact round concentric-lay-stranded aluminum 1350 conductors
We manufacture AAC conductor as per following standards:-BS 215 Part 1,IEC 207, DIN 48201-5,ASTM B231,IS 398 Part 1.
AAAC Conductor All Alloy Aluminum Wire Cable Conductor Bare AAC Cable
IEC1089 Standard:
| Code Number | Area mm2 | Number of wires | Diameter | LinearMass kg/km | Rated Strength kN | D.C Resistance Ω/km | |
| Wire mm | Conductor mm | ||||||
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.4 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.4 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.20 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.90 | 274.8 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.50 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.40 | 439.8 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.30 | 549.7 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.50 | 687.1 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.00 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.00 | 1102.0 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.50 | 1239.8 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.00 | 1377.6 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.70 | 1542.9 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.60 | 1738.3 | 100.80 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.60 | 1959.1 | 113.60 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.80 | 2207.4 | 128.00 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39.00 | 2483.3 | 144.00 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.10 | 2759.2 | 160.00 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.50 | 3093.5 | 179.20 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46.00 | 3452.6 | 200.00 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.70 | 3866.9 | 224.00 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.40 | 4143.1 | 240.00 | 0.0193 |
Company Information
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Production Flow
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Flow:
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Testing:
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Testing:
In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.
Certifications
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Certifications:
Packaging & Shipping
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Package:
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.
ASTM B231 Bare Aluminum 3500 AWG/MCM AAC Bluebonnet Conductor Delivery:
First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.
Thirdly, we have cooperated with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.
Buyer Feedback
We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.795mcm acsr conductor aluminum conductor acsr conductor price list.
FAQ
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
......
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
