Q300 1D 2D QR Code Barcode Scanner USB RS232 Interface for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine
- Category: Scanners >>>
- Supplier: Suzhou,Qiji,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Q300 1D 2D QR Code Barcode Scanner USB RS232 Interface for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine
Product Description
IQ300 1D 2D QR Code Barcode Scanner USB RS232 Interface for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine

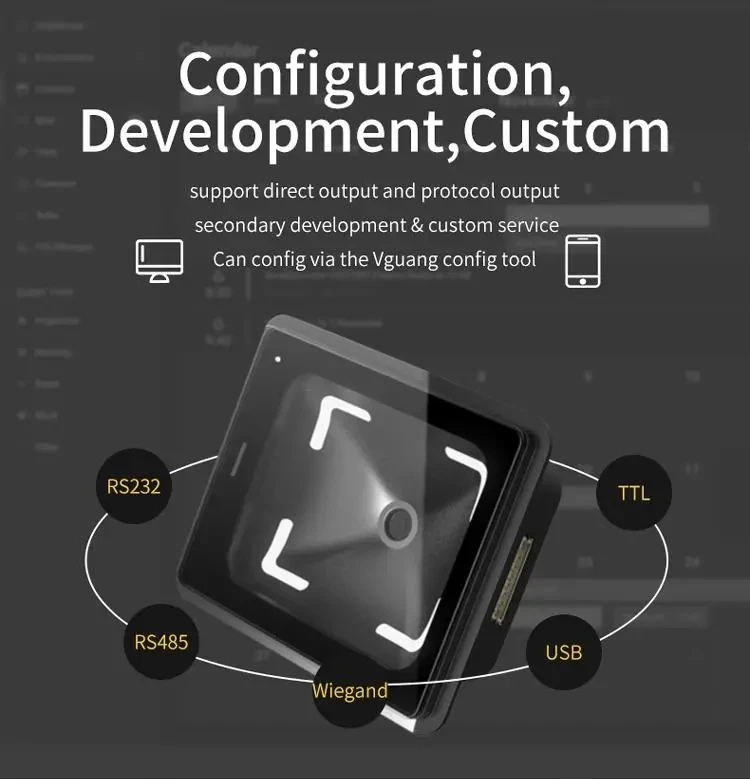

The Q300 QR code reader was a specially designed embedded type device, which has various output interface, including USB, RS232, RS485, TTL, Wiegand, suitable for vending machines, turnstiles.
Q300 1D 2D QR Code Barcode Scanner USB RS232 Interface for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine
Features:
1. Scan code& swipe card all in one.
2. Fast recognition speed, high accuracy, 0.1 second the fastest.
3. Easy to operate, humanized configuration tool, more convenient to config the reader.
Q300 1D 2D QR Code Barcode Scanner for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine
Specification Parameters of Q300 series | |
Working voltage | DC 5V-24V |
Working current | 280mA |
Reading direction | 360 degree |
Reading distance | 0mm~62.4mm(QRCODE 15mil) |
Scan speed | 100ms per time |
Scanning feedback | lights off once scanning |
Decoding mode | Image based decoding engine |
Imagine sensor | 640*480CMOS |
FOV | Diagonal: 72° Horizontal: 56° Perpendicular:84° |
Applied environment | temp range -20-70ºC; humidity 5%-95% |
Output mode | RS232,TTL,USB,wiegand,RS485(Analog keyboard,HID development model) |
Symbologies | Two-dimensional: QR Code, PDF417, etc. One-dimensional: EAN-8, EAN-13, ISBN-10, ISBN-13, UPC-E, UPC-ACODE39, CODE93, CODE128, Interleaved2 or 5, etc. |
Development interface | USB-HID mode development,Serial communication development,(supply C/C++,C#,Java,DELPHI package) |
Compatible system: | Windows series(XP,7,8,9),Android,Linux,Mac,etc. |
Size | 75*65*28.35mm |
Weight | 30g |
Material | PC+ABS |
Recognition window size | 56mm*51mm(No glass) |
Recognition accuracy | ≥8mil |
Scanning feature | automatic |
Power consumption | 0.75W |
Light source | LED (white light) |
RFID | NFC mobile phone,Mifare_Ultra Light, Mifare_Ultra Light 01,Mifare_One(S50),Mifare_One(S50) 02, Mifare_One(S70),Mifare_Pro(X),Mifare_Pro(X) 04, Mifare_Desire ,Mifare_Desire 05 |
Q300 1D 2D QR Code Barcode Scanner USB RS232 Interface for RFID Smart Card & NFC Reader Access control Turnstiles Veding Machine
