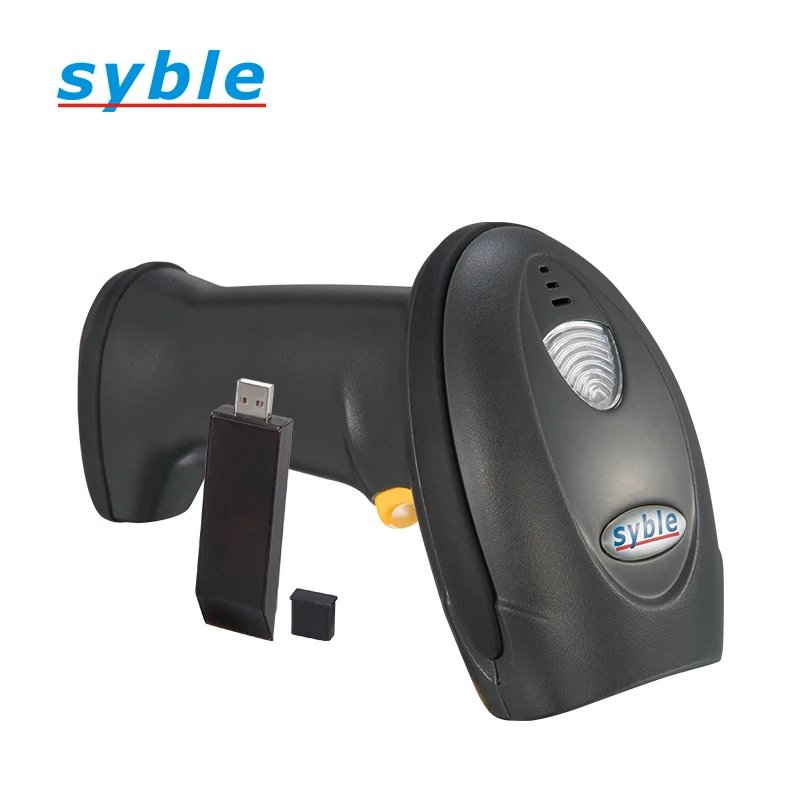

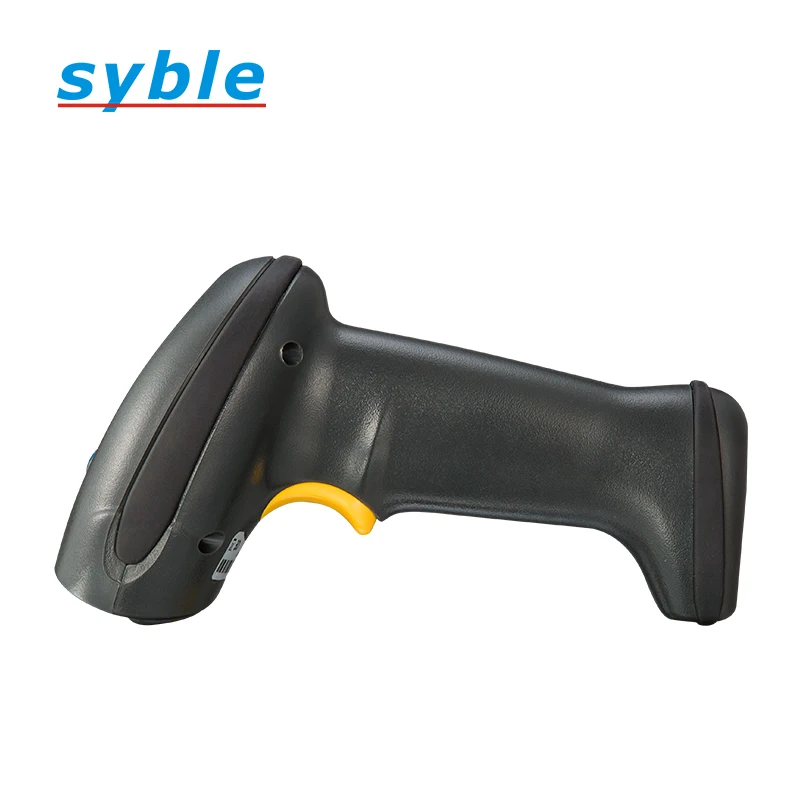

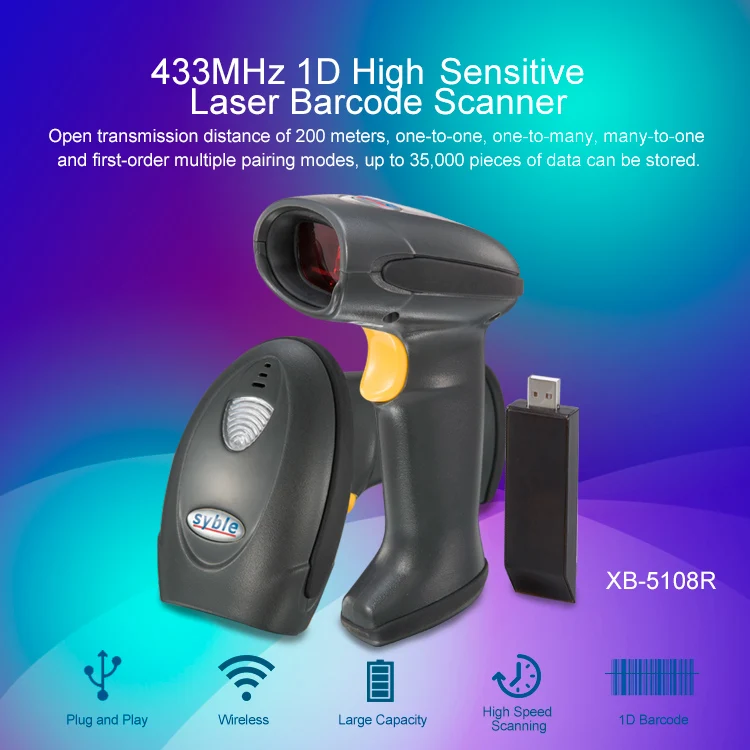

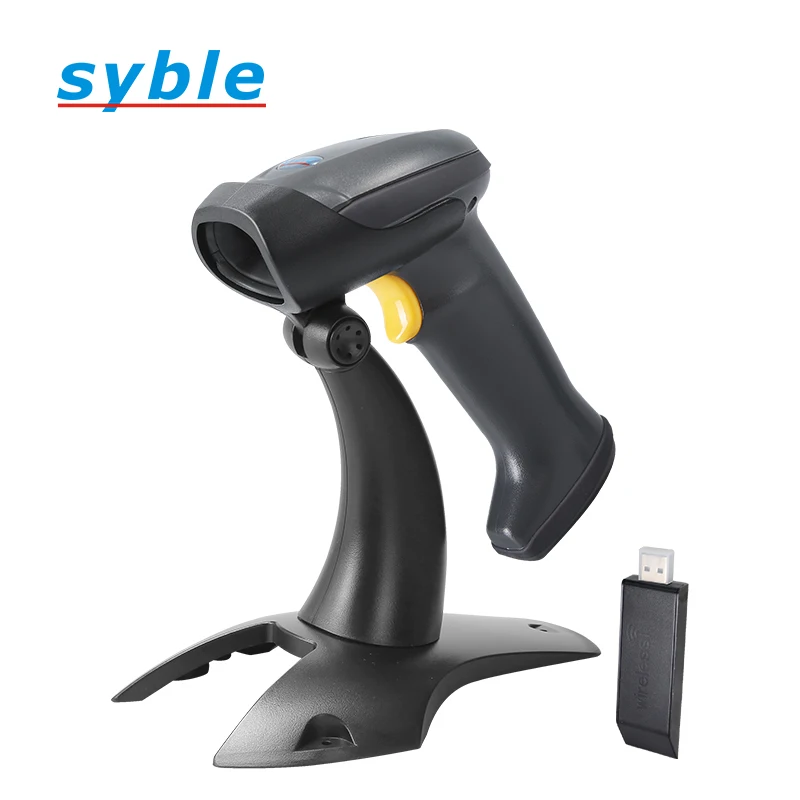

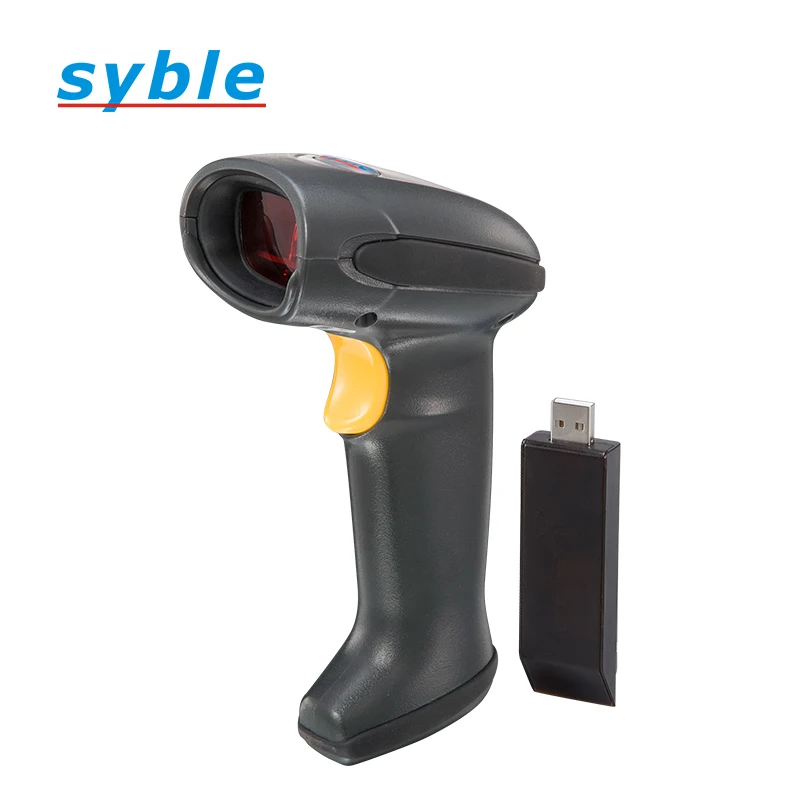

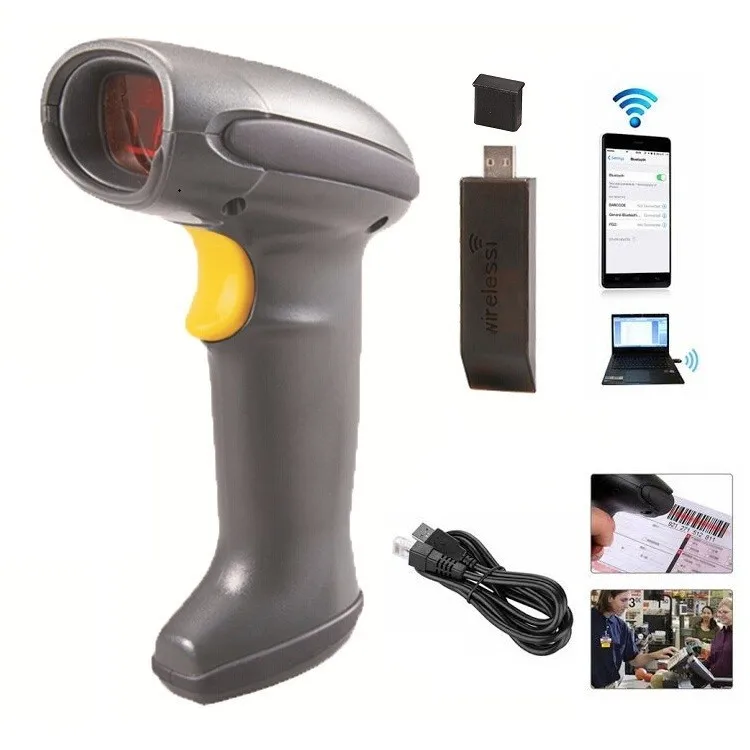

fast read 433MHZ 1D code High Sensitive Industrial 1D Wireless Laser Handheld Barcode reader Scanner
Model:XB-5108R


Specification | |
Performance Parameters | |
Light Sources | 617nm laser (Safe visible laser diode) |
Supported Symbologies | EAN-8, EAN-13, UPC- A, UPC-E, Code 39, Code 11, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post and other international common 1D code. |
Scan Type | Single Laser |
Scan Speed | ≥100 times/s |
Scan Method | Manual/Continuous Scanning |
Scan Angle | Yaw 55°,Rotation 30°,Pitch 65° |
Precision | 4mil(0.1mm) |
Depth of scan field | 10-280mm (0.33mm, PCS90%) |
Error Rate | Less than 1/5million |
Interface | USB-HID,USB-COM |
Operating Frequency | 433HZ |
Transmission Distance | 100M (Open Yard) |
Storage Ability | ≤512000 codes |
Pairing Model | One to one,one to many,many to one. |
Physical Parameters | |
Dimensions | 102mm*71mm*177mm |
Weight | 248g |
Material | ABS+PC, flameresistant material |
Cable Length | 1m |
Environmental Parameters | |
Operating Temperature | -20℃~40℃ |
Storage Temperature | -40℃~70℃ |
Relative Humidity | 0%~85% RH (Non-condensing) |
Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete |
Electrical Parameters | |
Voltage | DC5V±10% |
Current | 85mA (Operating); 150uA (Quiescent Current) |
Lithium battery | 2200mA |
Battery Working Times | 25.5h |
Battery Standby Times | 5h |
Charging method | microUSB |
click here contact the sale if you want learn more detail


We are barcode scanner manfacturer in Guangzhou, which qualified by ISO9001:2008,all products passed CE,RoHS,and FCC etc.
The Reason You Choose XUNBAO
Product Performance: Owns Core technology of laser barcode scanner, Performance has reached international level after continuous optimization for promotion ;
Technical Available: Any kinds of communication interfaces available & Customized, Command control Available, Provide secondary development.
Quality: Strict quality management system, Return rate control in 0. 65% & it was a decreasing trend.
Market Share: Our own brand and OEM, ODM brand in the Chinese marketsimilar products, market share as high as21%.
Price: Compare with American & Europe products of the same grade, The Price is 52% only of them.
Parket Protection: Strict regional exclusive agent system, To ensure the long-term interests of dealers.
| Safety Standards | |
| EMC | CE EN55022 B, FCC Part 15 Class B, SGS,IP54 Waterproof Test. |
| Laser safety | IEC 60825-1 Class 1 |



Technical support
Spare parts policy
Products service
Value-added services
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
