Customized different shape and size barbecue log charcoal coal automatic sawdust briquette machine
- Category: >>>
- Supplier: Henan Lantian Machinery Manufacture Co. Ltd.
Share on (1600255209404):
Product Overview
Description
Product Description

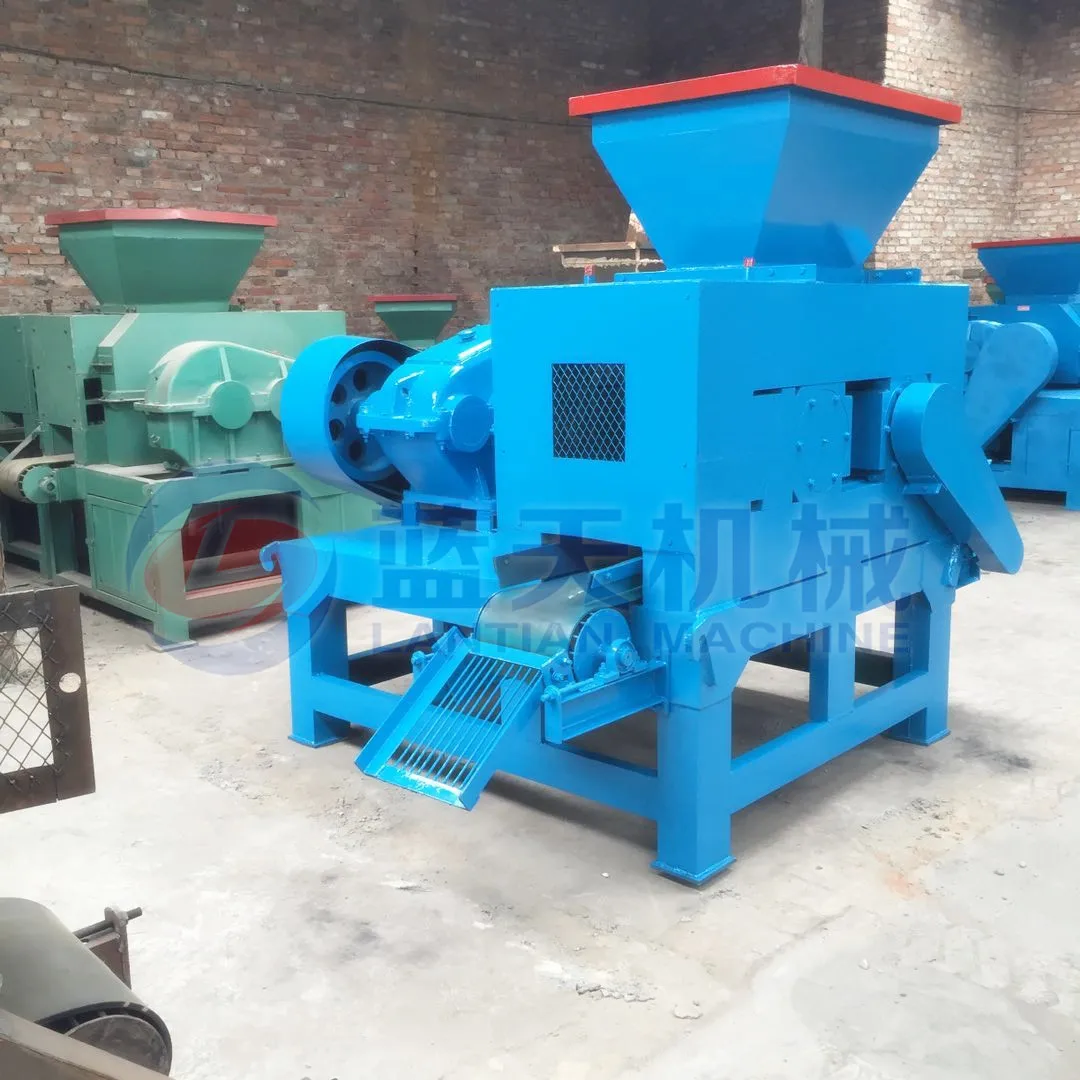

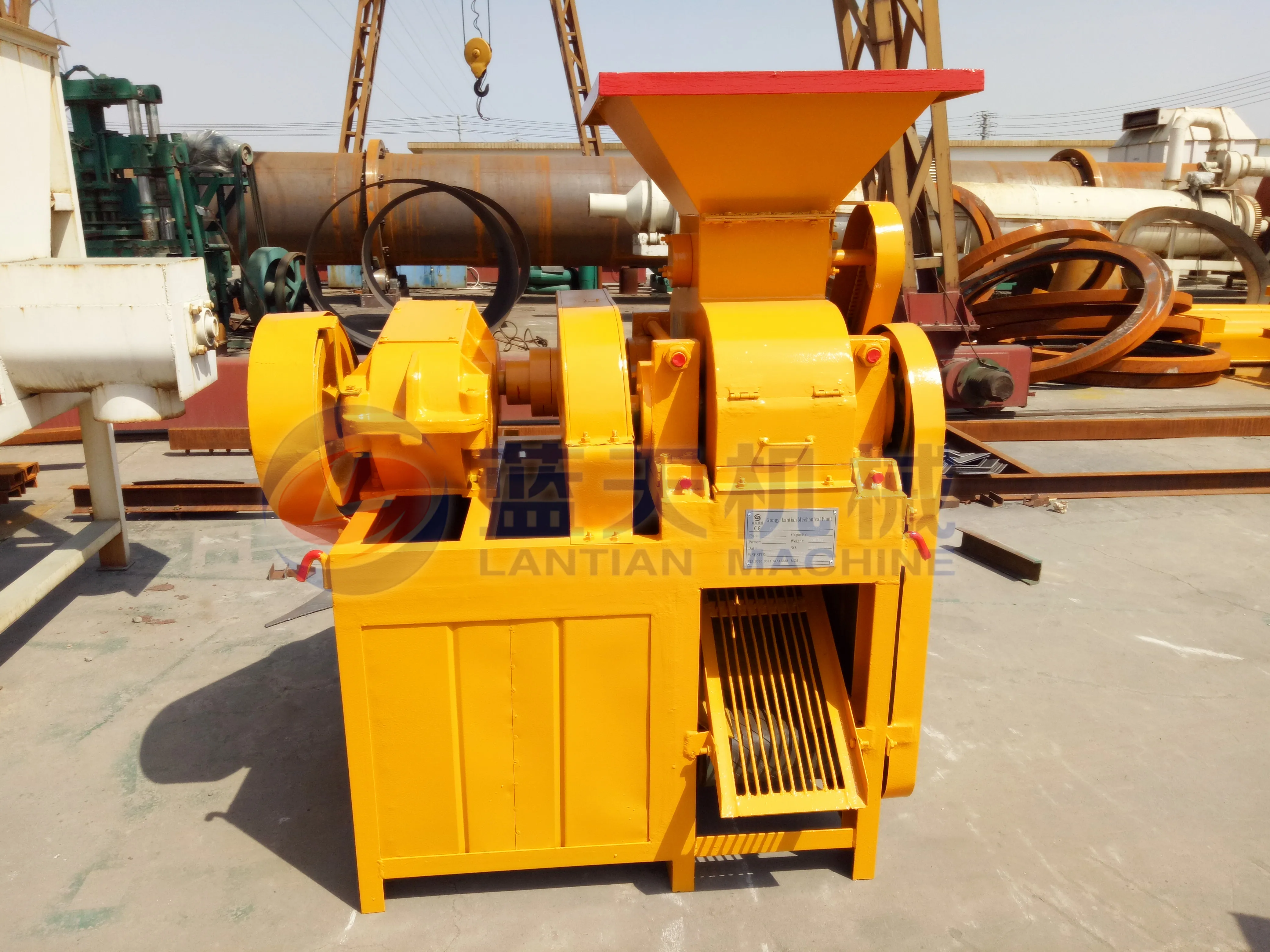

Customized different shape and size barbecue log charcoal coal automatic sawdust briquette machine
Automatic sawdust briquette machine is a featured production of our factory, it is used to make pellet from dust or granule, such as charcoal powder, metal powder, mineral powder, carbon black, coal dust, iron powder. After the pressing of our machine, powder and granule are formed into various shapes of balls. This processing changes the using way of coal brings many good efforts.

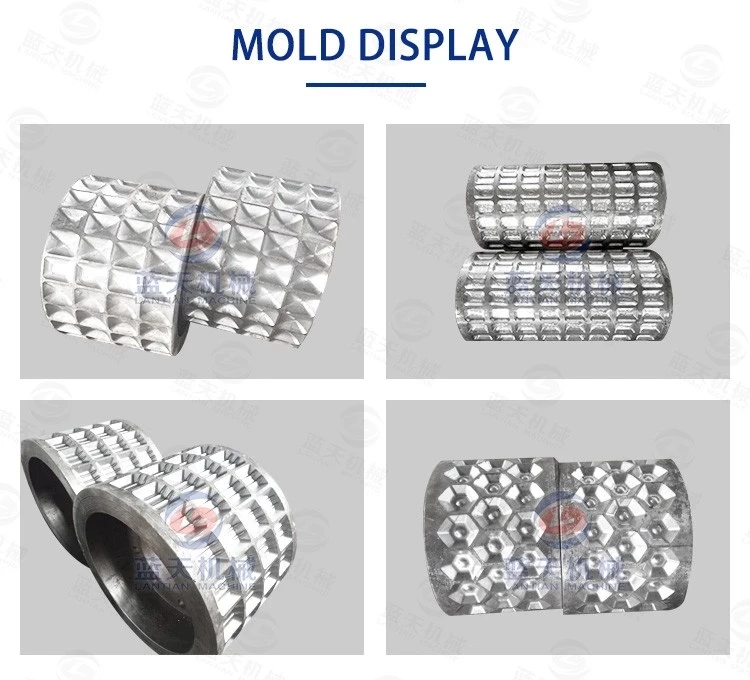

Mould
Mould shape can be oval, round ball, pillow, etc.
Briquette diameter can be 10-60mm,
Whatever shape and size, we all can produce for you.
And mould material is use No. 65 manganese steel.
Briquette diameter can be 10-60mm,
Whatever shape and size, we all can produce for you.
And mould material is use No. 65 manganese steel.

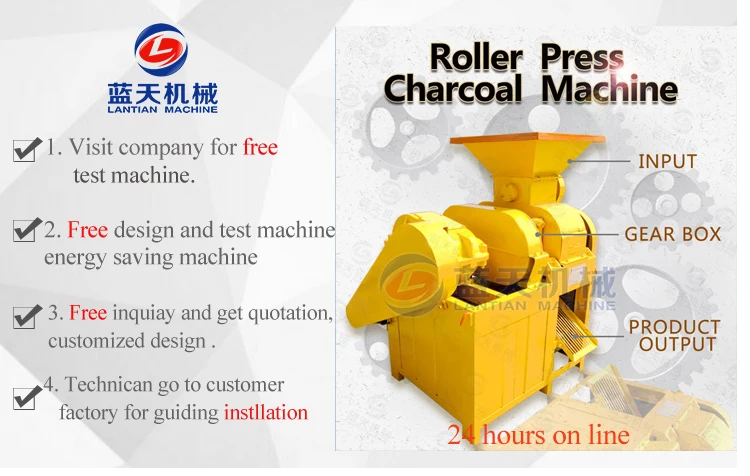

Working principle and main parts of automatic sawdust briquette machine
1. First, the powder material will be transferred on to the two pressure roller through the feeder.
2. The natural materials enter the ball roll mode with the roll rotation.
3. Material pressure on a small part become larger, when the material enter into the two pressure rollers, the pressure of materials has reached the peak.
4. Tremendous pressure between the two roller, the powder become finished product.
2. The natural materials enter the ball roll mode with the roll rotation.
3. Material pressure on a small part become larger, when the material enter into the two pressure rollers, the pressure of materials has reached the peak.
4. Tremendous pressure between the two roller, the powder become finished product.
Size Information
Size Chart of automatic sawdust briquette machine
Type | Capacity (t/h) | Motor power (kw) | Roller diameter (mm) | Briquette size (mm) |
LT-290 | 1.5-2 | 5.5 | φ290 | 30-60 |
LT-360 | 2-3 | 7.5 | φ360 | 30-60 |
LT-450 | 4-5 | 15 | φ450 | 30-60 |
LT-500 | 6.8 | 22 | φ500 | 30-60 |
LT-650 | 10-15 | 30 | φ650 | 30-60 |
LT-850 | 25-35 | 37-45 | φ850 | 30-60 |
LT-1000 | 35-40 | 75-90 | φ1000 | 30-60 |
Features of automatic sawdust briquette machine
1) the roller is made by hard materials, with good wear resistance and long life time;
2) the service life of wearing parts is up to 4000 hours;
3) the machines electricity cost reduces by 60%;
4) the automatic sawdust briquette machine is easy to operate and maintain;
5) the molding material is energy-saving, easy to transport and higher utilization of waste;
6) the final product is smokeless, non-toxic, none peculiar and environmental protection;

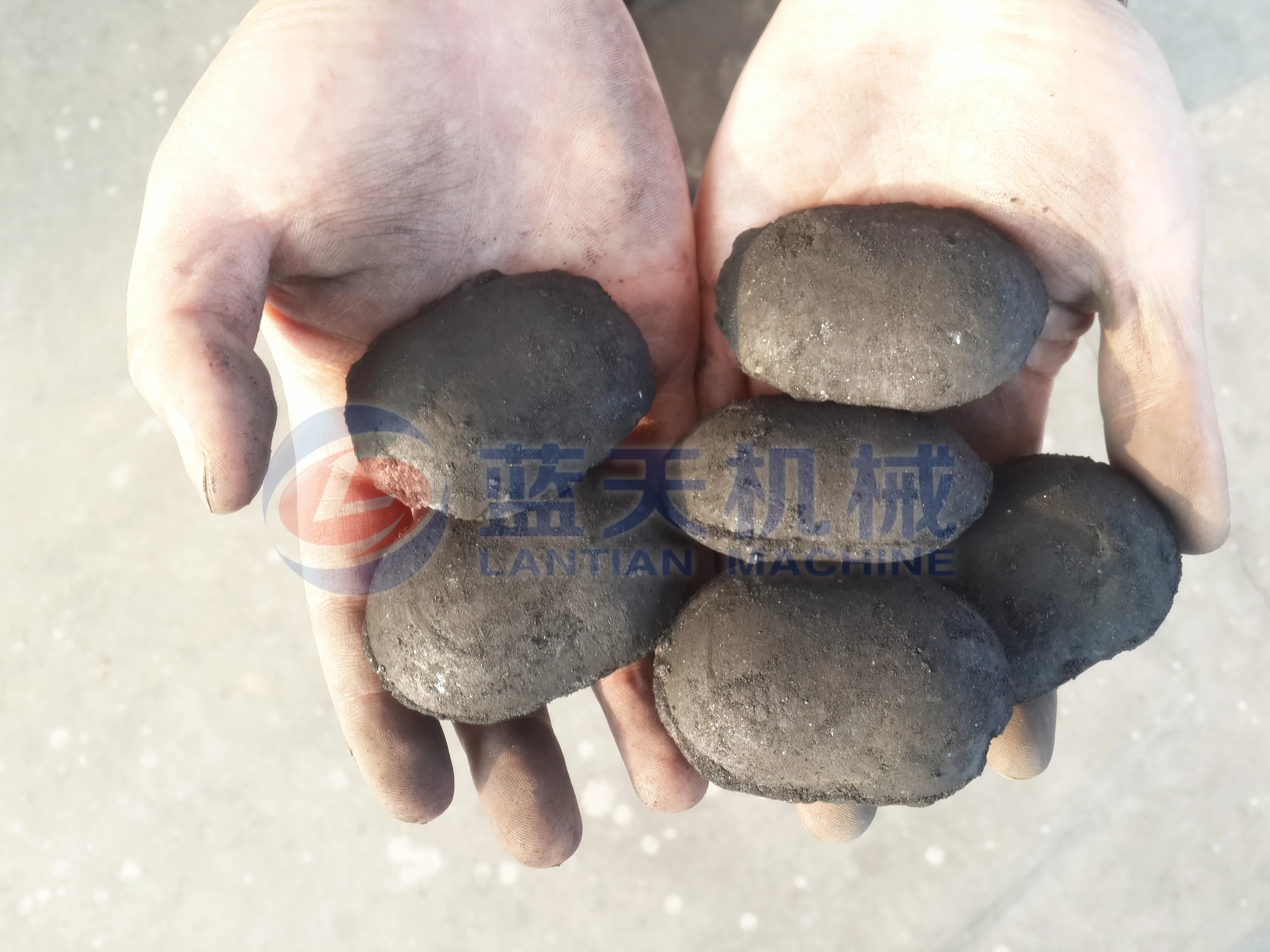

7) the end products shapes include oval, round, square, ball egg-shaped and pillow-shaped.
2) the service life of wearing parts is up to 4000 hours;
3) the machines electricity cost reduces by 60%;
4) the automatic sawdust briquette machine is easy to operate and maintain;
5) the molding material is energy-saving, easy to transport and higher utilization of waste;
6) the final product is smokeless, non-toxic, none peculiar and environmental protection;
7) the end products shapes include oval, round, square, ball egg-shaped and pillow-shaped.

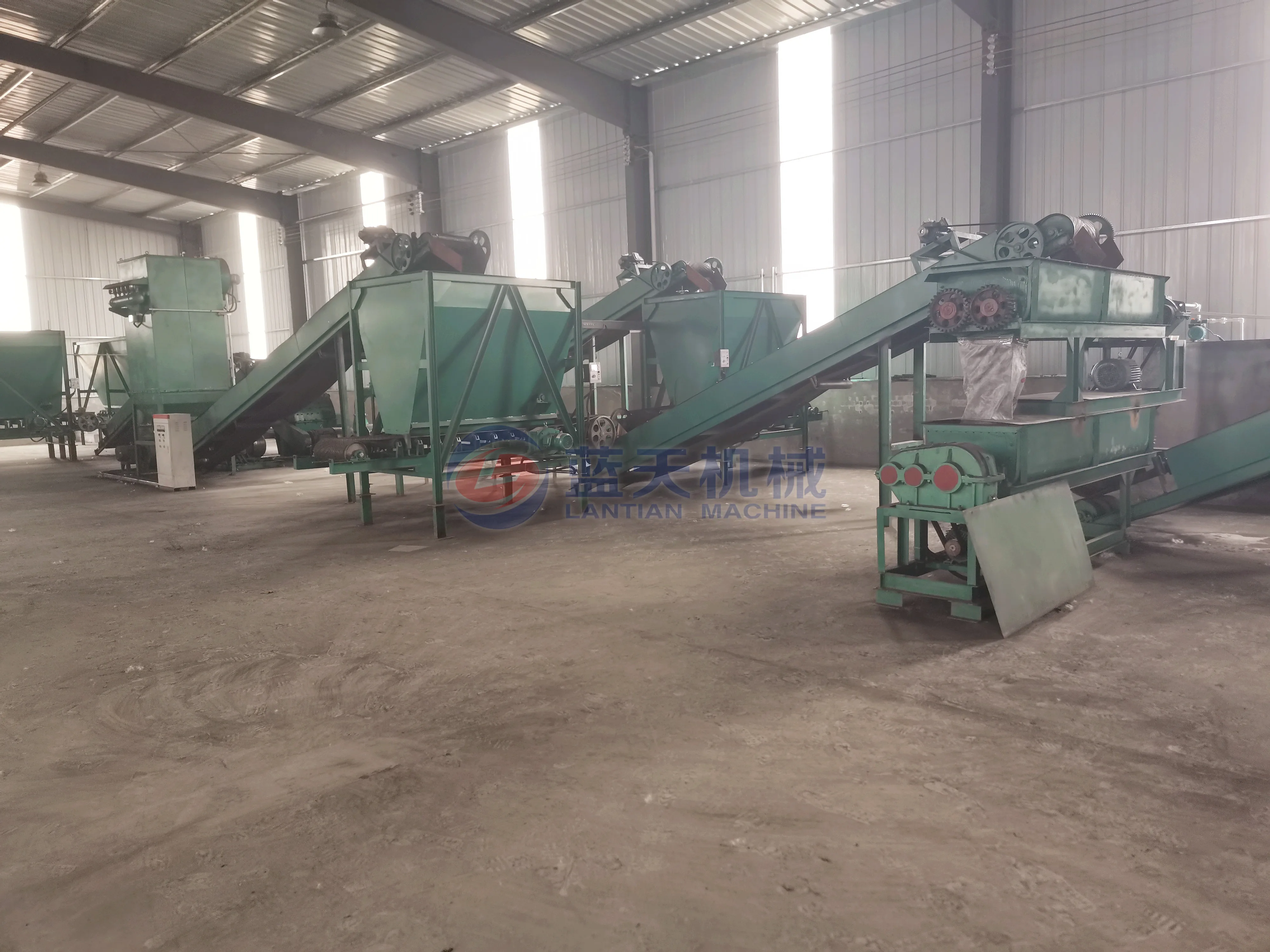

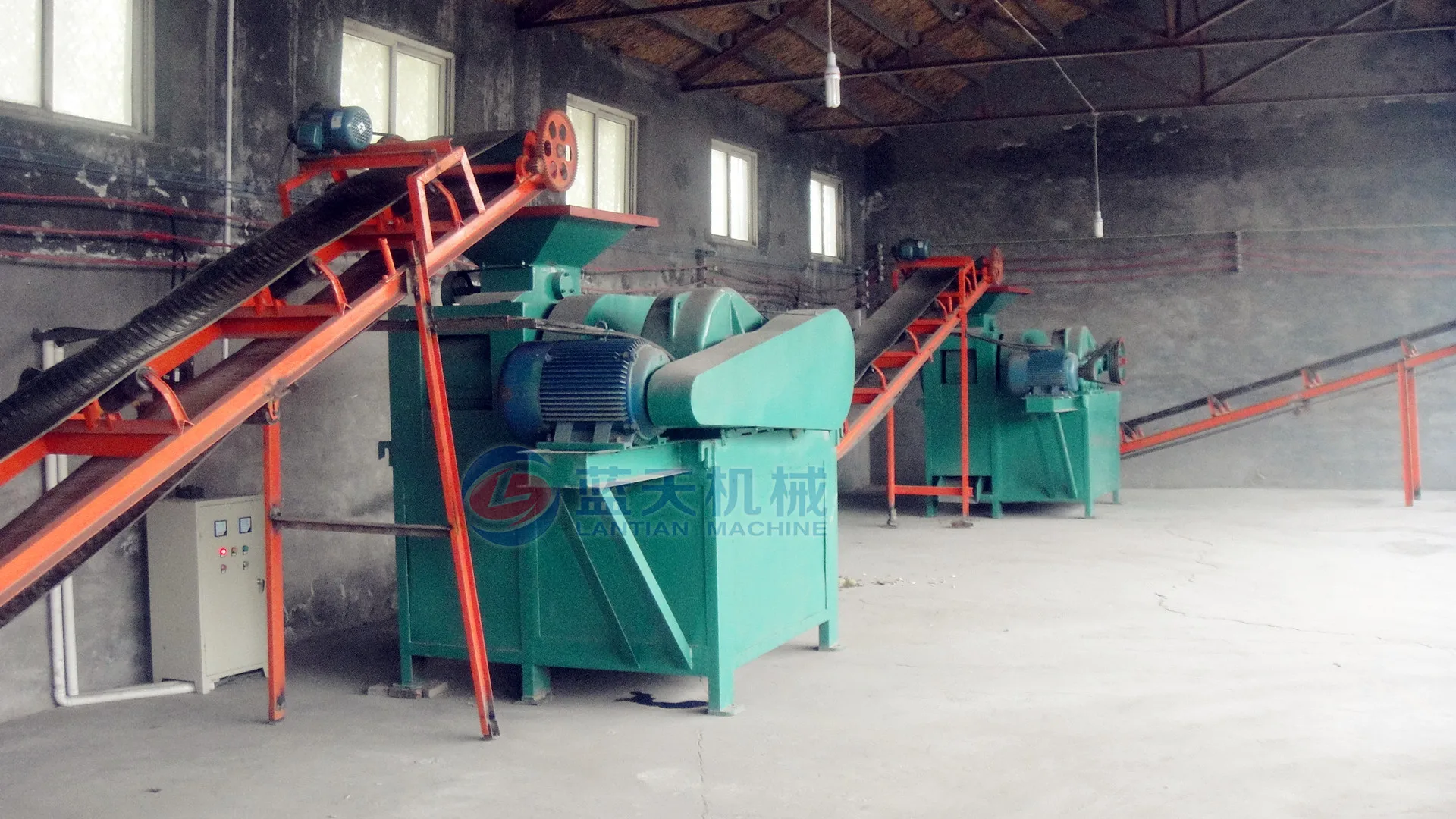

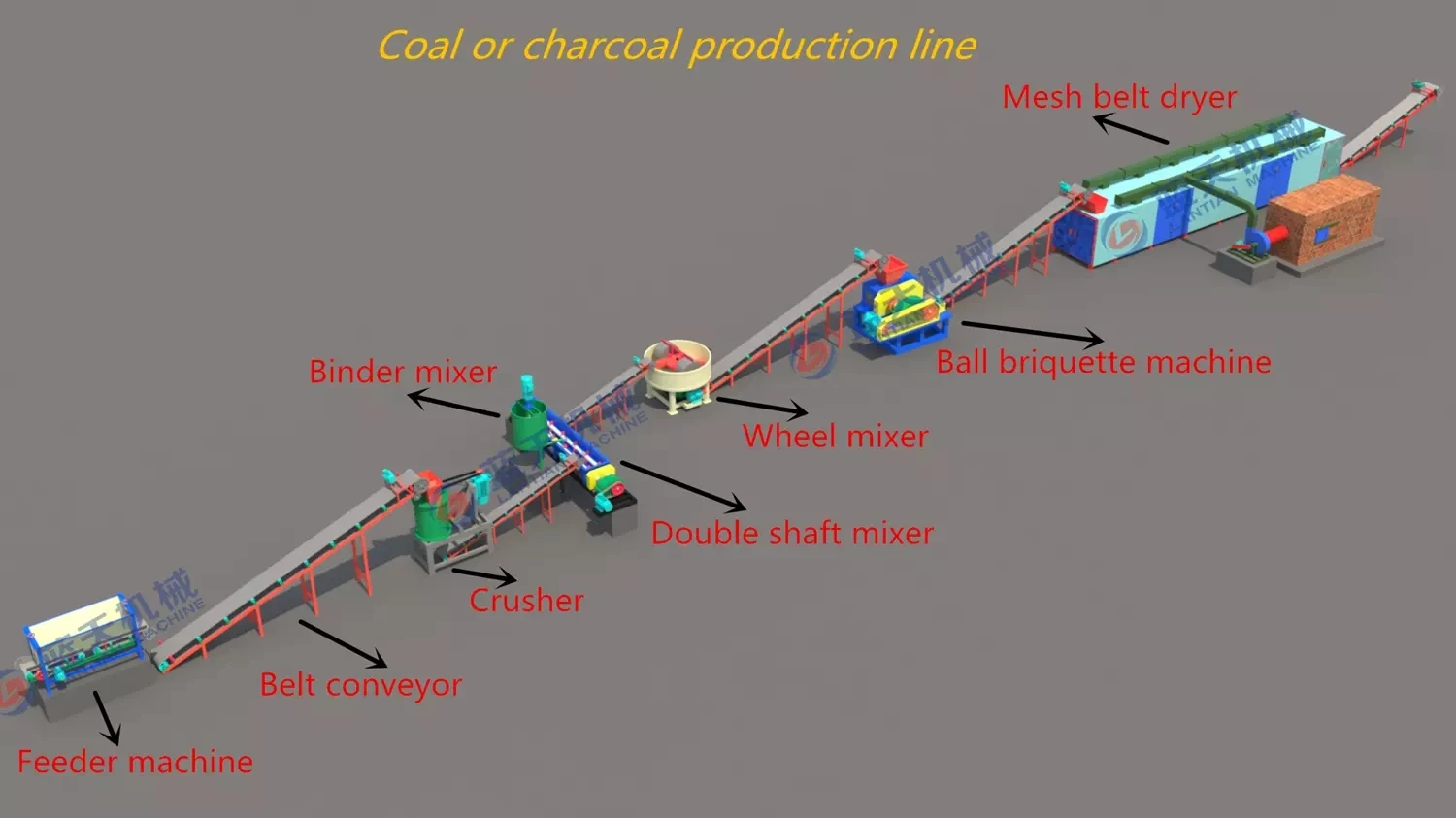

Production line
Owing to different customer have different needs, material, moisture, output, so we will design suitable production line for each customer, but i can explain roughly production line, for example we use charcoal as raw material.
1). Make your material become charcoal by carbonizing.
2). Crush charcoal into powder less than 1mm.
3). Owing to charcoal have no stickiness, so need add some binder into it and mix.
4). Use automatic sawdust briquette machine to moulding briquette into different shapes and sizes.
5). The last but not least is make final briquette dry, then it will become very hardness.
1). Make your material become charcoal by carbonizing.
2). Crush charcoal into powder less than 1mm.
3). Owing to charcoal have no stickiness, so need add some binder into it and mix.
4). Use automatic sawdust briquette machine to moulding briquette into different shapes and sizes.
5). The last but not least is make final briquette dry, then it will become very hardness.
Related Products
Company Introduction
Henan Lantian Machinery Manufacture Co.,Ltd is specilize in producing charcoal machine, there are many useless material in the world, our machine can make these material recycling use, and make high profit for user. Our equipment can make charcoal or briquette from waste material, like use waste production. Since our company's inception, has high credibility. And we help customers choose and design the best quality product line for different types machine. Our machine sold at home and abroad. Also, we supply those certifications like CE ISO9001, CO, Form E, COC, CIQ, to help customers from different countries clearance.

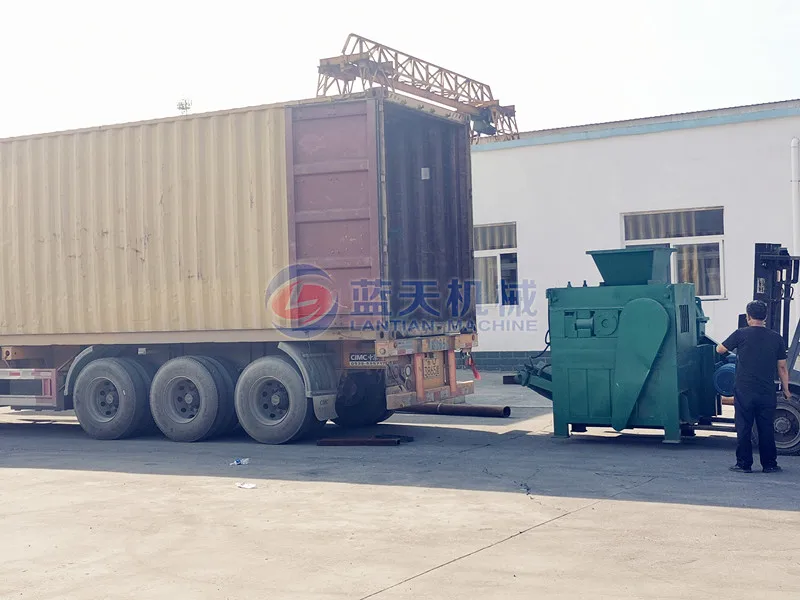

Packing&Shipping
1.Payment :40% TT in advance, 60%TT balance pay off before delivery;

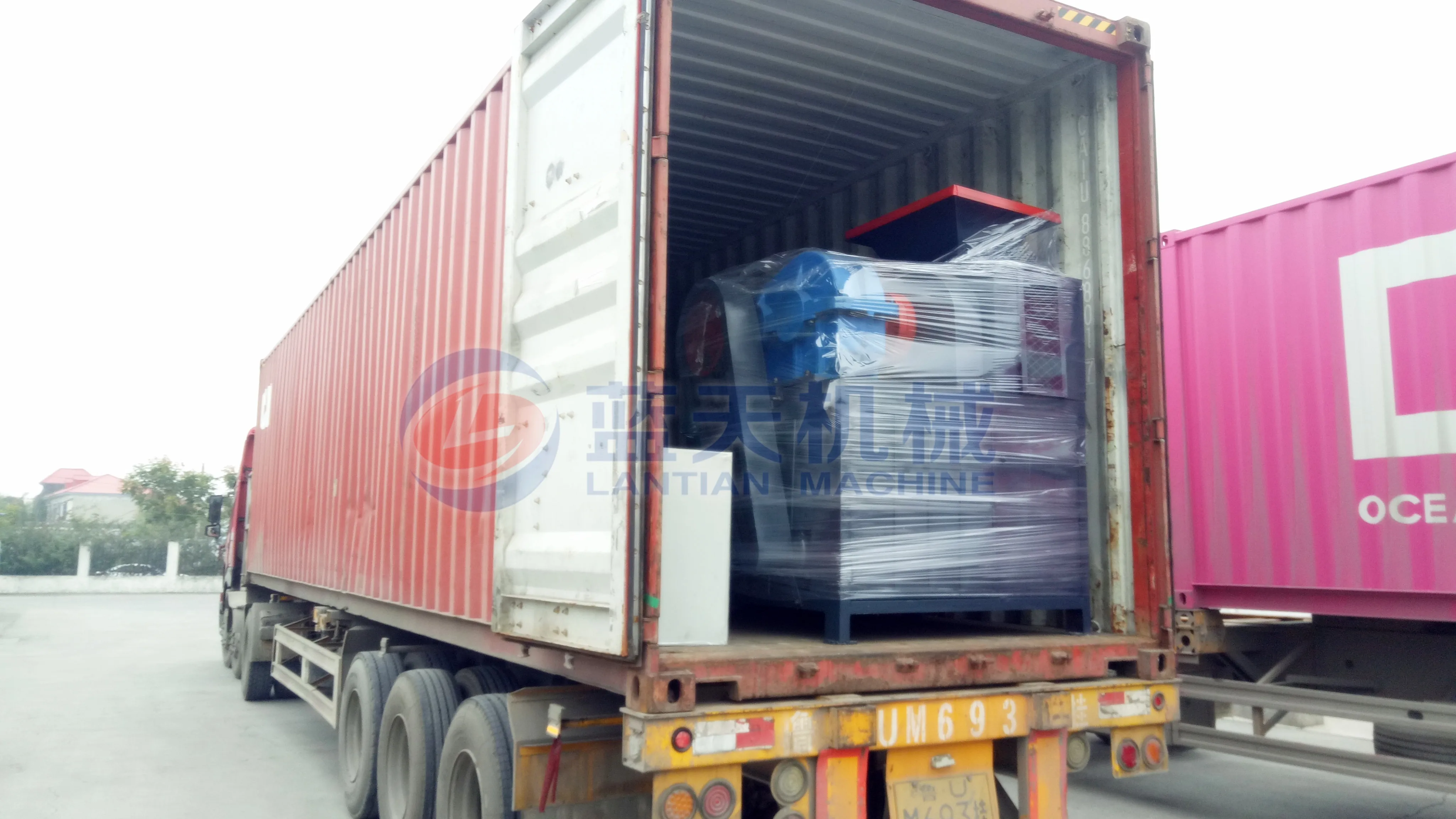

2.Packing: The automatic sawdust briquette machine and wear parts will protected by plywooden box or as customers’ will;
(1).All the automatic sawdust briquette machine will be wrapped up with plastic film first (including the motor);
(2).The plastic film bag wrapped automatic sawdust briquette machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements);
(3).The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3.Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate;
4.Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
2.Packing: The automatic sawdust briquette machine and wear parts will protected by plywooden box or as customers’ will;
(1).All the automatic sawdust briquette machine will be wrapped up with plastic film first (including the motor);
(2).The plastic film bag wrapped automatic sawdust briquette machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements);
(3).The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
3.Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate;
4.Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
