Logging equipment self loading log truck log loader for sale
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (1600255239373):
Product Overview
Description
Product Features
Equipped with Cummins engine with strong power and high reliability.
All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.
The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.
New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.
Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.
Low pressure and wide bias tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.
All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.
The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.
New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.
Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.
Low pressure and wide bias tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.

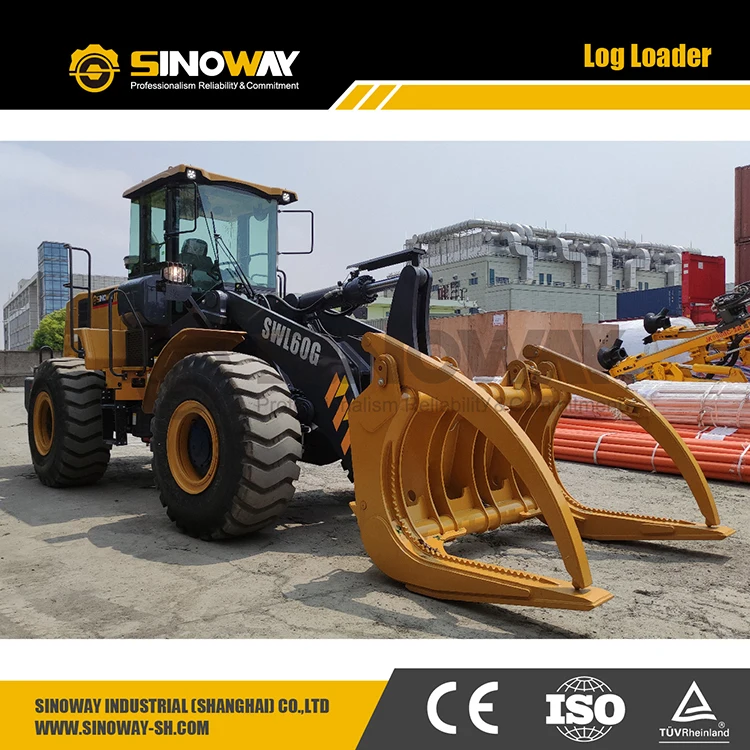

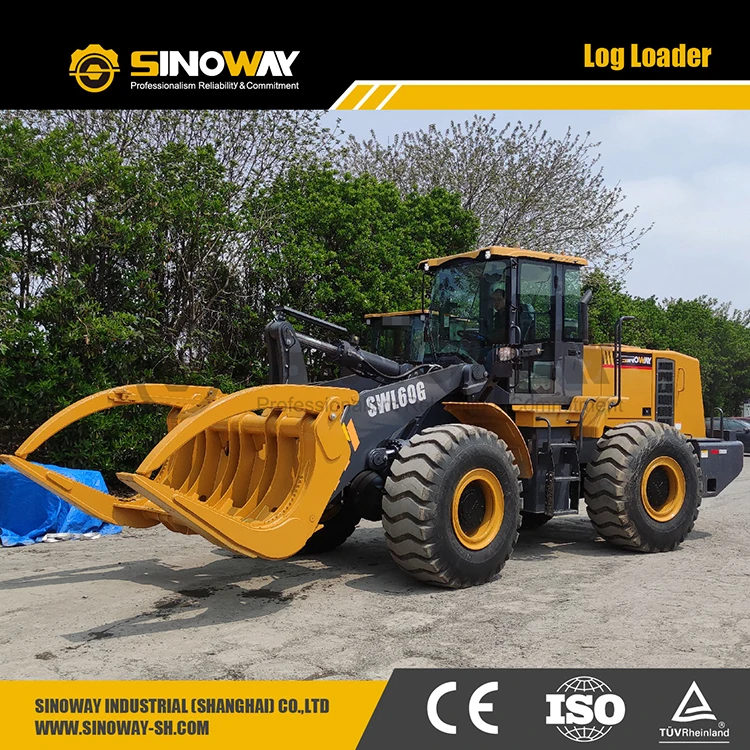

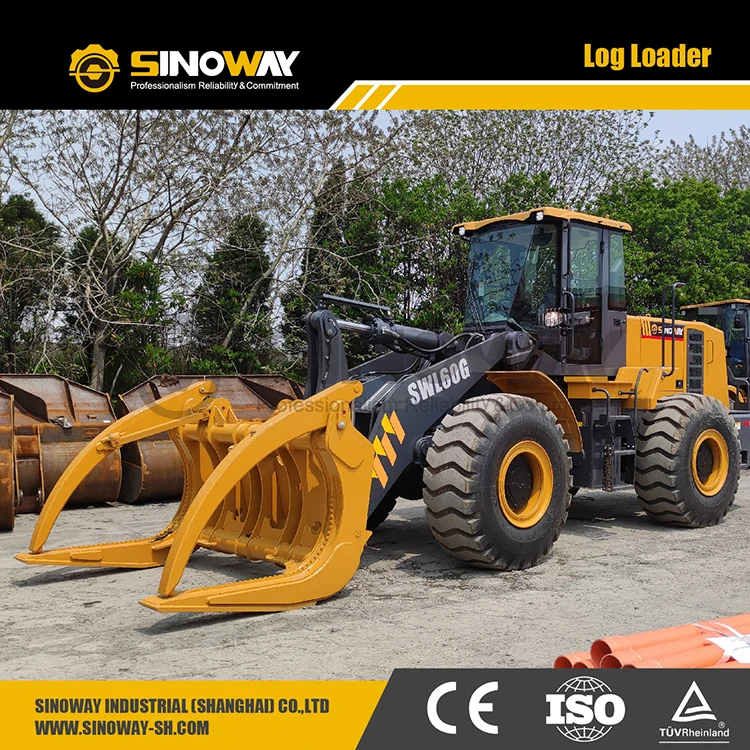

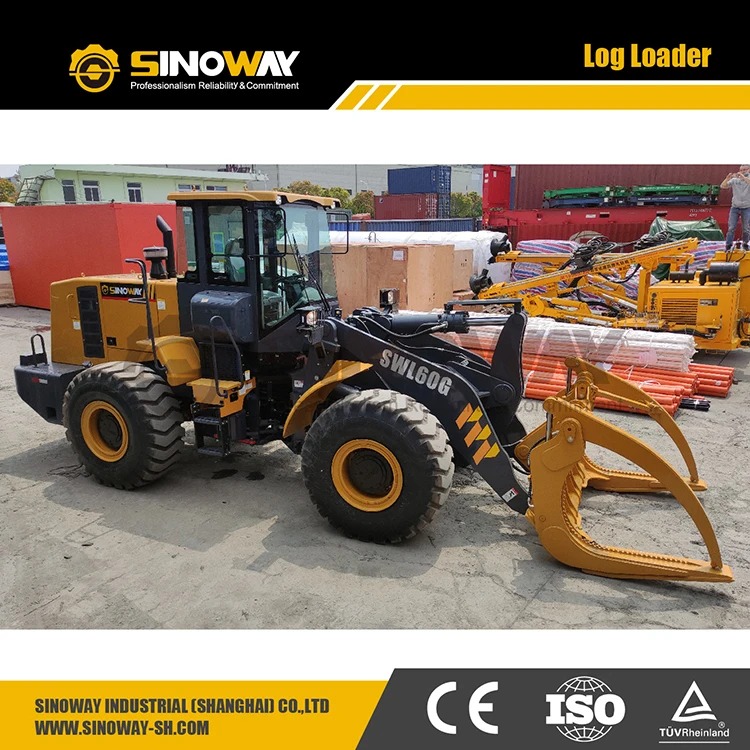

Product Show
Product Paramenters
Overall length | 8505mm |
Machine width | 2860mm |
Bucket width | 3220mm |
Overall height | 3515mm |
Axle base | 3350mm |
Wheel base | 2265mm |
Minimum ground clearance | 440mm |
Rated working load | 6000kg |
Operating weight | 20000±300kg |
ForwardⅠ/Ⅱ/Ⅲ/Ⅳ Gear | 6/11/20/34km/h |
ReverseⅠ/Ⅱ/Ⅲ Gear | 6/11/20/34km/h |
Maximum grade ability | 28° |
(Highest Unloading Position)Unloading angel | 43° |
(Highest Unloading Position)Unloading height | 3170mm |
(Highest Unloading Position)Unloading distance | 1200mm |
Bucket digging force | 205 kN |
Maximum digging depth | 82mm |
Boom lifting time | ≤5.9 |
Total cycling time | ≤10.9s |
(Minimum turning radius)Outside of bucket | 7100mm |
(Minimum turning radius)Tire center | 6005mm |
Machine steering angle | ±38° |
Tire specification | 23.5-25 |
Front wheel pressure | 0.44~0.46MPa |
Rear wheel pressure | 0.38~0.40MPa |
