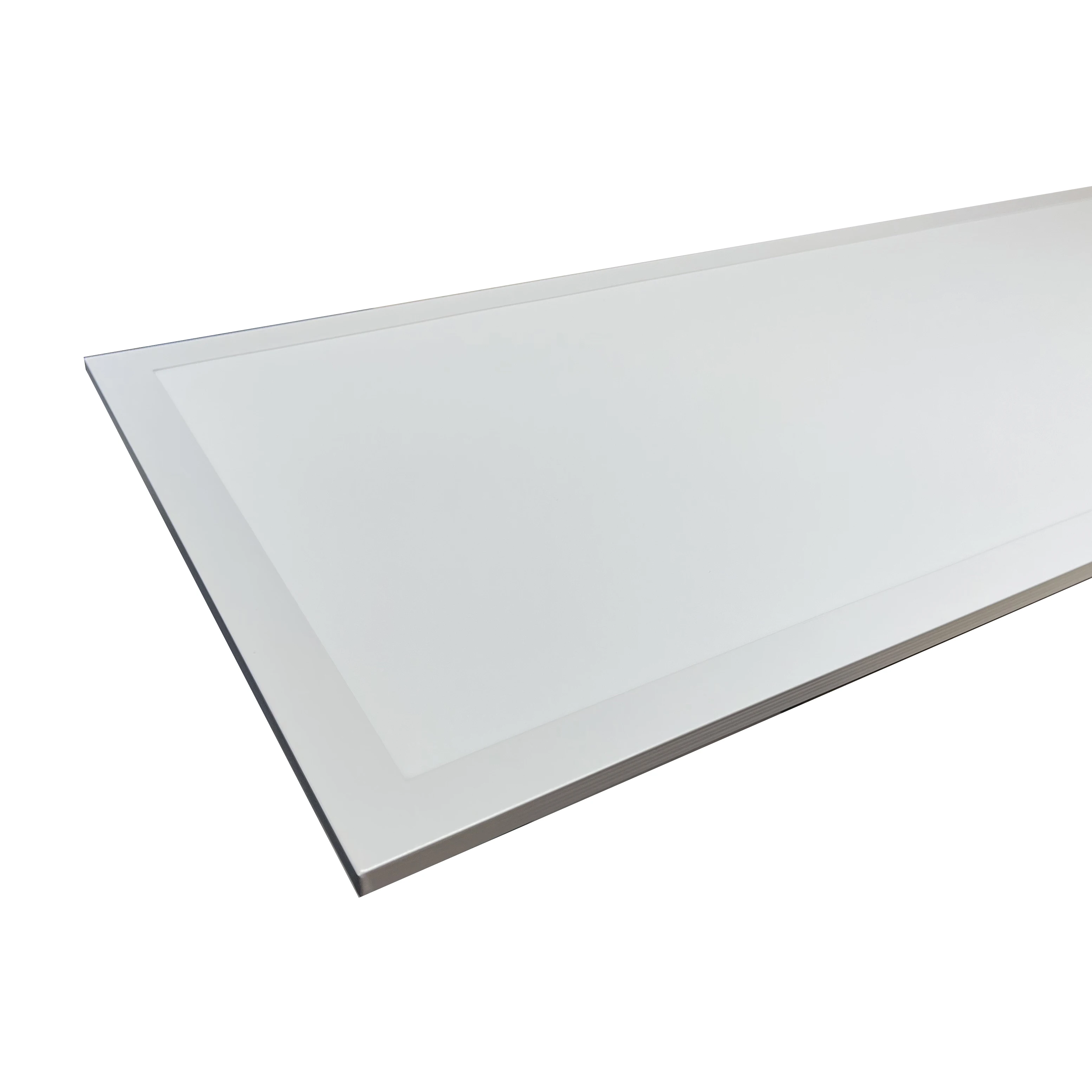

- Concise and clear appearance design, provide a beautiful and generous look.
- 100-240V/AC wide input voltage, suitable for any application.
- High lumen efficiency up to 120Lm/W, provide uniform light distribution, the light is soft and comfortable .
- Special spraying process, with very good anti-rust ability and high reflectivity.

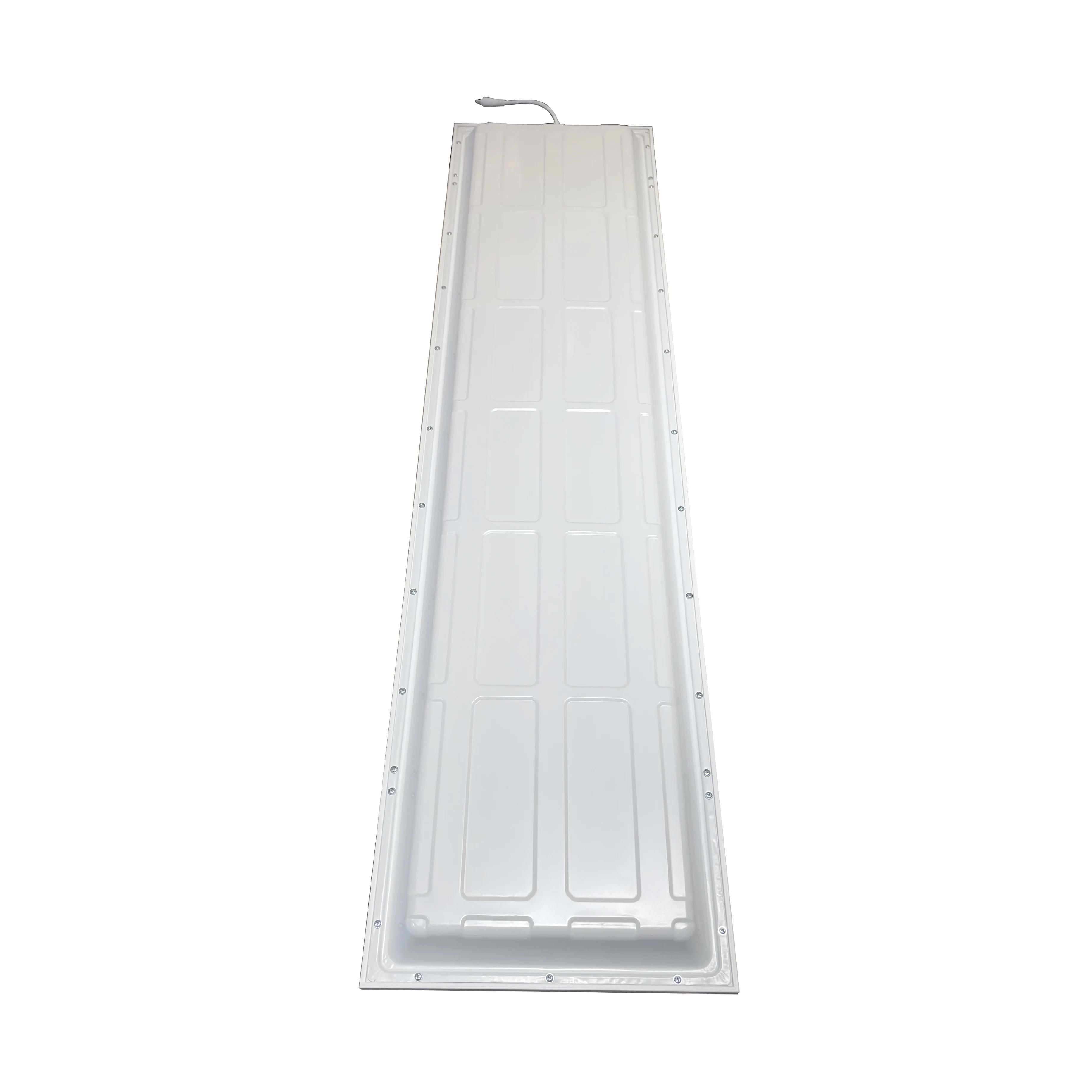

- Back-lit design makes no yellowing, no darkness area even after years using.

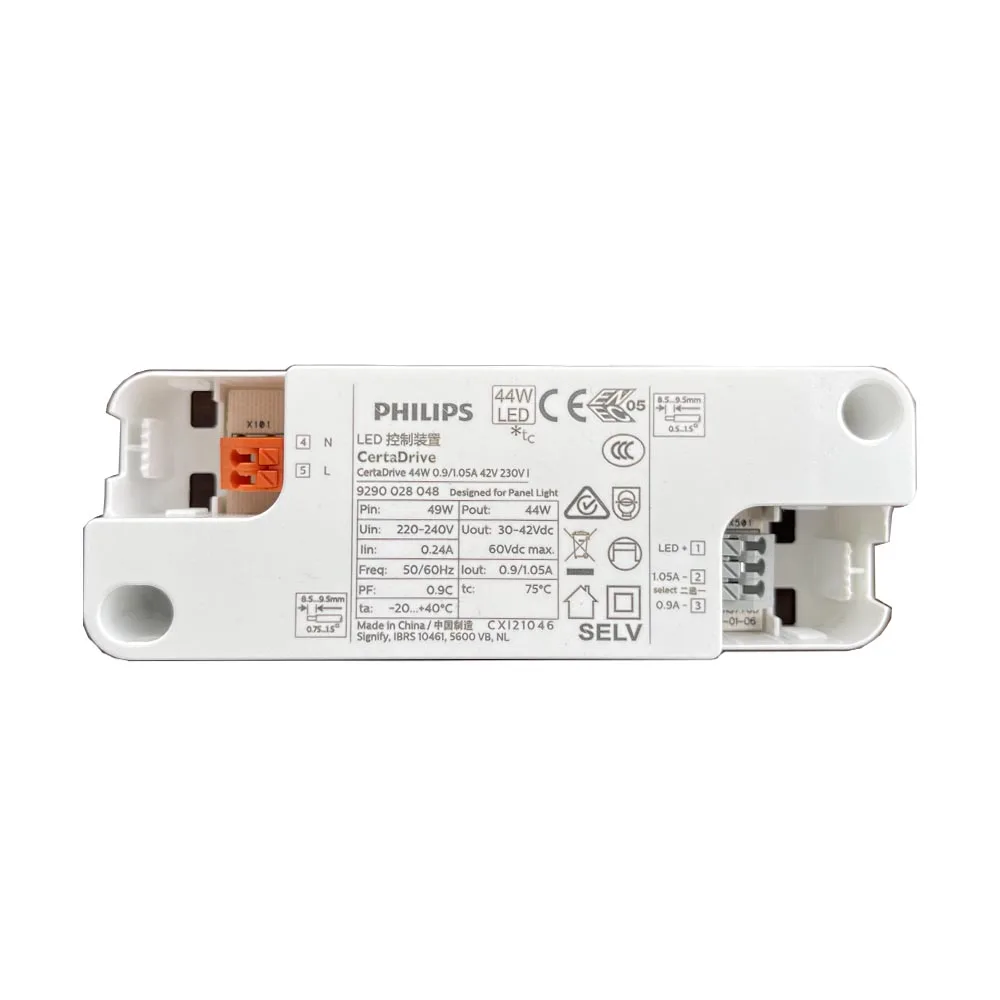

- Philips led driver with excellent performance, PF>0.95, flicker rate <3%, flicker free.
- It has OCP, CVP, SCP, OTR functions.
- 35,000H/ 5 Years warranty.
Specification
Item
YN-BLP40W30120-XXA

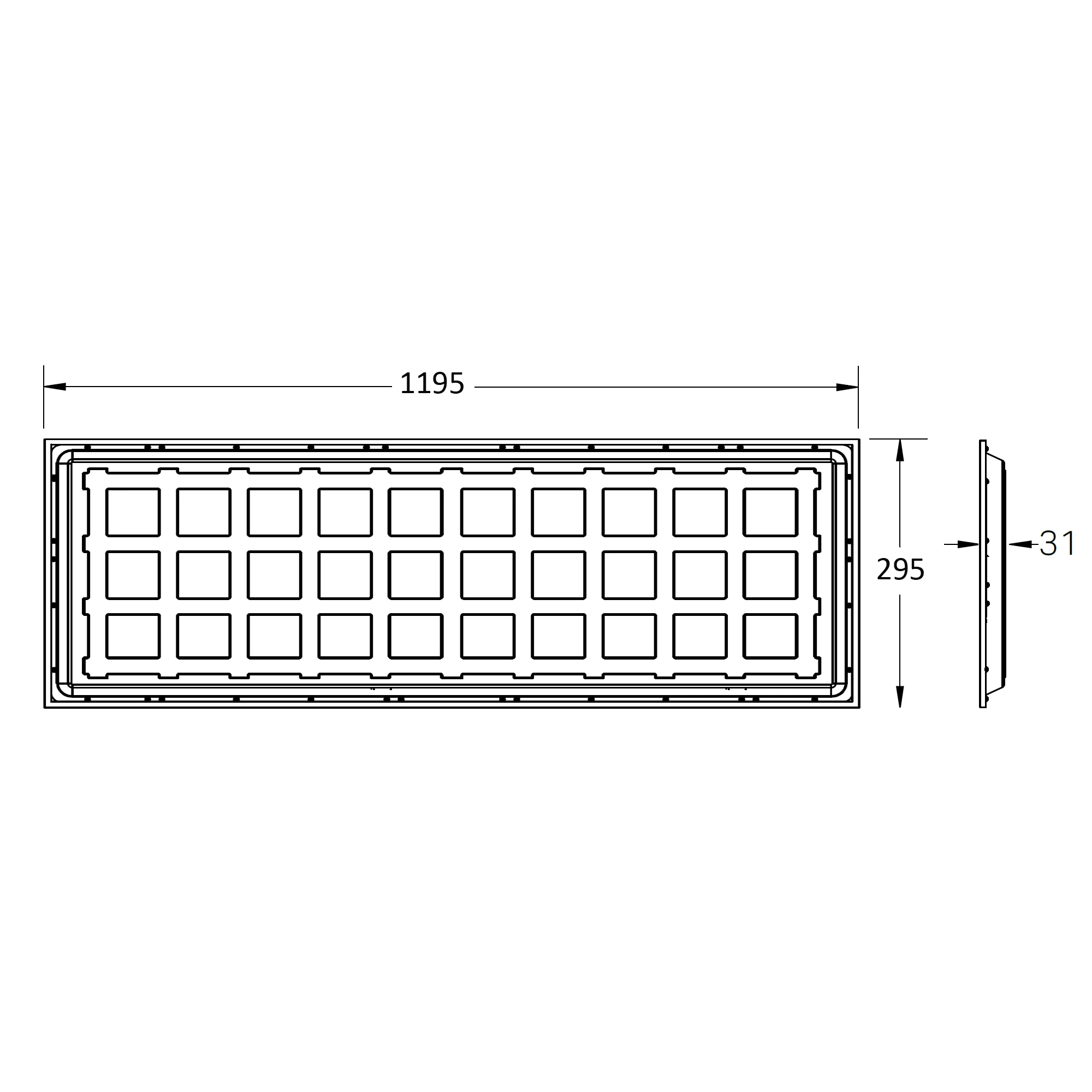

Dimension
295×1195×31mm
Input Voltage
AC100-240V/ AC200-240V
Output
50/60Hz 36V 1000mA
Power
40W
LED Chip
SMD2835 9V 100mA
Lumen
4,800lm
Efficiency
120lm/W
CCT
3000K 4000K 6500K
CRI
>80
Power Factory (PF)
>0.95

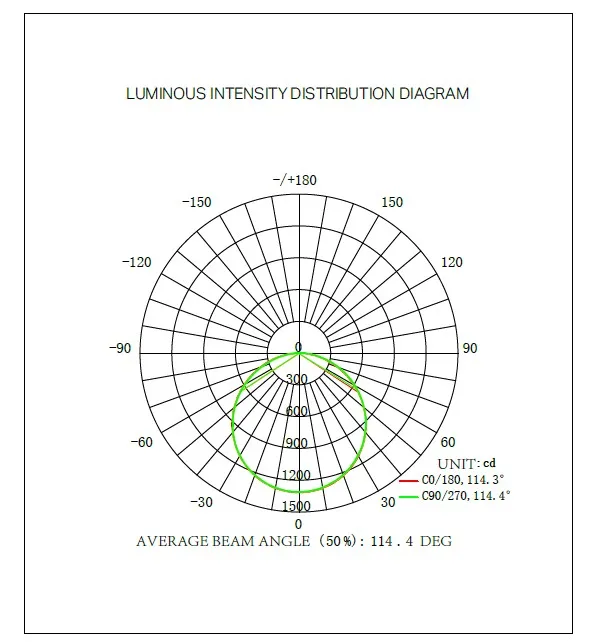

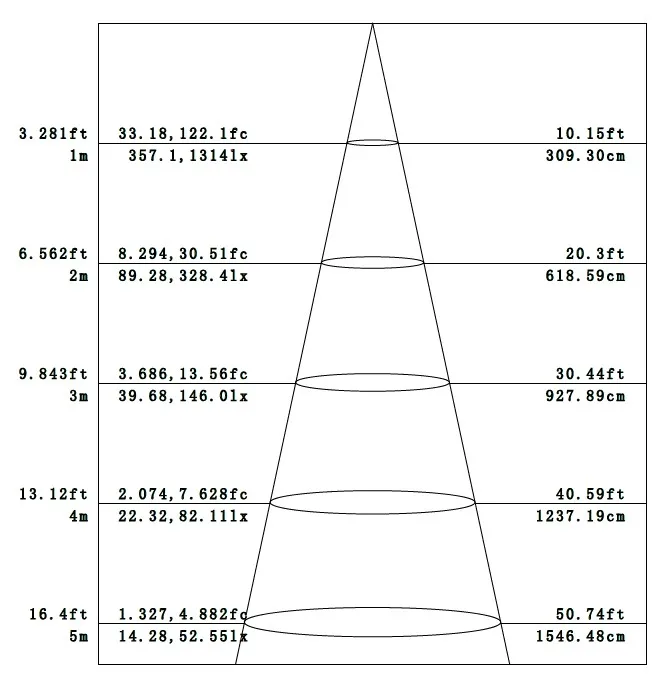

Beam Angle
120°
Dimmable
2.4G dimmable for optional
Material
Aluminium, PS
IP Rating
IP20 (IP65 can be customzied)
Operating Temperature
-20℃– 60℃
Lifetime
35,000 hours
Warranty
5 years
Model#
Voltage
Power
Size
Lumens
CCT
Ra
PF
YN-BLP40W6060-30A
AC100-240V
40W
595×595×31mm
4400lm
3000K
>80
>0.95
YN-BLP40W6060-40A
AC100-240V
40W
595×595×31mm
4800Lm
4000K
>80
>0.95
YN-BLP40W6060-65A
AC100-240V
40W
595×595×31mm
4800Lm
6500K
>80
>0.95
YN-BLP40W30120-30A
AC100-240V
40W
295×1195×31mm
4400lm
3000K
>80
>0.95
YN-BLP40W30120-40A
AC100-240V
40W
295×1195×31mm
4800Lm
4000K
>80
>0.95
YN-BLP40W30120-65A
AC100-240V
40W
295×1195×31mm
4800Lm
6500K
>80
>0.95
YN-BLP60W60120-30A
AC100-240V
60W
595×1195×31mm
6600Lm
3000K
>80
>0.95
YN-BLP60W60120-40A
AC100-240V
60W
595×1195×31mm
7200Lm
4000K
>80
>0.95
YN-BLP60W60120-65A
AC100-240V
60W
595×1195×31mm
7200Lm
6500K
>80
>0.95
Packing & Delivery
Model#
Size
(mm)
Unit Weight
Carton Size
(cm)
G.W.
Qty/Ctn
Qty/20'
Qty/40'
YN-BLP40W6060-30A
595×595×31
1.75kg
65.5×26×66
11.8kg
6pcs
255ctns
628ctns
YN-BLP40W6060-40A
595×595×31mm
1.75kg
4800Lm
4000K
>80
>0.95
YN-BLP40W6060-65A
595×595×31mm
1.75kg
4800Lm
6500K
>80
>0.95
YN-BLP40W30120-30A
295×1195×31
1.80kg
126.5×26×33
12.3kg
6pcs
250ctns
620ctns
YN-BLP40W30120-40A
295×1195×31mm
1.80kg
4800Lm
4000K
>80
>0.95
YN-BLP40W30120-65A
295×1195×31mm
1.80kg
4800Lm
6500K
>80
>0.95
YN-BLP60W60120-30A
595×1195×31
3.50kg
126.5×26×66
23kg
6pcs
134ctns
320ctns
YN-BLP60W60120-40A
595×1195×31mm
3.50kg
7200Lm
4000K
>80
>0.95
YN-BLP60W60120-65A
595×1195×31mm
3.50kg
7200Lm
6500K
>80
>0.95

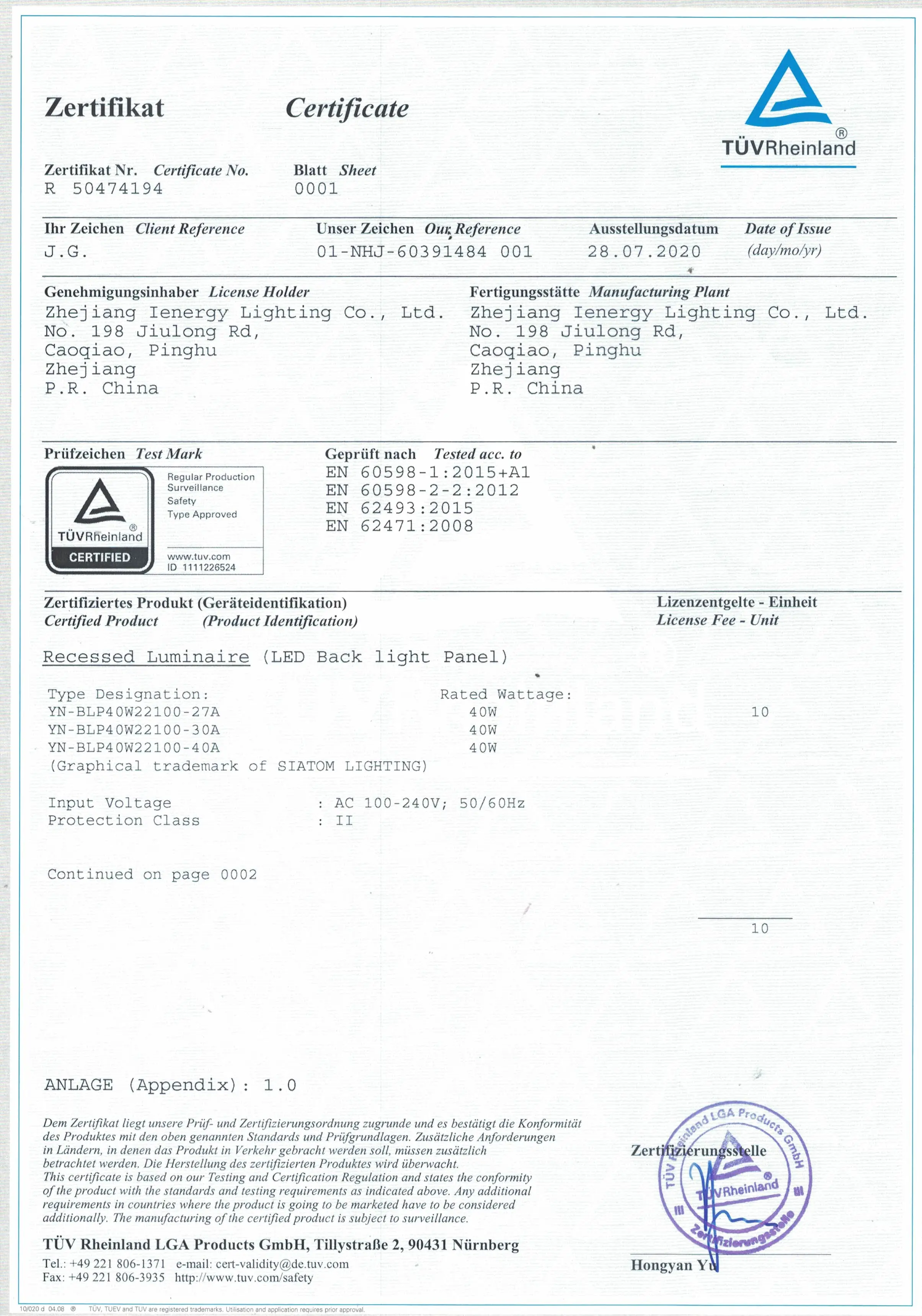

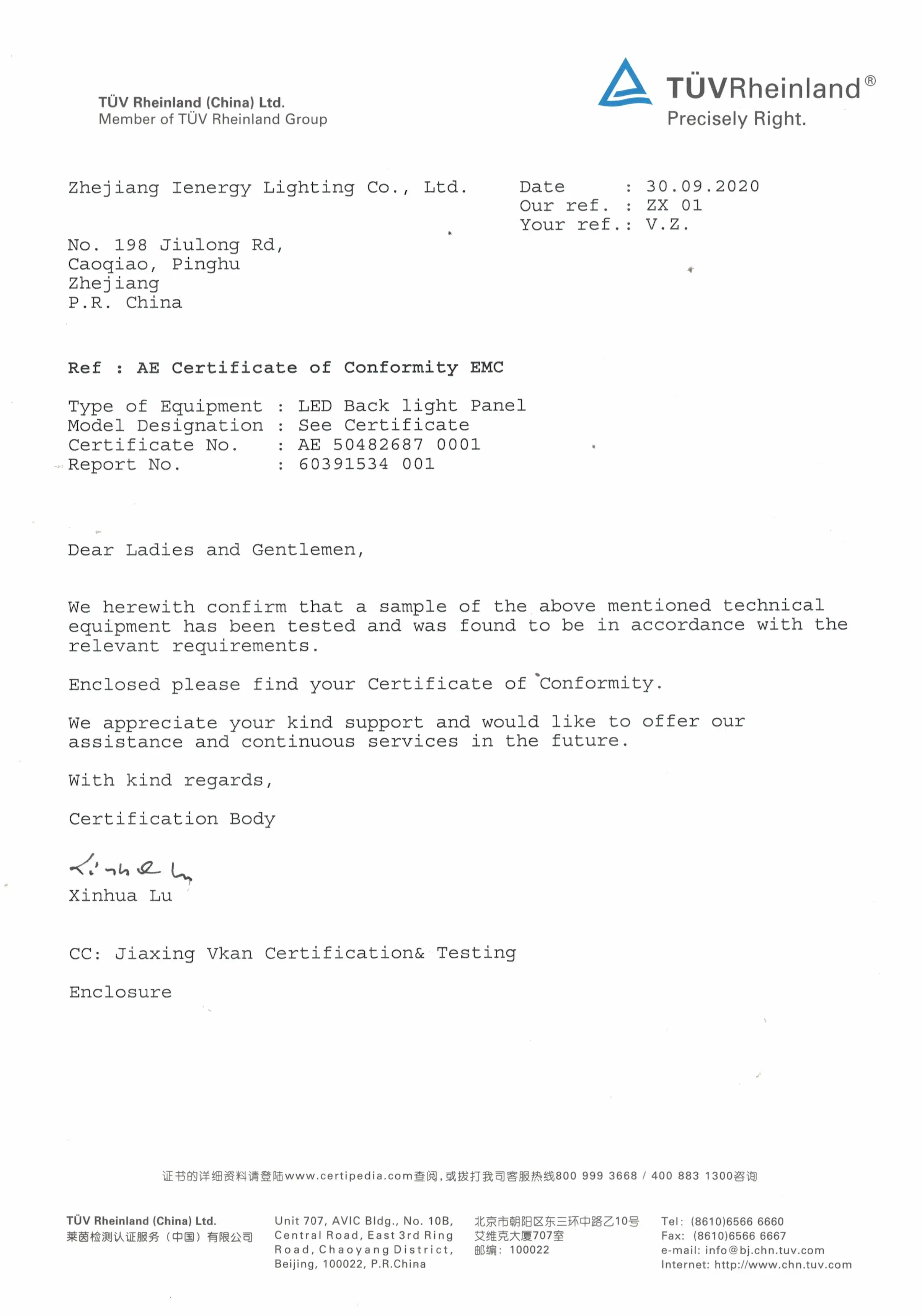

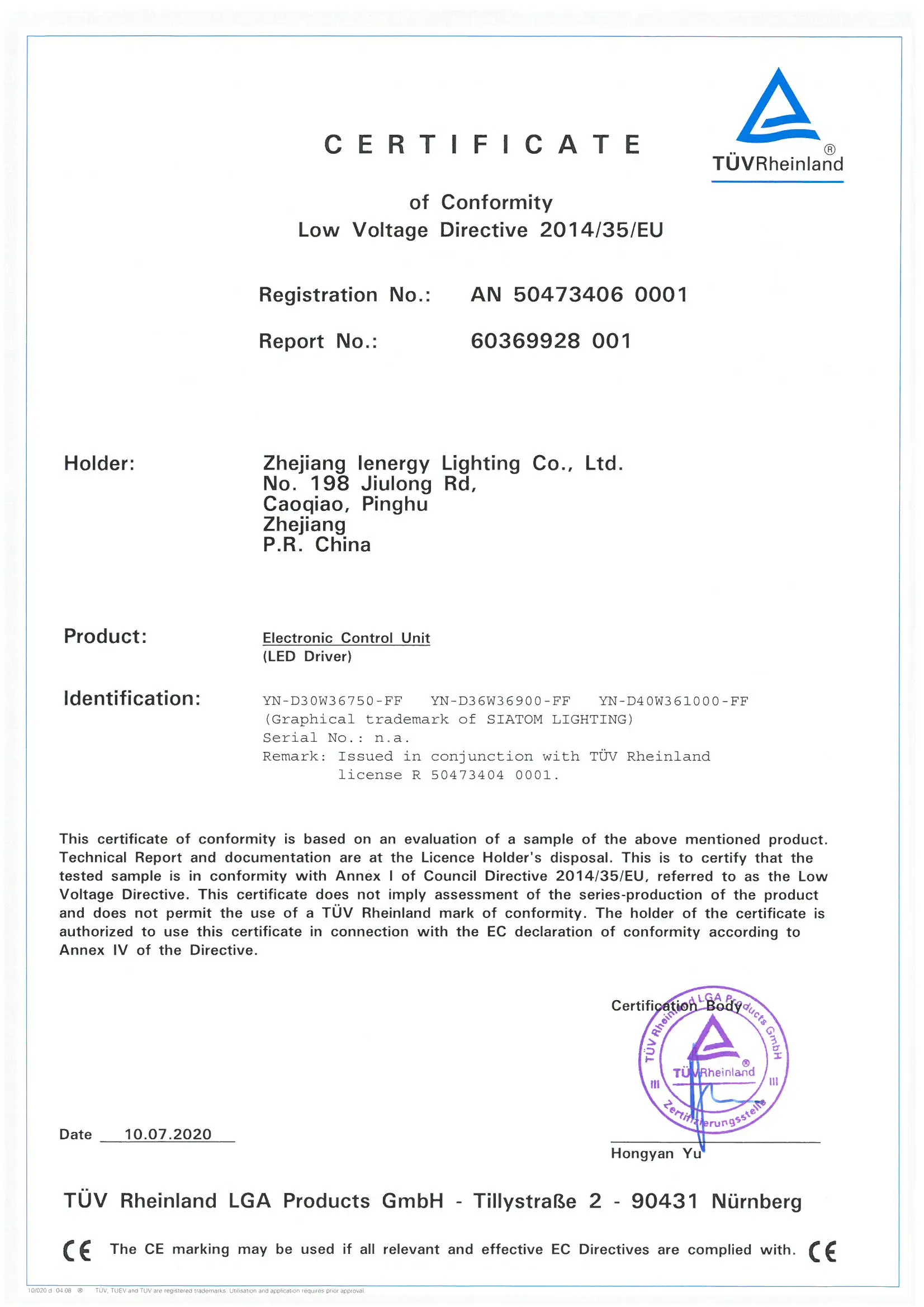

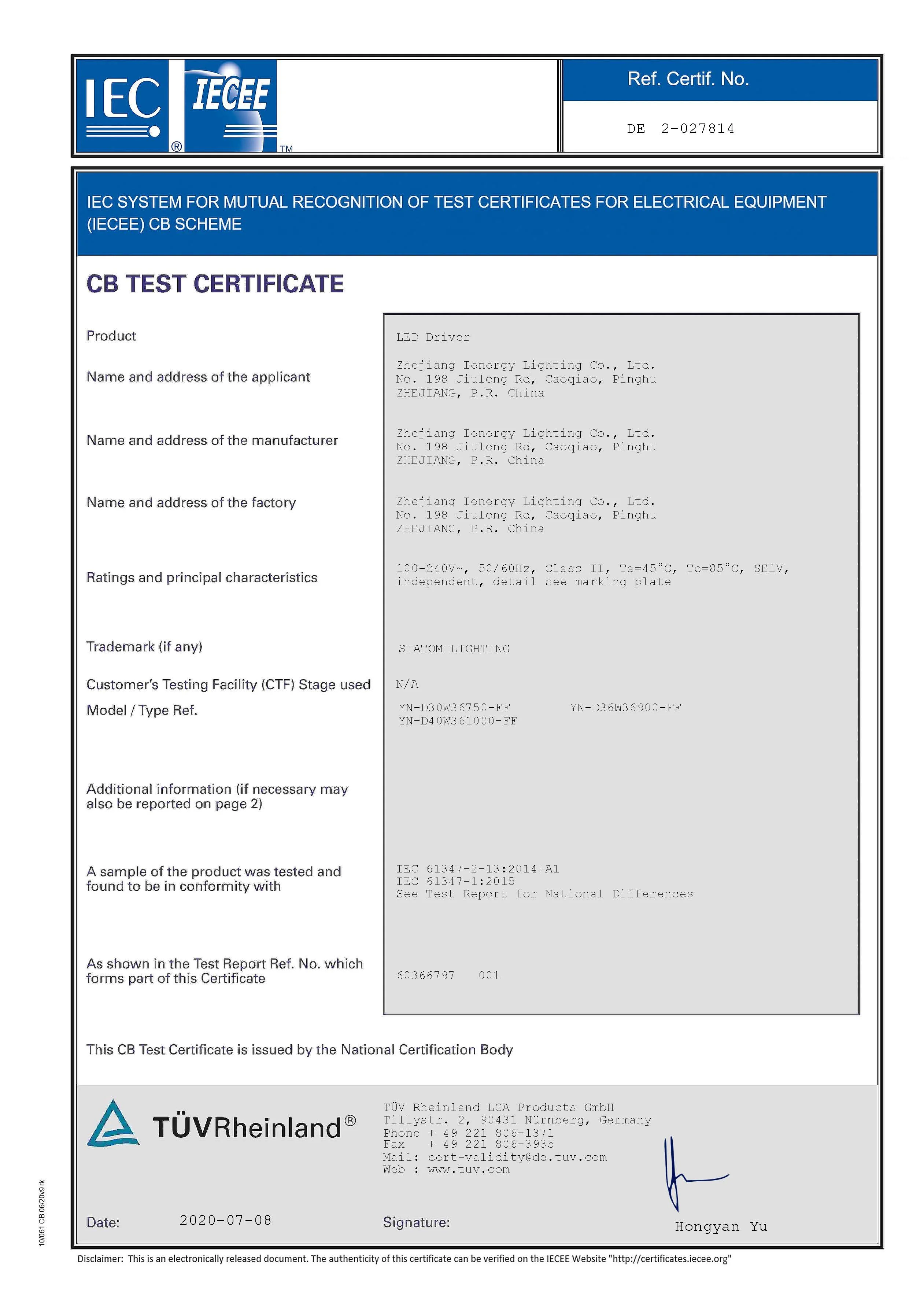

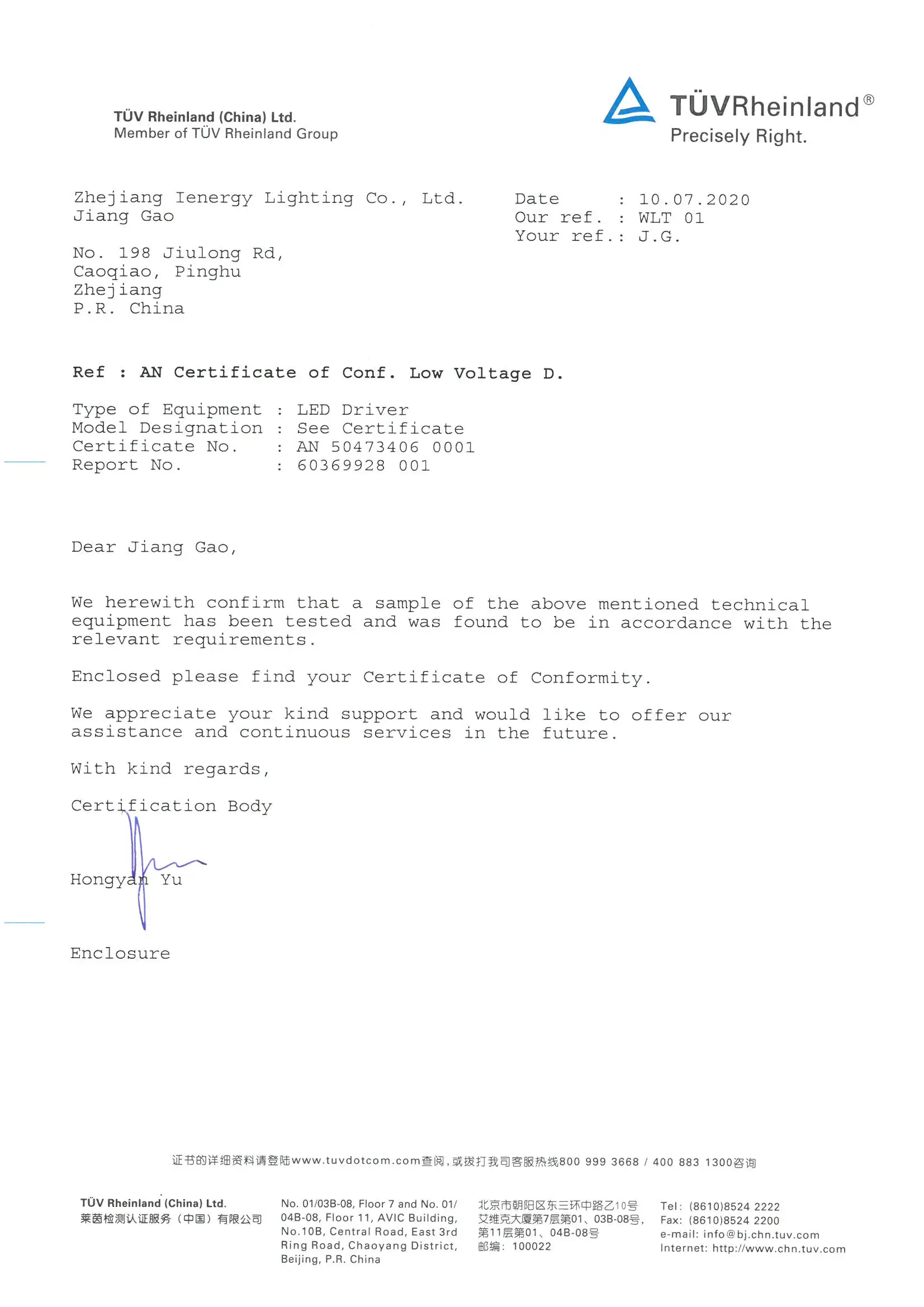

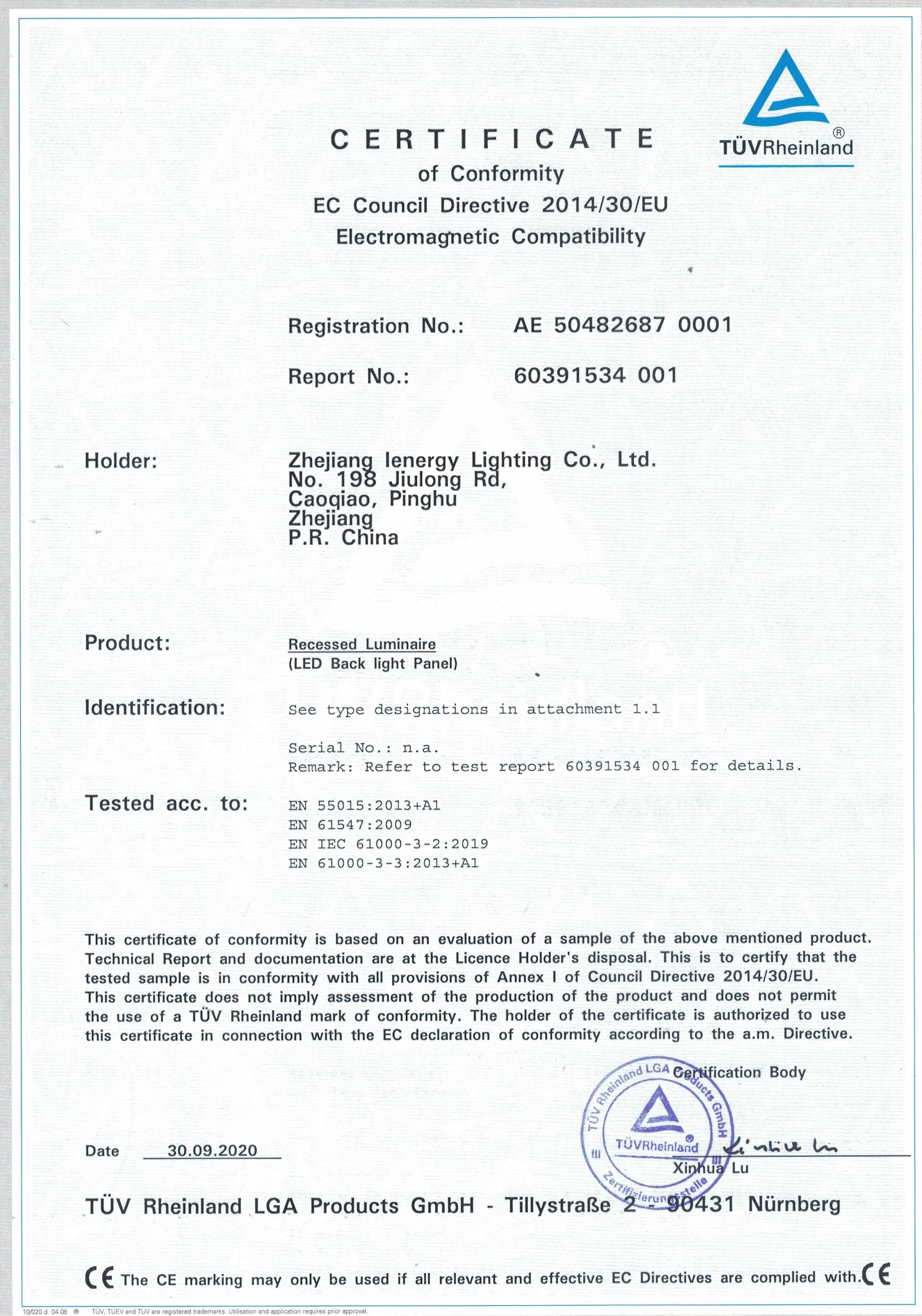

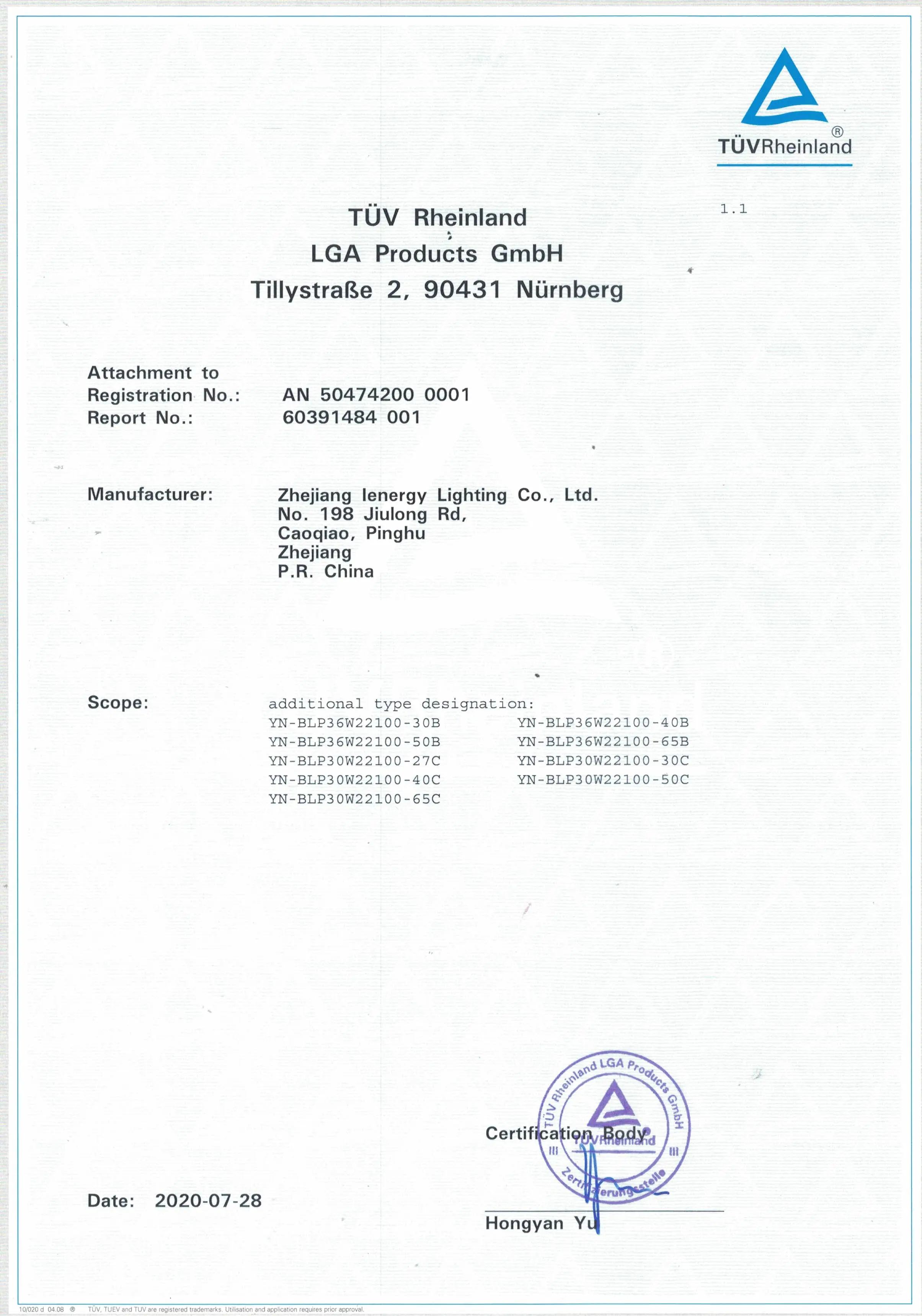

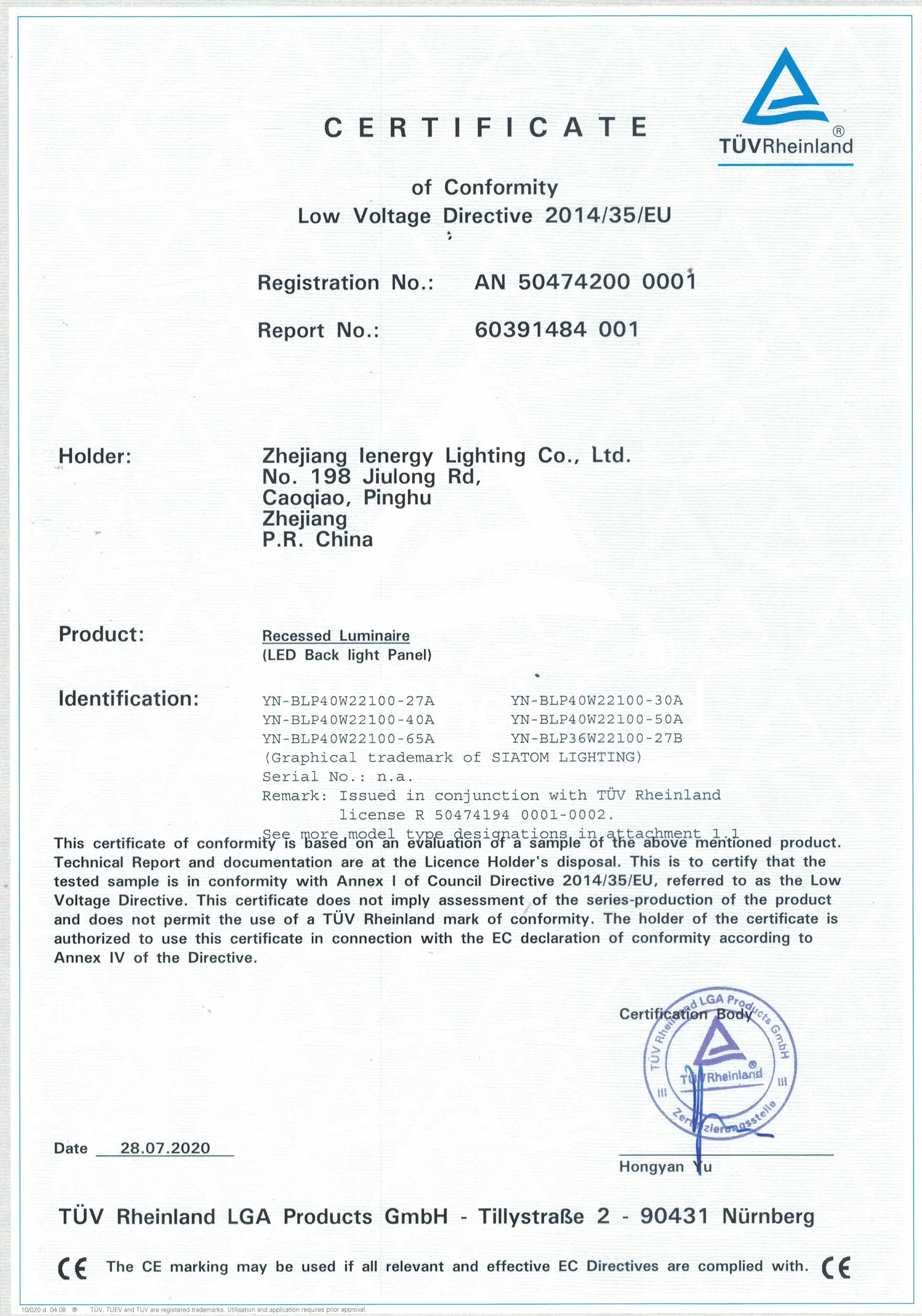

Certifications

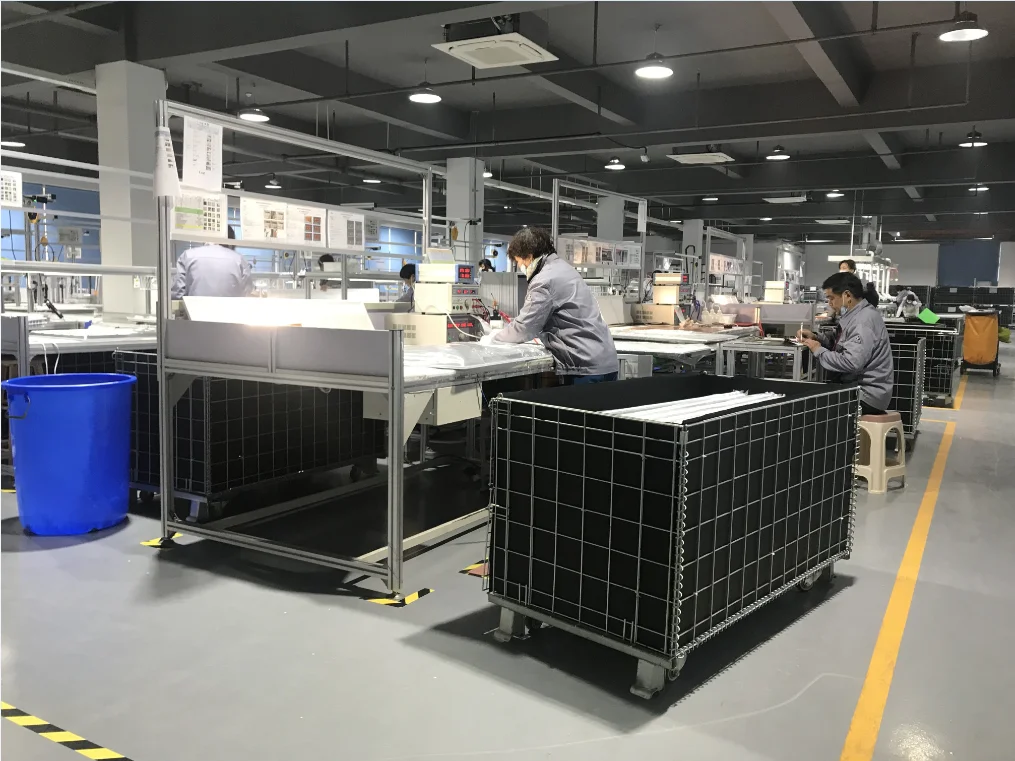

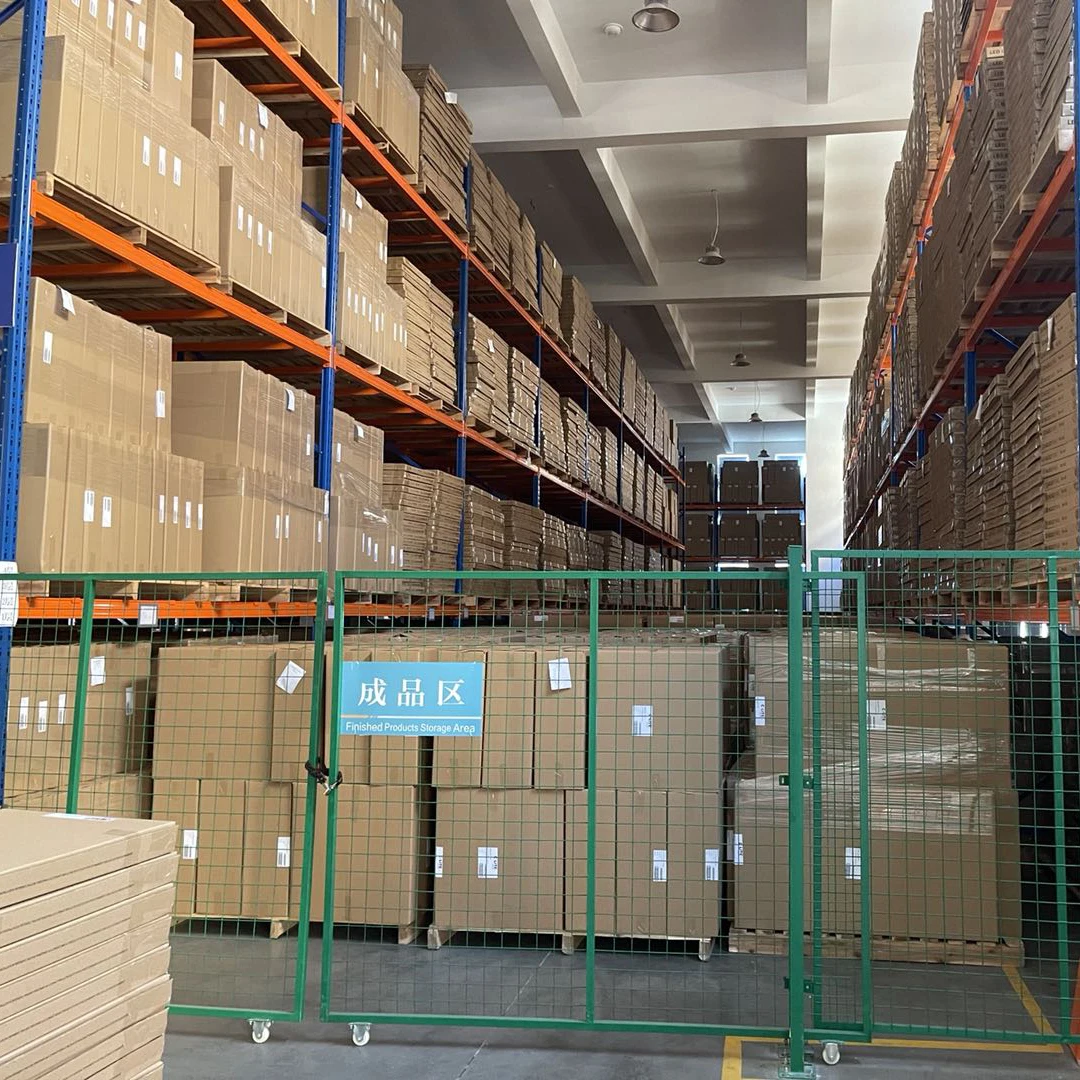

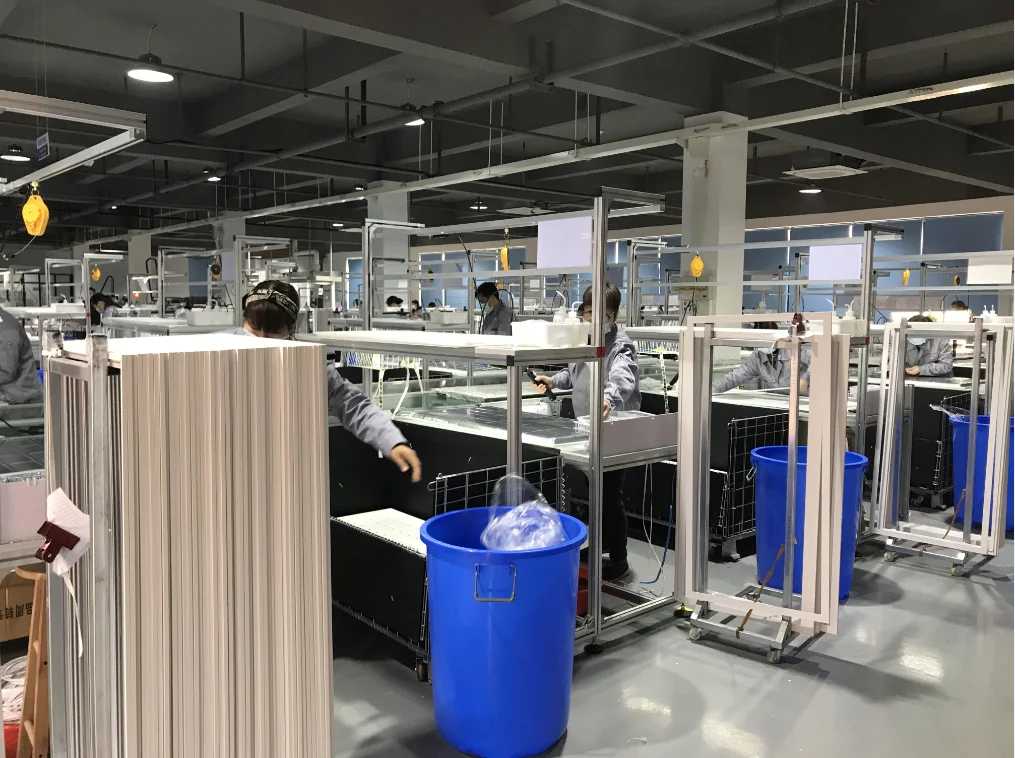

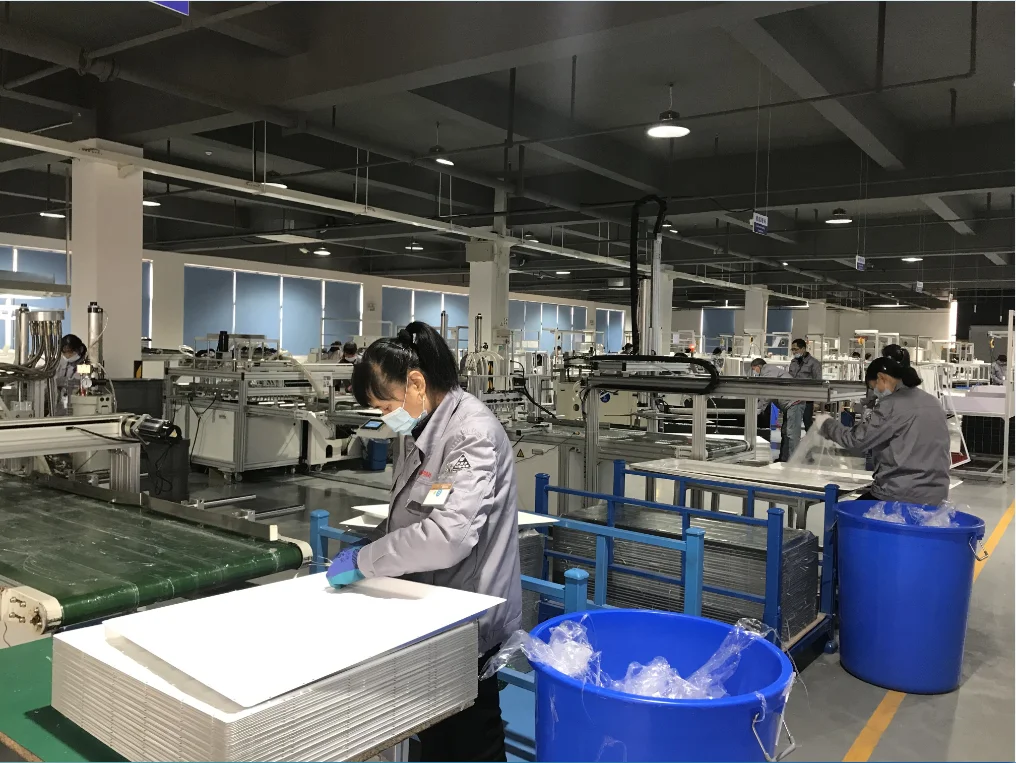

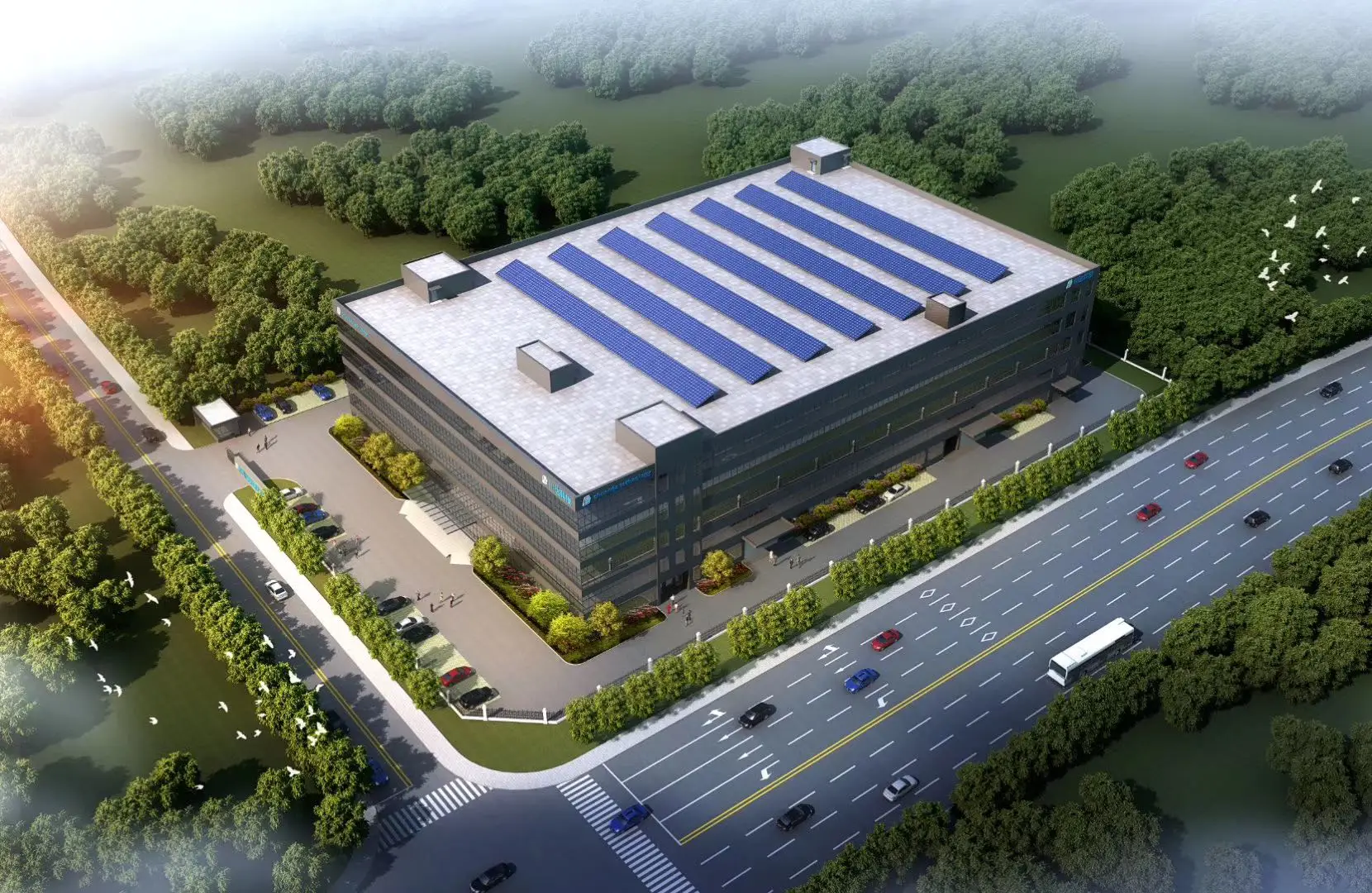

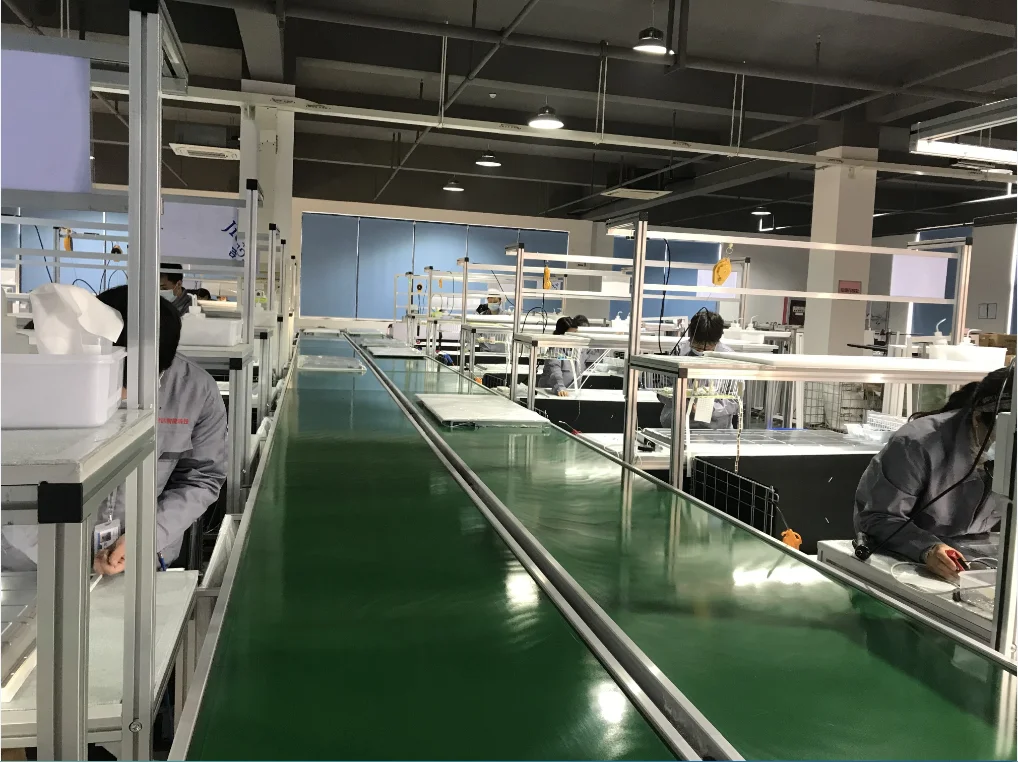

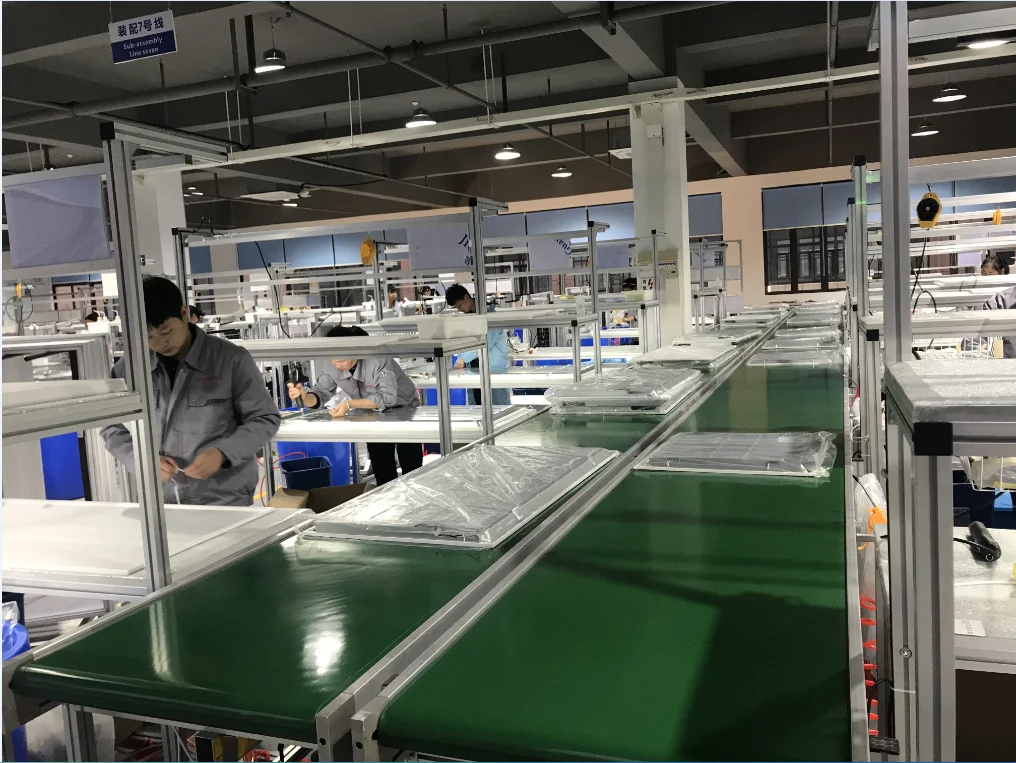

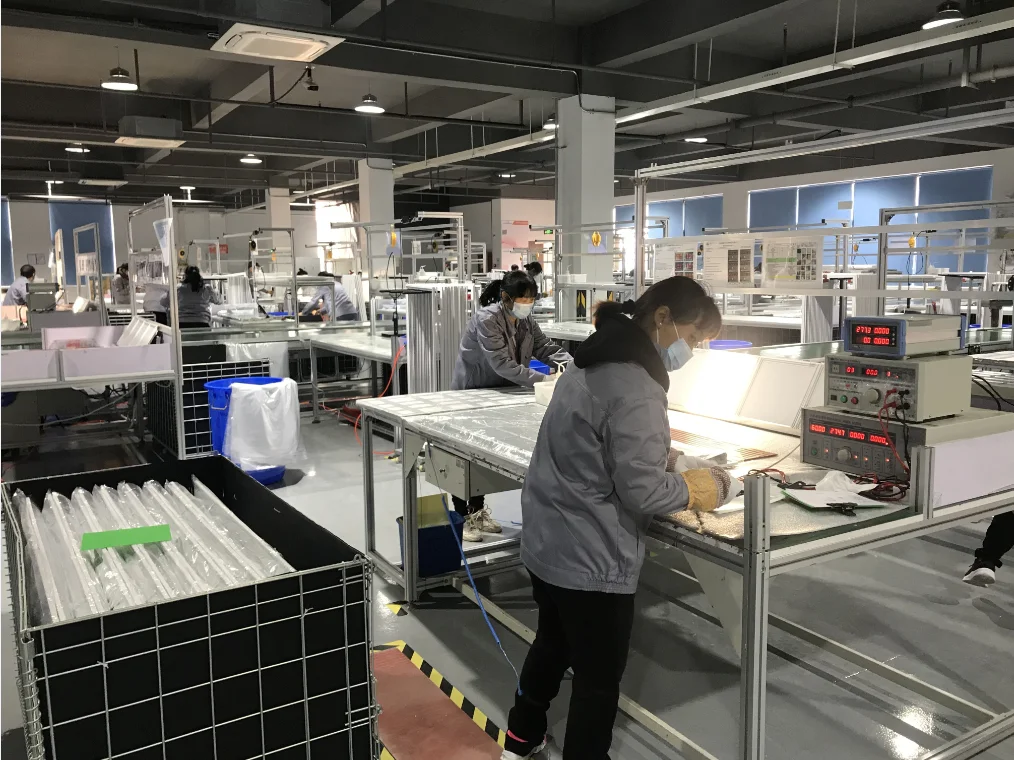

Company Profile
Recommend Products
FAQ
Q: Do you accept small order?
A: Yes.
Q: What's MOQ?
A: 6pcs, (just one carton package)
Q: What's the delivery time for small order?
A: 7days, if you can use our own brand, we always have thousands led panel light 600x600 in stock for fast delivery.
