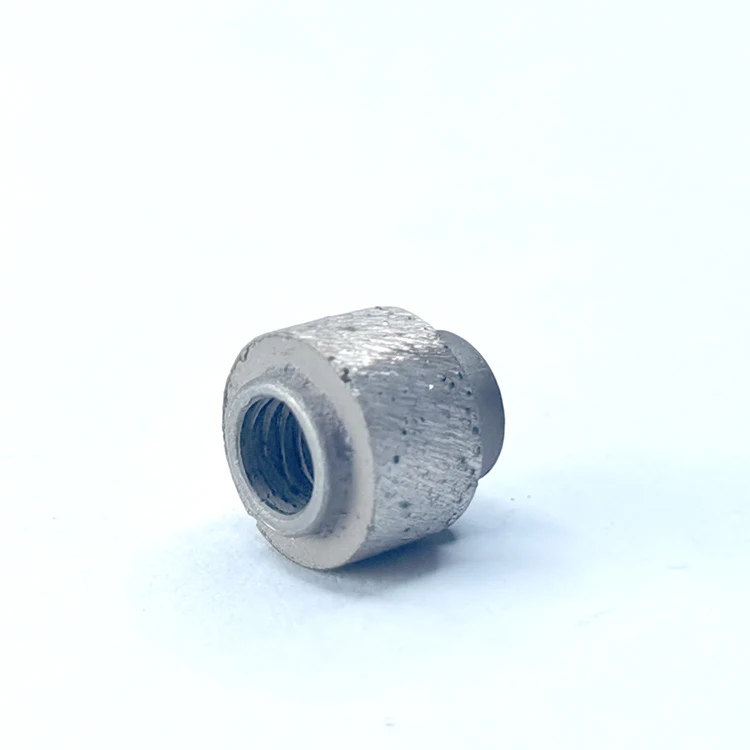

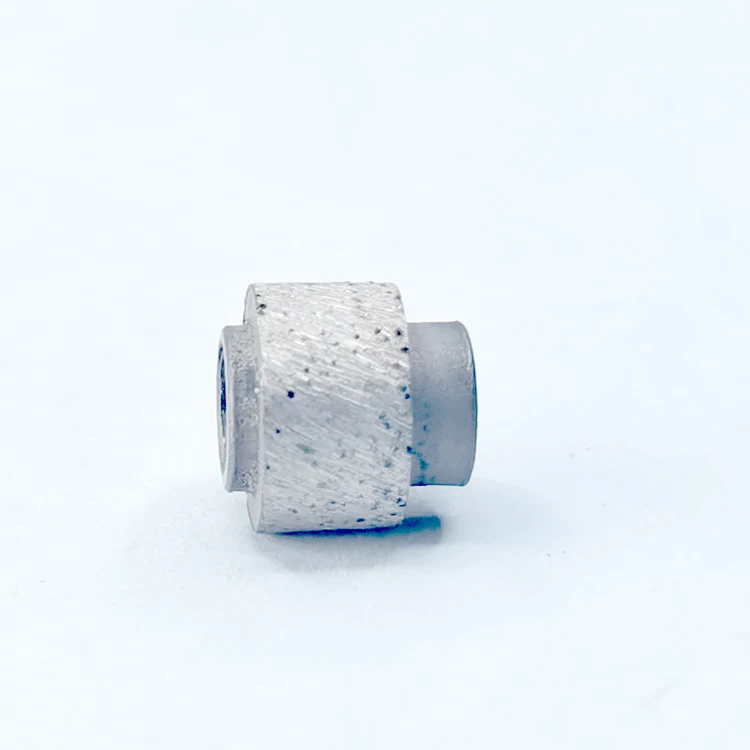

Fast Cutting Sintered Diamond Wire Saw Beads for Diamond Wire Saw Machine
- Category: >>>
- Supplier: Xiamen Super Harder Diamond Technology Co. ltd.
Share on (1600255404127):
Product Overview
Description
Our Advantages
1.OFFER ONE-STOP SOLUTION FOR CUTTING.
2.FACTORY WHOLESALE PRICE / LOW MOQ.
3.ONE OF THE LARGEST DIAMOND TOOLS MANUFACTURERS IN CHINA.
4.DIAMOND WIRE SAW BEADS & DIAMOND WIRE SAW & DIAMOND WIRE SAW MACHINES OFFER.
5.ODM & OEM ACCEPT / COMPETITIVE PRICE IN THE MARKET.
2.FACTORY WHOLESALE PRICE / LOW MOQ.
3.ONE OF THE LARGEST DIAMOND TOOLS MANUFACTURERS IN CHINA.
4.DIAMOND WIRE SAW BEADS & DIAMOND WIRE SAW & DIAMOND WIRE SAW MACHINES OFFER.
5.ODM & OEM ACCEPT / COMPETITIVE PRICE IN THE MARKET.
Product Description
1. Diamond wire saw beads for marble, granite, concrete, metal, underwater cutting.
2. Beads Diameter : 5.3mm/6.3mm/7.3mm/9.0mm/10.5mm/11.0mm/11.5mm/12.5mm. And custom.
Products Feature: Premium quality, Fast cutting speed, High cutting efficiency.
Application

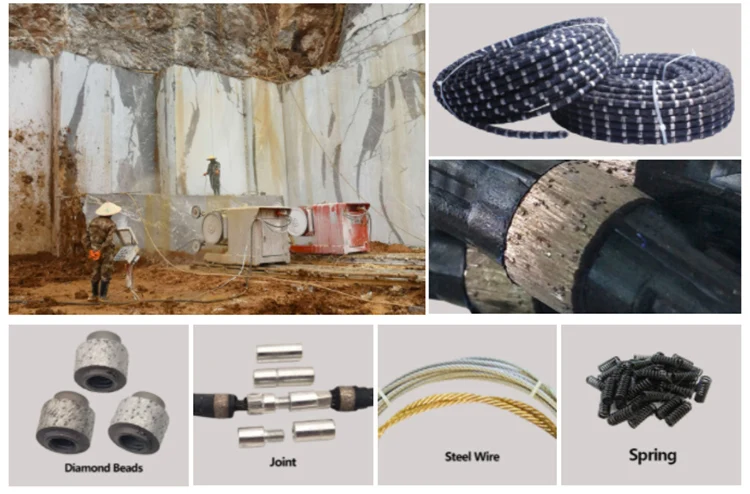

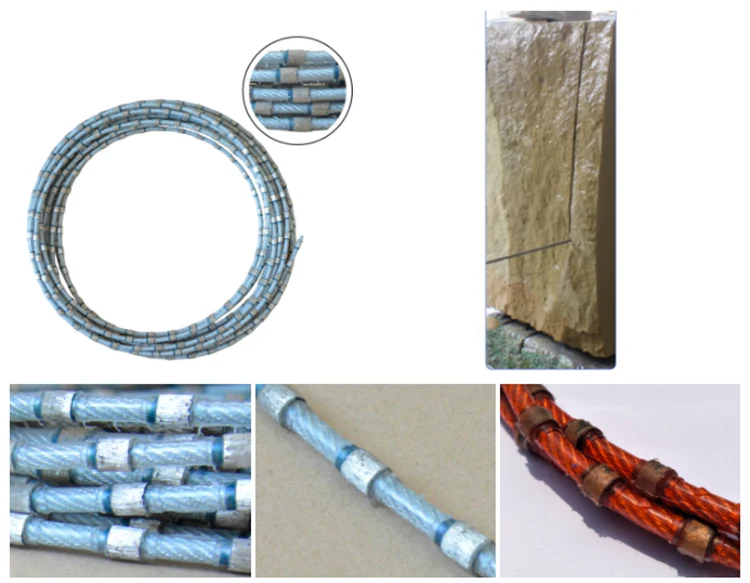

1. Diamond Wire Saw Beads For Marble/Granite Quarry :
2.Diamond Wire Saw Beads For Block Dressing:
We recommend plastic wire, it can be used to dissect marble granite.
It can cut accurately with small inter-space.
It can cut the block with the thickness of 2.3M.
3.Diamond Wire Saw Beads For Profiling & Diamond Multi-Wire Saw For Slab Cutting:
Columns and elements for the building industry can be produced in much more economic way.
Diamond multi-cutting wire saws are suitable for cutting the different kinds of large granite slabs.
Remark: modern gang saw can produce in a month 3000 to 4000 square meters of slabs of 2cm thickness.
The multi-wire can produce 5000 to 6000 square meters of slabs cutting at any thickness between 1 to 5 cm.

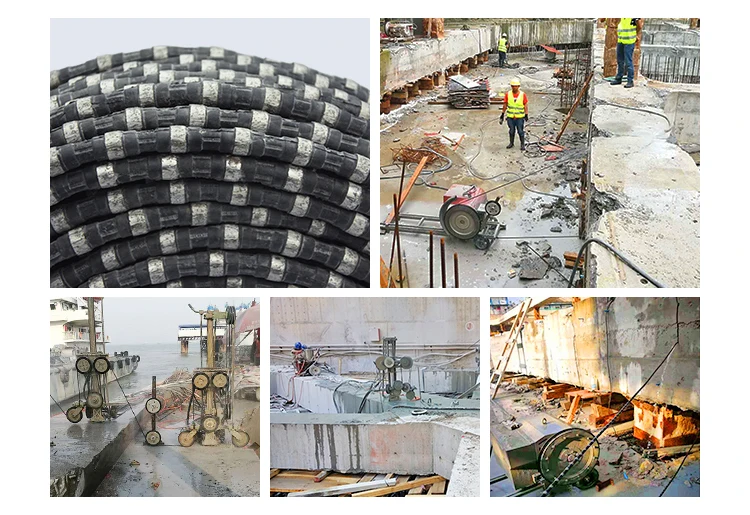

4.Diamond Wire Saw Beads For Reinforce Concrete Cutting:
The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.
PIONEER IN THE DIAMOND TOOLS FIELD
12.5mm DIAMOND WIRE SAW FOR CONCRETE CUTTING
WE LAUNCHED 12.5mm RUBBERIZED SPRING WIRE SAW
WE ARE ASSURING THAT THE CUTTING LIFE WILL BE OVER THAN 3.0SQM/METER.

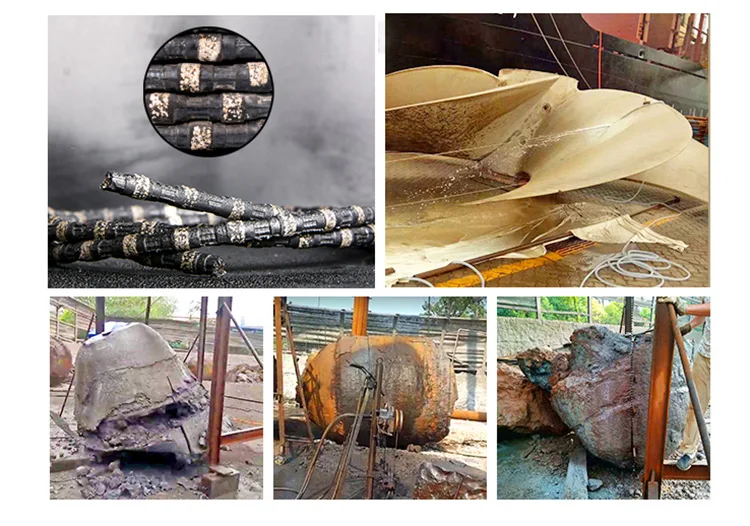

5. Diamond Wire Saw Beads For Metal Cutting:
The latest environmental protection method for cutting large-casting steel, solid iron, large-casting metal, etc. Which is diamond wire saw machine to drive the diamond wire saw to run at high speed under the condition of tap water cooling.This cutting method is smoke-free, ash-free, toxic-free and harmless, and has no pollution to the environment. It is a safe and environmentally friendly construction method.

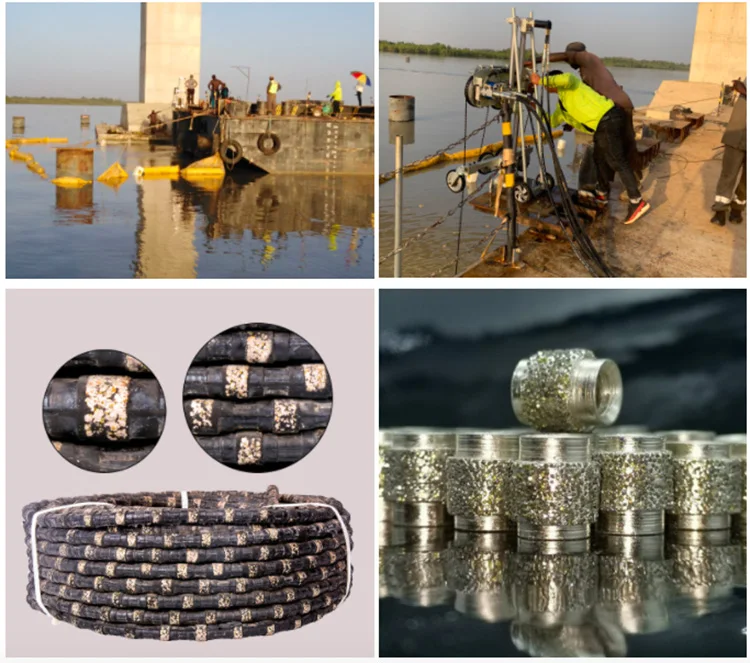

6.Diamond Wire Saw Beads For Under-water Cutting:
Diamond wire saw for underwater concrete, steel wire-rope and shipwrecks cutting.
Specification
Application | 1.For Stone Quarry, Block Squaring & Chamfering, Profiling Cutting 2.For Cutting Reinforce Concrete |
Diameter Of Wire Saw | 5.3mm,6.3mm.7.3mm, 8.0mm, 9.0mm,11.0mm,11.5mm，12.5mm |

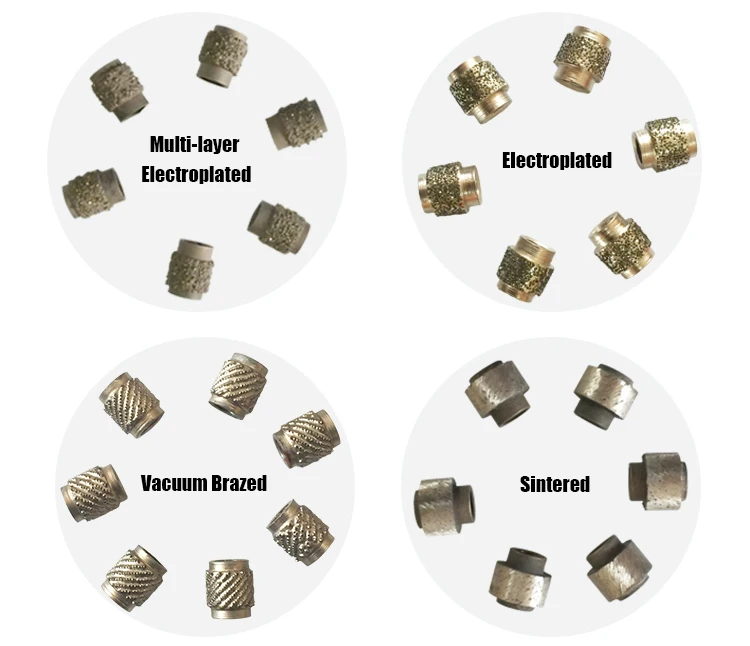

Technology | Sintered, Electroplated, Vaccum Brazed |

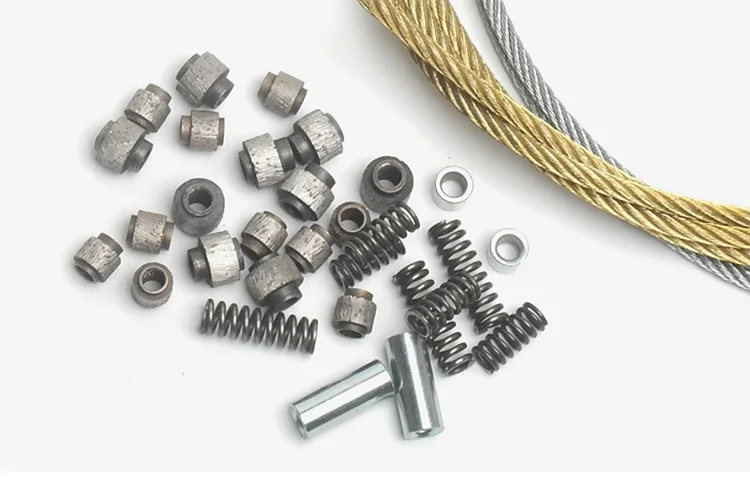

Coating Fix Injection | Plastic, Rubber, Spring, Rubber+Spring, Plastic+Spring |
Beads/Meter | 40/37/33/28/26 pcs |
Attention | l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5. Water supply is around 15-25L/min |
Feature | 1.Very less breakage ratio when using therefore increase the working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting. |
Diameter(mm) | Applications | Coating | Bead (pcs/m) | Cutting Speed(㎡/h) | Wire Life(㎡/m) |
Φ11.5/Φ10.5 | Reinforced concrete | rubber+spring | 40 | 0.5-5 | 0.5-8 |
Φ11.5/Φ11.0 | Granite mine/quarry/Marble | rubber/rubber+spring | 40 | 2-12 | 7-22 |
Φ11.5/Φ11.0/Φ10.5 | Marble mine/quarry | spring/spring+plastic | 28-40 | 4-20 | 15-50 |
Φ11.0/10.5 | Granite & marble block | plastic/rubber | 37/40 | 6-30 | 7-50 |
Φ8.8/Φ8.5 | Granite & marble profiling | plastic/rubber | 33/37/40 | 7-30 | 7-40 |
Φ7.2/Φ8.5 | Granite slab | plastic | 37 | 0.5-1.6 | 6-15 |
Suggestion:
Strong flexibility can reduce the cut-in-one-side problem, and even can be used for smaller curvature radius. Normally wire saw machines with 37-75 kw are used in granite & marble quarrying, according to the size of cutting area, water supply can be controlled with 25-50 L/min.
Solemn Commitment of Super Harder：
Our Service & Brand Advantage is: WITH SUPER-HARDER, CUTTING IS NOT DIFFICULT ANY MORE.
1.If it is found that the cutting speed of the SUPER-HARDER wire saw is slower than that of similar products, and the cutting life is less than that of similar products, it can be returned.
2.If it is found that the drilling speed of the SUPER-HARDER drill bit is slower than that of similar products, and the number of drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the SUPER-HARDER saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the SUPER-HARDER diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
2.If it is found that the drilling speed of the SUPER-HARDER drill bit is slower than that of similar products, and the number of drilling hole is less than that of similar products, it can be returned.
3.If it is found that the cutting speed of the SUPER-HARDER saw blade is slower than that of similar products, and the meter of cutting is less than that of similar products, it can be returned.
4.If it is found that any beading, cutting from one-side, breaking rope of the SUPER-HARDER diamond wire, it can be returned.
5.If it is found that segment of core drill bit lost or swing, it can be returned.
6.If it is found that segment of saw blade lost or out of shape, it can be returned.
Company Profile
Brand core value:
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.
Corporate mission:
Improve efficiency and reduce costs.
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
The cooperative customers benefit first.
About Us:
SuperHarder insists on applying military materials and secret military industrial technology to manufacturing diamond tools. Practice data proves that: Super Harder diamond tools can be applied to various kinds of reinforced concrete and geological strata.
SuperHarder is a giant of the Chinese diamond tool industry. It is the first that launch the personalized customization of diamond tool. We provide “one-on-one” professional design and individual service for customers so as to comprehensively meet customer’s needs for special diamond tools and effectively reduce production cost.

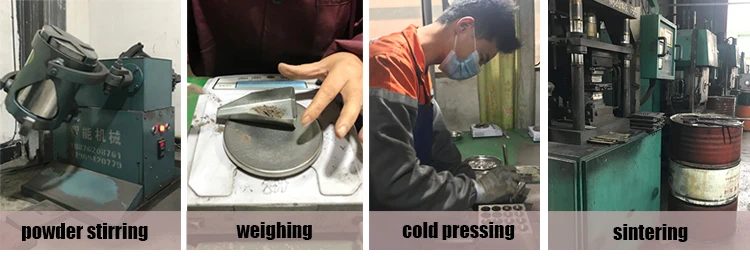

Product Process:
Exhibitions:
Successful Cases:
Glories of Company ( famous brand and letter of patent )
FAQ
Question1: There are many unqualified products in the market, how can you make sure your quality control?
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. How about your production capacity，and how can you make sure my goods would be delivery timely?
Answer: Our production capacity is 100000 meters per month to meet most of regular clients at present. And we even do not have any problems for the delivery in the past years.
Question3. Do you offer OEM service?
Answer: we have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement"business secret contract" for your design safe
Question4. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question5.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. How about your production capacity，and how can you make sure my goods would be delivery timely?
Answer: Our production capacity is 100000 meters per month to meet most of regular clients at present. And we even do not have any problems for the delivery in the past years.
Question3. Do you offer OEM service?
Answer: we have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement"business secret contract" for your design safe
Question4. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question5.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
