433mhz rf transmitter receiver module 6 button remote hoist controller Ev1527 learning code Wii remote
- Category: >>>
- Supplier: Shenzhen Fengbaode Electronic Technology Development Co. Ltd.
Share on (1600255437608):
Product Overview
Description
Product Description
Product performance description
6-button remote Modulation method: ASK (amplitude modulation) Transmission frequency: 315, 433MHZ (sound meter stable
frequency, other frequencies can be customized) Transmission distance: 120-150M (open circuit and open circuit, the sensitivity of the receiving device is 100dbm) Encoder type: EV1527 chip learning code (millions of sets of built-in passwords)
frequency, other frequencies can be customized) Transmission distance: 120-150M (open circuit and open circuit, the sensitivity of the receiving device is 100dbm) Encoder type: EV1527 chip learning code (millions of sets of built-in passwords)
Uses: motorcycles, automobile anti-theft alarms and other security fields, LED lighting, fan lights, electrical switches, access control electronic locks, etc.
Title goes here.
Product parameters
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -110DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -110DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
Details Images
The company undertakes customized development, quality assurance, and low price

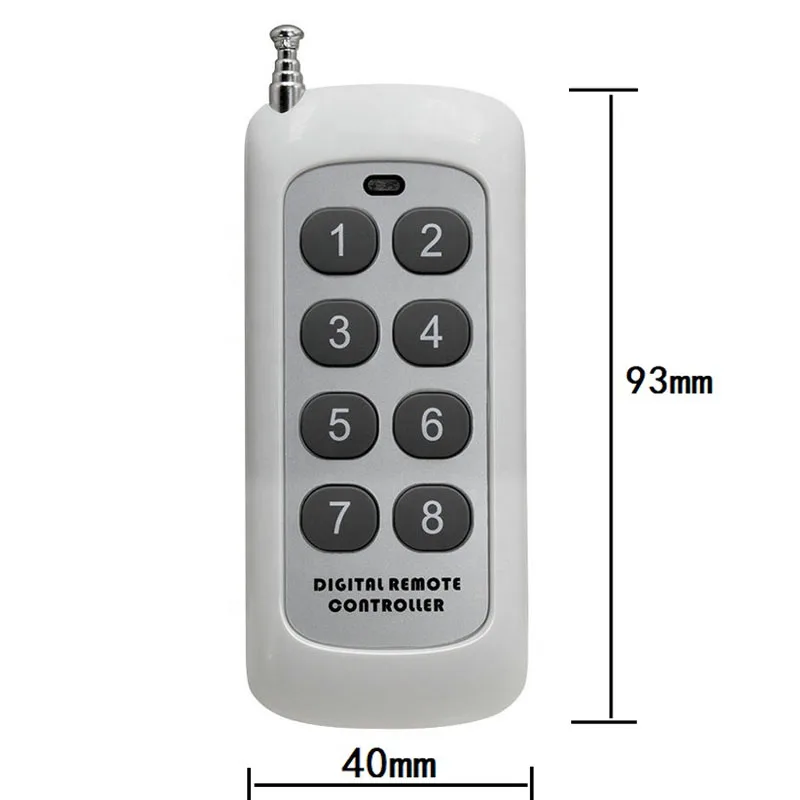

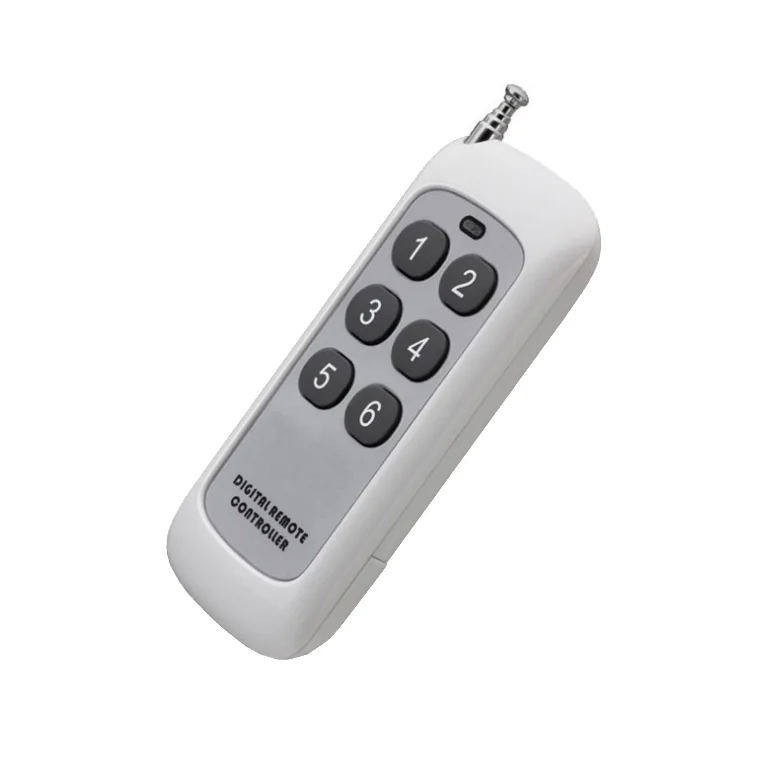

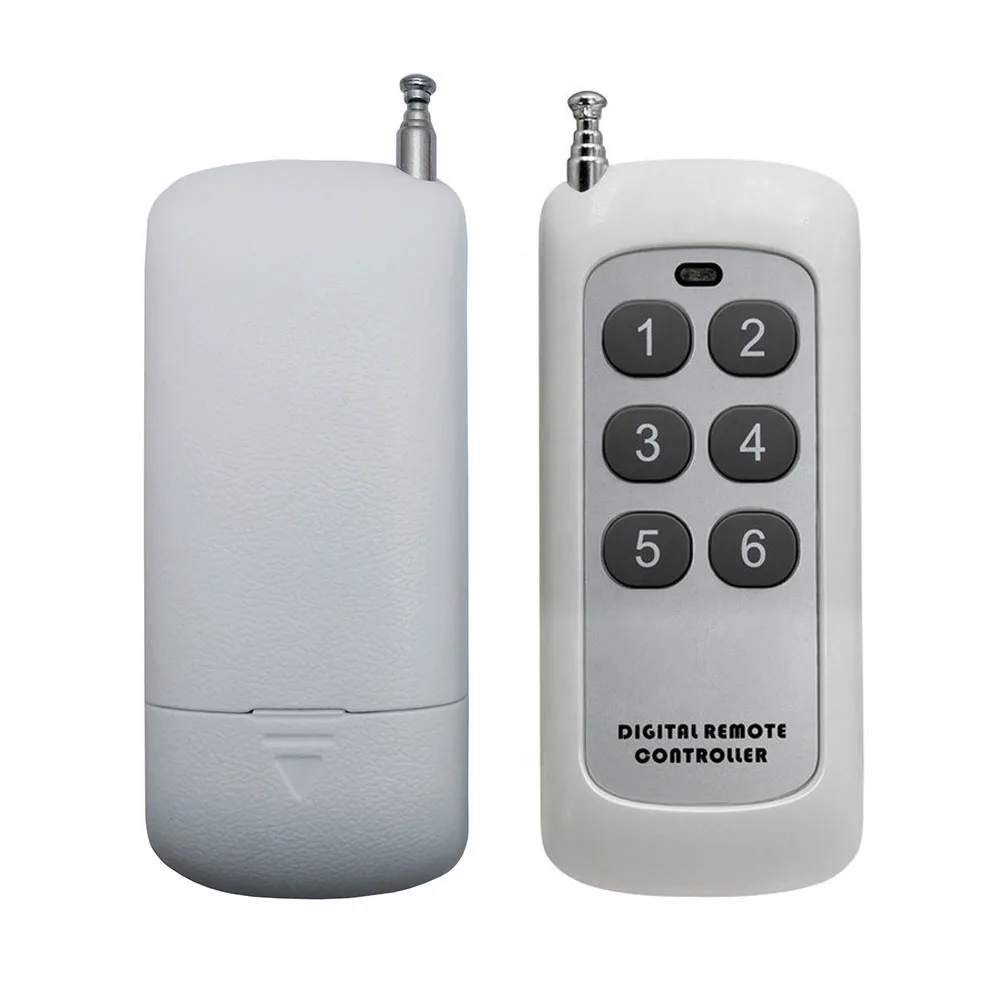

8-button remote control with antenna

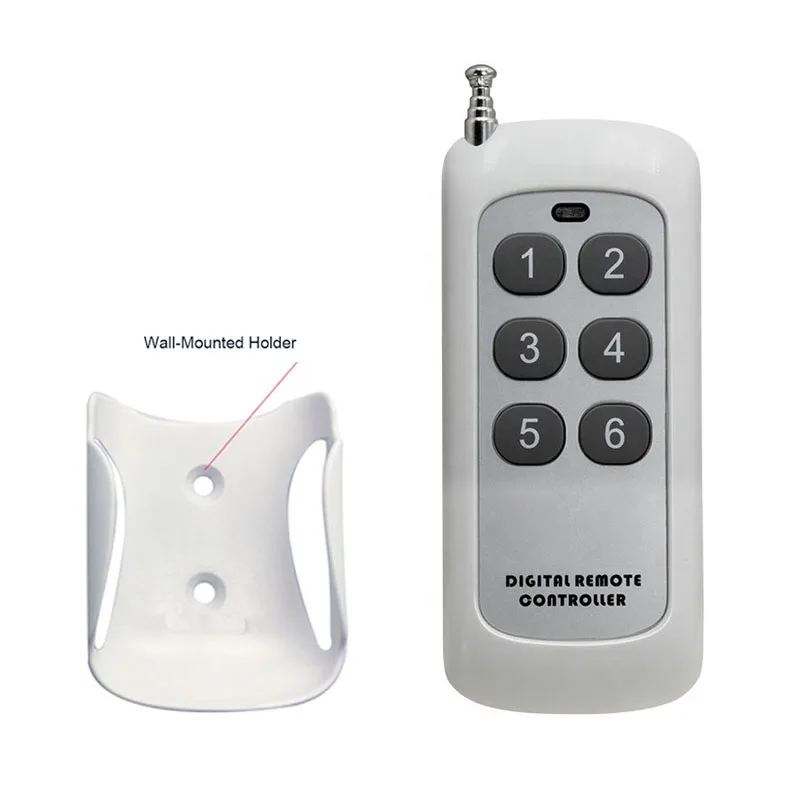

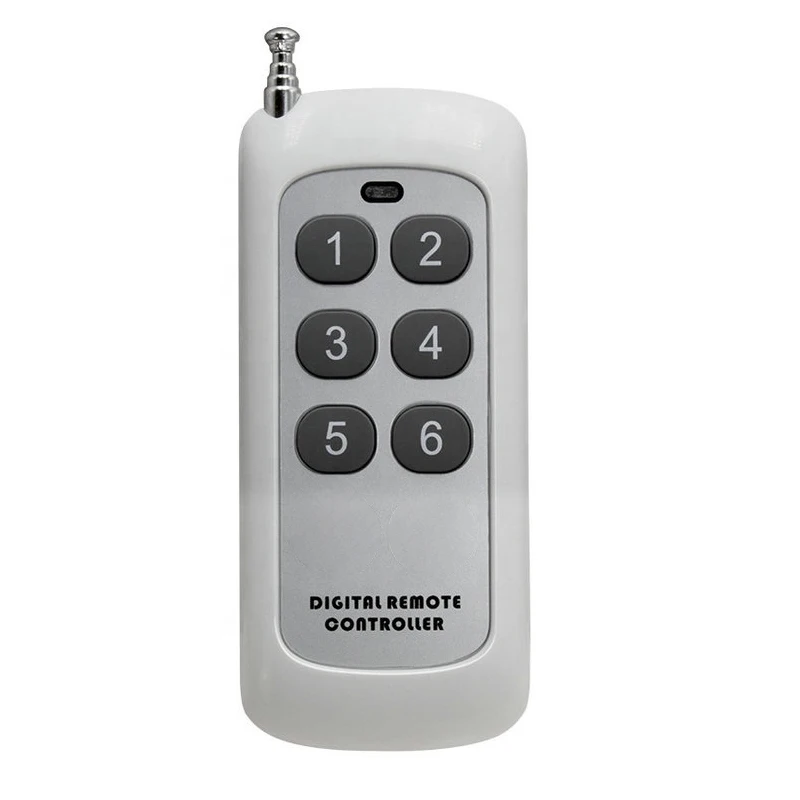

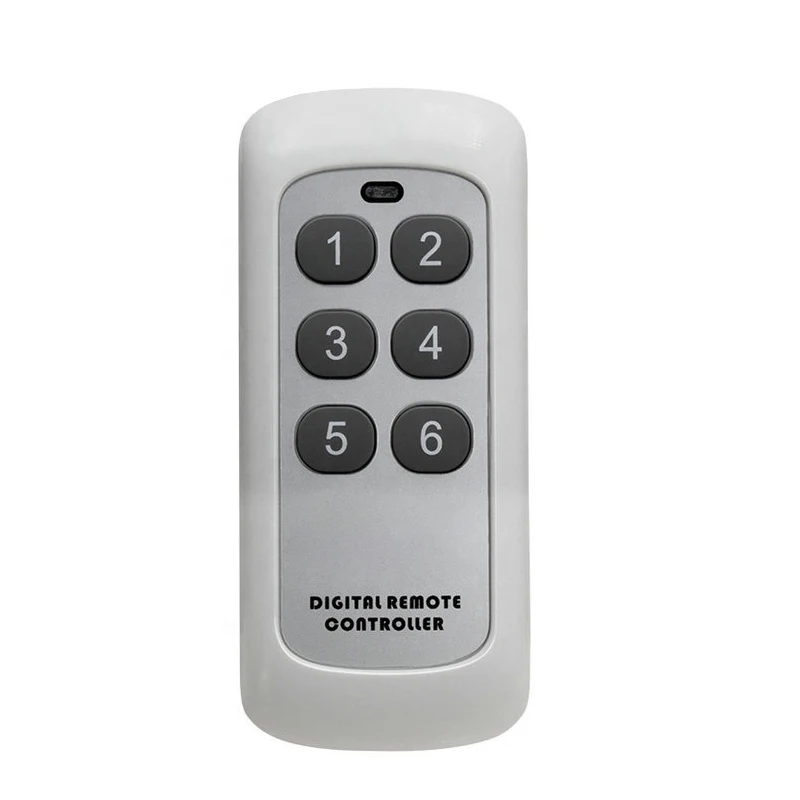

6 button remote control without antenna

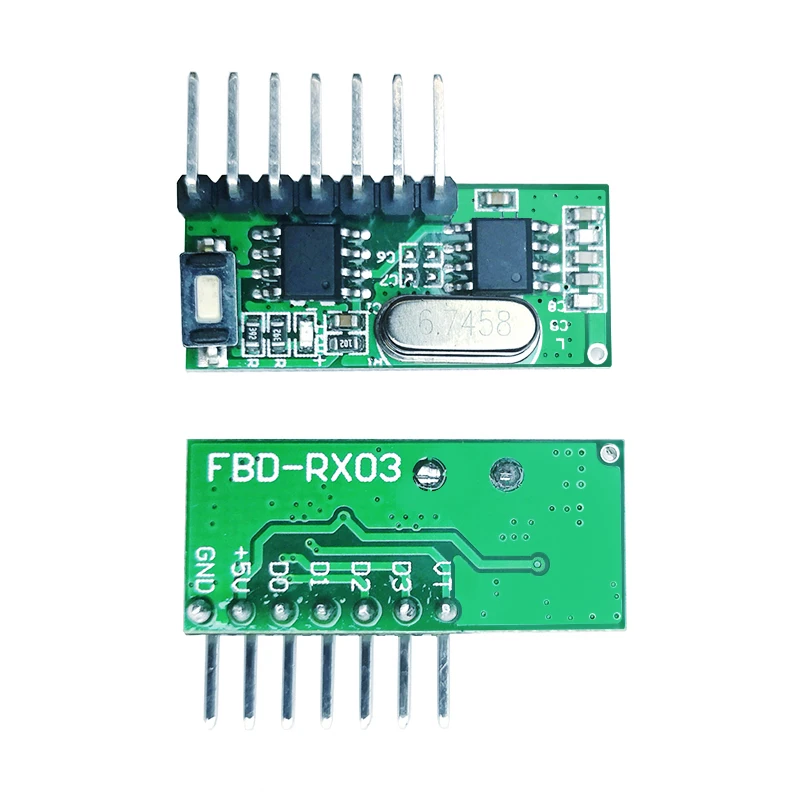

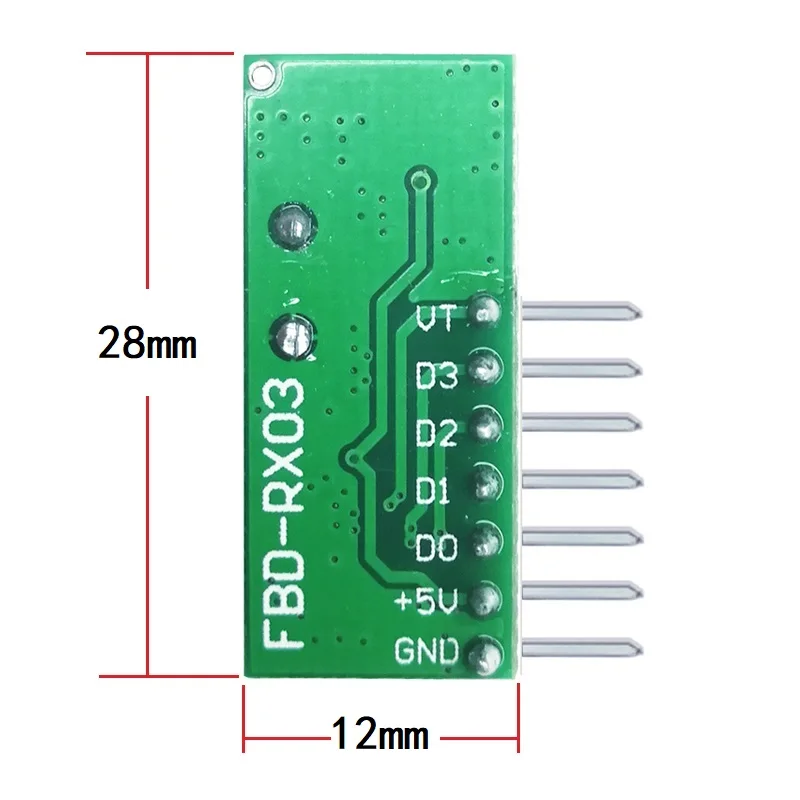

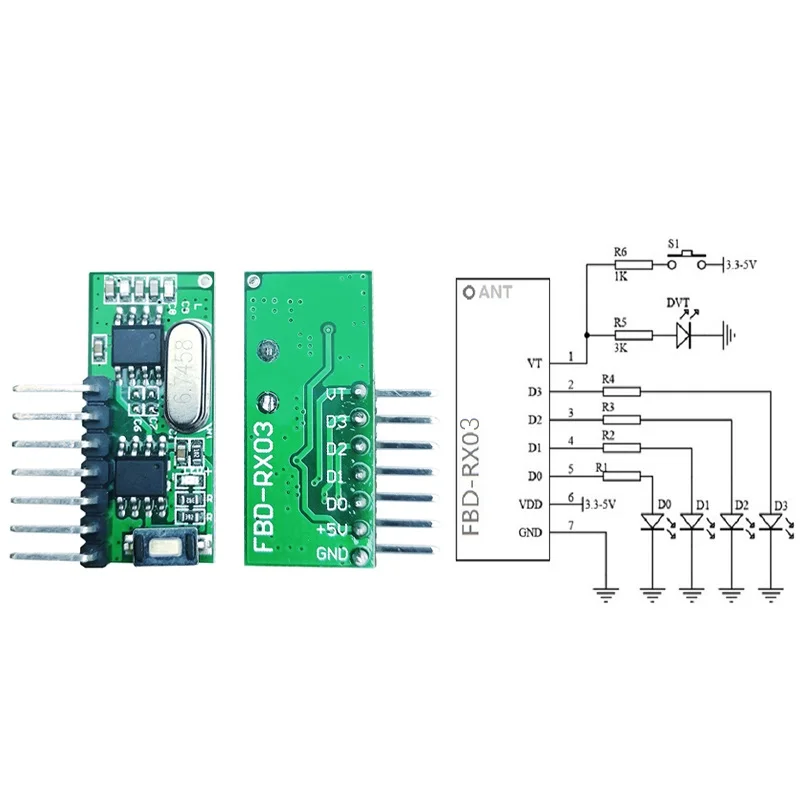

4-channel superheterodyne receiver module
Product Usage
Title goes here.
Product parameters
1. Working voltage: DC2.5V-5V
2. Working current: 7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization

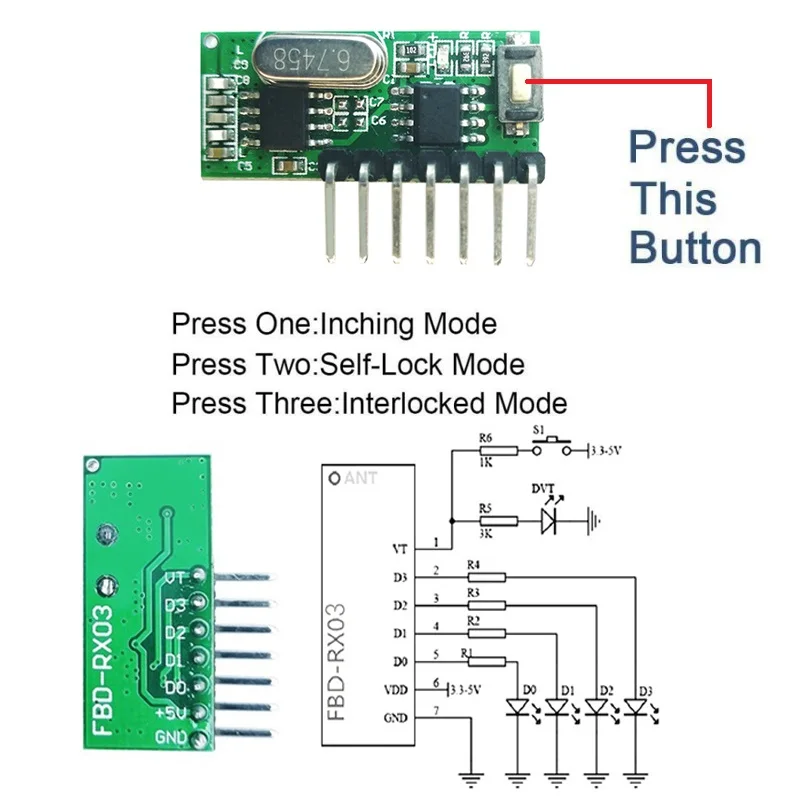

When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low level.Clear and match the code: (Before switching the mode, clear the code first)
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The clear function is complete.

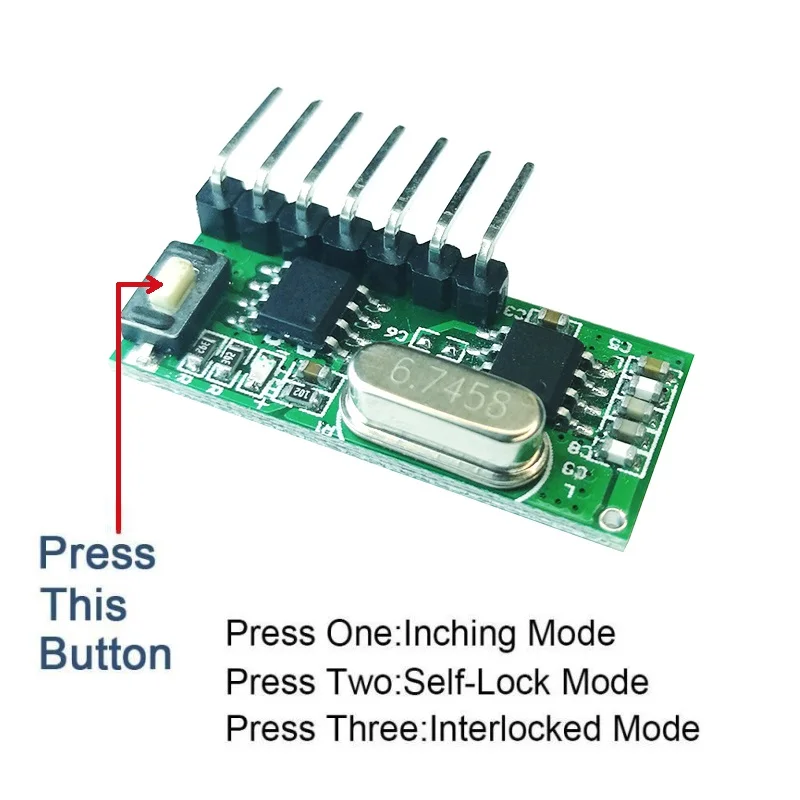

2, the code function - press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning pair code state, press the matching wireless remote control button, the LED indicator flashes 3 After the second time, the code is successful. (The learning button is clicked once for the jog mode; press 2 times for the self-locking mode; press 3 times for the interlock mode; press 4 times: 1, 2 for jog, 3, 4 for self-locking; for 5 times: 1 2, jog, 3, 4 interlock; press 6 times: 1, 2 self-locking, 3, 4 interlock; press 7; 1, 2 interlock, 3, 4 interlock.) The wireless remote control switch can store 16 different remote controls and can set different working modes. (This is a one-key pair code, the program will automatically assign the data bits)
3. Pair code test - After the code is successful, when the remote control button is pressed, the corresponding D0, D1, D2, D3 output is high level.
1. Working voltage: DC2.5V-5V
2. Working current: 7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low level.Clear and match the code: (Before switching the mode, clear the code first)
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The clear function is complete.
2, the code function - press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning pair code state, press the matching wireless remote control button, the LED indicator flashes 3 After the second time, the code is successful. (The learning button is clicked once for the jog mode; press 2 times for the self-locking mode; press 3 times for the interlock mode; press 4 times: 1, 2 for jog, 3, 4 for self-locking; for 5 times: 1 2, jog, 3, 4 interlock; press 6 times: 1, 2 self-locking, 3, 4 interlock; press 7; 1, 2 interlock, 3, 4 interlock.) The wireless remote control switch can store 16 different remote controls and can set different working modes. (This is a one-key pair code, the program will automatically assign the data bits)
3. Pair code test - After the code is successful, when the remote control button is pressed, the corresponding D0, D1, D2, D3 output is high level.
Description of product use effect

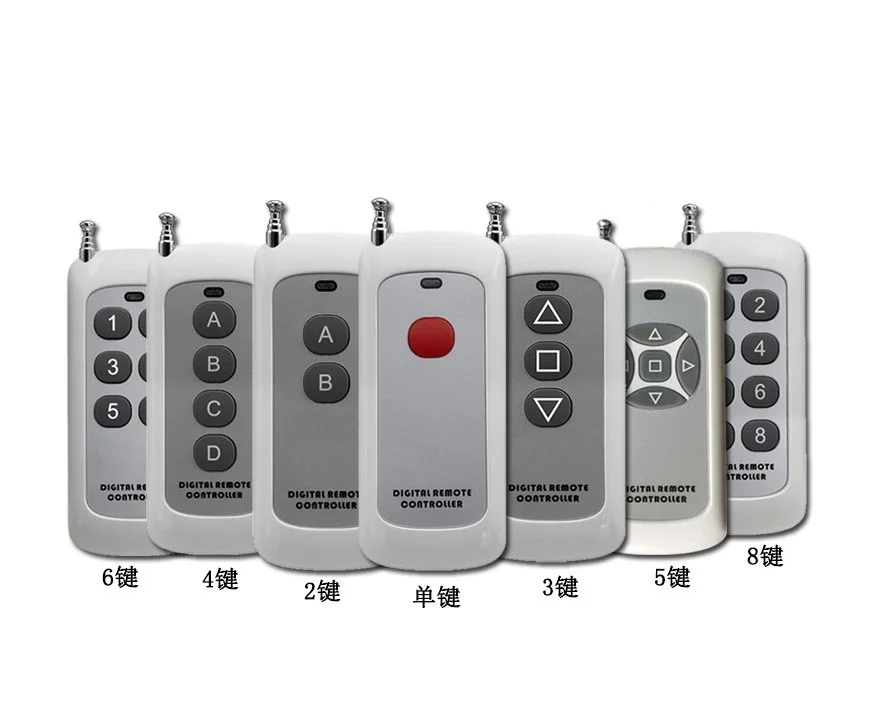

There are 1 to 8 keys to choose from, all of which can be matched with the receiver module, and the button symbols can be customized with silk printing
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Founded in 2013, Shenzhen Fengbaode Electronic Technology Development Co., Ltd. is located in Shenzhen, Guangdong Province, the largest raw material processing and production center for digital electronic products. It is a professional wireless remote control, intelligent remote control project, wireless RF remote control transmitter receiving wireless The control solution solves the development of electronic software and hardware and production and processing enterprises. Main intelligent remote control project, 315 433MHZ anti-theft alarm remote control, battery car motorcycle anti-theft remote control transmitter, electric door garage door retractable door remote control LED lamp kilometer high power remote control, wireless transceiver module 2.4G Bluetooth remote control, car control Circuit board controller remote control switch VR remote control VR helmet glasses, etc.,the variety is complete, the price is fair, the company's complete scientific quality management system, product quality has been recognized by the industry. The company has a strong focus on keeping promises, complying with contracts to ensure product quality, and featuring diversified product management. Variety of models, complete models, and the principle of small profits but quick turnover to win the support of the new and old customers.
Our Services & Strength

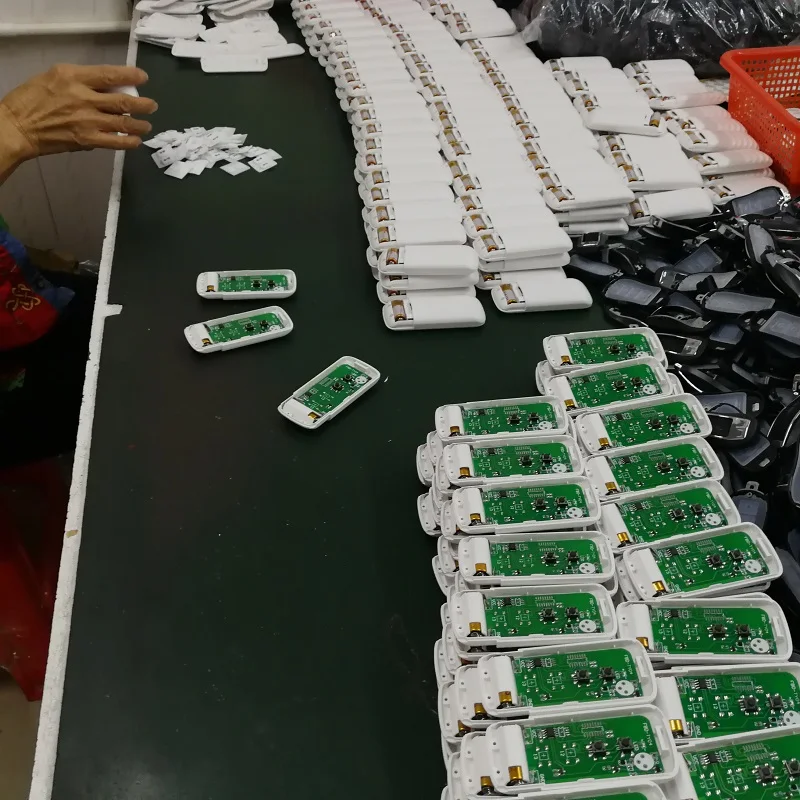

1: We have our own factory, production line, SMT and plug-in, automatic screwdriver machine, etc. and R&D department
