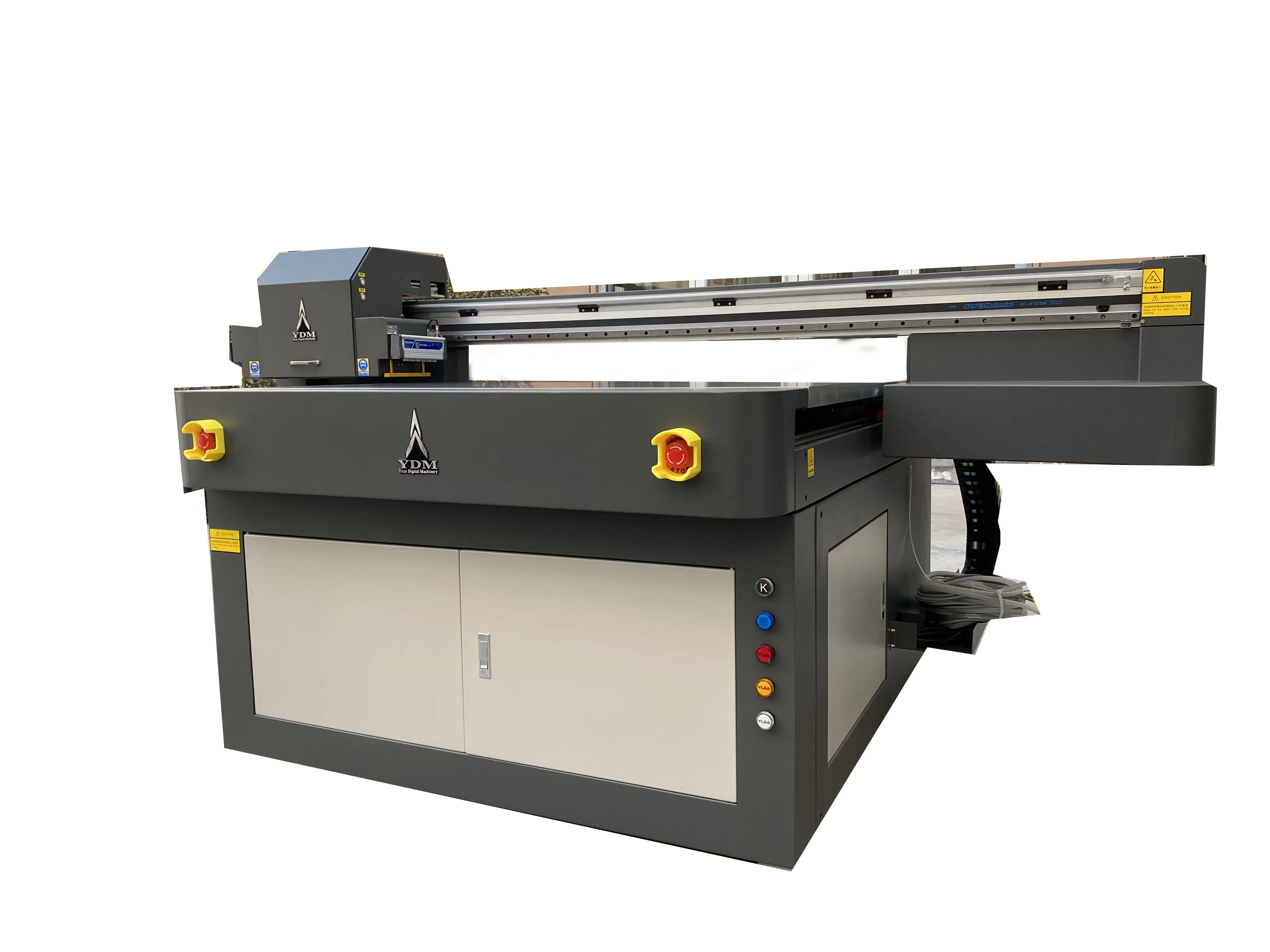

Digital inkjet Printing Machine Ricoh gen5i flatbed uv printer 1313

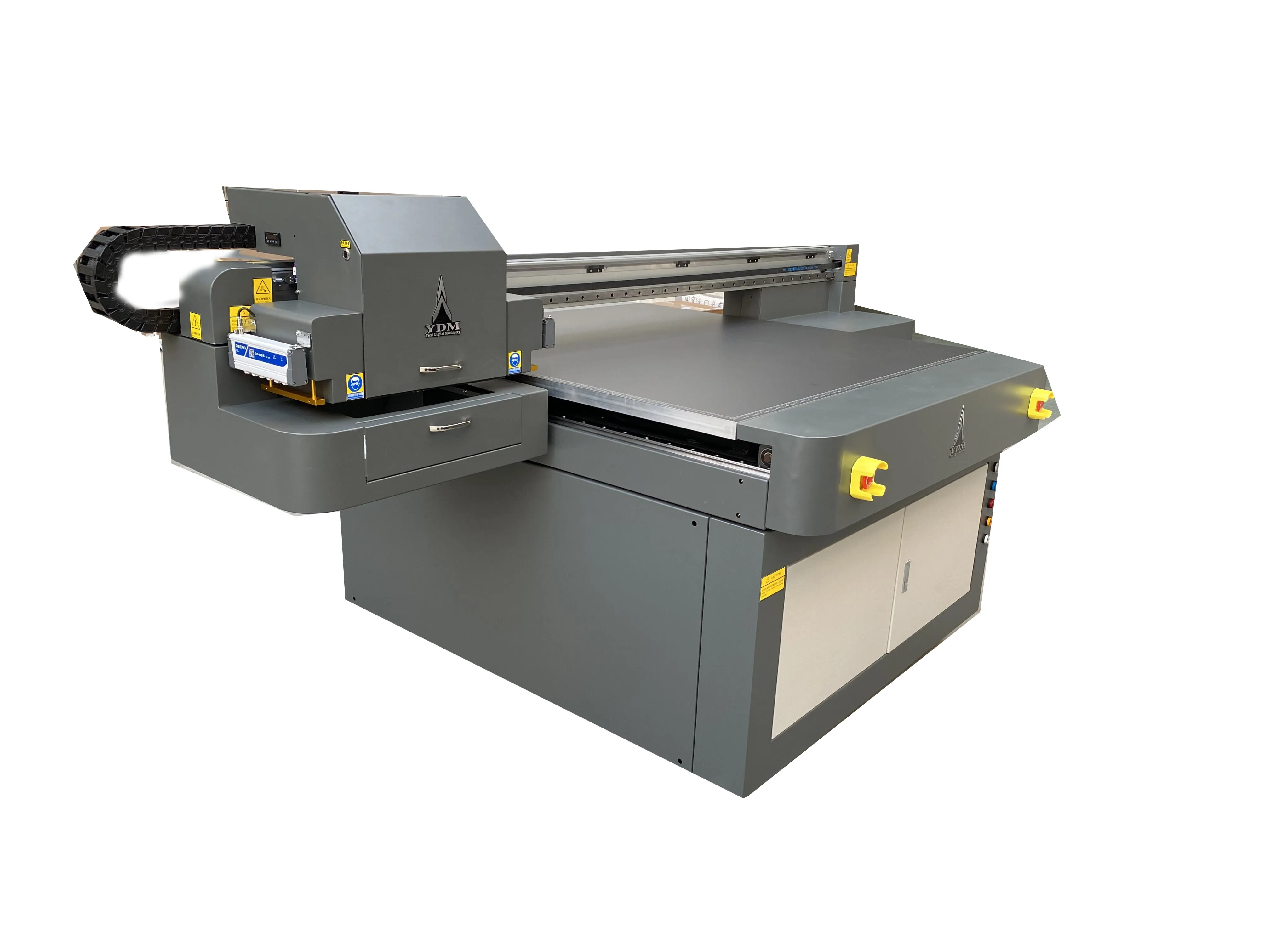

Flatbed UV 1313 Printing Machine

Product Name	Flatbed UV 1313 Printing Machine
Print Technology
Printer Medel	1313 UV Flatbed Printer
Head Model	Epson DX7,DX5,XP600 / TOSHIBA CE4
Head Qty.	Epson 1-3pcs /TOSHIBA 2-4pcs
Print Direction	Unidirectional/Bidirectional
Head Cleaning	Automatic
Print Resolution	4 Pass:720*720dpi 6 Pass:720*1080dpi 8 Pass:720*1440dpi
Ink System
Ink Type	UV Curable Ink,with RoHS certificate
Color Set	CMYK/CMYK+W/CMYK+W+V/ CMYK+LC+LM+W+V
Ink Cartridage Volume	1L
Drying Type	UV LED lamp Curing
White Ink Stiring	Standard Configuration
White Ink Circulation	Standard Configuration
Media
Media Type	Acrylic/Cardboard/Ceramic Tiles/Metal/PVC/Glass/Phone Case/ID Card and other flat media
Max.Media Thickness	100mm,Larger size can be customed
Others
Operation Language	English
Operation System	Windows XP/Windows 7,64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Operation Platform	Vacuum Suction Platform
Signal Transmission	Optical Fiber + USB 3.0
Color Control	Comply with ICC standards, with curve and density adjustment function
Power Supply	AC220V,50/ 60HZ
Working Power	1 KW
Noise	Standby < 32 dB ; Working < 65 dB

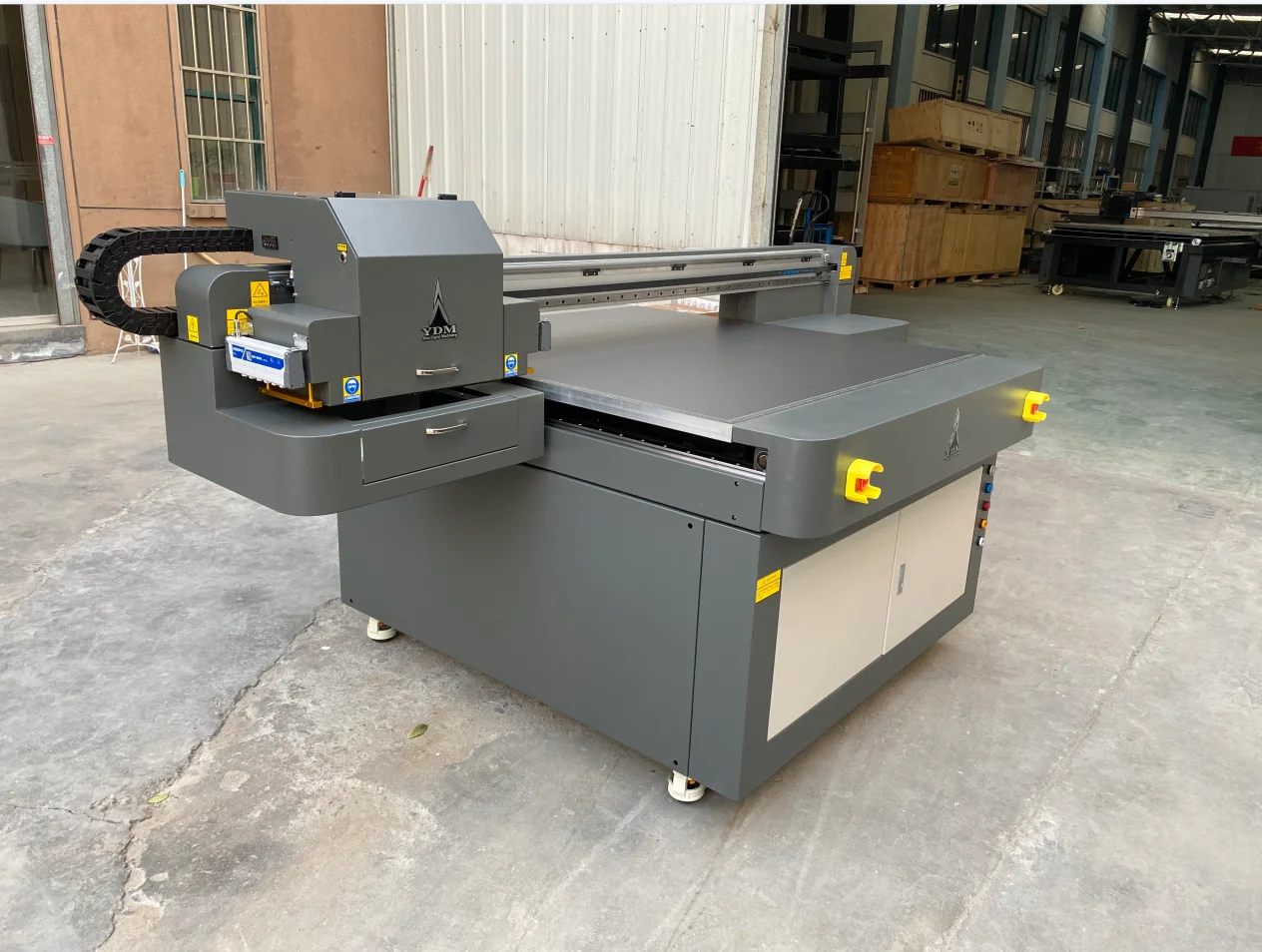

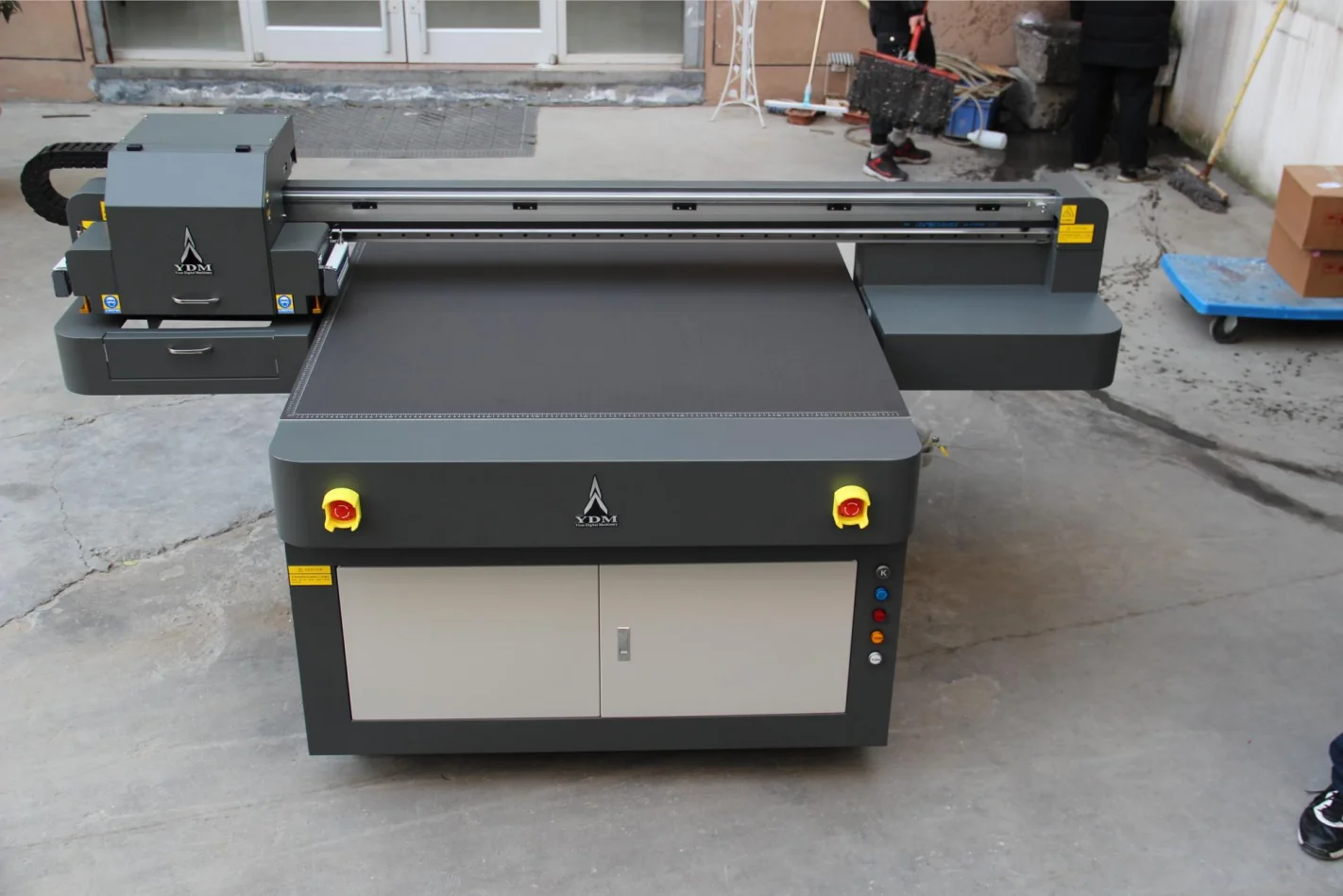

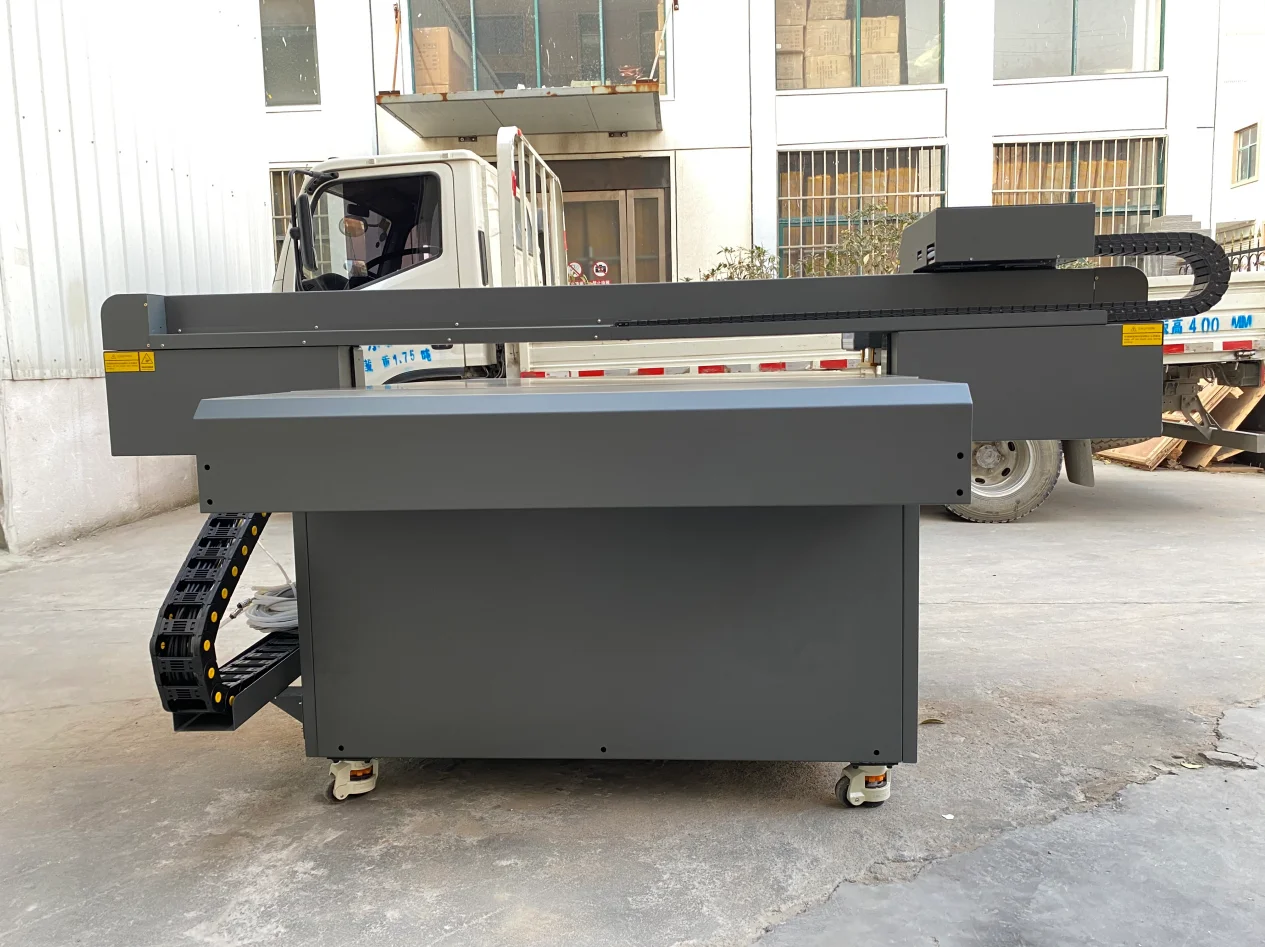

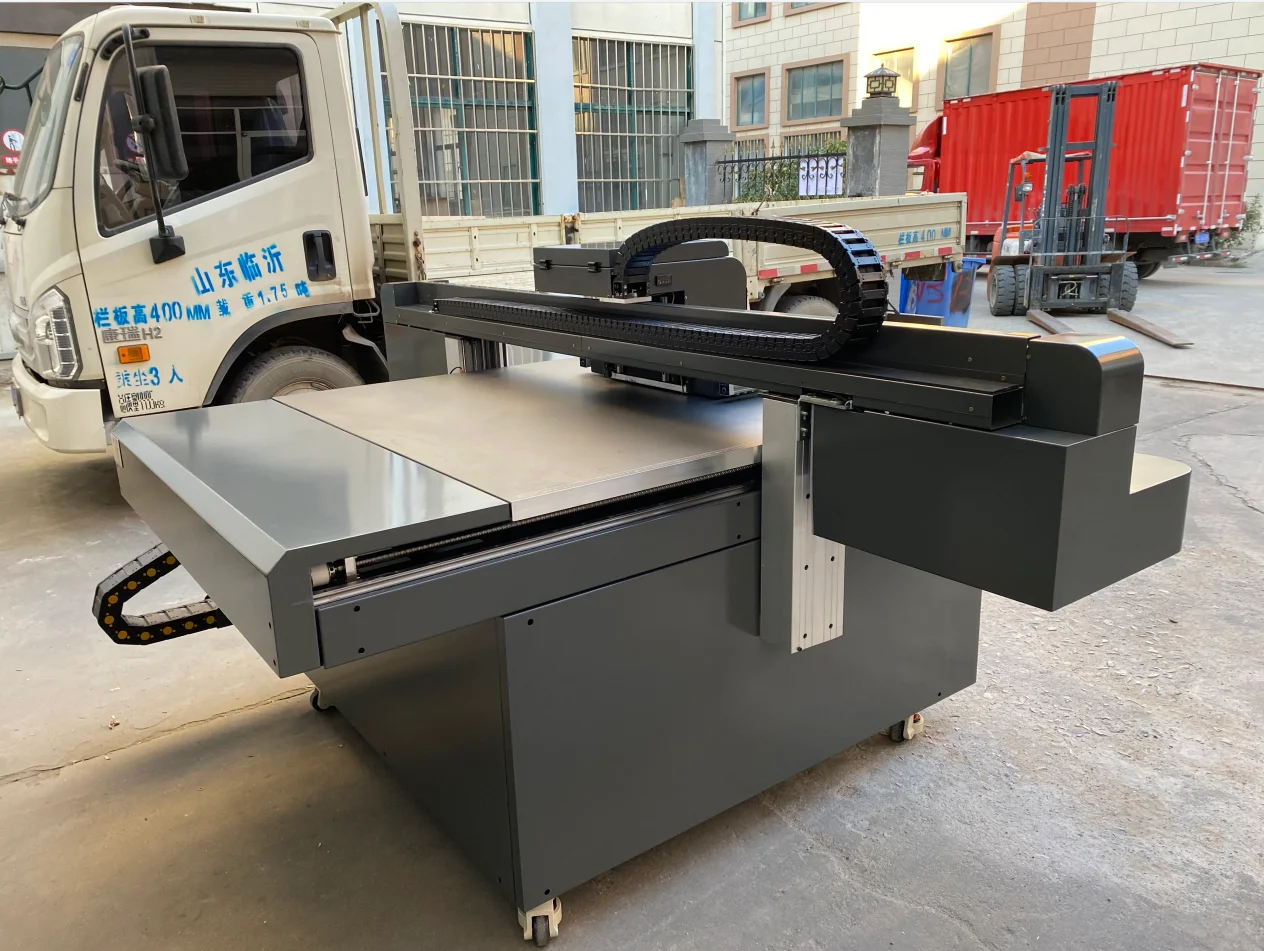

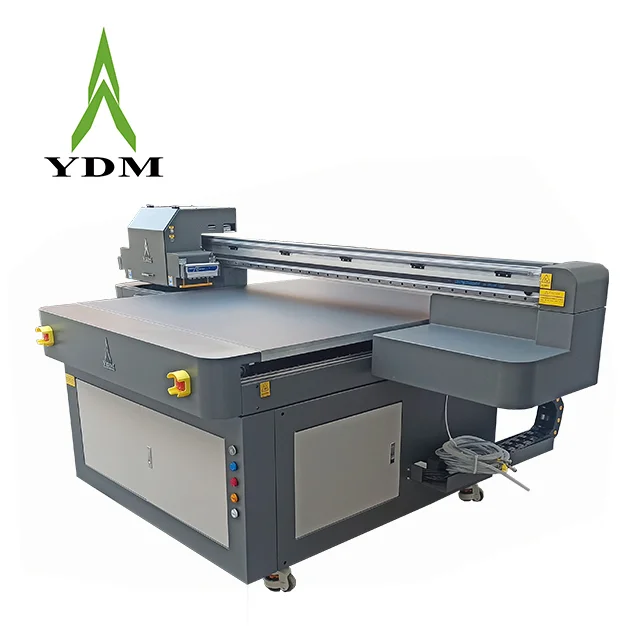

UV1313 Flatbed Printer is the most successful series printer designed by YDM.

Our UV1313 Flatbed Printer Characteristic:

   1.More Stable working Condition

   2.Less working Fault

   3.More Amazing Printing effect,(more clear&real pictures printed)

   4.New upgraded control system

   5.New PIR software drives better performance

   6.Easy to install and maintenance

Print Height:10cm,Larger can be customed

Color Set:CMYK+LC+LM+W+V

Printhead:EPSON XP600,DX5,DX7/TOSHIBA CE4
