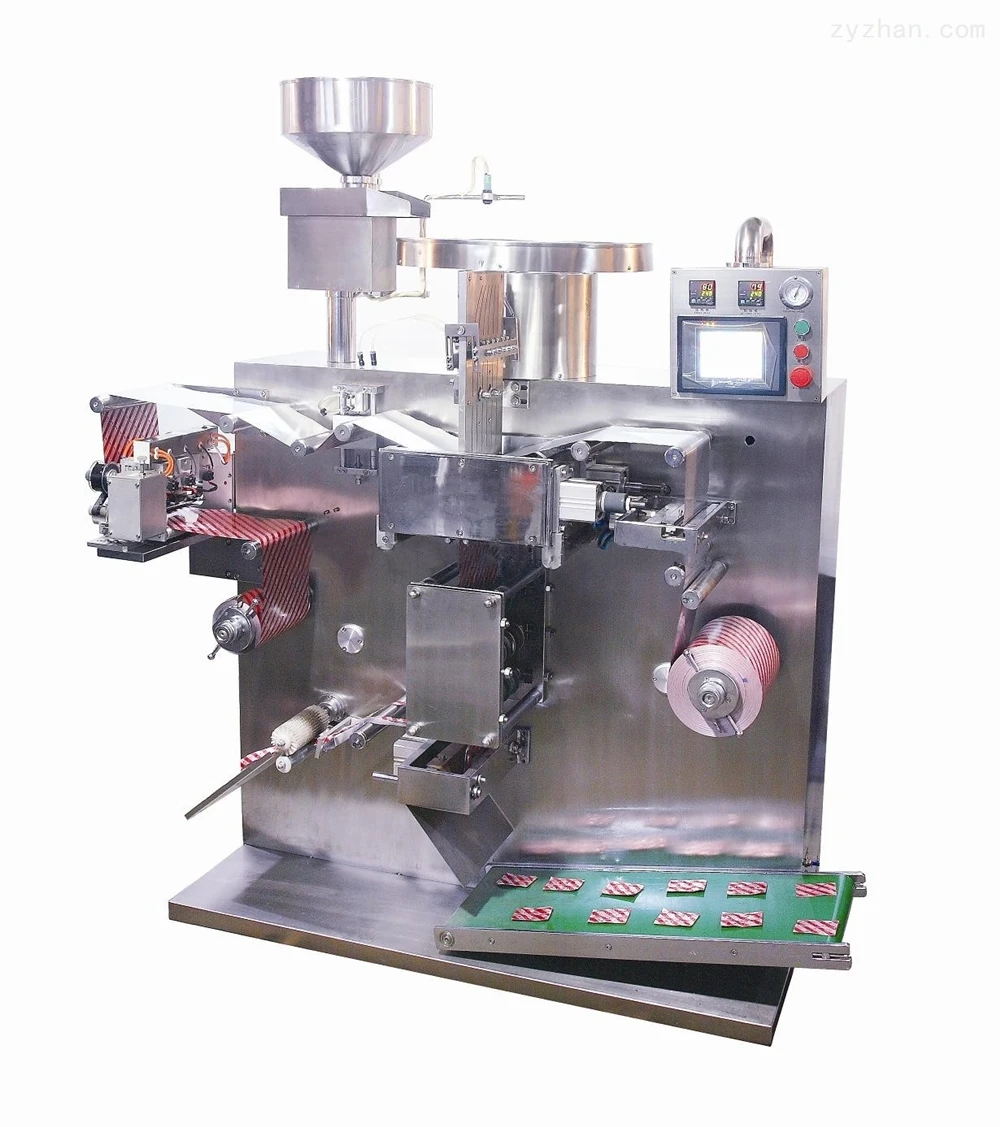

High speed Double Side Tablet Capsule Making Packaging Machine full alu strip blister packing machine
- Category: Blister Packaging Machines >>>
- Supplier: Liaoning,Zonelink,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Features
It is suitable for automatic aluminum-aluminum foil heat sealing packing for tablets, candy and pills in medicine, healthcare, chemical, foodstuff etc industry.
Meeting the requirement of sealing for avoiding light, and also it can be used in plastic-plastic heat sealing package. It automatically completes the functions such as vibrating material feeding, broken piece filtering, counting, lengthways and transverse impressing, cutting margin scrap, batch number printing etc. It adopts PLC programmable controller, with frequency converter, man-machine interface to operation, and also can adjust cutting speed and travel range at random. It is accurate feeding, tight sealing, full purpose, stable performance, ease of operation. It can enhance the product grade, extended product durability. It is an ideal equipment for pharmaceutical industry.
Specs | SLB-220 | SLB-300 | ||
Speed of Drum (rpm) | 7-15 (stepless) | |||
Production Capacity pcs/h) | 20000-85000 | 30000-120000 | ||
Packing Dimension (mm) | 220mm | 300mm | ||
Can Be Manufactured As User's Requirements | ||||
Packing Material Specification (mm) | PVC for medicine | 0.05-0.1×220 | 0.05-0.1×300 | |
AL-plastic combined film | 0.08-0.10×220 | 0.08-0.10×300 | ||
Hole dia of reel | 70-75 | |||
Electro Thermal Power | 380V/1.6kw×2 | 380V/2.0kw×2 | ||
Main Motor Power (kw) | 0.55 | |||
Air Pressure (Mpa) | 0.4-0.6 | |||
Air Supply | ≥0.1m3/min | |||
Overall Dimension (mm) | 1450×670×1700(L×W×H) | 1500×850×1670(L×W×H) | ||
Weight (kg) | 650 | 900 | ||
