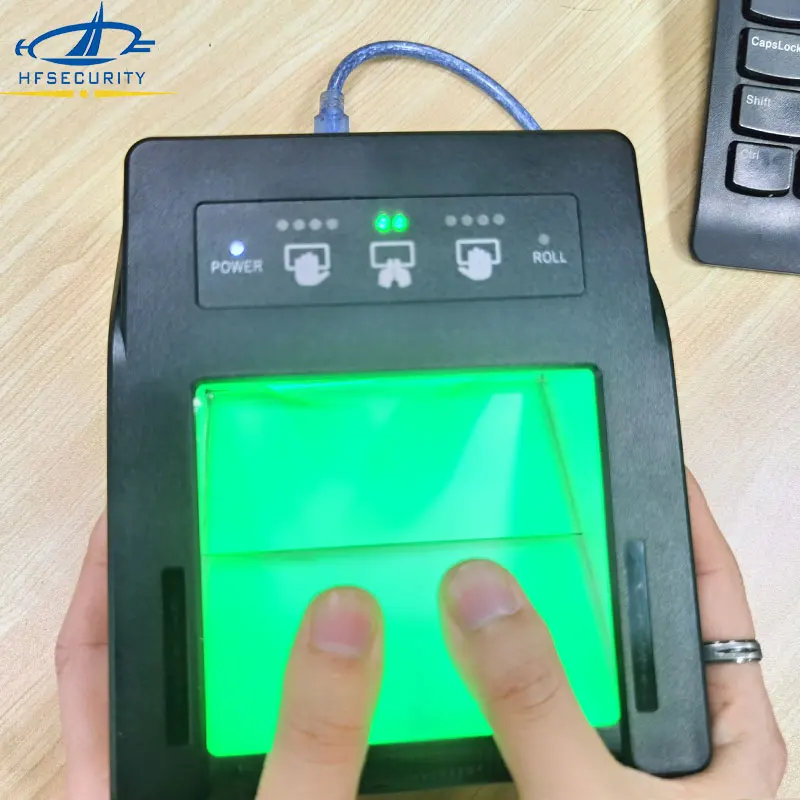

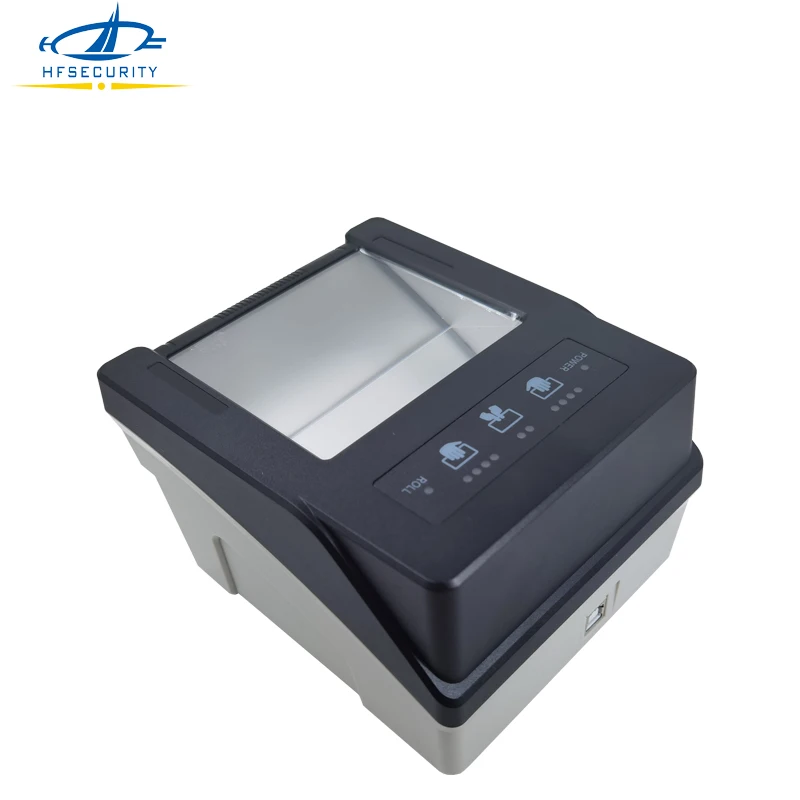

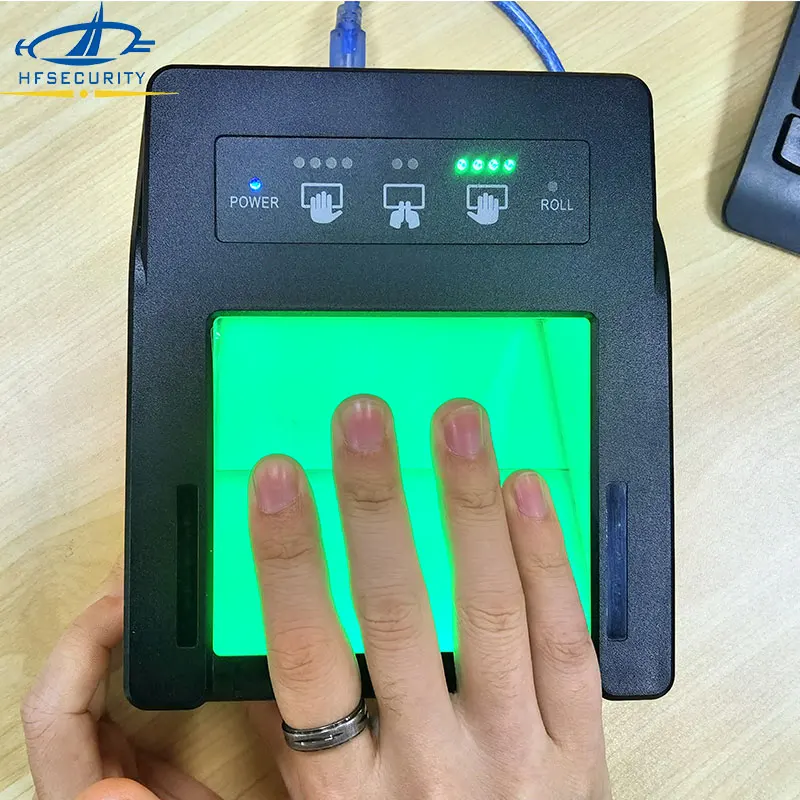

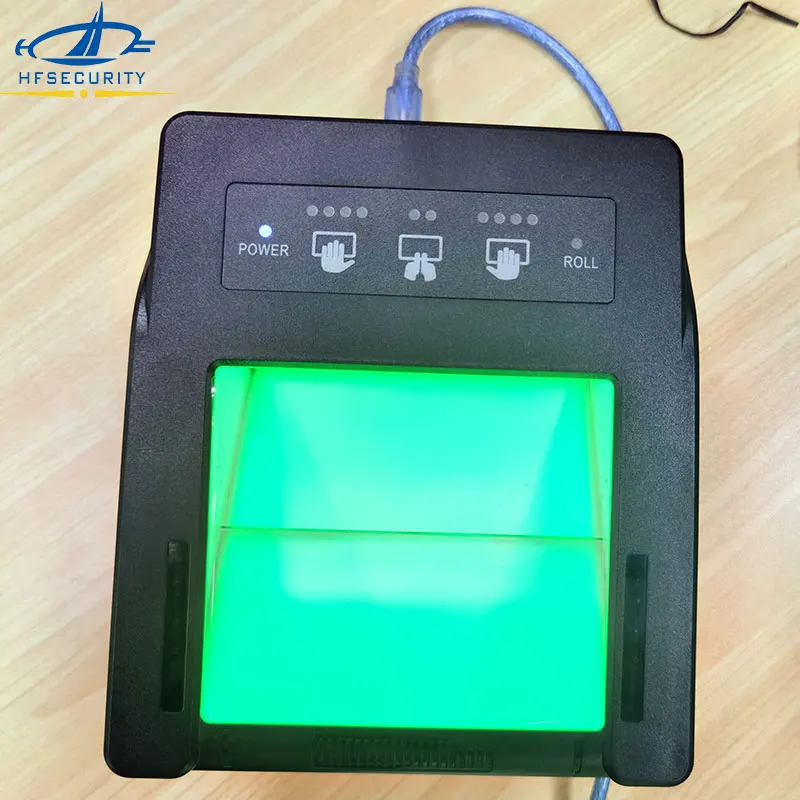

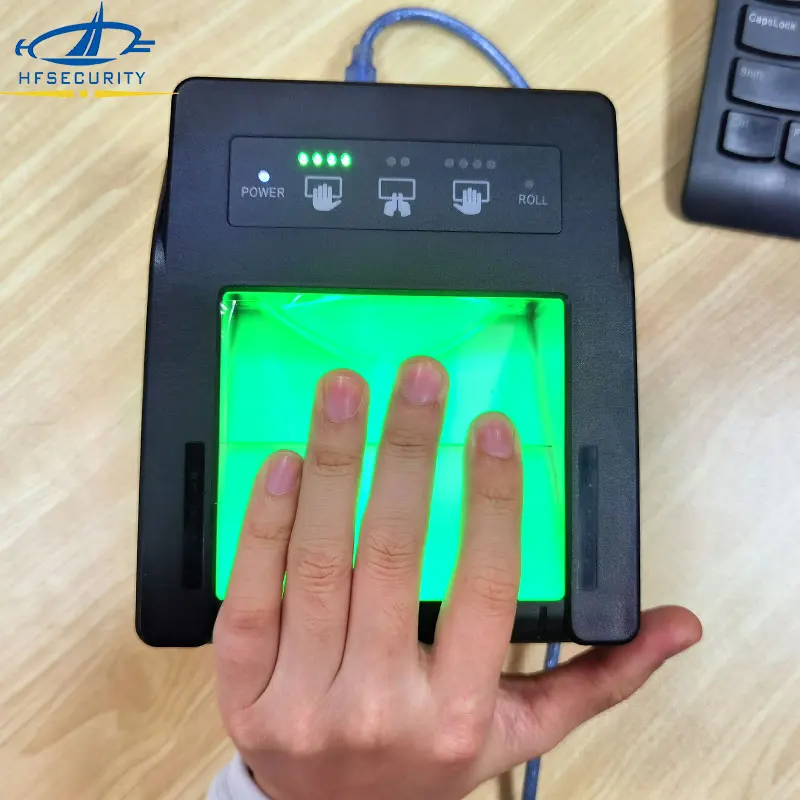

Bio 7 plus NIMC 10 Fingerprint Scanner
HFSecurity Bio7plus is the compact and lightest ten-print scanner fully complaint with FBI’s IAFIS Appendix-F specification which enables the scanner to deliver reliable and superior image quality and make it the optimal capturing device for national ID enrollment or background check. The HFSecurity employs the most advanced optical technology and dedicated special lighting source
plus the enhanced fingerprint identification algorithm that allow the high speed finger capturing and seamless image processing including rolled prints. The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues
plus the enhanced fingerprint identification algorithm that allow the high speed finger capturing and seamless image processing including rolled prints. The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues
Functions
• Slide detection for flat prints capturing
• Supports latent prints and halo elimination
• Automatic device calibration when scanner starts up
• Supports latent prints and halo elimination
• Automatic device calibration when scanner starts up
• Segmentation of slap into discrete single image
• Automatic sequence and image quality checking
• Correct finger position and slap completeness check
• Auto capture functionality to eliminate reprint issues
• Smart indicators for intuitive instructions
Specification
Fingerprint Types | Four finger slaps, two thumbs, single flats/rolls |
Image Size | 3.2” x 3.0” (1600 x 1500 pixels) for slap 1.6” x 1.5” (800 x 750 pixels) for rolled |
Capture Area | 3.6” x 3.2” (92mm x 81mm) |
Image Certification | FBI’s IAFIS IQS Appendix-F |
Resolution | 500 dpi, 256 levels of gray |
Image & Template Format | BMP, WSQ, ISO19794-2/4, ANSI/NIST 378 |
Acquisition Modes | Power, finger position and rolls |
Buzzer | On board programmable buzzer |
MTBF | More than 50,000 hours |
Dimensions | 160mm(L) x 135mm(W) x 90mm(H) |
Weight | 1.2 kg |
Interface | USB 2.0 for data transfer & power supply |
Operating System | Windows,Android |
Software | Scan demo and essential API |
Operating Temperature | 0°C to 50° |
Storage Temperature | -20°C to 60° |
Humidity Range | 10% to 90% non condensing |
Product Paramenters

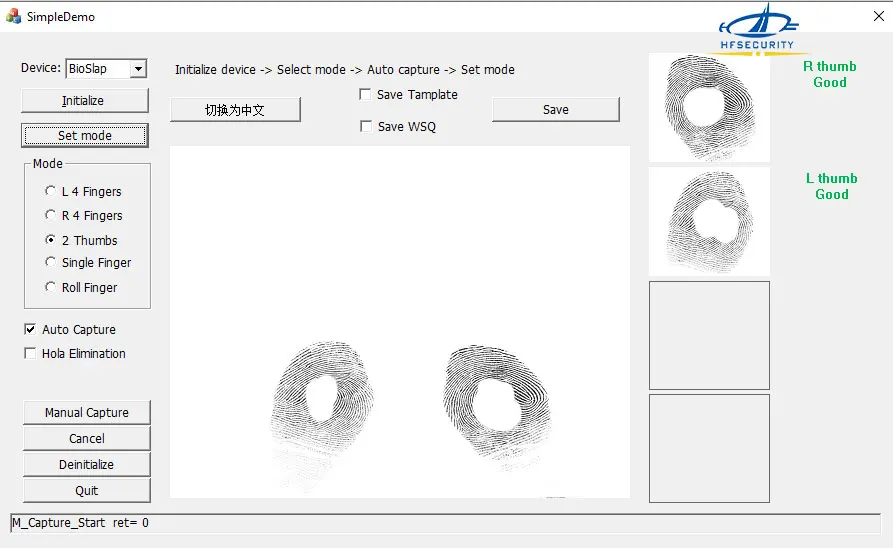

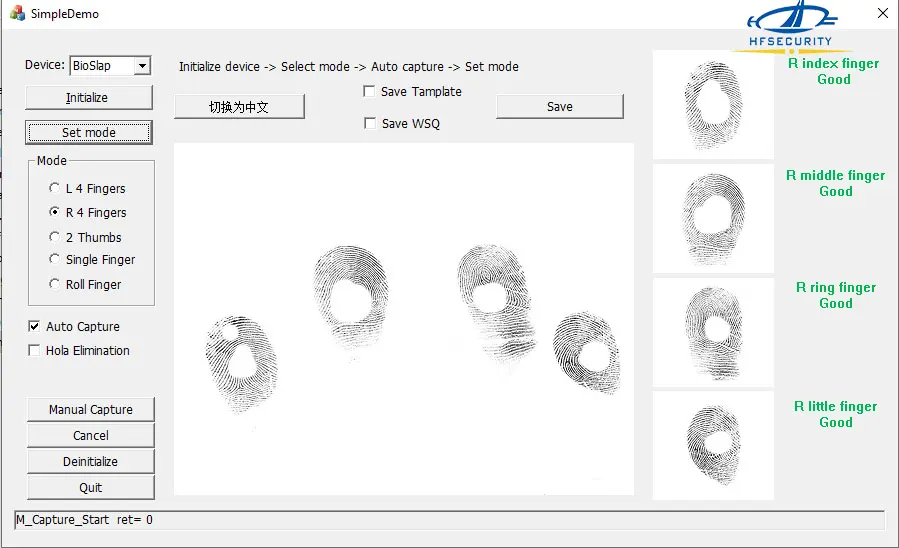

Software
VR
Company Profile

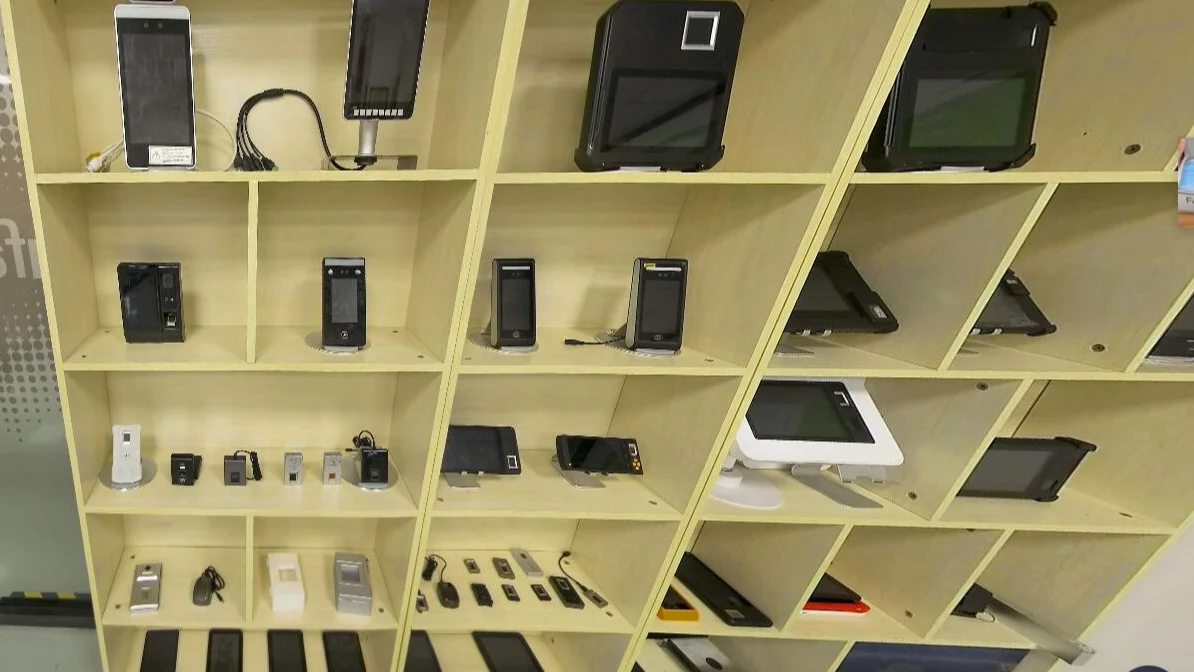

Exhibition
Cerification
F&Q
F: After-sales service?
Q: Yes, we support 7 days 24 hours online after-sales service, 1 year warranty maintenance
F: What is the shipping method?
Q: DHL, UPS, Fedex, professional shipping team, to deliver your parcels to you safely
Q: DHL, UPS, Fedex, professional shipping team, to deliver your parcels to you safely
